T-6 Lubrication machine Tee Block
For dividing main line into three lines of 6mm OD tube.
Application : In Lubrication Machine
Warranty : 1year
Material : Metal
...more
SC-6 1/8 BSP Lubrication Machine Straight Connector
SC-6 1/8 BSP, SC-4T M8x1or1/8 BSP For connecting 6mm & 4mm OD tube at end point of M/C.
Shape : Round
Feature : Durable
Type : Spare Parts
...more
SC-10 T-1-4 BSP Lubrication Machine Straight Connector
Male thread 1/4" BSP (taper thread) for connecting 10mm OD tube.
Material : Metal
Type : Spare Parts
Shape : Round
Feature : Durable
...more

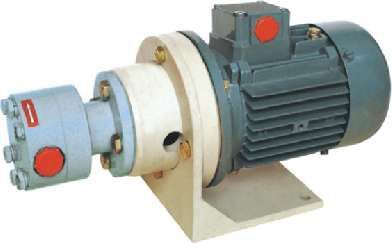

Rotary Pumps
Rotary Pumps (flange or insert type) Reversible/ Non ReversibleRotary pumps are geroter type pumps with positive displacement of oil. Applicable in machines which require low discharge, medium pressure of oil. These pumps are of two types: Reversible and Non-reversible. Non-reversible pumps rotates only in one direction and reversible pumps rotated in either directions. (Clockwise and anticlockwise). Note : These pumps can be supplied with an electric motor also as per requirement. Precation Use relief valve to avoid unnecessary loading of pump. Select size as per the oil capacity required. Applicability Press tools, chemical, textile, pharmaceuticals, packing machines.
Pressure : Up To 12 Kg/ Cm2
Warranty : 1 Year
...more
Progressive Distributor Blocks
Progressive Distributor Blocks of PB-4555 / PB-6080 series are meant for distribution of lubricant delivered by a pump to various lubrication points in sequence-one after another. If any of the lubrication point is blocked the progressive block will stop functioning. With suitable monitoring device, this blockage is sensed and suitable waming is given to avoid running the machine without proper lubrication system. Secondary block can be connected to output of a progressive block for further distribution of the lubricant. These blocks can be used for following kind of Centralised Lubrication Systems : Intermittent Grease Systems Intermittent Oil Systems Recirculating Oil Systems
Material : Metal
Finishing : Polished
...more

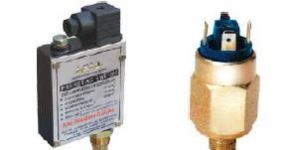

Pressure Switch
Material : Metal
Application : Switching USe
Max. Current : 10-15amps
Max. Voltage : 220V
Specialities : Accuracy, Adjustable
Output : 10-15ma
...more

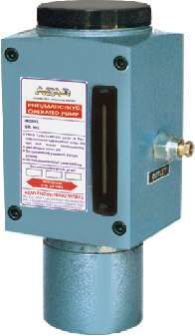

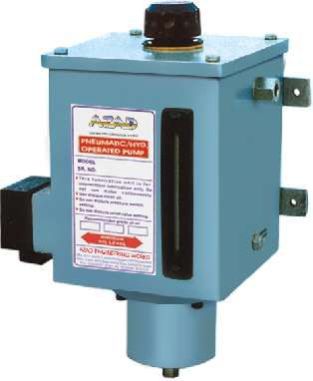

Pneumatic Operated Pumps
These pumps are piston type pump and used for automatic lubrication with the help of hydraulid pneumatic power. These pumps are operated intermittently with the help of direction control valve and timer. Note:These pumps can be operated hydraulically also. Plaese consult for such application.
Type : Hydraulic
Driven Type : Pneumatic
Pressure : 10-20Bar
Warranty : 1yr
Pipe Size : 1Inch
Flow Rating : 0-500LPM
...more
pneumatic grease pumps
The pneumatic grease pump is suitable for dispensing of grease & automatic feeding of grease to bearing and other moving parts of machines. This pump is suitable for grease upto NLG-2. Pneumatic grease pump are operated through pneumatic line, connected to the ports of pneumatic cylinder. The cylinder is built in with the pump housing. During on period of the pneumatic line a piston inside the cylinder is pushed ejecting out grease from the outlet port of the pump housing. During the reverse flow of pneumatic line grease is sucked through the suction port. In the pump spring force through follower plate exerted on the top surface of the grease make the suction of the grease positive & easier. Pn. pump is available in adjustable discharge & multiport with adjustable discharge in each port. Note: Discharge & reservoir of pump is available as per customer requirement.
Application : Grease Supply
Weight : 100-150kg
Driven Type : Pneumatic
Pressure : 0-10Bar
Warranty : 1yr
Pipe Size : 1.5Inch
Flow Rating : 0-500LPM
...more
Plunger Pumps
Plunger pump is a compact pump that gives metered amount of lubricant in every stroke. We can adjust the discharge by adjusting screw. Output can very from 0.05cc to 0.25cc/stroke & delivery pressure 200 Kg/cm' max. The stroke of the plunger remains always same. The mounting threads of the plunger is M22x1.5 Plunger pump is also available in 0.50cc/stroke, 0.70cc/stroke & 1.6cc/stroke (non adjustable).
Power : Electric
Pressure : High Pressure,3-400 Kg/Sq. Cm.
Warranty : 1year
Application : Industrial
Material : Stainless Steel 304
...more
P-8 & P-10 Lubrication Machine Plugs
Thread M8x1, M10x1 for closing the etra point & end port of manifold.
Application : In Lubrication Machine
Warranty : 1year
Material : Metal
...more

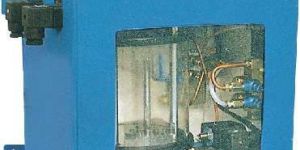

oil mist lubricator
Mist lubrication unit is designed to meet the requirement where oil is supplied in the form of fog/ mist. It is basically pneumatically operated. It is available both in intermittent/ continous discharge, through pneumatic pump, oil come in atomizer with the help of progressive block/ metering cartridge/ control valve and with air from the solenoid valve, we get the mist lubrication. Air is controlled by ON/OFF Solenoid valve. ApplicabilityConveyors, sliding chains, textile machines, stripes, spindles, shearing machines etc.
Warranty : 1 Year
Capacity : 500cc
...more

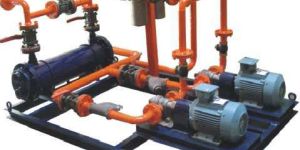

Oil circulating system
ApplicationAzad Engg. has developed oil circulating system (O.C.S.) Which is best suited for paper industry, steel plant, sugar plant. etc.ConstrucrionIn O.C.S. we use the gear pump/ screw pump discharge up to 500 LPM driven by electric motor. Pump is connected with reservoir. Reservoir up to 500 LPM driven by electric motor. Pump is connected with reservoir. Reservoir capacity is depend on pump discharge. in line filter, cooler and other control with the gauge filted by standard tubing and fiting on strip.WorkingIn O.C.S. oil is sucked from reservoir with the help of pump and ejected on lubrication point Through filter and cooler, Oil is returned in the reservoir by retuming line. Before pushing the oil again it should be clean with normal temperature.
Voltage : 220 V
Automation Grade : Automatic
...more

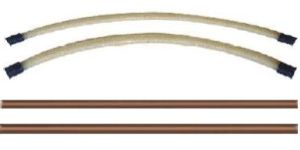

Nylon & Steel Tubes
Material : Nylon
Shape : Round
Thickness : 20-30mm
Finishing : Polished
Feature : Corrosion Proof, Excellent Quality
...more
multi point radial lubricator
Multiline radial lubricator is best suited for machine /plant where lubrication is required with high pressure continuously / intermittently for individual point. This lubricator are used for machine / plant like rolling mill, sugar plant, cement plant, rubber mixing machine, forging hammer, stone crusher, spong iron plant etc. This lubricator comprise of a single pumping station having a number of plunger pump placed radically and fitted on to the outer periphery of the housing. Each plunger unit is given a reciprocating motion with the help of a cam. The cam rotates with the help of an electric motor and speed reduction gear box. The dose per plunger pump / cycle is 0.05 to 0.25cc (adjustable) with maximum pressure 200 Kg/cm2. These all plunger pump are connected to the lubrication point directly / progressive block by mean of tube, rubber hose, compression type fitting, clamping etc. Grease filling in the reservoir with the help of other pump. %" BSP port is provided on reservoir. • Always use proper & clean lubricants. Avoid foreign particles in the pump. • Always fill the lubricants before it is empty to avoid air in the pump. • Should always careful with regular maintenance of plungers and reservoir for its long life. Note: (LX) Transparent Reservoir Reservoir Capacity Provided as per customer Requirement.
Warranty : 1 Year
Capacity : 500cc
Air Regulator : 2 kgs
...more

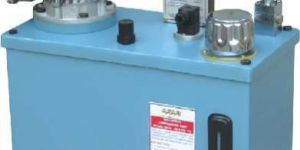

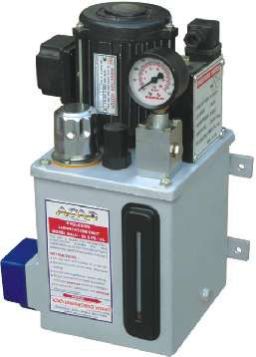

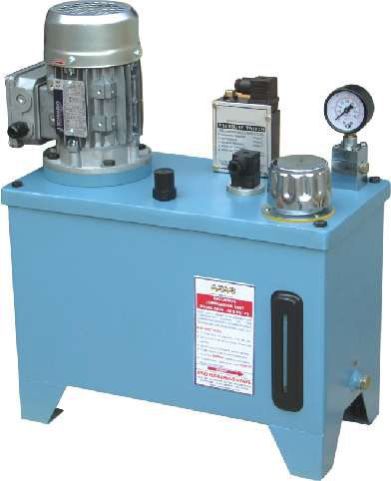

Motorised Lubrication System
Single shot motorised lubrication system is an efficient and safe method in which required amount of oil is delivered to various lubrication point of a machine from one central source. It is a total loss system and does not require any return line for collection of oil. These motorised lubrication units are to be run intermittently by the use of ON/OFF TIMER and CONTROLLERS. ApplicabilityMachine tools, Textile machines, Die casting machines, Shearing and press brakes, Rubber mixing machines, Printing machines, Presses and hammer, harmaceuticals, food processing equipment etc.
Color : Grey and Blue
Power : 220 V
...more

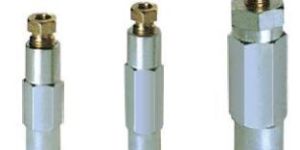

metering valves
These are metering valves where stroke of piston determine the amount of oil to be ejected. The cartridges operate as soon as pressure build up in lubrication line. When the pump is off and the pressure in the lubrication line drops, cartridge get recharged. Small time gap is allowed between the subsequent operations of the pump for proper recharging of the metering cartridges.
Pressure : High Pressure
...more

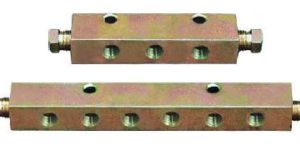

Metering Cartridge
Manifold (for metering catridge)Manifold are required for mounting of oil distributers. These having two pods of 6mm OD tube and few side outlets. Oil distributors are screwed directly on side outlets of manifolds.
Material : Metal
Finishing : Polished
...more
Manual Grease Pump
This pump meant for feeding grease to bearing & other moving part of machines & other lightly machines having 1-20 lubrication point. On pulling the handle of pump, grease are sucked through suction port. On pushing handle of pump grease comes out under pressure through check value spring, pressure through follow plate exerted over the top surface of the grease further helps to push the grease in suction port. Grease can be filled in to the reservoir either by opening top lead or through the grease gun port provided at the side of the body. Pump is made up of purely transparent acrylic reservoir for storage of grease. For sensing the Grease a tall tale rod is used and follower plate assembly help in positive suction of grease. It contains two outlet part of 1/4" Bsp right and left side in which one is plugged and used as Air Bleeding Valve .To check reverse flow of grease, a non return valve is put in the system at the outlet port. Pump is fitted with a needle valve. When line is filled up, the needle valve is opened in order to relieve pressure of the lubrication line. Grease can be filled manually and with another pump for which %"BSP port is provided. Manually, we have to remove follower plate, spring and top cover and fill the grease from the top of the reservoir and to fit all the components by pressure. Note : we are also manufactured special pump as per customer requirement.
Type : Manual
Application : Industrial
...more
Lubrication Machine Banjo
MAle thread M10 x1 (For 6mm OD Tubes) Used for right angle connection from pump and manifold.
Application : in Lubrication Machine
Warranty : 1year
Material : Metal
...more
LS-4 Lubrication Machine Locking Screw
LS-4 , LS-6 & LS-10 Locking Screw of 4mm. OD tube, 6mm. OD Tube & 10mm. OD tube.
Color : golden
...more

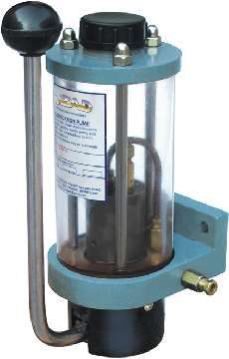

hand operated pumps
Manually operated pump based on spring return piston type. The oil is injected to the lubrication points by these pumps under pressure. These pumps are provided with check valve at suction and relief valve to safeguard the pump from overloading. ApplicabilityMixing machines, small power presses machines, milling machines, looms surface grinder pouch filling machines etc.
Weight : 10-20kg
Warranty : 1year
Driven : Electric
Capacity : 12 Ltrs Approx
Weight : 8-12 Kgs
...more
Float Switch
Material : Metal
Voltage : 200VDC
Flexible Rubberised Hose
Material : Mild Steel, Rubber
Diameter : 10-20mm
Shape : Round
Color : Black
...more
Electronic Timers
The Electronic Timer are used for automatic controlling of lubrication systems. There are different models used for different applications. Following models are under our regular production. These are used in the lubrication systems where pressure switch/ float switch are provided for sensing the pressure load and low oil level. In the controllers signals for Pressure & Low oil level sensing are provided. ON time is 5 sec. Fixed and OFF Time is 2 to 240 min. Adjustable.
...more
Installation Services
Owing to our industry know-how and technical expertise, we are involved in offering installation services for a variety of industrial systems, pumps, switches, etc. Since inception in 1985, we have been able to maintain a team of astute professionals, who are highly experienced and hold expertise at their respective work profiles. We ensure that the provided solutions adhere to the set industry norms. All you need is to just dial our numbers to avail the benefits of our installation services. We are based in Meerut (Uttar Pradesh, India), feel free to contact us anytime. Range : SUGAR PLANT CEMENT PLANT Paper PLANT Iron PLANT Steel PLANT
...more
