G. S. Electronics Pvt. Ltd. Phase 8, Mohali, Punjab

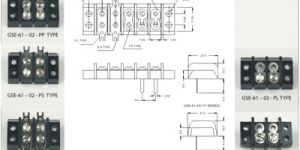

Material Body : Phenolic. Contacts : Brass (Solderable contacts are Nickel, Nickel+Tin Plated)   Current Rating : 10 Amps, 250 Volts AC Insulation Resistance : > 3 x 103  Mohms at 500V DC Flashover Voltage : >2 KV AC           SPECIFICATIONS   GSE-61 : XX-YY : Taper Base Series XX-No of Ways GSE-62 : XX-YY : Straight Base Series YY-Type of Contact     YY :   PP-Plain, Plain   PL-Plain, Back Feed   PS-Plain, Solder   SS-Solder, Solder

Color : Black

Feature : Easy To Connect

Voltage : 220 V

Condition : New

Packaging Type : Box

material : body : phenolic screw cap : plastic contacts : brass (nickel plated)   current rating : 30 amps for gse-66-xx                               60 amps for gse-67-xx         insulation resistance : > 133 x 103 mohms at 500v dc between all terminals shorted & body                                     > 1.1 x 103  mohms at 500v dc between terminals flashover voltage        : > 2kv ac specifications item code description gse-66-xx 30 amps series gse-67-xx 60 amps series .

PCB FUSE TAGS : Material : Brass (Nickel + Tin Plating) Current Rating : 10 Amps, 250 Volts AC         ITEM CODE DESCRIPTION GSE-53 For 20mm x 5mm Fuse GSE-54 For 32mm x 6.3mm Fuse

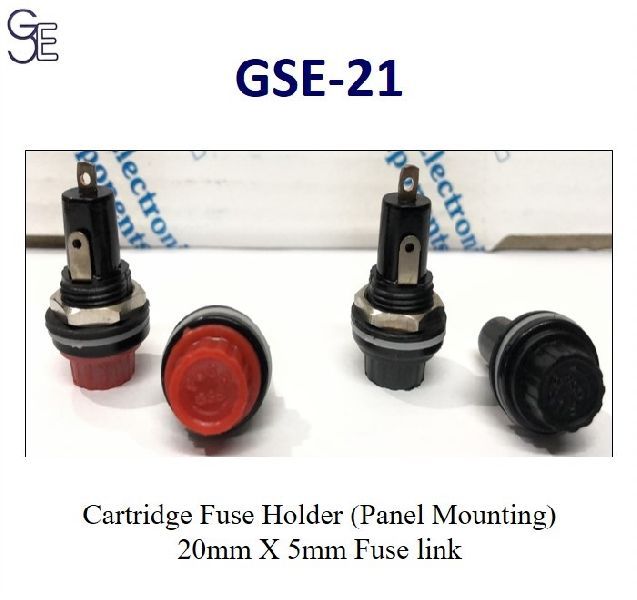

Material Cap. : ABS/Phenolic. Black & Red Body : Phenolic, Black Contacts : Brass (Nickel, NIckel + Tin Plated)   Current Rating : 10 Amps, 250 Volts AC Insulation Resistance : > 20 x 103 Mohm at 500V DC Flashover Voltage : >2 KV AC       Item Code Description GSE-21 Cap. ABS, Black & Red, Body : Phenolic Black GSE-22 Cap : Phenolic Black, Body: Phenolic Black GSE-23 Cap : Phenolic Red, Body : Phenolic Black

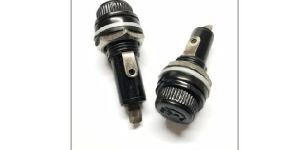

Panel Mounting Fuse Holders

Material Base : Phenolic. Contacts : Brass (Nickel + Tin Plated)   Current Rating : 10 Amps, 250 Volts AC Insulation Resistance : > 55 x 103 Mohm at 500V DC Flashover Voltage : >2 KV AC           Item Code Description GSE-01 Single Fuse Holder for 20mm x 5mm Fuse GSE-02 Single Fuse Holder PCB Mounting for 20mm x 5mm fuse GSE-03 Single Fuse Holder for 32mm x 6.3mm Fuse GSE-04 Single Fuse Holder with thick base for 32mm x 6.3mm Fuse GSE-11 Double Fuse Holder for 32mm x 6.3mm Fuse GSE-12 Double Fuse Holder with thick base for 32mm x 6.3mm Fuse
