Wire Damaged Tester
This equipment is designed and manufactured according to corresponding regulation in standard IEC884-1, GB299.1-96, GB16915.1-97 and other electronic accessories relevant standard. Mainly used to test damage degree of fixed connection components lead wire of with thread clamping type and no screw terminals, so as to inspect whether it can withstand mechanical stress during normal use.
...more
Waterproof Test
JL-X waterproof test system is according to IEC60529, IEC60598, IEC60335 and IEC 60034-5:2000. The JL-X includes the following test grades: IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, IPX7 and IPX8 (Refer to page 51 of IEC60529). It is widely used in the authentication test organization for the products such as electrical & electronic products such as LED luminaires as well as in the relevant quality control department for the waterproof detection of the enclosures protection grades. The whole JL-X waterproof test system includes: • Drip Box (JL-12): The drip box is for IPX1 and IPX2 drip test. The drip box size is 800x800x75mm (LxWxH). The diameter of drip hole is 0.4mm, distant of drip hole is 20mm, sample can be over 150kg • Swing Pipe Water Spray Test Equipment (JL-34): It is for IPX3 and IPX4 test, the semi-diameter of swing pipe is 1meter. IPX3 is 120degree and IPX4 is 180degree. The diameter of inside swing pipe is 0.4mm. The automatic sample rotating base diameter is 600mm and speed is 1~5rpm which controlled by PLC panel • Waterproof Jet Test Device (JL-56): With water supply device size is 1000x1000x600mm, the bore diameter is ф6.3mm (IPX5) and ф12.5mm (IPX6). Diameter of hole is 6.3mm for IPX5 and 12.5mm for IPX6. The water speed is 12.5±0.626Lmin for IPX55 and 100±5Lmin for IPX6 • Immersion tank Waterproof test Device (JL-7): It is for IPX7 test. The top of the water tank size is 1000x1000x1200mm. The sample testing base is max 120kg. It includes two temperature channels meter and digital display. • Immersion tank Waterproof test Device (JL-8): It is for IPX8 test. It can measure 0~50m water depth. The water immersion size is diameter is 600mm and height is 1200mm. The compressive stress is 10 atmospheric pressures or design customer request.
...more

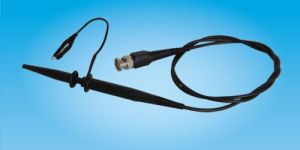

Voltage Probe
• EMI Receiver equipped with voltage probe can test disturbance voltage from load terminals or control terminals.
...more

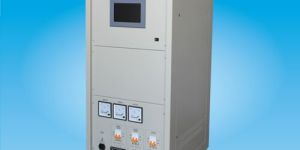

Interruptions Generator
The voltage dip and interruptions generator is specially designed according to the characteristics and requirements of EMS measurement under a sudden reduction or interruption of the voltage at a point, CSS61000-11 CSS61000-11T used a big LCD in both English and Chinese operating interface. They have more fine performance such as high reliability, convenient operation, and full meet the standard requirements of IEC 61000-4-11, EN 61000-4-11 and GBT17626.11
...more

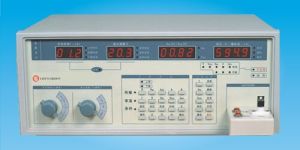

Transistors Thermal Sensitive Parameter Selecto
Parameter measured under normal temperature: 1) β(0-99) 2) Switching time T(0.01μs-99.9μs),including Tr, Ts, Tf 3) VCES(0-2V),VBE(0-2V) 4) Leakage current ICEO(0.01μA-99.9mA) 5) Withstand voltage BVCEO(50V-650V) • Parameter measured under high temperature: VBE, β, ICEO • Compare the measuring results VBE, β, ICEO gotten under normal and high temperature, to those changes exceeding the preset limits, the selector alarms to let operator to pick them out • Divide T and β into several groups, selector can display group number and alarm when measured values of VBE, β, ICEO exceed the limit, indicating the unqualified item • Freely adjusting or setting test conditions according to requirement A. β testing: Ib; three different Ib current: 0.1mA、1mA、10mA B. Switching time test: Ic; 4 different Ic current: 0.5A、0.25A、0.1A、0.05A; the corresponding current Ib: 0.1A、0.05A、0.02A、0.01A C. Heating condition for transistor: 1) Heating voltage: 5 ~ 20V Continuously adjustable 2) Heating current: 0.05 ~ 2A Continuously adjustable 3) Heating time: 0 ~ 9.9s Continuously adjustable • Dividing value and limit value, freely set and automatically saving to any power cut; the instrument can save 20 different settings, choose one setting when using it. • Measured values displayed in four windows which are easily read and printable.
...more
Transistors Multi-Functional Selector
Measure parameters: 1) β(0~99) 2) Switching time T (0.01μs~99.9μs), including Tr, Ts, Tf 3) VCES (0~2V), VBE (0~2V) 4) Leakage current ICEO (0.1μA~3mA) 5) Withstand voltage BVCEO (50V~650V) • Pre-set grouping values for T & β, selector can display group number and alarm when being measured. Values of VCES, VBE, ICEO and BVCEO exceed the limit, meanwhile indicating the unqualified item • Freely adjust or set the testing conditions according to requirement. 1) Three different Ib currents for β test: 0.1mA, 1mA, 10mA. 2) Four different Ic currents for switching time test: 0.5A, 0.25A, 0.1A, 0.05A; The corresponding currents Ib : 0.1A, 0.05A, 0.02A, 0.01A. 3) Test voltage for leakage current ICEO: 50~650V continuously adjustable • Can freely set the grouping values and limit values, with automatically saving function in case of power cut; the instrument can save 20 different settings, choose one setting when using it • 4 windows for displaying measured values, which can be easy to read and printable
...more

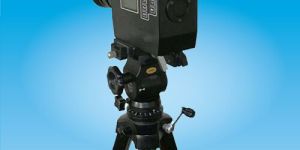

Transient Photometer
The Luminous flux, illuminance and Brightness are the most basic physical quantity in photometric test. PH3000 Transit Photometer is developed base on rapid sampling techniques. It applied with 12 Bytes, the maximum sampling rate of 10M Hz high-speed A D which can be achieved rapidly high speed measurement of varying light photometric parameters. Combined with computer can record the sampled waveform. The PH3000 also can used as normal illuminance meter, it can measuring luminous flux, brightness, illuminance and photometric parameters.
...more

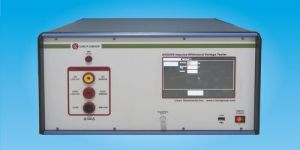

Transient Over-voltages Tester
The SUG335 is a 1.250μs surge voltage tester, with the virtual front time of 1.2ms and a virtual time to half-value of 50ms. The standard voltage waveform complies with the IEC 60335, IEC 62052-11:2003, IEC 61008-1:1996, IEC 61009-1:1996 and IEC 60947-1:1995, IEC60060, IEC1036 surge voltage test and has been used for safety testing to determine if the clearance was fulfilled the safety requirement while the transient voltage in the circuit.
...more
Tracking Test Chamber
It is according to IEC60695 and IEC60112 (GB4207), the Tracking Test Chamber TTC-1 is intended for determining the degree of protection against formation of conducting paths in solid insulating materials, due to the electric stress and electrolytic contamination of the surface. This method simulates tracking currents on insulation material by providing drops between electrodes. During the process of normal use, insulating material may be exposed to moisture and dirt, if conductive, may cause stress and fire hazard.
...more

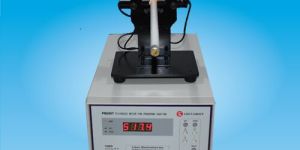

Thickness Meter for Phosphor Coating
PM200T is applicable for the manufacturers of fluorescent lamp. During the procedure of powdering tube, PM200T solves the problem efficiently how to control the phosphor thickness and uniformly of the tube. It becomes the important tool to reach best lumen output and save the phosphor. • Measure the relative phosphor thickness • Filament lamp • Auto range switch • Low zero drift, high accurancy
...more

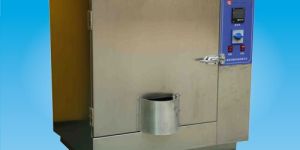

Thermally Protected Ballast Heating Test Chamber
TPB series thermally protected ballast heating test chamber is stimulate high temperature environmental in the nature, it’s designed to the adaptive test electronics and electric parts for temperature. Meet GB19510.1-2009IEC61347-1:2012 D Part and UL935.
...more
LED Spectroradiometeric System
Thermal parameter is the key index to evaluate the quality of LED. Different temperature will have significant different effects on optical parameters, color parameters, electricity parameters and life of LED. Therefore, design and control of the thermal dissipation are the most important thing for the manufacturers and users. Referring to the relative international standard, TRS-1000 could conduct integration testing on optic, color, electricity and thermal, meanwhile record the changing curve of the parameters at real time.
...more

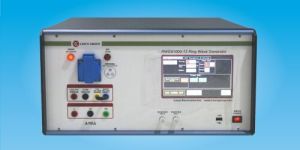

Surge Generator
Automatic lightning surge generator (or Lightning surge immunity) SG61000-5 is used to assess the power cord and connect the internal switch stood in line to connect the internal switch to provide a common basis for switching the natural world and lightning caused by the high-energy transient interference performance. Performance fully meets the IEC 61000-4-5, EN61000-4-5 and GBT17626.5 standards.
...more
Sulfur Dioxide Test Machine
This instrument is designed according to GBT2423.19-1981, GBT2423.33-2005, ISO6988(replaced DIN50018:1988-06), DIN50900, DIN53210 and EC, MIL, ASTM etc to do sulfur dioxide gas corrosion test. Model Work Room Size (mm) Exterior Size (mm) Voltage Power (KW) SQ-150 450X600X400 800x1070x1050 AC220 2.5 SQ-250 600x900x500 870x1400x1150 AC220 3 SQ-750 750x1100x500 1030x1680x1260 AC220 4 SQ-010 850x1300x600 1160x2000x1390 AC380 6 SQ-016 850x1600x600 1280x2320x1500 AC380 7.5 SQ-020 900x2000x600 1220x2530x1410 AC380 9
...more

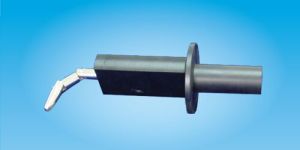

Standard Test Finger
It with Protection against electric shock device. It according to IEC60335, IEC60884, IEC61032, IEC60529, IEC60065, IEC60035, IEC60950, EN60529, EN60950, GB4706, GB7000, GB9706, UL507, VDE0470, etc.
...more

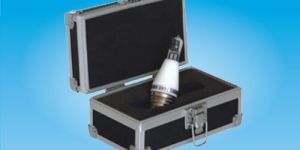

Standard Light Source
OSRAM Standard Lamp to calibrate the spectrum and luminous flux with Lisun Lab certification. The data can be traced NIM. The Standard Lamp Source is used to calibrate the integrating sphere system. The different size of Integrating Sphere should choose the right power of standard lamp source.
...more
Spring Impact Hammer IK Level Tester
The most of luminaires manufactory were request to do IK level test (Impact Protection), LISUN can supply the IK test instrument. IK ratings are defined as IKXX, where “XX” is a number from 00 to 10 indicating the degrees of protection provided by enclosures (including luminaires) against external mechanical impacts. The different IK ratings relate to the ability of an enclosure to resist impact energy levels measured in joules (J). IEC 62262 specifies how the enclosure must be mounted for testing, the atmospheric conditions required, the quantity and distribution of the test impacts and the impact hammer to be used for each level of IK rating. The IK test applicate on lighting luminaires test according to IEC60598 (GB7000) and IEC60068-2-75 (GB2423.55)
...more

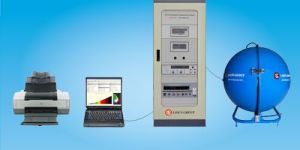

Integrating Sphere Test System
This Test System is suitable for photometric and colorimetric measurement of luminaries such as Energy-saving lamps, Fluorescent lamps, HID lamps (high voltage sodium lamps and high voltage mercury lamps), CCFL and LED. The measured data meets the requirements of CIE and IES LM-79 for the measurement of photometry and colorimetry.
...more

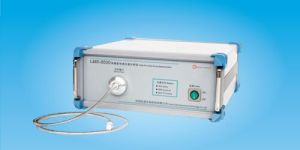

Scientific Grade CCD Spectroradiometer
LMS-8500 Scientific Grade CCD Spectroradiometer fully meets Energy Star IESNA LM-79 and GBT 24824 standards etc. It is test for CFL, HID, Promise Light, Tungsten Halogen Lamps, which can reach the scientific grade measurement accuracy. LMS-8500 is composed of Concave Average Diffraction Grating and Scientific Grade CCD, and uses unique stray light control technology, wide dynamic linear technology, precision CCD electronic drive technology and complex matrix software technology, the instrument can be traceable to the Chinese National Institute of Metrology(NIM) and the USA NIST transfer standards. LMS-8500 can work with LSG-1800LSG-1700LSG-1600 series Goniophotometer, to test special CCT Distribution and other Spectral color parameters.
...more

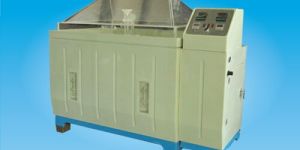

Salt Spray Test Machine
The Salt Spray Test MachineChamber is applicable to the salt spray corrosive test for the protection layer of components, parts, electronic and electrical parts and metal materials and industrial products.
...more

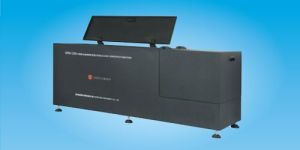

Rotation Luminaire Goniospectroradiometer
LSG-1800CCDLSG-1700CCDLSG-1600CCD Goniospectroradiometer is an automatic goniophotometric instrument for luminous intensity distribution measurements with facility for turning the light source. The LSG-1800CCD can do the spatial CCT test when do the intensity distribution test. It is for industrial laboratory measurements the photometric data of luminaires such as LED luminaries, HID lamps, fluorescent lamps and so on.
...more

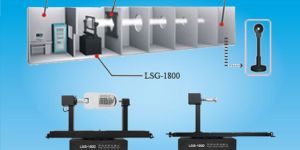

Rotation Luminaire Goniophotometer
LSG-1800LSG-1700LSG-1600 Goniophotometer is high precision automatic goniophotometric instrument for luminous intensity distribution measurements with facility for turning the light source. The LSG-1800 is an update version for LSG-1800, the LSG-1800 use a high accuracy Motor and precision angle coder which keeps high test accuracy. It is for industrial laboratory measurements the photometric data of luminaries such as LED luminaries, HID lamps, fluorescent lamps and so on. LSG1800B High Precision Rotation Luminaire Goniophotometer
...more

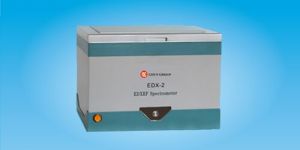

EDXRF RoHS Testing Equipment
Buy Rohs Testing Equipment from India. Rohs Testing Equipment suppliers.Find Quality Rohs Testing Equipment Rapid development of global economy brings serious environmental issues, which is becoming the focus of all around the world. The RoHS directive EU announced on Feb 13th of 2003 became effective on Jul 1st of 2007 for the purchase of restricting the pollution caused by the dispose of electronic and electrical products. Facing this environmental protection requirement, after years of hard work on R&D, Lisun has successfully developed EDX serious EDXRF spectrometer. EDXRF can detect and measure the hazardous substances restricted in RoHS directive quickly, precisely and nondestructively.
...more
Ring Wave Generator
Ring Wave Generator is the test equipment in conformity to IEC (the International Electro technical Commission) standard IEC61000-4-12, EN61000-4-12, ANSI-C62-41 and GBT17626.12. This instrument is used for the simulative electrical network, the power supply of the reactive load and the control line switch, as well as sensing the ring wave of the low voltage cables terminal equipment caused by the disconnection of the power circuit, fault and insulation breakdown or lightning stroke. The RWG61000-12 series products have LCD display in both English and Chinese.
...more
