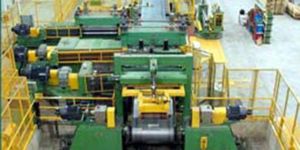

SLITTING LINESA Slitting Line is used to break down master coils into smaller coils of a particular width. We offer highly efficient slitting lines for Hot Rolled and Cold Rolled ferrous strips as well as non-ferrous strips. These lines can be custom designed on the basis of production capacity, high quality of slit product, automation level, flexibility of operations and budget of the clients. Incorporating latest technology, our slitting lines provide rapid change over with an increased output. The lines are capable of producing superior quality of the slit coils with significantly higher levels of productivity. The capacity of the line ranges from 300mm to 2000mm (width) and 0.10mm to 10.0mm (thickness) in strips.

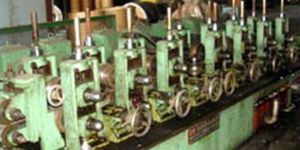

TUBE AND PIPE MILLSWe manufacture quality Tube and Pipe Mills in different design specifications with precision. These mills have servo cut system for automatic tube that provide greater accuracy in cut length to reduce the wastage. Better control is achieved by using DC or AC digital drives. Our range of Tube and Pipe Mills are available in low and high speed options based on the requirement of the clients.range of Tube and Pipe Mills are available in low and high speed options based on the requirement of the clients.

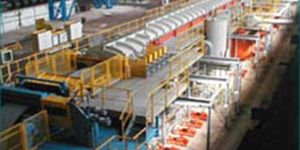

PICKLING LINESOur range of Pickling lines are characterized by high pickling rates, low-cost pickling operations and flexible production capability. The different pickling technologies include Push-Pull, Semi-Continuous and Continuous Pickling Lines. Push-Pull Pickling LinesPush-Pull Pickling Line are used for individual processing, thus removing the need for joining strip. These push pull pickling line provides excellent operational flexibility with the ease for frequently changing strip dimensions and steel grades. As there is no accumulator in the line, this technology is the most cost-effective method for medium volume of production. Push-Pull Pickling Line can process strips between 1.0mm to 6.0mm thick and 200mm to 2000mm wide. Semi-Continuous & Continuous Pickling Lineprecisionengggroups.com Semi-Continuous & Continuous Pickling Line is used for high volume production withcontinuous operation by welding/stitching. The accumulators provided at the entry and exit that ensures a consistent flow in process during the joining and removal of coils at the recoiler end. In the continuous pickling line the process runs at constant speed, while in the noncontinuous line the speed of the process is reduced during the changeover or coil jointing due to small capacity accumulators. The installation Semi-Continuous & Continuous Pickling Line are highly cost-effective

Material : Mild Steel

Frequency : 50-60 Hz

Phase : 3 Phase

Voltage : 220-240 V

Power Source : Electric

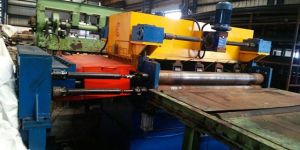

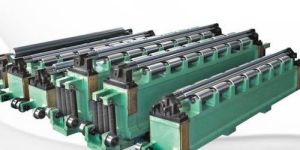

Levelling UnitsOur Tension Levelling Lines are designed to provide excellent sheet metal flatness required for high quality applications in different industries. The material is run through a entry and exit set of bridle rolls, with the corrective leveler in between. The strip is under great tension with a slight elongation above the yield point of the material, and simultaneously leveled. The material is uniformly levelled and relieved of most internal stresses.

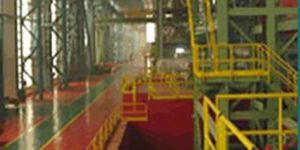

GALVANIZING LINESWe manufacture automatic hot dip galvanizing line with accurate control over galvanizing thickness through most efficient air knives (manual/automatic)coat control system. The hot dip galvanizing line consists of an acid bath, an annealing furnace and the galvanizing line itself. It is used for processing sheets of hot rolled or cold rolled or hard quality. We offer cost-effective customization to meet the customer's specific application needs and budget.

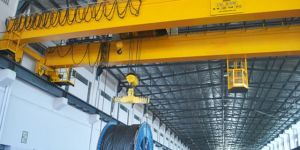

E.O.T CRANESOur EOT Cranes are designed for high speed operation to give increased productivity. The features of of the cranes are as follows: Coulmn :The main coulmns of the cranes are fabricated from tested plates that are duly machined and welded with the best electrodes i.e. Essab/advani. All the point of junctures are carefully inspected to detect cracks, unwelded surface, uneven joints etc. The latest welding equipment and profile cutting machines are used to ensure a flawless fabrication job. Driver System :We use slippering type electric motor with class B insulation of reputed brands including KIRLOSKER/CROMPTON/ GEC. An accurate control over the functioning of the crane is achieved by using quality brakes tested for its performance. The driver systems are provided with double safety feature by way of emergency control switch that works in case of brake fail to prevent any mishap.

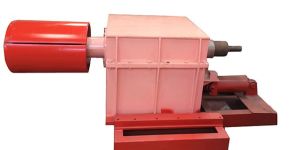

DECOILERSWe offer most affordable decoiling solutions for use in continuous process lines like sintering lines, babbitt lines, de-greasing lines and pickling lines. These machines facilitate quick and safe loading of the coil to the mandrel. One coil remains loaded as standby as soon as the running coil is finished, the fresh coil is automatically loaded to the line. This enhances the efficiency and increases the overall production. The range of our decoilers have a welded steel construction with a dynamically balanced base for smooth operation. The duplex head is mounted on the two taper roller bearing to make indexing frictionless. Drums are expandable and each section has two guards to prevent coils to flare up.

CUT TO LENGTH LINESCut-to-length lines, takes flat rolled steel or coiled steel, unrolls it, levels and cuts it to desired length sheet. Our wide range of Cut-to-Length Lines can be used for processing both ferrous and non-ferrous material. These lines are available in varied specifications with width range of 450mm to 1500mm and thickness range of 0.12mm to 10.0mm. Industry Lines : Industry line is suitable for high quality requirements of automotive and white goods Industry. In these lines, a constant loop speed is maintained that pushes the material in the loop. A low inertia Feed Roll pulls the material out of the loop at high speed and stops at the exact required length, ensuring accurate cut lengths. These lines provide length accuracy of ?0.05mm and diagonal accuracy of ?0.5mm can be achieved, depending on the selection of electrical controls. The Industry Line can cut sheets at the rate upto 40 cuts/minute and speeds upto 80mpm.

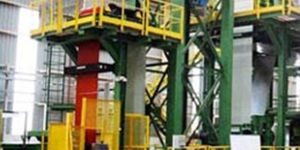

COLOR COATING LINESOur range of color coating lines stand for reliable operation, high throughput rates and top product quality. The lines can be simple, semi-continuous type with infrared ovens to high-speed continuous lines with a standard catenary and "floater-type" convection oven. These line can also be engineered to electrical element heated type. It offers highest degree of flexibility for changing steel strip grades, different coating compositions, colors as well as strip dimension depending upon the application of the product. We can also design color coating lines for water or solvent based liquids (Alkyds, acrylics, epoxies, organosols, plasterols, phenolics, polyesters, polyurethane, vinyl, PVDF/PVDF-2) for different strip thickness. Our machines help our clients to achieve excellent coating and have a competitive edge particularly in the automotive and household appliances market.

We specialize in manufacturing high quality 4Hi/6Hi Cold Rolling Mills in different dimensional specifications. Using latest technology and digital drives operated by PLCs (Programmable Logic Controller) a high degree of automation can be achieved. We use standard products for manufacturing cold rolling mills and other equipment. These mills provide excellent results specially when it comes to roll very thin gauges. We offer cost-effective solution for designing, development and commissioning of the mills on turnkey basis. Our Cold Rolling Mills are available with coolant, filtrations and other accessories.
