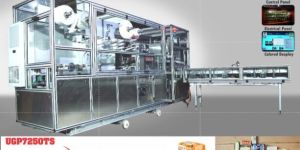

UGP-7200TS Semi-Automatic Toilet Bar Soap Wrapping Machine
100 - 200 Per piece
1 Piece (MOQ)
Details: Soap Wrapping Machines has been designed to pack toilet soap bar/cakes in single wrap of wrapping paper Machine has been designed to handle heat sealable wrapper, laminates and Polly coated wrapping material The final result is a design of a robust, highly reliable, low maintenance, operator friendly machine having a high productivity and efficiency with negligible rejections Working Principle: The soap cakes are fed onto a continuous motion In-feed Conveyor The In-feed pushers take the soap cakes to the wrapping feed station With the help of pulling rollers, the reel fed wrapper is positioned between the cakes and tumble box The wrapper is cut to the required length as the in-feed pushers push the soap along with the cut wrapper into the turret Spring-loaded end blocks retain the product in position The turret box then indexes by 180 degrees and resulting in top folding The next incoming cake pushes the previously packed cake forward which is further pushed into the sealing zone Feature: Machine suitable for detergent bar/laundry bar Heavy duty cast structure Machine weight: Approx. 1600 Kgs Speed up to 180 TPM depending upon the product dimensions, laminate quality and feeding of soap Directly linkable to bar cutting machine through conveyor for automatic feeding of bars Fixed/Adjustable size turret assembly Designed to handle soft bar Soap moves on belts with pusher to avoid any scratch mark Double spool arrangement for wrapper to save change over time of paper roll to increase the uptime of machine No soap and no wrapper interlock through PLC AC variable speed drive unit Double chain for overhead infeed conveyor Double chain for overhead discharge conveyor Speed of machine directly proportional to soap feeding Stop-start mechanism with Geneva Drive for auto feeder belt conveyor Collator unit for easy collection of packed bars Two sided heaters and cooling unit provide better sealability Double corrugation rollers Different cut length for paper stiffener lengths can be made at a cut off unit quickly. Separate temperature controller for topside heaters and rear heater Infeed queue pressure release mechanism while transferring the soap from infeed belt conveyor to prevent dent marks Centralized lubrication system Print control system with worm and worm wheel mechanism Cooling unit for electrical panel PID temperature controllers Wrapper : Paper / Poly / Hot Melt Lamination Max Dia 450mm Core ID 70mm Stiffener: Card paper/poly laminated

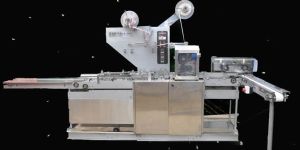

Toilet Soap Wrapping Machine
Get Price Quote
We manufacture, supply, and export, the high grade Toilet Soap Wrapping Machines (Wrap 100T). The Toilet Soap Wrapping Machine, we offer, is a medium speed horizontal toilet ( bath) soap wrapping machine, which wraps soap using a roll of heat sealable (outside poly, inside poly, hot melt or similar) wrapping materials along with stiffener paper. Process : Our standard Toilet Soap Wrapping Machine is fitted with mechanical auto feeder, which feeds soap in Easy Wrap 100T at right angle to the finishing line Easy Wrap 100T can be directly linked to the finishing line to feed soap directly
Best Deals from Soap Wrapping Machine
HIGHSPPED TOILET SOAP WRAPPING MACHINE
Get Price Quote
STANDARD FEATURES » Outer wrapper and inner stiffener » High speed operation of upto 220 tablets per minute with total linkability with soap stamping machine » Vacuum pick and place with continuous rotary motion » 4 Axes servo controlled wrapper/stiffener feeding and cutting » Quick timing and setting for different sizes through PLC control » Easy height adjustment of cutoff unit and discharge conveyor » Gripped discharge conveyor for tight packing » Excellent quality of soap handling, even for soft soap » Double spool holder for wrapper and stiffener » Wrapper-break-machine-stop” interlock » Simple to maintain “no-soap-no-wrap” interlock » In line discharge » Optional collated discharge » Long top and side heaters with Cooling Plates for reliable sealing at high speeds » Vacuum pick and place with continuous rotary motion » Digital temperature controllers for all heaters (separate front and rear side heaters) » CE compliant stainless steel/ transparent guarding » All parts in contact with soap are either stainless steel or coated with Teflon. Conveyor belt is of food grade quality » Automatic centralised lubrication Highlights » Extremely gentle handling of soap » High speeds » High quality packing » Servo controls by Rockwell Automation » Low noise » Quick size change » CE compliant safety guarding » Imported instrumentation » Plant-Friendly Orientation » Human Safety » In-Built Management Information System Options: » Packing date printer » Flexible infeed conveyor to suit plant layout » Collator on discharge for easy pickup of soap » Conversion parts for size change

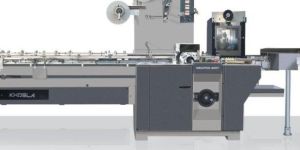

Laundry Soap Flow Wrap Machine
Get Price Quote
Soap Wrapping Machines
Get Price Quote
We are offering soap wrapping machines. . Power transmission by gear drives. . 225 pieces per minute production rate. . Change over time less than 1 hour. . No product - no wrapper interlock machine production capacity: : 225 pieces per minute length : 13 (feet) w : 4 (feet) h : 6 (feet) weight : 1300 kg (approx) electrical power : 3 kw (max) supply voltage : single phase, 220 volts, 5060 hz wrapper material : hot, melt, inside poly coated outside poly coated
Soap Wrapping Machine
Get Price Quote
SWIFT Machine has been designed to pack detergent cakes in single wrap, handling heat sealable films, laminates and poly coated wrapping material.SWIFT is built from high precision components having the desired metallurgical and heat treatment characteristics, resulting in lower wear and tear, lesser maintenance costs and longer life. The highly reliable, operator friendly; robust design has high productivity and efficiency with negligible rejections.
Soap Wrapping Machine
Get Price Quote
Soap Wrapping Machine, Banding Machine, bundling machine, wrapping machine
Soap Wrapping Machine
Get Price Quote
Soap Wrapping Machine
Soap Wrapping Machines
Get Price Quote
Soap Wrapping Machines
Soap Wrapping Machine
Get Price Quote
Soap Wrapping Machine, Pmdc Motor Controller, Centrifuge Motor, Micro Motors
Soap Wrapping Machines
Get Price Quote
Soap Wrapping Machines, flow wrapping pouch machines
detergent soap over wrapping machine
Get Price Quote
detergent soap over wrapping machine, detergent soap over wrapping machines
Soap Wrapping Machine
Get Price Quote
Soap Wrapping Machine, Toilet Soap Wrapping Machine, Overwrapping Machine
