Wire Tester Dealers in Mohali

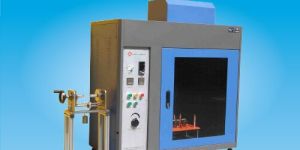

Hot wire ignition tester is according to the standard requirement of IEC60695-2-20 and GB4943, which meets Standard Test Method for Ignition of Materials by Hot Wire Sources. It is suitable for electric and electronic products, household appliance materials to do ignition dangerous test. It simulates the heat source or ignition source of simulates glow component and overload resistance which may cause thermal stress in a short time. Hot-wire coil ignition test adopts the specific size (Dia: 0.5mm; Length: 250mm) and specific material (Ni80/Cr20) of heater strip which is pre-annealed with required heating power (0.26W/mm) and specified time (8s~12s). Then coil heater strip on the specimen for 5 cycles according to certain wire wrapping tension (5.4N) and certain wire wrapping distance (6.35mm). Then take the specimen with wrapping heater strip to test until 120s under the stipulate heating power (0.26W/mm) the users can judge the fire risk according to whether the specimen ignite and the ignite time.
