Bharat Refractories Wankaner, Morbi, Gujarat

Avail the Wire Cut Bricks from us in plenty of sizes and dimensions at the astoundingly low prices. We are bracketed among the premium Manufacturers, Suppliers and Exporters of the Wire Cut Bricks in India and abroad. Known to blend well with traditional and contemporary architecture, these Bricks are made by using the natural clay as per the strict industrial standards. Also, we assure the timely deliveries!   Advantages : Thermal insulation. High comprehensive strength class-I bricks. Construction works with our products saving in cement, Sand, construction Time, Labour up to 30%.

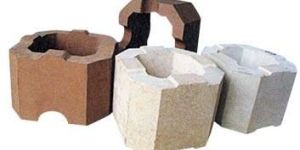

We offer special product bricks. products al2o3 % min fe2o3 % max sio2 % max zro2 % min p.c.e.o.c. Min a.p. % max b.d. Gm/cc min ccs kg/cm2 min rul ta0 c min plc for 2 hrs at 0 c max % charac-teristics & uses bcpl-70(m) 72 1.0 37 18-20 2.5 600 1600 1600+/-0.4 dense, mullite brick for glass, chemical steel & other industries bcpl-80(l) 80-85 2.0-2.5 37 21 2.8 700 1520 1600+/-2.0 special brick for burning zone of cement rotary kiln, laddel, lining eaf & special application in aluminium industries bcpl-80(d) 80-85 1-1.2 38 20 2.85 800 1600 1600+/-0.5 special brick for caccum& degassing ladle & lining of channel type induction furnace vad/vod laddles bcpl-88(x) 88 2.0 36 18 2.9 900 1500 1500+/-0.5 super dense high alumina brick for lining of re- heating furnace bottom bcpl-95(e) 95 0.5 38(+) 20 2.9 500 1650 1500+/-0.5 high purity, high alumina bricks for special application bcpl-zr 63 20-22 3.5 500 1600 zircon & zirmula brick for repairing of glass tank furnace & other location in glass tank furnace bcpl-zirmul-1 68 18 20 3-3.1 500 1600 thermal brick for repairing conductivity at 600 0 c (hf) kcal/mtr/0 0 c (max) bcpl-zirmul-2 55 25 20 3.1-3.2 500 1580 - do - bcpl-sil-insul 15 5 75 60 0.85-1 (max) 40 1100 0.15 (max) silica insulation bricks recommended for cement & glass industries bcpl-sil-insul 15 2 75 60 1.0 40 1100 cold 0.15plc-r - do - bcpl-amc 60 min 15 min 7 min 9.0 max 2.8 400 140 min 1500+/-1.5 for vad/vod metal zone lining

Refractory Concrete Castable We Manufacture high grade Refractory Concrete Castable that is widely used for various industrial applications. Our Refractory Concrete Castable is packed material that consists finely proportioned graded aggregates and binders which assure desired results when used. The Castable is blended with water to produce refractory concrete. Salient Features * Unadulterated * Highly efficient * Offers compressive strength * Reasonably priced Technical Specifications Products Al2O3 % (Min) Fe2O3 % (Max) Grain Size mm (Max.) Water Required For Casting % Service Temp (deg C) Application ARPL C - 45 45 4.0 5 10 - 12 1400 Suitable for gunning of furnace linings with upto 50 % AL bricks ARPL C - 70 70 5 5 10 - 11 1450 Suitable for gunning of furnace linings with upto 70 % AL bricks ARPL Dense C - 60 60 1 5 9 - 10 1600 Low Iron Catable, suitable for gunning of furnace linings at high temperatures of upto 1600 deg C ARPL Dense C - 90 90 0.8 5 7 - 8 1750 Low Iron Catable, suitable for gunning of furnace linings at high temperatures of upto 1750 deg C.

We offer refractory bed material. We are recognized amongst the midst the most reliable refractory material manufacturers in india. The refractory bed material is used for smooth and perfect working of circulating fluidized bed combustion boilers (cfbc) and fluidized bed combustion boilers (fbc). Additionally, the unmatched quality and exhibition inexplicable performance in respective application has attracted clients from all over india to place huge and repeated orders. Customers are also eased with the delivery of the refractory bed material fire bricks within the stipulated time frame. brand alumin % min. silica % max. alkali % max. grading range (mm) average particl size mm bd gm/cc intical def. Deg. Cent. Bcpl bm (c) 32-35 52-55 0.5-1.0 0.9-2.8 0.9 1.1 1400 bcpl bm 27-29 67-69 1.5 0.8-3.0 0.9 1.1 1400

Insulation Bricks We Manufacture and Export premium quality Insulation Bricks that are popular in the market for their efficiency and durability. Fabricated from high grade raw materials, our Insulation Bricks have high hot compressive strength that assures robust construction when used. Salient Features * Light weight * Low Thermal Conductivity : Provides excellent good thermal insulation, enable the use of thin- walled constructions * Low Heat Storage : Absorbs minimal heat ensures energy savings in cyclically-operated kilns * Low iron and alkali flux content Used In * Steel Plants * Paper Industry * Petrochemical Industry Specifications PROPERTIES C.F. H.F. TYPE 1 H.F. TYPE 2 H.F. TYPE 3 Service Temperature in oC 1050 1200 1250 1300 Bulk Density in gms/cc (Max) 0.8 0.85 0.9 1.1 Apparent Porosity in % (min) 70 65 60 55 Cold Crushing Strength in kg/Cm2/(min) 12 15 20 30 Thermal Conductivity in Kcal/M/ Hr/oC(max) at Hot face temp. of 600oC(max) 0.2 0.23 0.24 0.3 Permanent Linear change after re-heating (max) in % for 3 hrs at temperature of 1.5 (1050) 1.5 (1200) 1.5 (1250) 1.5 (1300)

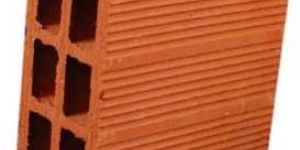

Check out our Hollow Bricks’ immaculate range widely popular for preciseness, lightweight, easy handling and high load bearing capacity. These Bricks, falling in line with highest industrial standards, contain optimum amount of cement, clay & ceramic. For satiating the divergent construction requirements, we dole out the Hollow Bricks in choicest stipulations. As a reputed Manufacturer, Supplier & Exporter, we offer these Hollow Bricks at the affordable prices.Features Balanced composition of cement and other material Burned bricks Various shades Available in dimension of 16*8*4   Advantages : Thermal insulation. High comprehensive strength class-I bricks. Construction works with our products saving in cement, Sand, construction Time, Labour up to 30%.

Situated in Gujarat, we are the reliable Manufacturer, Exporter and Supplier of the superlative-quality Hollow Blocks across the world.  Made from the premium materials, the offered Hollow Blocks are easily installable and highly durable. Clients are free to purchase these Hollow Blocks in the choicest sizes and dimensions at the most reasonable rates.Highlights These blocks are being widely used in construction of residential buildings, factories and multi-storey buildings etc. The hollow blocks are commonly used due to its cheaper cost, quick processing of work etc. These hollow blocks are more useful for these regions due to its light weight and ease of ventilation. Hollow blocks construction provides facilities for concealing electrical conduit, water and soil pipes etc. It saves cement in masonry work, bringing down cost of construction very considerably. Advantages Highly Durable : The good concrete compacted by high pressure and vibration gives substantial strength to the block. Proper curing increase compressive strength of the blocks. Excellent sound and heat insulating qualities. Fire resistant. Provide thermal and sound insulation :The air in hollow of the block, does not allow outside heat or cold in the house. So it keeps house cool in summer and warm in winter. Economical. Environment friendly, fly ash used as one of the raw materials. Electrical and plumbing work requires no additional channels. Thermal insulation. High comprehensive strength class-I bricks. Construction works with our products saving in cement, Sand, construction Time, Labour up to 30%. Important Features Density : 1100 -1500 KG/M3 Commpressive Strenghth : More than 35 KG/CM2 Water Absorption : Less Than 10 %

High Alumina Mortar We are counted among prominent High Alumina Mortar Manufacturers and Suppliers in India. Our High Alumina Mortars are used as joining material for laying refractory bricks. Our wide range of High Alumina Mortar is in huge demand in the national and international markets. Salient Features * Highly efficient * Offers compressive strength * Assure outstanding performance * Tested for quality Technical Specifications Products Al2O3 % (Min) Fe2O3 % (Max) Grain Size mm (Max) Sintering Temp (deg C) Service Temp (deg C) Application ARPL M - 30 30 3.0 0 - 0.5 1100 1400 General purpose moderate heat duty for lying MHD quality bricks ARPL M - 40 40 3.5 0 - 1.0 1100 1450 General purpose moderate heat duty for lying IS-8 quality bricks ARPL M - 50 50 4.0 0 - 0.5 1100 1550 General purpose air setting mortar.

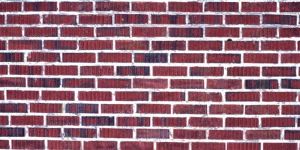

We, hailing from Gujarat, are the agile Manufacturer, Supplier and Exporter of Exterior Bricks across the globe. These Exterior Bricks, furnished in the varied specifications, result in the life-long termite proofing of the structures. Also, they are suitable for cupboards, windows chokhats and all types of paneling. After quality assurance, we dole out the securely-packaged Exterior Bricks at the market-leading prices. Feel free to place any quantity order!   Advantages : Thermal insulation. High comprehensive strength class-I bricks. Construction works with our products saving in cement, Sand, construction Time, Labour up to 30%.

We offer basic bricks. products mgo% min cr2o3% min a.p. (%vol.) max ccs kg/cm2 min rul ta0 c min remarks bcpl-mcn 58 14 24 300 1580 general purpose mag chrome burnt bricks bcpl-mccb 58 14 14 400 1520 general purpose mag chrome chemically bonded bricks (with or without steel clad) for normal application steel & other industries. Bcpl-mcd 65 12 20 350 1580 burnt dense mag chrome bricks for secondary steel refining and other uses. Bcpl-mcl 70 8-10 20 300 1550 low chrome burnt bricks for smelters open hearth and other uses. Bcpl-mcls 80 6-8 18 450 1700 low silica (1.5%) hard fired dense mag chrome bricks specially recommended for cement rotary kilns. Bcpl-mcs-3 70 14 20 350 1650 high purity bricks with low silica (3%) with high rul for use in ld converters etc.

We offer alumina bricks. Products al2o3 % min fe2o3 % max p.c.e.o.c. Min a.p. % max b.d. Gm/cc min ccs kg/cm2min rul ta0 c min plc for 2 hrs at 0 c max % characteristics & uses bcpl-50(b) 50 2.5 34 24 2.4 300 1400 1450+/-1.5 high alumina brick resistance to alkali & slag attack for crk bcpl-55(s) 55 1.0 34 18 2.4 400 1450 1500+/-0.5 for calcinations zones of crk and alkali environment bcpl-60(b) 60 2.5-3.0 34-35 23 2.5 400 1440 1500+/-2.0 ha brick resistance to alkali & slag attract suitable for preburning zone of cement rotary kiln, ladle lining, eaf bcpl-60(s) 60 2.0 36 22 2.4 500 1500 1500+/-1.0 for carination zones of crk bcpl-brn 62 62 1.5 36 14 2.5 600 1500 (at 4 kgs load) 1500+/-0.2 suitable for checker for blast furnace bottom lining bcpl-bro 62 62 1.5 36 24 2.35 300 1500 1500+/-0.5 suitable for checker for blast furnace stove bcpl-70(b) 70 3.5 36 23 2.55 400 1460 1600+/-2.0 for calcination zones of ckr bcpl-70(s) 70 3.0 36 23 2.6 450 1470 1600+/-2.5 - do - bcpl-70(l) 70 2.0-2.5 37 22 2.6 500 1500 1600+/-2.0 for transition and burning zones of ckr bcpl-70(li) 70 1.5 37 22 2.6 600 1550 1500+/-2.0 - do - bcpl-80(b) 80 3.5 35 23 2.8 500 1420 1500+/-2.0 for electric arc furnace roof & lf lining s I lli m a n I t e bcpl-sill 58-60 1.5 36 22 2.3 500 1500 1500+/-0.8 silimanite bricks for glass & other industries bcpl-sill dense 58-60 1.0-1.5 36 18 2.4 550 1550 1500+/-0.5 dense sill bricks for glass industries of low iron & flux content having superior quality bcpl-sill-spl 58-60 1.0-1.2 36 20 2.5 600 1650 1600+/-0.5 sill-spl brick for glass tanks with low iron high rul, good spalling resistant to alkali attack & �??co�?? attack. Mullite as per the requirement.

Acid Resistant Bricks Our range of Acid Resistant Bricks is in huge demand in national and international markets. Made from premium grade raw materials, our Acid Resistant Bricks offer high performance consistently without requiring any maintenance work. Manufacturing Standard * As per IS-4860 Standard Sizes * 230mm x 115mm x 75mm * 230mm x 115mm x 38mm Characteristics * High Density * Low porosity * Resistant to strong acids * High Flexural strength * Low water absorption Used In # Chemical Storage Tanks # Flooring # Absorption Towers # Process Tanks # Chemical # Dyes and Intermediates # Vessels # Chimney Lining # Steel Plants # Paper Industry # Power Industry # Alkalies Industry # Fertilizers Industry # Petrochemicals Industry Technical Specifications as per IS - 4860 (1968) Properties Unit Class I - Bricks Class II - Bricks Water Absorption % Max 2 4 Compressive Strength kg/cm2 Min 700 500 Flexural Strength kg/cm2 Min 100 70 Resistance to Acid Loss in weight % Max 1.5 4.0.

The expertise of our organization lies in preparing Refractory Castable Mortar. Refractory Castable Mortar is extensively required by mills and plants to carry out varied applications. We prepare Refractory Castable Mortar from industrial materials that ensure optimum quality. Additionally, the production process of Refractory Castable Mortar is inspected by experts. We test the Refractory Castable Mortar at our highly sophisticated laboratory before dispatching. We are a renowned name as Refractory Castable Mortar Manufacturer, Supplier and Exporter in Rajkot, Gujarat. Our Refractory Castable Mortar : Is made as per industry set norms Is economically priced Matches international quality standards Can be customized as per clients requirements   Advantages : Thermal insulation. High comprehensive strength class-I bricks. Construction works with our products saving in cement, Sand, construction Time, Labour up to 30%.

The expertise of our organisation lies in preparing refractory castable mortar this is excessively required by mills and plants to carry out veried applications we prepare refractory castable mortar from industrial materials that ansure optimum quality.
