Electronic Cables Dealers in Morbi

• Inner Conductor: Single Bare Copper (0.51mm ±0.005mm)
• Insulation: HDPE
• Insulation Dia: 1.02mm ±0.05mm
• Core Colour: White-Blue; White-Orange; White-Green & White-Brown
• Jacket Material: PVC /LD
• Wall Thickness: 0.8 mm
• Second Jacket: PE

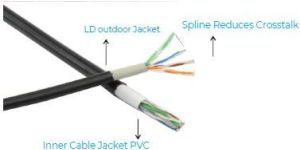

Features : Outdoor Cable with water und UV resistant sheath - can be used outdoor and indoor High Grade 0.51mm Cable (inner core) 24AWG (American Wire Gauge) Colour: Gray inner /Black outer Cat6 UTP, UTP 250MHz Ethernet Cable Gigabit Ready CC: Copper Clad Copper , with plastic separator Inner layer for extra protection 4 unshielded twisted pairs (8 wires per cable) Outer diameter: 7.0mm Cable Roll, Solid Cable Parameters : Conductor Resistance Existence (DC): 9.38Ω ohms /100mtr@20˚C. MAX. Resistance Unbalance : 5 %MAX Mutual Capacitance : 5.6 nF/100 mtrs MAX. Capacitance Unbalance Pair/round 330pF/100M MAX Delay Skew ≤45 nS/100M Normal Velocity of Propagation : 69%
