Adarsh Industries Goregaon East, Mumbai, Maharashtra

Applications   Thermowells protect the stem or bulb of the thermometers from corrosive effects, pressure and viscosity of process fluids. It also allows removing of the temperature gauge for recalibration, repair purpose without disturbing the process.   Features   4 Available in Straight Type, Taper Type, Flanged End Straight Type and Flanged End Taper Type 4 Material SS316 or SS304 or Brass or other as required 4 3/8", ½”, 3/4", 1"  bsp or npt connection or other as required     or Flanged End Connection as per DIN, ASME, BS Standards 4 Special coating/lining on thermowell of special material

Test / Master Gauges are used in laboratories, pressure gauge calibration, instrument testing and other applications where accuracy and repeatability is important. Available in Ã‚±0.5% and Ã‚±0.25% F.S. Accuracy.

The Siphon Tube is connected between the pressure gauge & process in applications where high temperature vapours or fluids are present or temperature above 65 Deg C for eg. steam. It acts as a cooling coil and protects the gauge from high temperature vapours, by dissipating heat. Agauge cock is generally connected between the pressure gauge and syphon for isolation.   Features   4 Available in U type and Pigtial / Coil Type 4 Material SS316 or SS304 or C.S. 4 1/4", 3/8”, ½” bsp or npt connection

Applications   Standard Gauges are suitable for general purpose applications for gas and liquid media which do not corrode brass & having an environment which is not harsh to Mild Steel Case. Commonly used on equipments like pumps, compressors, boliers, pnneumatic and hydraulic machines etc.   Specifications   4 Mild Steel (M.S.) case and Brass Working parts 4 Dial Sizes: 40mm, 50mm, 63mm, 100mm, 150mm, 250mm 4 1/8”, ¼”, 3/8”, ½” bsp connection 4 Bottom Direct, Bottom Surface, Back Direct, Back Panel, Back Clamp Mounting 4 Accuracy  ±2-3% F.S.D.

Stainless Steel Gauges are used for corrosive media & challenging ambient environment. These gauges have SS316 wetted parts with SS304 IP65 case and ring. All joints are argon welded. The 4" & 6" models have socket welded to case design which avoids leakages and provides integrity to the gauge. Liquid filling option is available for applications with vibrations.The gauges are widely used in Pharmaceutical, Chemical, Oil & Gas, Paper & Pulp, Sugar, Breweries, Food & Beverages, Cement Industries, etc   Features   4 SS316 Bourdon and Socket, SS304 Movement 4 Stainless Steel SS304 Case and Ring IP65 4 Dry or Liquid Filled (Glycerin or Silicon) 4 Socket Welded to Case (4" & 6" Dial Size) 4 1/8”, ¼”, 3/8”, ½” bsp or npt connection 4 Bottom Direct, Bottom Surface, Back Direct, Back Panel, Back Clamp Mounting 4 Accuracy  ±1% F.S.D. for 4", 6" & 10"  & ±1.5% F.S.D. for 1½", 2" & 2½" Gauges   Options Available   4 Custom Designed Dials 4 Electric Contacts 4 Accessories: Pulsation Dampner, Syphons, Gauge Cocks, Gauge Savers   Download Datasheets                                       Series   40mm (1-1/2") Dial Size Stainless Steel Pressure Gauge.........MX150 50mm (2") Dial Size Stainless Steel Pressure Gauge...............MX200 63mm (2-1/2") Dial Size Stainless Steel Pressure Gauge.........MX250   80mm (3") Dial Size Stainless Steel Pressure Gauge...............MX300   100mm (4") Dial Size Stainless Steel Pressure Gauge.............MX400   150mm (6") Dial Size Stainless Steel Pressure Gauge.............MX600   200mm (8") Dial Size Stainless Steel Pressure Gauge.............MX800   250mm (10") Dial Size Stainless Steel Pressure Gauge...........MX1000

For Inquiry CALL +91-22-29275496 Email: sales@adarshpressuregauge.com SS Case-Brass Internals Pressure GaugesMX Series Applications   Applications which are not corrosive to brass but require SS Case for external corrosion protection where Mild Steel Case is not suitable.   Features   4 Stainless Steel SS304 Case and Ring 4 Brass Working Parts - Bourdon, Socket & Movement 4 Dry or Liquid Filled (Glycerin or Silicon) 4 1/8”, ¼”, 3/8”, ½” bsp or npt connection 4 Bottom Direct, Bottom Surface, Back Direct, Back Panel, Back Clamp Mounting 4 Accuracy  ±2% F.S.D.   Download Datasheets                                            Series   40mm (1-1/2") Dial Size SS Case-Brass Parts Pressure Gauge.........MB150 50mm (2") Dial Size SS Case-Brass Parts Pressure Gauge...............MB200 63mm (2-1/2") Dial Size SS Case-Brass Parts Pressure Gauge.........MB250   100mm (4") Dial Size SS Case-Brass Parts Pressure Gauge.............MB400

Applications   Pharmaceutical, Chemical, Petrochemical, Oil & Gas, Refinery, Paper & Pulp, Sugar, Breweries, Food & Beverages, Cement Industries, etc   Features   4 Dial Sizes 100mm (4") and 150mm (6") 4 SS316 Diaphragm and Bottom Chamber/Flange 4 3/8”, ½” bsp / npt connection or Flanged End as per DIN, ANSI, BS Standards 4 Bottom or Back Mounted 4 Accuracy  ±1.6% F.S.D.   Options Available   4 Special Diaphragm Material like Tantalum, Hastealloy-C, etc... 4 Teflon Coating / Lining on Diaphragm and wetted parts 4 Electric Contacts 1N0+1NC and others 4 Remote Capillary Seal

Schaffer Gauges have a Diaphragm whos displacement is transferred via a link to the movement. They are suitable for low pressure measurement from 0 -400mmwc to 6000mmwc and high side from 0-1 kg/cm2 to 0-25 kg/cm2. Schaffer Gauges are suitable for Pharmaceutical, Chemical, Petrochemical, Oil & Gas, Refinery, Paper & Pulp, Sugar, Breweries, Food & Beverages, Cement Industries, etc   Features   4 Dial Sizes 100mm (4") and 150mm (6") 4 SS316 Diaphragm and Bottom Chamber/Flange 4 3/8”, ½” bsp / npt connection or Flanged End as per DIN, ANSI, BS Standards 4 Bottom or Back Mounted 4 Accuracy  ±1.6% F.S.D.   Options Available   4 Flange End Connections as per DIN, ANSI, BS Standards 4 Teflon Coating / Lining on Diaphragm and wetted parts 4 Electric Contacts

Applications   These Gauges have End Connection with Triclover fitting . These gauges are used in Food / Dairy / Pharma / Beverage Industries.   Features   4 Dial Sizes 63mm (2-1/2"), 100mm (4")  4 1"  or 1-1/2" or 2" T.C. end connection 4 SS316 Diaphragm 4 Glycerin or Silicon Filled 4 Bottom or Back Mounted 4 Std. Ranges upto 40 bar

Applications   These Gauges have End Connection with SMS or DIN or RTJ or IDF . These gauges are used in Food / Dairy / Pharma / Beverage Industries.   Features   4 Dial Sizes 100mm (4")  4 1-1/2" or 2" SMS (or IDF / RJT / DIN) 4 SS316 Diaphragm 4 Glycerin or Silicon Filled 4 Bottom or Back Mounted 4 Std. Ranges upto 40 bar

Sabroe Compressor Parts suitable for the below models are available.   Availability : Ex-stock   Models: SMC 100 (SMC 104, SMC 106, SMC 108, SMC 112, SMC 116 - S / L / E Models) & TSMC MODELS SMC 65 SMC 180 & TSMC 180 CMO 14, CMO 16, CMO18 CMO 24, CMO 26, CMO 28

The refrigeration thermometer is available only in 4" Dial, SS Case, Range: -50 to + 50 deg C / with F reading, 3 meter SS Armour Capillary, Stem 8" Long x 10mm dia. Ideal for cold storages, fisheries, and in general refrigeration industries.

Experience in Refrigeration Industry of over 30 years Exporting compressor spares to over 35 countries worldwide Product Availability - Ex- STOCK Quality of products at par with OEM or better Clientele includes leading customers in Fisheries/Sea Foods, Ice Plants, Cold Storages, Food, Dairy, Marine Industry, Pharma & Other Process Plants.   Compressor Parts are generally available Ex-stock for immediate deliveries for refigeration compressors like Sabroe, Grasso, Carrier, Bitzer, Bock, Stal, York, Frick, Trane, Mycom, Daikin, Gram, Vilter. The spares include connecting rods, crankshafts, valves, plates, piston and piston assembly, rings, pins, bush, suction valve and discharge valve, suction plates and springs, discharge plates and springs, oil pumps, shaft seal, cylinder liner, connecting rod bearings, main bearing, gasket sets, and many more.

Application   Pulsation Dampners (Snubbers) are used with pressure gauges where sudden pressure shocks and fluctuations are present which cause the pointer to fluctuate rapidly hence making it difficult to take the gauge reading. Dampners considerably reduce pulsations and hence makes the gauge reading easier and also improves the life of the gauge.   Features   4 Material SS316 or SS304 or Mild Steel (M.S.) 4 1/4", 3/8”, ½” bsp or npt connection 4 Suitable for Pressure Range upto 700 kg/cm2

Applications   Pharmaceutical, Chemical, Petrochemical, Oil & Gas, Refinery, Paper & Pulp, Sugar, Breweries, Food & Beverages, Cement Industries, etc   Features   4 4-1/2" dial size 4 Polypropylene Case and Ring 4 Solid Front Design with Full Blow Out Back 4 SS316 Bourdon and Socket, SS304 Movement 4 Dry or Liquid Filled (Glycerin or Silicon) 4 Ã‚¼â€, ½” npt connection 4 Bottom Direct Mount with 3 hole for fixing 4 Accuracy ±1% F.S.D. , (or ±0.5% F.S.D. )

Low Cost - High Performace Model +/- 0.25% upto 0.1% F.S. Accuracy All Ranges from 1 bar upto 1000 bar / -1 to 0 /& -1x1, -1x3, -1x5, -1x6, -1x9, -1 to 10, -1 to 20 bar Operating Temp upto +125 deg C Available Ex-stock MAKE : GEMS / MEAS / AST / PRIGNITZ   Application Pressure Transmitter is widely used for industrial automation applications. The transmitters gives output of 4-20mA current signal which can be connected to a Controller / PLC for control/monitoring of pressure.  We also offer customized solutions for applications like hygenic

Pressure Indicator : Accepts 4-20mA from pressure transmitter & displays pressure. Pressure Controller : Accepts 4-20mA from pressure transmitter, displays pressure and gives a relay o/p.   Specifications   4 3-1/2" Digit LED Display 4 I/P 4-20 mA 4 Works on 230V AC Mains 4 Generates 24V DC supply 4 Displays pressure upto 1000 bar 4 Single relay or Double relay o/p (Controller Only)

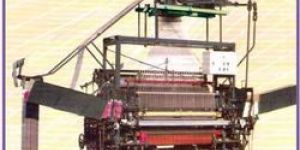

Capacity capable of producing 100 mats24 hours (for 36" width weaving machine) The machine enables manufacturing of equal weight Mat products by adjusting warp yarn's tension with help of length adjusting device. Center Selvedge Looms also offered of any size. Special width of machines can be manufactured.

Applications   Needle Valves are used for flow control, isolation purpose, on /off applications. Suitable for pressure upto 400 kg/cm2 and higher.   Features   4 Material SS316 or SS304 4 1/4", 3/8”, ½” bsp or npt connection 4 Pressure Rated upto 400 kg/cm2 and higher

Mercury in Steel Thermometer are the most accuracte/fast response instruments with accuracy of +/- 1% FSD, available in dial sizes 4", 6", 8" and 10" Dial. Available as both Rigid Stem Type and Capillary Type. Ranges from -38 to max 600 deg C.

The Mat Weaving Machine requires only 0.75 hp electricity and the mat pattern can be easily changed from carpet to chume & vice versa.

Features Low Cost Accuracy < ± 0.5% F.S. Pressure Ranges upto 700 bar Measurement Units: PSI, BAR, kg/cm2 Available Ready Stock   Other Specifications Over Range Protection: 2X Rated Pressure Burst Pressure: 5X or 20,000 PSI whichever is less Pressure Cycles: >100 Million Operating (Ambient): -10°C to 60°C Storage: -20°C to 70°C Display: 0.6” LCD display and blue Backlight Power 9 Volt Alkaline Battery Automatic Power Off 5 minutes Battery Life: about 3.5 years   Pressure Ranges -1 to 3 bar, -1 to 5 bar, -1 to 25 bar, -1 to 35 bar, -1 to 100 bar, -1 to 350 bar, -1 to 700 bar

  Liquid filled gauges are generally used for applications where vibration & pulsating media is a factor. Vibration leads to wear and tear of internal parts and causes the gauge to damage and an unsteady pointer reading. Glycerin or Silicon filling smoothens the movement of internal gears & parts and also reduces the fluterring of pointer to give a steady reading. These gauges are available with either brass internals or ss internals.   Specifications   4 Dial Sizes 63mm, 100mm, 150mm, 250mm 4 Stainless Steel SS304 Case and Ring IP65 4 Brass or SS Working Parts 4 Liquid Filled (Glycerin or Silicon) 4 1/8”, ¼”, 3/8”, ½” bsp or npt connection 4 Bottom Direct, Bottom Surface, Back Direct, Back Panel, Back Clamp Mounting

The ADARSH Homogenizer Gauge now lasts longer due to the new design feature incorporated inside the gauge. Generally homogenizer gauge is used in food, dairy industry on Homozenizer Machines. Since it is a hygenic application diaphragm seal is used. Further the presence of continuous pulsating media and that too at High Pressure causes failure of ordinary diaphragm gauges. At Adarsh a diaphragm seal has been specially designed to sustain this high pressure pulsation and vibration. Available upto ranges 700 kg/cm2, bar / 10000 psi. Specifications   4 100mm ( 4" )  & 150mm (6") Dial Sizes 4 Glycerin Filled 4 Bottom Direct Mount 4 SS304 Case & Ring IP65 4 SS316 Diaphragm 4 Available with Loose or Pre-installed 1-1/8" Flange 4 Pressure Range: 100 to 700kg/cm2 (other units bar, kpa, psi)   Options Available   4 1-1/8" Flange for Mounting 4 Custom Designed Dials 4 Electric Contacts 4 Accessories: Pulsation Dampner, Syphons, Gauge Cocks, Gauge Savers
