Adarsh Industries Goregaon, Mumbai, Maharashtra

We offer Dial Thermometers in Bimetal type, Mercury in Steel Type and Inert Gas Filled Type. Dial sizes 2-12" upto 10". Ranges: -50 to + 600 deg C. We also offer V shaped Industrial Thermometers (Metal Enclosure - Liquid in Glass Type) Thermometers. Protection devices like thermowells are also available in Brass SS304 SS316 Monel Cupro Nickel etc. Bimetal Thermometers have helical bimetal coil as sensing element. Available in ranges from -50 upto 400 deg C. Dial Sizes 2", 2-12", 4" and 6". Available in Back, Bottom and All-Angle Type.

The Siphon Tube is connected between the pressure gauge & process in applications where high temperature vapours or fluids are present or temperature above 65 Deg C for eg. steam. It acts as a cooling coil and protects the gauge from high temperature vapours, by dissipating heat. A gauge cock is generally connected between the pressure gauge and syphon for isolation.U Type Siphons are Suitable for Veritcal Pipe Mounting Coil Pigtail Siphons are Suitable for Horizontal Pipe Mounting

The Siphon Tube is connected between the pressure gauge & process in applications where high temperature vapours or fluids are present or temperature above 65 Deg C for eg. steam. It acts as a cooling coil and protects the gauge from high temperature vapours, by dissipating heat. A gauge cock is generally connected between the pressure gauge and syphon for isolation.

The Siphon Tube is connected between the pressure gauge & process in applications where high temperature vapours or fluids are present or temperature above 65 Deg C for eg. steam. It acts as a cooling coil and protects the gauge from high temperature vapours, by dissipating heat. A gauge cock is generally connected between the pressure gauge and syphon for isolation.

Stainless Steel Gauges are used for corrosive media & challenging ambient environment. These gauges have SS316 wetted parts with SS304 IP65 case and ring. All joints are argon welded. The 4" & 6" models have socket welded to case design which avoids leakages and provides integrity to the gauge. Liquid filling option is available for applications with vibrations.The gauges are widely used in Pharmaceutical, Chemical, Oil & Gas, Paper & Pulp, Sugar, Breweries, Food & Beverages, Cement Industries, etc

These Gauges have End Connection with Triclover fitting . These gauges are used in Food Dairy Pharma Beverage Industries. Features 4 Dial Sizes 63mm (2-12"), 100mm (4") 4 1" or 1-12" or 2" T.C. end connection 4 SS316 Diaphragm 4 Glycerin or Silicon Filled 4 Bottom or Back Mounted 4 Std. Ranges upto 40 bar

Compressor Parts are generally available Ex-stock for immediate deliveries for refigeration compressors like Sabroe, Grasso, Carrier, Bitzer, Bock, Stal, York, Frick, Trane, Mycom, Daikin, Gram, Vilter. The spares include connecting rods, crankshafts, valves, plates, piston and piston assembly, rings, pins, bush, suction valve and discharge valve, suction plates and springs, discharge plates and springs, oil pumps, shaft seal, cylinder liner, connecting rod bearings, main bearing, gasket sets, and many more.Â

Test Master Gauges are used in laboratories, pressure gauge calibration, instrument testing and other applications where accuracy and repeatability is important. Available in ±0.5% and ±0.25% F.S. Accuracy.

Pressure Indicator : Accepts 4-20mA from pressure transmitter & displays pressure. Pressure Controller : Accepts 4-20mA from pressure transmitter, displays pressure and gives a relay op. 3-12" Digit LED Display 4 IP 4-20 mA 4 Works on 230V AC Mains 4 Generates 24V DC supply 4 Displays pressure upto 1000 bar 4 Single relay or Double relay op (Controller Only)

We are leading manufacturer, exporter and stockist of ADARSH pressure gauges, diaphragm gauges, pressure calibrators, digital pressure gauges, bimetal temperature gauges, gas filled thermometers, industrial thermometers, temperature calibrators, temperature bath, gauge accessories like syphon, gauge saver, gauge cock, pulsation dampner, needle valves, manifolds, thermowells cooling adaptor etc . We also are one the biggest manufacturer and stockist of aftermarket refrigeration replacement compressor parts for compressors like Grasso, Sabroe, Carrier, Bitzer, Bock, Stal, York, Copeland, Frick, Mycom, Vilter, Gram, Daikin and Trane.

We are leading manufacturer, exporter and stockist of ADARSH pressure gauges, diaphragm gauges, pressure calibrators, digital pressure gauges, bimetal temperature gauges, gas filled thermometers, industrial thermometers, temperature calibrators, temperature bath, gauge accessories like syphon, gauge saver, gauge cock, pulsation dampner, needle valves, manifolds, thermowells cooling adaptor etc . Available in both Standard and Stainless Steel Versions Dial size 63mm (2 ½”), 100mm (4”) Dry or liquid filled 18” npt or 38" bsp connection or other as required Mounting: Bottom Direct, Bottom Surface, Back Direct, Back Panel, Back Clamp Dial Scales with R-12, 22, 502A, R-134A, R404a temp. readings

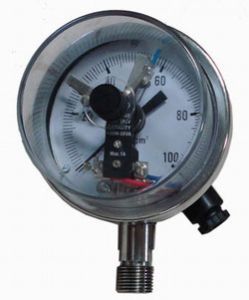

Electric contact pressure gauges are suggested where application is for control of pressure & for Audible or visible alarms. These gauges give electrical output which can be used to turn a motor onoff & similar applications. These gauges can be configured for a 1NO+1NC output or 1NO or 1NC or 2NO or 2NC output. Specifications 4 Available in 4" (100mm) and 6" (150mm) Dial Sizes 4 Contacts: 1NO+1NC, 1NO, 1NC, 2NO, 2NC, 2NO+2NC 4 Contact Rating: 230V, 100mA 4 SS316 Bourdon and Socket, SS304 Movement 4 Stainless Steel SS304 Case and Ring IP65 4 38”, ½” bsp or npt connection 4 Mounting: Bottom Direct, Bottom Surface, Back Direct, Back Panel, Back Clamp Mounting

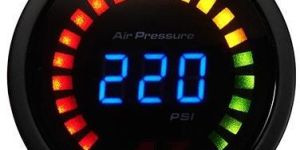

Cannot measure pressure with fine precision by mechanical gauges, switch to Digital Pressure Gauges from ADARSH and measure pressure more accurately & precisely. Get accuracy upto six times more compared to analog gauges and high resolution with least count upto 0.001 kgcm2 bar. Ideal for laboratory use, pressure gauge calibration and applications requiring high accuracy, precision and repeatability.

ADARSH PRESSURE CALIBRATORS ARE IDEAL FOR PRESSURE GAUGE CALIBRATION & TESTING. CHOOSE THE BEST PRESSURE CALIBRATORS AVAILABLE IN THE MARKET ALL WITH NEW DESIGN & FEATURES. OUR CONTINUOUS R&D HAS LED US WITH SO MANY OPTIONS TO CHOOSE FROM. ALL MODELS ARE AVAILABLE WITH ANALOG OR DIGITAL GAUGES.

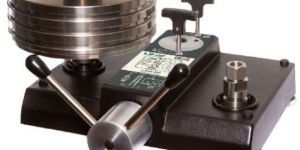

Precision Dead Weight Tester from the famous German manufacturer DRUCK & TEMPERATUR Leitenberger GmbH now available in India through Adarsh Industries, Mumbai. The dead weight testers uses the finest of piston which is made from hardened steel and cylinder made from tungsten carbide. All Dead Weights are available with factory calibration certificate or optional DKD-DAkkS certification is also available.

Mud Gauges are used in Oil Industry for slush pump service, portable core drills, for use on gathering lines, etc. Specifications 4 100mm (4”) and 150mm (6”) Dial Size 4 Range 0-60, 100, 160, 250, 400, 600, 1000 kgcm2 or bar 4 Bottom Direct Mounting 4 SS316 Bourdon Tube, SS304 Movement 4 Built in Damper with Fine external adjustment 4 ±1% F.S. Accuracy 4 Sealing Diaphragm: The measuring system is totally sealed from thick fluid by means of long life flexible anti corrosive cup diaphragm 4 Bronze Case, Chromium Plated and Stub Material SS316 4 Gauge Cover Acrylic Shatterproof 4 Glycerin Filled

Liquid filled gauges are generally used for applications where vibration & pulsating media is a factor. Vibration leads to wear and tear of internal parts and causes the gauge to damage and an unsteady pointer reading. Glycerin or Silicon filling smoothens the movement of internal gears & parts and also reduces the fluterring of pointer to give a steady reading. These gauges are available with either brass internals or ss internals.

We are leading manufacturer, exporter and stockist of ADARSH pressure gauges, diaphragm gauges, pressure calibrators, digital pressure gauges, bimetal temperature gauges, gas filled thermometers, industrial thermometers, temperature calibrators, temperature bath, gauge accessories like syphon, gauge saver, gauge cock, pulsation dampner, needle valves, manifolds, thermowells cooling adaptor etc Specifications Straight or 90 deg Type Upper Aluminium Anodized Body 4”, 6 or 8” Alcohol (Red or Blue) or Mercury Filled Brass or SS Stem Stem Length as required Stem Length: 63mm, 100mm, 125mm or custom length Stem Diameter: 38" (9.5mm) or 10mm or 12mm or as required ½” bsp or npt connection or other as required All Sd Ranges from -60 to 600 deg C Units: Centigrade, Fahrenheit and dual scales CF Thermowell (Pocket) Available Optionally

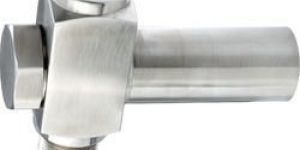

Pressure gauge repairs have shown in many cases of measuring very high (over) pressure behaviour. Not only is the normal operational pressure exceeded but it goes beyond the measuring scope of the pressure gauge. Costs for extension of the overburdened gauge, making of new gauge and repairs of the damaged instruments are the consequence of all this. The over pressure protection device is a reliable armature for avoiding such kinds of damages.

Gauge Cocks are used for flow control like simple onoff, isolation applications. Suitable for pressure upto 30 kgcm2. Available in 2 way 3way type 4 Material SS316 or SS304 or Brass 4 38”, ½” bsp or npt connection

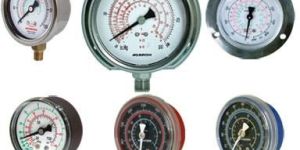

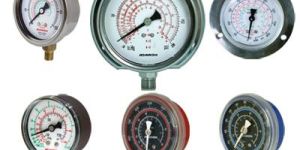

ADARSH Freon Pressure Gauges are widely used in Refrigeration Plants and Commercial Refrigeration Applications. Available in both Standard and Stainless Steel Versions, Mounting: Bottom Direct, Bottom Surface, Back Direct, Back Panel, Back Clamp

Dial Size : 63mm

Electric contact pressure gauges are suggested where application is for control of pressure & for Audible or visible alarms. These gauges give electrical output which can be used to turn a motor onoff & similar applications. These gauges can be configured for a 1NO+1NC output or 1NO or 1NC or 2NO or 2NC output.

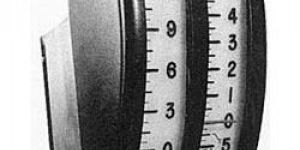

Draft Gauges are used for low pressure measurement from ranges -25mmwc to 0 upto 6000mmwc Rectangle Size: 150 x 78 mm & 200 x 104 mm Vertical or horizontal Dial Orientation Brass or SS Capsule (sensing element) Fabricated Steel Stove Enameled Black Case Connection ¼” bsp (M) or as required Flush Panel Back Entry Range: 0 to 25mmwc upto 6000mmwc Compound ranges: -25 to + 25mmwc upto -300 to +300mmwc

Cannot measure pressure with fine precision by mechanical gauges, switch to Digital Pressure Gauges from ADARSH and measure pressure more accurately & precisely. Get accuracy upto six times more compared to analog gauges and high resolution with least count upto 0.001 kgcm2 bar. Ideal for laboratory use, pressure gauge calibration and applications requiring high accuracy, precision and repeatability.
