Zed articulated truck-mounted platforms with working heights from 14 to 23 metres. The Z-shaped configuration combined with the telescopic boom allows the unit to reach beyond obstacles of 10 metres in height, with an outreach of up to 10 metres. The hoses and cables are mounted in metal housing to prevent hooking onto obstacles and breakages, as well as improving the aesthetics of the unit. The structure of the boom and turntable provide outstanding working stability. Over 3,5 T: Zed truck-mounted articulated platforms that can reach a working height from 26 metres to 32 meters. The Sigma boom ("Z type)" configuration in conjunction with the turret and telescopic top booms, allow clearance of obstacles up to 12 m high with a working outreach of up to 20 m.All the hydraulic and electric services are placed inside the boom framework to prevent snagging or catching onto lines, cables or tree branches, and are aesthetically more pleasing. They stay clean for maintenance purposes The structure of the arm and the turret give a stable "feel" to the basket in all working areas.

Mac-Lifton access platforms are the ultimate machines for overhead maintenance work. These machines can be used for maintenance of street lights, Aircraft & also for tree cutting. They can be fitted on to standard commercial vehicles. Power is taken from the truck power take-off unit or from a separate prime mover.

A well known aerial work platform supplier company.

Features: Utility van cum aerial work platform. Enough space for storage of tools and Tackles.  Aesthetically more pleasing. Optional Insulated basket for electrical work. Best suitable for working any season including monsoon.

• Model Name/Number: IMR 13 T / IMR 15 / IMR 19 SA
• Working Height: 13 m
• Brand: IMER
• Platform Height: 11 m
• Side Outreach: 5.2 / 200 - 6.1 / 120 - 6.7 / 80 m/kg
• Slewing: 360 Degree (Not Continuous)
• Basket Dimensions: 1.40 x 0, 63 x 1.10 m
• Transport Length: 3.5 / 2.9 (Without Basket)
• Transport Width: 1.40 / 0.79 m (Without Basket)
• Stowed Height: 2.00 m
• Overall Outrigger Footprint: 2.7 x 2.8 m
• Driving Speed: 1.5 km/h
• Gradeability: 17 Degree (30%)
• Platform Capacity: 200 kg
• Petrol Engine: Honda GX270 - 4.6 kW (6.2 HP) /3000 rpm
• Total Weight of The Machine: 1460 kg

Requirement of SWL (Safe Working Load): Single or Double Mast Vertical lift is a platform which has only vertical reach and no horizontal reach. It is used for light duty work in factories, shopping malls, Hotel Lobbies, Airport. Usage is continuous (like cleaning work) frequent movement limited.

• 1 Set: Cash in Advance (CID), Telegraphic Transfer (T/T)
• 3,25,000.00 INR per Set: 32,500.00
• 1 Per Day: 6 Week
• Contact us for information regarding our sample policy: Crate packing.
• Middle East, Africa: All India

Aerial Work Platform:  Suitable To Lift One Person With Small Tools  Capacity : 125kgs / 150 Kgs  Power Supply : Single Phase A/C D/C  Heavy Duty Aluminum Mast  Equipped With Emergency Stop  Advanced Electrical Control Panel  Provided With Stabilzers And Sprit Level To Level & Stabilzer The Chassis  Provided With Emergency Release Valve To Lower The Platform In Case Of Power/ Hydraulic Failure  High Quality Power Pack  Inter Locking System  Hl-Tensile Chain  Tilt Alarm (Optional)  F R P Basket ( Optional)

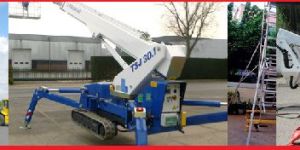

Aerial work platforms are essential when there is no possibility of using telescopic booms or articulating platforms due to their large dimensions or weight – on slope surfaces or indoors – airports, train stations, atriums, shopping centers, etc. “Spiders” are very portable, even low ceilings are not a problem. Working height of the most “modest” machines starts from 9 m and the biggest ones reach 48 m.The most remarkable constructive innovation implemented in new platform is boom with two articulated and telescopic sections in aluminium for better aerial agility.

Nandan GSE  manufactures and  supplies Single Mast Aerial Work Platform. These platforms can be raised up to a height of 14 meters. Manufactured using supreme quality raw material, these platform are highly appreciated by our valued patrons for their self propelled nature, longer service life and light weight. Categories: Aviation GSE, Speciality Handling SolutionsTags: Airlines, Ground Handler, Housing Societies, Industrial applications, Manufacturing, retail

• Brand Name: CTE
• Model: B-LIFT 390 HR
• Vertical Outreach: 39 m
• Horizontal Outreach: 19.4/22.8/26.2 m
• Lift Capacity: 120/320/600 kg
• GVW Minimum: 18 t
• Basket Dimensions: 2400/3600x900x1100 mm
• Boom Colors: Blue (RAL 5017) or White (RAL 9003)
• Power Source: Electro-hydraulic
• Basket Rotation: 90 deg Right + 90 deg Left
