Air Handling Unit Dealers in Mumbai

Available with us, is a quality proven range of air circulation systems that is used for rapidly ventilating an enclosed area with fresh external air. Offered in standard and dual mode operations, these air circulation systems are offered to our clients in standard and customized specifications.   The mode of operation of the dual circulation systems is mentioned below :  Multiple barriers operate to create two airflow pathways  Two return air duct apertures are opened to expose the return air duct to an external air supply area via a fresh air duct  Fresh air duct includes an opening to the external air supply area  Two extensions are coupled to the return air duct apertures  Simultaneous operation of barriers to block the return air duct between the two return air duct apertures  This helps in the formation of two distinct return air duct segments  Central air unit and exit fan cooperate with the barriers  This establishes two airflow pathways through the return air duct segments  First one is for extending the airflow pathway from the external air supply area to the fresh air duct through the first return air duct segment directly into the enclosed area before removal by the exit fan  The second airflow pathway extends from the external air supply area to the fresh air duct through the second return air duct segment through the central air unit through a supply duct into the enclosed area before removal by the exit fan

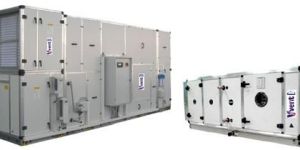

We are offering an air handler, or air handling unit (often abbreviated to ahu), is a device used to condition and circulate air as part of a heating, ventilating, and air-conditioning (hvac) system.[1] an air handler is usually a large metal box containing a blower, heating or cooling elements, filter racks or chambers, sound attenuators, and dampers.[2] air handlers usually connect to a ductwork ventilation system that distributes the conditioned air through the building and returns it to the ahu. Sometimes ahus discharge (supply) and admit (return) air directly to and from the space served without ductwork.

These units are ideal for handling high air quantities. The modular design sections offer both sturdy construction and flexible combination of components such as coils and filters to suit specific applications. As all major components are aligned to the base tray, it is maintenance and service friendly.    Features Quality Range of 37 models with an air flow range of 3250 to 60500 CMH AMCA certified Fans with higher efficiency and low noise levels View Port helps to monitor fan and motor status and Marine Lamp provides easy visibility Drain pan is made of powder coated galvanized sheet steel and insulated with a closed cell elastomeric insulation to avoid surface condensation Filter sizes standardized to the internationally recognized standard of 4 sizes Optional features for Casing, Cooling Coils, Fans, Mixing Box, Damper and Filters can also be provided

• Condition: New
• Warranty: 2 Years
• Airflow: 1000-60000M3/H
• Operating Voltage: 380/400 VAC
• External pressure: 100-30000Pa
• humidifier section: Wet film

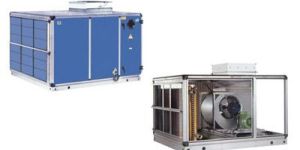

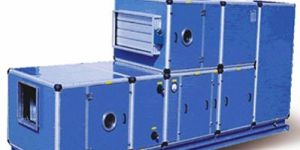

Backed by a team of experienced professionals, we are engaged in offering a wide range of Air Handling Equipment. Our offered range are widely appreciated for their superior functionality and high performance. Fabricated using optimum quality raw material and components.Features: Optimum performance Low power consumption Quality design Equipped with advanced technological features

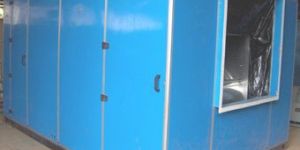

Engineered to deliver High Indoor Air Quality Introducing Double Skin Air Handling Units completely redesigned with a ‘Screwless Cabinet’ construction. As the name suggests, these units have a casing made of sandwiched panels, resulting in low noise, sturdy construction and better thermal insulation. Taper wedges are used for fixing and locking the insulated panels with aluminum frame. Advantages of ‘Screwless Cabinet’ Construction: Reliability and Longer life Better Aesthetics Engineered to deliver High Indoor Air Quality Low Noise Energy Efficiency Ease of Assembly and Maintenance Reduces Air Bypass in Filter Section Standard Filter Sizes and Compact Design Advantages of ‘Screwless Cabinet’ Construction: Reliability and Longer life Better Aesthetics Engineered to deliver High Indoor Air Quality Low Noise Energy Efficiency Ease of Assembly and Maintenance Reduces Air Bypass in Filter Section

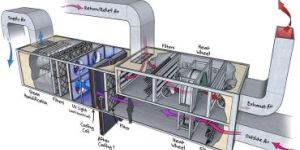

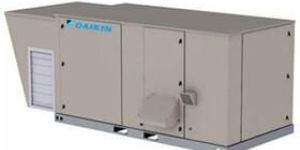

An air handler, or air handling unit (often abbreviated to AHU), is a device used to regulate and circulate air as part of a heating, ventilating, and air-conditioning (HVAC) system. An Air Handling Unit (AHU) is used to re-condition and circulate air as part of a heating, ventilating and air-conditioning system. The basic function of the AHU is take in outside air, re-condition it and supply it as fresh air to a building.

• Type: Double Skin
• Condition: New
• Body Material: GI
• Air Flow: 1000-15000 CFm
• Phase: 3 Phase
• Power Source: Electric
• Floor Mounted: Yes

Double Skin Air Handling units with 22/24G G.I. pre coated/powder coated sheets panels with 25/50 mm thick puf insulation, High/Low static pressure blowers, Chilled water coils, Pre, Fine and HEPA filter. Fan Section is having multivane forward/backward curved centrifugal blowers. Filter Section is having easy fitting arrangement to fit HDPE Pre, Fine and HPEA filters as per requirement of the system and also provided maintenance door for filter cleaning and maintenance work. Coil Section is designed as per the size of the DX/CHW coil required for the system. Surrounding part of the coil inside the AHU is fixed with G.I. sheets. Coil tray is fabricated in S.S.304 from inside and G.I. sheet from outside with insulation.

• Type:
• Section: Air Mixing Chamber + Filter Section + Coil Section + Heating Section + Blower Section
• Construction: Double Skin – Sandwitched PUF Panel(GI / AL / SS-304) Frame work - Aluminium Profile ( Plain & thermobreak)Coil – Cooper tube with aluminium fins
• Application / Use: Comfort Air Conditioning – Coomercial AirConditioning
•  :

MESINA Offers 2 types of Air Handling Units, mainly CABINET TYPE and SECTIONAL TYPE. Cabinet type unit houses Fan-Motor drive, Cooling Coil, Filters, Drain pan in one compartment,openable from top and sides for Servicing.The Panels are insulated internally with Foam/ Thermocole insulation. The models are 112, 115, 118 and 212 and capacities from 2500 to 10,000 CFM for static pressure up to 2" wg. In sectionalised type various sections available in horizontal or vertical air discharge.Casing is of heavy 16 gauge CRC steel sheets and angle iron frame work with bolt nut,gaskets for assembling at site as required. There are Fan sectiions,Coil sections, Damper section and Filter sections suitable for fixing Pre-filters and Micro Vee Filter as necessary. The Coil section has drain pan for removing condensate. The models are 118,215,218,315, 318 and 321 having capacity 6 lOOto 30,000CFM to run against pressure of 3 "wg. The casing Panels are externally painted Store Enamelling or Powder Coated type. In these unit motors are mounted externally. Cooling coils are available in rows 4,6, 8 as per load conditions, capacity 5,7.5,10,15,20,3 0,3 5,50 and 60 T.R. For external dimensions and technical details to be given against specific requirements. SPECIAL FEATURES Top and Sides easily openable for servicing. Angle Iron Frame Work. Customs Built Units. Factory Run tested. CAPACITY RATING Each AHU is built into housing of Forward Curve Centrifugal Fan, DX or Water Cooling Coil, Drain Pan, Filter, Heating Coil, Fan Motor, V -Belt Drive, Foam Insulation / Double Skin Insulated Panels removable and accessories as required.

The wide range of AHUs manufactured in the production unit are with world class capabilities and special features like internal covings & thermal brake external frames.They are tailor made depending on the design, applications, availability of space and similar other parameters.

We are offering air handling unit. Air handling unit made available by us is accessible with lots of benefits to provide quality service. It reduces the operational, service and maintenance cost. Our air handling unit is highly durable which is specially made to cater the needs of the customers. Air handling unit is technically developed product which offers a great value and alternative to the traditional field trade methods. This product is extremely useful and equipped with pp handles and hinges, inspection door, sticking type leak proof gasket, anti vibration mountings, internal cabling, anti vibration canvass, metal alloy allen bolts with nutserts for panel fixing, door interlock for blower. benefitsreduce operational costreduces service costreduces maintenance costreduces installation costcompatible with energy efficientadvantagescontinuous operational powerhigh performancesophisticated quality competitive pricereliableflexible designcustom constructiondesign parametersimported software to design betterclient specific designfact related customizationcustomized according to drawing and site requirementproper spacing with great designexecution skillsstage wise execution of the project to finish in timeefficient site engineers for supervisionfast on site assembling of unitpre-fabricated ducting laying as per approved autocad drawingmaximum utility of skilled and unskilled labor forcemaintain coordination with project manager and executives for site suggestionsspecificationsmotor : hindustan or siemens or cromptonblowers : nicotra or krugerpanel sheets : jindal 22/24 swg with 0.34 mil zinc coating astm 653 and a924, bottom panel 22/24 gi/ss 304hinges/handles : poly propelene (pp)ss sheet : 304 grade 24 swggasket : food gradecoil : 5/8” cu tube testing at 31 kg/cm2cleaning : caustic 10% and rinsing with water to avoid corrosionextruded 45 mm al frame with coving, pp corners, 45 mm ss/gi pc panels 22/24 swg, ss drain tray

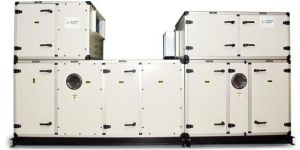

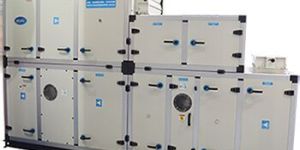

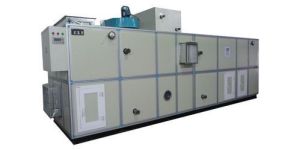

Airpac has always been inclined towards innovation. In 1998 the pharmaceutical industry witnessed a new, improved and compact solution when Airpac introduced the concept of Air Handling System with an inbuilt Dehumidifier in India. Today, this solution is commonly known as ACDs (AHU cum Dehumidifier) or an Engineered Dehumidifier.

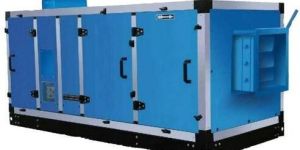

• Power: 27.4
• Color: Blue
• Driven Type: Electric
• Usage/Application: Industrial
• Airflow: 2000
• Insulation Thickness: 25/50 mm
• Heating Capacity Range: 30.7
• Operating Voltage: 380/400 VAC

• Country of Origin: India
• Type: Air Handling Unit
• Weight: 1000-2000kg

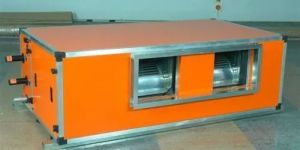

ouble Skin Air Handling Units completely redesigned with a 'Screwless Cabinet' construction. These units have a casing made of sandwiched panels, resulting in low noise, sturdy construction and better thermal insulation. Taper wedges are used for fixing and locking the insulated panels with aluminum frame. Double skin Air Handling Units having Non thermal break and complete with mixing plenum, stainless steel drain tray, 6 Row DX cooling coil, fresh air intake having damper, 10 Micron pre-filter section, 5 micron Microvee filters, Kruger make Blower with flexible connection, crompton make motor and belt drive package.

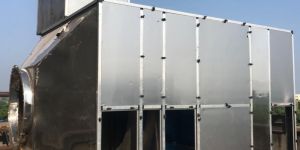

We are leading energy-saving device is introduced into the air-handling unit (AHU). Due to increases in energy costs, energy saving devices or systems have become the new preferred trend in tropical countries. A primary cooling coil system is incorporated into Manufacturer of Air Handling Unit to recycle the condensate water in order to achieve energy savings. The warm outside fresh air is drawn through the primary cooling coil to recover the latent heat of condensate water. The large temperature gradient between the warm fresh air and condensate water enlarges the Quantity of energy recovered. This system is well applicable to primary AHU which serves primary air to the air-conditioning system. The cost of installing the device is negligible but in returning long term saving. The idea generation is discussed in the introduction. Shows the detailed theoretical study of the development of the energy saving system. This shows the viability of the idea. Lastly, the conclusion of the whole study is presented. We are instrumental in offering Manufacturer of Air Handling Unit in India, which helps in the production of pharma products. This equipment is used to distribute dehumidified dry air.
