Anodes Dealers in Mumbai

• Material: Copper
• Shape: Round
• Thickness: 10-20mm
• Certification: ISI Certified
• Application: Industrial
• Color: Brown
• Finishing: Polished
• Country of Origin: India

• Country of Origin: India
• Type: Titanium Anodes
• Certification: ISO certified
• Color: Grey
• Form: Solid
• Shape: Rectangular
• Specialities: High Performance
• Finishing: Unpolished

Mixed metal oxide (MMO) coated titanium anodes comprise a family of electrodes made from commercially pure titanium to which an electro catalytic layer is applied by thermal decomposition. The electro catalytic layers is composed of a mixture of noble and valve metal oxides, the selection of which and their ratio is dictated by the electrolyte conditions in which the anode is immersed.These anodes can be used to advantage in aggressive solutions or other difficult applications.The manufacturing route of MMO coated anodes varies depending on the composition of the electro catalytic layer. In general the route involves multiple applications by thermal decomposition of mixtures of noble metals as their oxides.A variety of shapes and forms are available including Tubular, Bar, Rod, Sheet, Wire, Disc and Mesh. Individually fabricated anodes are available to suit customers’ specific requirements.MMO coatings can be specifically formulated to withstand the simultaneous generation of oxygen and chlorine, which occurs in dilute sea water or fresh water containing low chloride levels. MMO coated anodes are also durable in highly acidic media and are often used in deep well ground beds. The advantages using mixed metal oxide titanium are,  Improved resistance for oxygen/chlorine mixed evolution Range of compositions for various duties available Improved resistance in acidic media Low wear rate

• Range: 0-5000 mV DC

Using this instrument, you need not bend down, nor attach many connections. Using CP Voltmeter, Errors in measurement are reduced drastically because of specially made voltmeter for CP Survey. Powered by 9 Volt Battery requires no push to read switch, and the solid-state integrated circuit has built-in filter to reject AC interference. Input resistance of 10 megohms (10 million ohms) of this instrument results in potentiometer quality voltage readings. The instrument measures direct reading in mV when connected with half-cell.

• Country of Origin: India
• Type: Copper Anode
• Material: Copper
• Thickness: 10-20mm, 20-30mm, 30-40mm, 40-50mm, 50-60mm, 60-70mm, 70-80mm, 80-90mm, 90-100mm
• Length: 1-1000mm, 1000-2000mm, 2000-3000mm, 3000-4000mm, 4000-5000mm
• Application: Earthing, Making Power Battery, Plants, Cryogenic Refrigerator Compressors
• Brand Name: Jams Copper
• Standard: ASTM B 115-00
• Size: 80mm x 30mm (oval size), 25mm, Ø 38mm, Ø 50mm (ball size) or as per customer requirement

Product Description:Phosphorous Copper Anode (Cu-DHP) finds usage in the plating of Printed Circuit Boards. These anodes are available in Copper Ingots, Copper Cathodes and Electrolytic Copper options with all copper forms containing in it least 99.9% copper. Free from impurities, these provide the safeguard from contamination of electroplating solutions as well as a Co deposit on the cathode. Further, these are also available in suitable metallurgical condition to dissolve uniformly.General Specifications: Size - Oval - 80mm x 30mm; Ball minuscule 25mm, minuscule 38mm, minuscule 50mm or as per customer requirement Material Standard- ASTM B265, Grade 5, Grade 9 Shape- Oval, Ball Weight - per foot Application Areas: Electroplating Applications Rotogravure Electroforming Decorative Printed Circuitry Electrical Ground Rod Electro-forming Other functional plating applications.   Jans Copper Pvt Ltd is one of the leading Copper Anodes, Copper Balls & Copper Nuggets manufacturer and supplier in India. Jans Copper Pvt Ltd's Copper Anodes, Copper Balls & Copper Nuggets are manufactured in accordance with the defined international standards. The raw material that is used to manufacture SIMCO copper products are LME grade ‘A’ cathodes of purity greater than 99.99% copper resulting in higher conductivity, crack free extrusion, excellent finish and longer life.   Available Sizes As per customer’s requirement Available Grades ETP, OFC, Phosphorised Copper Plating / Coating Bare Additional Specifications / Details Available in all forms i.e. Oval, Slabs, Balls, Rods, Nuggets, etc. Applications / Uses Printed circuit boards, Rotogravure, Electroforming, etc. Overall, there are several characteristics that determine the quality of the copper anodes manufacturing process. These include: purity of copper, fine grain structure, uniform phosphorus content and distribution, and properly cleaned and anodes packaged and ready for use. Therefore, the quality of copper anodes should be very important to electroplaters because properly manufactured anodes will: extend bath life; have less metallic contamination; produce parts without roughness; have less sludge; and require less maintenance.

• Color: Grey
• Shape: Square
• Usage: Electroplating, Galvanising
• Thickness: 10-20mm, 20-30mm
• Packaging Type: Wooden Box

HMS Metal Corporation is a Leader in the production and Supply of Anodes used in copper, zinc and nickel refining. Our electrowinning anodes integrate years of experience, research and development.With fully Integrated & 100% in-house production facility we are able to Internally controlled workmanship for alloying, rolling blade, head bar tinning and casting, welding, cutting & packaging.   Although anodes are manufactured to client’s designs, with each stage of manufacture using the best quality raw materials and controlled by a strict quality process system, anodes are produced efficiently and consistently within estimated time.   Anodes made of lead alloys are used in the electrowinning and plating of metals such as manganese, copper, nickel, and zinc. Rolled lead-calcium-tin and lead antimony alloys are the preferred anode materials in these applications, because of their high resistance to corrosion in the sulfuric acid used in electrolytic solutions. Lead anodes also have high resistance to corrosion by seawater, making them economical to use in systems for the cathodic protection of ships and offshore rigs. Rolled lead anodes have become the industry benchmark with the benefits of fine grain structure, less segregation and elimination of cracks and voids resulting in more uniform corrosion of the anode.   The shape and size of the copper bar and the anode plate are made to customer specifications The copper bar is tin-plated and then given a homogeneous coat of lead several millimeters thick as protection from corrosion caused by aggressive acid mist. This method of protecting the anode bar also ensures the best possible bond between lead and copper for improved current flow and long service life. Chemical Composition The lead anodes are manufactured in calcium-tin-lead (Ca/Sn/Pb), antimonial lead (Sb/Pb) and silver-lead (Ag/Pb) alloys which are the preferred alloys for these applications with their high resistance to corrosion in the sulphuric acid based electrolyte solutions. Lead anode alloys generally consist of tin, Calcium, and Antimony. The favoured alloys, based on the specific application, are lead- antimony as well as lead-Calcium-Tin alloys. One reason for this is because of the alloys’ resistance to corrosion in the sulfuric acid that’s used for electrolytic solutions. (Lead-alloy anodes are used in electro winning – also known as electro extraction – as well as for plating metals such as manganese, copper, nickel, and zinc.) Lead anodes have superior attributes, such as being highly resistant to the corrosive effects of seawater. We also offer custom Lead Alloys to meet your specifications We specialize in manufacturing complete Lead Anode and Anode Plates for Zinc, Nickel and Copper extraction electrolysis plant. Electrowinning of copper, nickel, cobalt and zinc in SX-EW processing of ores. Ca/Sn/Pb alloy is generally used for copper, nickel and cobalt applications. Ag/Pb alloy is the preferred alloy in zinc electrowinning Packing The finished anodes are packed together in wooden pallets with thick thermocol in between each Anode to prevent the individual anodes from bending.Do's & Dont;'s Remember, proper care of anodes will pay off in longer life. Try these suggestions with new Republic anodes. Do not leave new anode in chromium solution when tank is idle. Instead, remove them and place them in clean water after use until a uniform brown film of lead peroxide is formed on the surface. Do not confuse this dark brown lead peroxide coating with lead chromate. Lead chromate (PbCrO4) is yellow in color and acts as an insulation. This should be removed in order to restore the anode to the most efficient service level. We recommend that approximately two inches of lead anode be above the solution level at all times. We do not recommend mixing old and new anodes together. Adding new anodes intermittently in order to obtain amperage needed could result in new anodes scaling up very rapidly. If it is not practical to replace all anodes at one time, we suggest extreme care be given to the new anodes to assure proper breaking in for efficient performance.

• Country of Origin: India
• Usage: industries,

We, Phoolchand Bhagatsingh is a Partnership firm which ranks among the leading manufacturer, trader and importer of high quality industrial raw material. Since our inception, we are engaged in importing wide variety of Ferrous Alloy, Base Metal, Minor Metal, and major end consumers throughout India. Get best price of Nickel Anodes.

• Material: Metal
• Color: Metallic
• Application: Industrial
• Surface Finishing: Polished
• Resistivity: Rust Resistant
• Durability: Long Life

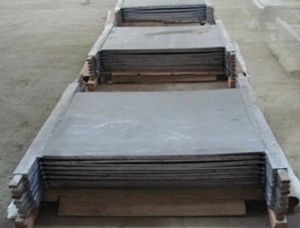

We bring forth to customer the high on quality Lead Anode. The lead alloy anode that we manufacture is made from premium quality lead and is assured to be free of any impurities thus, assuring free flow of current. The anodes are available in different sizes as per the requirement of the customers. Moreover, the quality that these anodes are available in makes them highly sought after in the whole market. And this huge popularity has made us along with it the most famous lead metal anode manufacturers and suppliers in India. Lead Anodes are Used By Electrowining Companies in their Acid Cells.
