Antibiotic Zone Reader Dealers in Mumbai

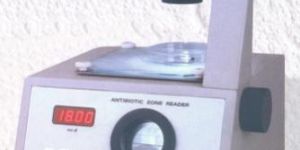

The antibiotic zone reader provides a rapid accurate method for determining the strength of antibiotic materials by measuring the diameter of an inhibition zone in a petri-dish.     In use, the discs are placed on a petri-dish prepared with agar and inoculated with bacteria. After incubation, the bacteria cover the entire dish except for a circular inhibition zone around, it being a function of the strength of the antibiotic.   This zone reader measures the diameter of the inhibition zone to 0.02 mm within range of 0 to 35 mm diameter. Light from a source from the top, passes through the transparent and semitransparent portions of the agar, then to a reflecting mirror supported by an arm above the unit. The mirror reflects the light to glass prism mounted at the front of the unit and magnified image of the zone of inhibition is clearly visible on the prism. Features   Accurate method for determining the strength of antibiotic material Micro processor based design Average of Vertical diameter & Horizontal diameter of inhibited zone Magnified image of inhibited zone is clearly visible on the prism Calibration facility Printout facility Facility to store 4 zones (optional 6 zones) IQ / OQ Documentation .   Advantages     An accurate method of determining the strength of antibiotic materials. Magnified image of the inhibition zone is clearly visible on the prism. Less time-consuming for measuring the accurate diameter of an inhibited zone ( 0.1 mm). Easy to operate for single person. Display shows direct reading. Vertical & horizontal reading of the zone stored in memory

• Brand Name: Bio Techno Lab

Antibiotic Zone Reader is most suitable to measure the diameter of the inhibited zone in microbiology, botany, zoology, bacteriology & pathology labs. Our Antibiotic Zone Reader is unique in design & suitable for measuring the diameter of inhibited zone within the range of 0 to 35 mm with accuracy 0.2 mm. Our Antibiotic Zone Reader determines the strength of antibiotic materials rapidly and results obtained are reliable.  Highlights : Reliable Unique design Provides rapid result Accurate

• Brand Name: NA
• Form: Capsules, Liquid, Tablets
• Application: Pharmaceuticals
• Packaging Type: Box
• Country of Origin: India

antibiotic zone reader

• Power: 220V + 10% 50 Hz.
• Size: 35 cm X 30 cm x 20 cm
• Weight: Net 10 Kgs

The antibiotic zone provides a rapid accurate method for determining the strength of antibiotic materials by measuring the diameter of an inhibited zone in Petri- dish In use, the discs are placed on Petri-dish prepared with agar and inoculated with bacteria. After incubation, the bacterial cover the entire dish except for a circular in – habited zone around being a function of the strength of the antibiotic. This zone reader measures the diameter of the inhibited zone to 0.02 mm within range of 0 to 35 mm diameter. Light from a source in the base, passes through the transparent and semitransparent portion of the agar, then to a reflecting mirror supported by an arm above the unit. The mirror reflects the light to glass prism mounted at the front of the unit and magnified image of the zone of inhibition is clearly visible on the prism.  Digital Indications of antibiotic zone diameter using a micro-computer. Measurement range 00.00 to 35.00 mm diameter readability 0.01 mm. Average of two diameter readings in vertical and horizontal direction of inhibited zone. Recall average diameter of inhibited zone. Key operations are acknowledged by beep sound. S.S. calibrated coins for calibration IQ / OQ Documentation Advantages : An accurate method of determining the strength of antibiotic materials. Magnified image of the inhibited zone is clearly visible on the prism. Less time – consuming for measuring the accurate diameter of an inhibited zone. (+/- 0.1 mm) Easy to operate for single person. Display shows direct reading. Vertical & horizontal reading of the zone stored in memory.

Digital antibiotic zone reader determines strength of antibiotic materials by measuring diameters from 0 to 80.0 mm of inhibited zones in petri dishes. Agar in petri dish is inoculated with bacteria, and then sensitivity dishes are dispensed onto dish. After incubation , bacterial growth covers dish except for circular inhibited zone around each disc. Zone diameter is a fiction of antibiotic strengh. Light from base passes up through transparent &semitransparent portions of agar. Adjustable rubber belt sliding , facilitates positioning of dish relative to light source. Light then passes Technical Specification Digital Display 4 digit (9999 max). Dish Size 110mmdia. Magnification 100 mm. Standard Accessaries - Marking pen, Magnifier Lense Holder. to reflecting mirror which reflects image, on glass prism with horizontal line mark on it. Arc from one edge of circle zone is adjusted tangent with line on viewing glass by the “slider knob”. Now hold the left side knob & turn the right side dial & adjust zero.Then entire dish is to be moved by turning “slider knob” until are from opposite side of inhibited zone is brought tangentto same line. Take down the reading from the dial.

Suitable for measuring the diameter of inhibited zone within the range of 0 to 35mm with accuracy 0.2mm.

• VOLTAGE: 230 V

SHITAL antibiotic zone reader is most suitable to measure the diameter of the inhibited zone in microbiology, botany, zoology, bacteriology and pathology labs. The instrument is unique in design and measures the diameter of the inhibited zone to 0.1 mm within the range of 0 to 35 mm. Light from a source in the base passes up through the transparent and semitransparent portion of the agar-agar, then to a reflecting mirror supported by an arm above the unit.            The mirror reflects the light to a glass prism mounted at the front of the unit and the magnified image of the zone of inhibitions can be clearly seen on the prism. The instrument is supplied complete with all the required accessories like prism, Petri dish, etc. The unit is suitable for operation on 230 V, 50 Hz, single phase AC supply

we offer antibiotic zone reader (manual) designs and colors that are user friendly and make for a good product for the long run. we also provide for bulk assignments and long distance delivery for the industry. specifications : » operating - single phase» voltage - 230 v» frequency - 50 hz» use - measures the diameter of inhibited zone to 0.02mm» measuring range - 0 - 35mm

• VOLTS: 230
• CAT NO.: CIC – 89
• MODEL: Precision Model

This is very compact and designed for measuring the diameter of finished zone in petridish, for determining the strength of antibiotic materials. Ext. GI Powder Coated in REGULAR MODEL Unit made of SS 316 or SS 304 in GMP MODEL. With Accuracy of 0.1 MM. This Antibiotic Zone Reader measures the diameter of the inhibited zone within the range of 0 to 80 mm with accuracy of 0.1 mm. The light from inside source of the base passes up through the transparent and semi transparent of the Agar then to a reflacting mirror situated in an arm above the unit. The mirror reflects the light to a glass prism mounted at the magnified image of the zone of inhabitions is clearly visible on the prism.

• Packaging Type: Corrugated Box 7 Ply
• Application: Laboratory

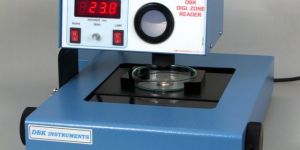

• Brand Name: DBK
• Model Name/Number: 10AZR02
• Material: Mild Steel
• Frequency: 50Hz
• Phase: Single Phase
• Range: 0-75mm
