ARIHANT CABLES Kalbadevi, Mumbai, Maharashtra

Range: 1C x 16 to 95 so.mm - Flame retardant elastomeric insulation with Class 6 copper conductor for greater flexibility and resistant to heat and oil

Different metal pairs generate different emfs which is proportionate to the hot junction and the point where it is measured. Common combination of thermocouple metals and their applicabtions are 1. K-ChromeVAlumel-Most commonly used 2.T-Copper/Constantan-for low temperature & cryogenic applications 3.J-iron/Constantan-Used in reducing atmosphere. 4.E-Chromel/Constantan-Highest EMF output. 5.R-(Platinum-13% Rhodium) / Platinum & S-(Platinum-10% Rhodium) / Platinum-Very High Temperature measurements. 6. B--(Platinum - 30% Rhodium) / Platinum-Mainly used in glass industry. Different colour codes of cores and sheathing as per international practices are used to denote the various thermocouple cables. . COMPENSATING CABLES Extention Leads of different metals but having similar EME output between 0°C to 100°C connected between Thermocouple metals junction and the measuring instruments arc called Compensating Cables which are generally recommended as solid conductor leads.

-Range: 1 Pair to '100 Pair x 0.40 min, 0.50 mm and 0.63mm in solid bare conductor with HDPE Insulation and Flame Retardant Jacketing having lower cross talk and attenuation

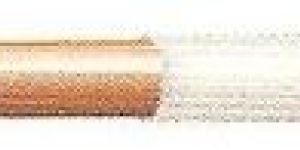

Single Solid Copper conductor from 0.6 to 3.0 mm wrapped with Superior Grade HR grade BOPP tape with High Abrasion resistance

Flat : 3 Core x 1.50 sq.mm to 95 sq.mm, Round : 3 Core and 4 Core x 1.5 sq.mm to 120 sq.min in Class 3 copper conductors with PVC/XLPE Insulation and PVC/PVC ST2 sheathing properties

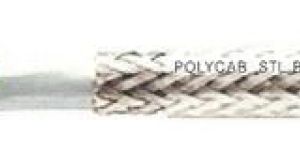

Copper conductor, Single Core / Multi Core / Multi Pair PVC / XLPE / FR-XLPF, insulated, Steel wire braided(Armouring), PVC / PVC-ST2 / FR / FRLS / LSOH sheathed cables to provide flexibility and added mechanical protection.

Suited for various applications such as • MARINE, OIL &GAS (OFFSHORE &ONSHORE) • EXTREME FIRE CONDITIONS • HIGHLY CORROSIVE ENVIRONMENT • TRAFFIC SIGNALLING • AIRCRAFT • SPACE STATION • AUTOMOBILES • ANTI-THEFT CABLE • WF CABLE

Solar cable with XLPE Cross linkable Low Smoke Zero Halogen compound suitable for conductor temperature beyond 120°C and sheathed with UV stabilized Cross linkable Low Smoke Zero Halogen compound — in sizes 1C x 2.5 sq.mm to 25 sq.mm Application: Interconnection of Photo Voltaic Modules in air

Sizes : 1C x 2.5 sq.mm to 25 sq.mm

SOLAR DC CABLE: Class 5 Bare / Tinned Copper conductor insulated with XLPE / Cross linkable Low Smoke Zero Halogen compound suitable for conductor temperature beyond 120°C and sheathed with UV stabilized Cross linkable Low Smoke Zero Halogen compound — in sizes 1C x 2.5 sq.mm to 25 sq.mm Application: Interconnection of Photo Voltaic Modules in air SOLAR DC CABLE: Class 5 Bare / Tinned Copper conductor insulated with X1,PE/PVC and sheathed with UV stabilised PVC sT2 compound — in sizes 'IC x 2.5 sq.mm to 25 sq.mm Application: Interconnection of Photo Voltaic Modules in Conduit SOLAR DC CABLE: Class 5 Bare / Tinned Copper / Class 2 Aluminium conductor insulated with PVC /XLPE, PVC ST2 inner sheathed CI / Aluminium round/strip wire Armoured and outer sheathed with UV stabilised PVC ST2 compound — in sizes 1C x 25 %rum to 400 sq.min Application: Connection of Collector to Inverter in Air/Underground Trays LT SOLAR AC CABLE: Class 2 Aluminium conductor insulated with XLPE, PVC ST2 inner sheathed, GI round/strip wire Armoured and outer sheathed with UV Stabilised PVC ST2 — in sizes 3/3.5C x 25 sq.mm to 400 sq.mm Application: Connection of Inverter to Transformer in Air/Underground Trays HT SOLAR AC CABLE: Class 2 Aluminium conductor, semicon covered, XLPE insulated, Semicon covered, Copper Taped, PVC ST2 inner sheathed, GI round/strip wire Armoured and sheathed with UV Stabilised PVC ST2 compound — in sizes 3C x 35 sq.mm to 240 sq.mm Application: Connection of Transformer to Grid in Air/Underground Trays

Range: 1C to 61 cores from 0.50 sq.mm upto 2.5 sq.mm and sizes 0.5sq.mm to 630 sq.mm — Annealed tinned Copper conductor- Class 5, Melinex taped Ethylene Propylene Rubber/Silicon insulated, Polychloroprene, HD HOFR PCP/CSP/Silicon rubber sheathed 1.1 kV grade, Fire Retardant, oil and ozone resistant, heat resistant, rubber cables conforming to IS 9968 Part -1 : 198.

• UNDER GROUND RAILWAY SIGNALING CABLES 1.1kV Grade Copper Conductor' Armoured Unsereened PVC Insulated signalling cable as per IRS 63/2007 with Amendment No.1 or latest • POWER CABLE AS PER & IRS & IS SPECIFICATION 1.1kV Grade Aluminum Conductor Armoured PVC Insulated signaling cable as per IRS 63 / 89 or 1554-Part-1 with Amendment latest • UNDER GROUND RAILWAY ME 4 & 6 QUAD 0.9 MM & 1.4 MM CABLES Quad Jelly Filled cable 0.9 mm dia„Aluminum sheathed metallic armoured as per Specification No. IRS: TC-30/05. With latest Amendment • UNDER GROUND RAILWAY PIN TELEPHONE CABLES Underground Polythene Insulated jelly filled cable with poly-Al. Moisture Barrier Armoured Telephone cable As per IRS 41/97 with Latest Amendment • SINGLE STRAND & MULTI STRAND COPPER WIRES AS PER RAILWAY SPECIFICATION Supply of Power Wire PVC Insulated Single Core multi strand unsheathed with plain annealed copper conductor as per IRS:S-76/89 Amndt - 3, copper cable of 6 Sq. mm - for wiring in track circuit battery location box in Red & Black colour.

Single Core Multi-Stranded Copper conductor, Single Core Multi-Stranded Copper conductor, PVC Insulated Wires with normal Flame Retardant FR PVC Insulated Wires with excellent Flame properties Retardant properties

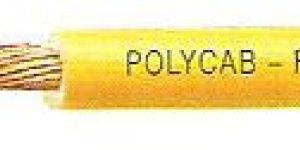

Single Core Multi-Stranded Copper conductor, FRZH Insulated Wires with excellent Flame Retardant Low Smoke properties having ROHS compliance

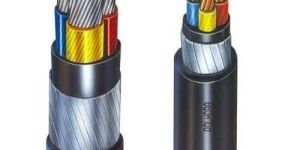

Polycab cables with layers of Mica Glass Tape, EPR XLPE Silicon FR-XI,PF, insulated, cores laid up, extruded FRLS LSOH inner sheathed, Unarmoured GlArmoured,

2 Core to 61 Core x 0.50sq.mm to 4sq.mm, 2 Core to 4 Core from 6sq.mm to 120sq.mm in Class 5 copper conductors with different Insulation and sheathing properties

3.3 to 33kV Grade — Type Tested at KEMA/ CPRI/ ERDA Three Core Copper / Aluminium Conductor, Conductor Screened with Extruded Semi-conducting compound, XLPE Insulated, Insulation Screened with semiconducting compound in combination with copper tape (0.3 Kit for one sec.), PVC ST2 / ["RI FRLS / LSZI1 inner sheathed, UnarmourccVG1 Steel (Aluminium in case of' Single Core) flat / round armoured, and overall PVC 512 / FR / FRLS / I.SZH Sheathed cable conforming to IS: 7098/11/85, IEC 60502-2 / BS 6622 / BS 7835 from sizes 35 sq.mm to 1200 sq.mm

6.35/111(V Grade — Tested at ERDA XLPE insulated Aluminium conductors, screened, cores laid together (twisted) around a bare messenger conductor of WC / ACSR from Single Core 70 sq.mm to 300 sq.mm & Three Core 50 sq.mm to 300 sq.mm

Stranded/Solid Copper Conductor, PR / PVC /HR-PVC XLPE / Silicon / FR-XLPE Insulated, Core / Pair! Triad / Quad laid up together overall shielded with M,ylar / Drain Wire / Al Mylar, PE / PVC / FRLS / PVC ST 2 / LSOH Inner sheathed, Unarmoured / GI Steel round wire/Strip / GI Steel Wire braided (Armoured), PVC / FR / 'RIS / PVC 5T2 / LSOH Outer Sheathed from 2 to 61 Core and Ito 61 Pair / Triad / Quad in sizes 0.5 sq.mm to 2.5 sq.mm

Range: Cat Se & Cat 6 — Twisted Pair, Insulated with High Quality Polyethylene and Unshielded Light Grey PVC Jacket with Improved Fire Retardent properties. Low attenuation and crosstalk and Low Structural return loss.

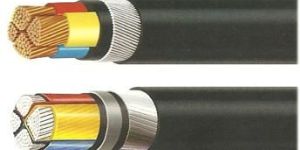

LV POWER CABLES 1100 Volts grade — BASEC/KEMA/(CPRI/ERDA Tested) Power Copper / Aluminum Cables, Solid / Stranded conductor, PVC / XPE, Insulated, cores laid up, PVC / FR / 8T2 / FRLS / LSZH taped / extruded innersheath, Unarmoured / Armoured, extruded PVC / FR / ST2 / FRLS / LSZH sheathed cables from 2.5 sq.mm to 1000 sq.mm and in 2/3/3.5/4 core as per IS 1554 / IS 7098 (Part 1) 1988 and generally confirming to IEC 60502-I / BS 5467/BS 6724.

1100 Volts grade — BASEC/KEMA/(CPRI/ERDA Tested) Control Copper Cables, Solid/Stranded conductor, PVC / XLPE Insulated, cores laid up, PVC / FR / ST2 / FRLS / LSZH taped / extruded innersheath, Unarmoured/ Armoured, extruded PVC / FR / ST2 / FRLS / LSZH sheathed cables from 2 to 100 Core in 1.5 and 2.5 sq.mm as per IS 1554/IS 7098 (Part 1) 1988 and generally confirming to IEC 60502-1 / ES 5467 / ES 6724.

We are dealing in jelly filled telephone cables, -Range: 1 Pair to '100 Pair x 0.40 min, 0.50 mm and 0.63mm in solid bare conductor with HDPE Insulation and Flame Retardant Jacketing having lower cross talk and attenuation

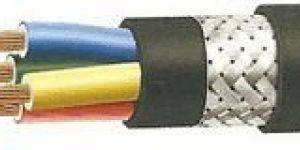

Annealed Bare Copper Flexible Conductor Class 5, PVC Insulated, Tinned Cu Braided, PVC Sheathed Flexible Unarmoured / CI Steel Wire Armoured, PVC outer sheathed Cables, 1100 Volts from 2 to 61 Core in sizes 0.5 to 2.3 sq.mm and from 3 & 4 Core in sizes 4 to 16 sq.mm

Single Core Multi-Stranded Copper conductor, FRZH Insulated Wires with excellent Flame Retardant Low Smoke properties having ROHS compliance
