Beading Machine Dealers in Mumbai

- Designed for High Speed Production - Caps are fed to the machine by feeder device and delivered to combination tool set.  - Wearing parts such as Knurling and Perforating cutters can be quickly replaced, without the need to disassemble the entire unit - The chuck is controlled by a gear and has a system for simple alignment of knurling

• Capacity: 16 gauge max. 5' width
• Motor: 1 hp. 1800 rpm, single phase
• Volts: 115/230
• Dimensions: (l x w x h): 42-3/4" x 79 1/2" x 32 3/16"
• Ship Weight-Approx.-: 1650 lbs.

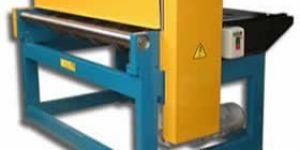

Beading Machines / Ft Beader is a cost-conscious way to stiffen ductwork. It is 5 times faster than the old method, cross-braking, and uses only one operator. Designed to meet the requirements of SMACNA, this ductwork prep machines produces 5 beads on 12" centers and is adjustable to 3/16" depth. A convenient handwheel raises or lowers, the top roll assembly to set depth of bead. The top and bottom rollers are kept parallel with adjustable screw and pillow block assemblies connected by a link chain. Individual adjustable screw and pillow block assemblies connected by a link chain. Individual collared beading rolls are replaceable. Feed rolls are self-compensating over the entire gauge range. Double entrance feed bars are provided so that material can be gauged from either left or right side. Standard with Lockformer quality construction, this machine has a Baldor motor; high precision needle-type bearings; turned, ground, and polished steel forming rolls and roll shafts; and an arc-welded steel stand protected with Lockformer's top-quality primer and paint finish. Lubrication fittings are located on each bearing.

FORMMASTER'S Duct Beading Machine provides useful alternative to cross breaking forms beads on flat sheet metal. Our Beading Machine forms beads/ grooves on flat sheet metal thereby providing stiffness it. Stiffness gain by the beading operation enables the work man to manufacture ducts with slighter lower gauge. No need of time consuming cross breaking method as beading operation form beads in sheet 4 to 5 times faster then cross breaking . Its also gives professional looks to the duct. Features: Rigid heavy duty design Single lever bead depth adjustment Adjustable bead distance Extra long feeding table Oil bath gear reducer Quite & smooth operation Chrome plated roll tooling

• Feature: Reliability,Efficiency,Reasonable rates

We are the leading manufacturers, exporters and supplier of this products.

• Material: MS
• Phase: Three/Single
• Production Capacity: 10000-12000 Can per 8 hours shift
• Power Consumption: 1HP
• Automation Grade: Semi Automatic

• Voltage: 380-415 V
• Material: Mild Steel
• Phase: Three Phase
• Automation Grade: Semi Automatic
• Production Capacity: 30 Cans/Minute
• Surface Finishing: Paint Coated

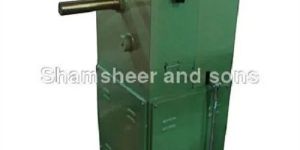

Can Beading Machine, Treadle Shearing Machine, Can Seaming Machine

Round Beading Machines, Square Beading Machines

beading machine, Tin Printing Travelling Oven

beading machine, Lock Forming Machine, Roll Bending Machine
