Bell-O-Seal Valves Pvt. Ltd. Andheri, Mumbai, Maharashtra

Technical Data Valve Designed to BS - 1873 Valve Tested toAPI - 598 Flanged Ends as per ANSI -B- 16.5 Face to Face as per ANSI -B- 16.10 Accessories Geared Actuators Electric Actuators Floor Columns By-Pass Piping Notes Sizes above 250mm has Tow Piece Bonnet Optional Stellited Plug & Seat Alternate Bellow Material: HASTALLOY C -276 / INCONEL-625 Test Pressure 150# 300# BODY ( HYD ) 32 Kg/cm2 76 Kg/cm2 SEAT ( HYD ) 23 Kg/cm2 55 Kg/cm2 SEAT ( AIR ) 07 Kg/cm2 07 Kg/cm2

Technical Data Valve Designed to BS - 1873 Valve Tested toAPI - 598 Flanged Ends as per ANSI -B- 16.5 Face to Face as per ANSI -B- 16.10 Accessories Geared Actuators Electric Actuators Floor Columns By-Pass Piping Notes Optional Stellited Plug & Seat

Technical Data:Valve Designed to BS-5352 (Reduced Bore) Valve Tested to API-598 Socket Weld Ends as per ANSI-B-16.11Butt Weld End as per ANSI-B-16.25 with End Pups Screwed End as per ANSI-B-1.20.1 (NPT) End to End as per manufacturers spec.Accessories:Hand Wheel Locking Arrangement Extended Stem DesignActuator Mounted Valve NotesValve upto 40mm NB are from forging Optional Full port Design upto 40mmNBAlso Manufactured in ASTM-A 182 Gr.F304 / F304L / F316 / F316L Optional Stellited Seat & Plug Optional Screwed Ends (BSP / NPT) Optional Butt Weld Ends Alternate Bellow Material : HC-276 / Inconel-625

We manufacture and export grade Forged Steel Bellow Seal Gate Valves S/W with complimentary accessories. It has won critical acclaims for its technically engineered structure. Technical DataValve Designed to BS-5352 (Reduced Bore)Valve Tested to API- 598 / BS- 5146Socket Weld Ends to ANSI-B-16.11Butt Weld Ends to ANSI-B-16.25Screwed Ends to ANSI-B-1.20.1 (NPT)End to End as per Manufacturers SpecAccessoriesHand Wheel Locking ArrangementActuator Mounted ValveNotesValve upto 50mm NB are from ForgingOptional Full port Design upto 40mm NBAlso Manufatured in Grade F 304L / F 316LOptional Stellited Seat & PlugOptional Screwed Ends Optional Butt Weld EndsOptional Socket Weld EndsAlternate Bellow Material= HC-276/ Inconel-625

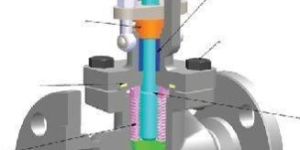

 AVAILABLE IN PRESSURE RATING 150 & 300 IN FLANGED, BUTT WELD AND SCREWED END CONNECTION )( TYPICAL APPLICATION - STEAM AND HOT OIL )   FORGED BELLOW SEAL GLOBE VALVE, SOCKET WELD ENDS ( FCBGL-S ) FORGED BELLOW SEAL GLOBE VALVE, FLANGED ENDS ( FCBGL-F ) FORGED BELLOW SEAL GLOBE VALVE, SOCKET WELD ENDS ( FCBGL(BR)-S ) FORGED BELLOW SEAL GLOBE VALVE, FLANGED ENDS ( FCBGL(BR)-F )

Technical DataValve Designed to BS-5352 (Reduced Bore)Valve Tested to API- 598 / BS- 5146Socket Weld Ends to ANSI-B-16.11 Actuator Mounted Valve Also Manufatured in Grade F 304L / F 316L Butt Weld Ends to ANSI-B-16.25 Optional Stellited Seat & Plug Screwed Ends to ANSI-B-1.20.1 (NPT) Optional Screwed Ends (BSP/NPT) End to End as per Manufacturers Spec AccessoriesHand Wheel Locking ArrangementExtended Stem DesignActuator Mounted ValveNotesValve upto 50mm NB are from ForgingOptional Full port Design upto 40mm NBAlso Manufatured in Grade F 304L / F 316LOptional Stellited Seat & PlugOptional Screwed Ends (BSP/NPT)Optional Butt Weld EndsOptional Socket Weld EndsAlternate Bellow Material: HC-276/ Inconel-625

Technical Data Valve Designed to API-602 / BS-5352 Valve Tested to API- 598 / BS- 5146 Flanged Ends to ANSI-B-16.5 End to End as per ANSI-B-16.10 Accessories Hand Wheel Locking Arrangement Extended Stem Design Actuator Mounted Valve Notes Valve upto 50mm NB are from Forging Optional Full port Design upto 40mm NB Also Manufatured in ASTM-A-182 F 304L/ F 316L Optional Stellited Seat & Plug Optional Screwed Ends (BSP/NPT) Optional Butt Weld Ends Optional Socket Weld Ends Alternate Bellow Material: HC-276/ Inconel-625

Our Forged Bellow Seal Gate Flanged Valve has developed repute in the market. We have been delivering class seal gate flanged valves without haul. Technical Data Valve Designed to API-602 / BS-5352 Valve Tested to API- 598 / BS- 5146 Flanged Ends to ANSI-B-16.5 End to End as per ANSI-B-16.10 Accessories Hand Wheel Locking Arrangement Extended Sterm Design Actuator Mounted Valve Notes Valve upto 50mm NB are from Forging Optional Full port Design upto 40mm NB Also Manufatured in ASTM-A-182 F 304L/ F 316L Optional Stellited Seat & Plug Optional Screwed Ends (BSP/NPT) Optional Butt Weld Ends Optional Socket Weld Ends Alternate Bellow Material: HC-276/ Inconel-625

Technical Data Valve Designed to BS- 1873 Valve Tested to API- 598 / BS- 5146 Flanged Ends to ANSI-B-16.5 End to End as per ANSI-B-16.10 Accessories Geared Actuators Electric Actuators Floor Columns By - Pass Piping Notes Sizes above 250 has Two Piece Bonnet Optional Stellited Plug & Seat Alternate Bellow Material : HC-276 / Monel-400 / Inconel-600

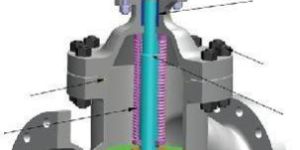

Cast Bellow Seal Gate Valve Flanged Ends manufactured by us come in varying technicalities and patterns. However all have equally vital utility and importance. Technical Data:Valve Designed to BS- 1414 Valve Tested to API- 598 / BS- 5146 Flanged Ends to ANSI-B-16.5 End to End as per ANSI-B-16.10 Accessories:Geared Actuators Electric Actuators Floor Columns By - Pass Piping Notes:Sizes above 250 has two piece bonnet Optional Stellited Wedge & Seat Inconel-625.

Special Corrosion resistant materials for :Complete Valve, Bellows - Trim Optional regulating disc, needle type disc. Optional Actuator/Gear Operator. Optional Flanged end with large groove, large tongue and RTJ end. Optional valves with CE markings. Optional valve with High Pressure Ratings. Optional valve with pressure relief plug design DN 250 & above.

We manufacture highly productive Bellow Seal Valves. Our bellow sealed valves have just the apropos configurations. We are renowned amongst celebrated bellow seal gate valve manufacturers and suppliers based in India. Valves in size 16" NB are solely available with us.

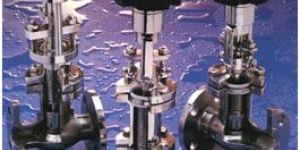

FORGED BELLOW SEAL GLOBE VALVE, SOCKET WELD ENDS ( FBGL-S ) FORGED BELLOW SEAL GLOBE VALVE, FLANGED ENDS ( FBGL-F )
