Bellow Expansion Joint Dealers in Nagdevi, Mumbai

• Country of Origin: India
• Size: 100-1000mm
• Type: Expansion Bellows
• Material: RUBBER
• Shape: Round
• Thickness: 10-15mm
• Color: Black
• Feature: Flexible
• Technics: Moulding
• Condition: New
• Pressure: Medium Pressure
• Brand Name: RESISTOFLEX
• Application: WATER /STEAM
• Dimension: 25 MM - 800 MM
• Connection: E TABLE

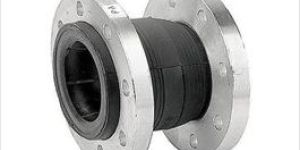

We are offering hydraulic hoses/ s.s./ teflon/ rubber expansion bellows. We import , manufacture, hydraulic hoses,teflon, s.s. Flexible hoses, rubber, teflon, s.s. Flexible expansion hoses. We are dealers of hose crimping machine.

• Type: Ss Bellow Hose
• Material: Stainless Steel
• Shape: Round
• Thickness: 10-20mm
• Application: Industrial Use
• Grade: ASTM
• Color: Silver
• Feature: High Strength
• Condition: New
• Country of Origin: India

• Application: Pipe Connectors
• Material: Rubber
• Lead Time: 10 Days
• Packaging Details: Box
• Model Number: V H Polymers
• Port: JNPT
• Reinforcement: Nylon Fabric

• Brand Name: REX

We are offering fabric expansion joints, bellows, non metallic expansion joints etc.fabric expansion joints (bellows) of virtually any size & shape, from a range of proven standard constructions or designed especially for defined application. it is essential that all the relevant parameters and conditions affecting expansion joints are taken into account. rex has three basic types of multi-layer construction to meet the various needs of our customers. type 1 for clean air systems: ranging from simple air intake/exhaust on fans and blowers to high temperature air discharge from heaters. type 2 for gas with low acid content: used on gas turbine exhaust and less severe flue gas systems. type 3 for gas with high acid content: for use in environments where the flue gas contains acids at temperature or acids that can form due to condensation at shut down. acid barriers are either ptfe impregnated glass cloth or ptfe foil thermally welded to ensure tight seal. multi-layer fabric temperature range is from -50°c and 1090°c with a standard pressure range of ± 120” w.g an important difference in the rex multi-layer fabric is that we do not rely on an insulation pillow to reduce the temperature in contact with the element. the multi-layer fabric is always designed to withstand the temperature regardless of secondary insulation pillow. many competitive designs rely on this insulation pillow for primary protection of their element with disastrous results after several temperature cycles. distinct advantages üaccommodate relatively large movements and even some misalignment of flanges. ülight weight & easy to install and with the addition of üinternal insulation bolsters have good acoustic properties. fabric expansion joints can be supplied fully assembled and fitted to support steelwork ready for insertion into ductwork. for retrofit applications, we can supply as factory joined or open for on-site joining where access is limited.

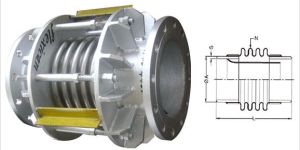

The principles of In-line pressure balanced bellows expansion joints is more or less similar to the Pressure balanced bellows except that the axial pressure thrust is reacted by the pressure acting on a cross sectional area equal to the area of the working of primary bellows.A constant volume arrangement created by two balancing bellows whose difference in cross sectional area is twice that of the in-line bellows thus eliminating the pressure-thrust without change in direction.As this expansion joint is entirely axial and there being no directional changes in the pipe, the cross sectional area needed to balance the pressure is placed around the outside of the unit. Moreover as the pressure forces are generated by the pressure acting on the annular surface between the primary and the outer balancing bellows, the arrangement of the tie rods transfers and balances the pressure thrust created in the pipe on each end.

• Type: Stainless Steel Bellows
• Material: Stainless Steel
• Application: Industrial Use
• Thickness: 1-5mm, 10-15mm, 15-20mm, 5-10mm
• Condition: New, Used
• Feature: Cost-effective, Durable, Dustproof, Easy To Use, Flexible, Heat Resistant, WaterProof
