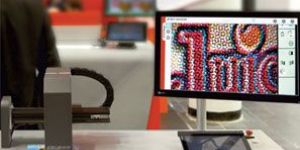

The new POWERScope 5000 web viewing system offers greatly improved image quality compared to the previous solutions. As a result, machine operators can detect irregularities on the press far better and faster. As a low-cost, entry-level model, the POWERScope 5000 features a uniquely easy- to-operate user interface. This system is again optimized for both wide & narrow web applications. The development of the new system was focused on price, easy operation and robustness. Additionally the new POWERScope 5000 is electrically compatible to the already introduced synchronization components. This makes it easy to exchange older systems like POWERScope 3000 or 4000. The User Interface is based on the iPQ-View user interface.   Benefits      Robust, Reliable and Simple operation  Flexible, Modular system and Compact design  High resolution Camera  Position memory function saves upto 5 different positions  Multi-touch monitor with gesture control  Excellent value for price

A precisely-positioned material infeed from the unwinders, accurate web guiding from the loop, high-precision web guiding on the ply server drum and intelligent geometry-related control algorithms on the belt server represent the key components of the BST eltromat tire building control systems. Lasermarker systems are completing the product portfolio.   A precisely-positioned material in-feed from the unwinder, accurate web guiding from the loop, high-precision web guiding in the immediate vicinity of the drum on the ply server, and intelligent geometry-related control algorithms on the belt server represent the key components of the BST eltromat control systems developed especially for tire building machines. The base element of these control systems is the high-resolution CCD CAM 100 camera.   Winder Guiding System : The SmartGuide.WF ensures the controlled unwinding and rewinding of material and liner. Adoptions to individual conditions can be realized due to a large range of proven components, such as sensors and actuators.   Alternative: Guiding from Loop: Realizes edge or center-line guiding of material webs. A lateral movement of the roller is correcting the material position. The principle is specially made for start – stop applications.   Laser Marker: In result of the recipe data the NCA Laser 100 indicates the correct edge position of the material.   Plyserver Guiding: The BST eltromat camera CCD CAM 100 allows in combination with light sources, developed especially for its positioning as near as possible at the drum the best material positioning result.   Beltserver Guiding: Intelligent software solutions with high performing mathematical procedures allow in combination with the high performance camera CCD CAM 100 the maximum belt guiding precision.

Quality control during printing or finishing has to be simple and must be very reliable. At the end, your reputation depends on the work you deliver to your customers. The concept of TubeScan sets a new standard with the smart combination of imaging technology and the stroboscopic principle. TubeScan provides considerably higher process reliability with the base function digital strobe because it always delivers a steady image and true colour representation – independent from the machine speed. The function digital strobe+ is not only accurately counting repeats, labels and missing labels in total and per lane, but it also detects matrix residues across the entire web width. By choosing the additional option digital strobe++ TubeScan even becomes a full grown print inspection system, which is able to detect print defects and register variations below one millimeter.   Features      Min. defect size: Approx. 0.2 mm  Detection of fine print defects, register defects & color variations  Web width: up to 660 mm (26")  Camera Resolution: 1280 pixels area scan camera with an X Direction  Substrates: Suitable for transparent and opaque materials  Max web speed: 250 mtrs. / min.  Accurate counting of repeats, labels and missing labels for up to 20 lanes

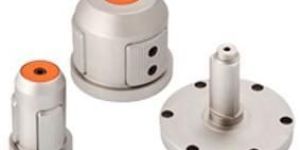

Mechanical core chucks are engineered to deliver the most reliable web tension with the least maintenance. Whit robust parts, simple movements, and best-in-industry jaw expansion, these chucks will out-last and out-perform in every production environment. The chuck is robust; pin flange forged from a single piece, case protective anti-rust treatment coated and minimum number of components. With high load capacity and large jaw expansion ensured even with low torque, this is not a chuck that needs replacement parts. These chucks are 100% adaptable to all reel stand and customizable according to the customer requirements.

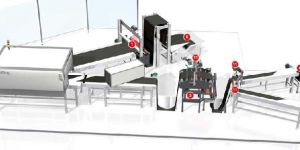

  Web guiding for unwinders and winders, guiding from the loop, web width measurement systems with the high performance CCD CAM 100 camera from BST eltromat product range form the basis for top product quality on textile and steel cord cutters.     Swivelling Roller Guide : In combination with different sensors the SmartGuide.SF is guiding web or textile cord. For calendar lines BST eltromat recommends the full width sensor BFW SEN 100.     Pivoting Frame Guide : The SmartGuide.DF corrects the lateral offset of running product webs. In combination with various sensors, selected according to the material to be controlled, the unit guides the web to its correct position.     Winder Guiding System : The SmartGuide.WF ensures the controlled unwinding and rewinding of material and liner. Adoptions to individual conditions can be realized due to a large range of proven components, such as sensors and actuators.     Width Measurement : This system measures the widths of material in reflecting or transmitting light mode. The high performance camera CCD CAM 100 allows high precision.

High-Performance Position Control for any Application. The actuator, corrects the web position precisely with virtually no delay.   Features of BST Eltromat's Actuators:    Wear-resistant DC motors  Ball screw spindle drives for a long service life and minimum backlash  Designed for curved and linear correcting movements  Various sizes of actuation path, force and speed possible  Available with position feedback (precise capturing of current actuating drive position), electronic end position switch-off and servo-center position  Electrical power supply dircetly from the amplifier  Maintenance Free

Material : Aluminum

Voltage : 220V

Pressure : Medium Pressure

Certificate : ISI certified

Port Size : 1.1/4inch, 1/2inch, 1inch, 3/4inch

Number Of Way : 2way
