Anti-Tracking Breakout - INSOLCORE Non Tracking
Get Price Quote

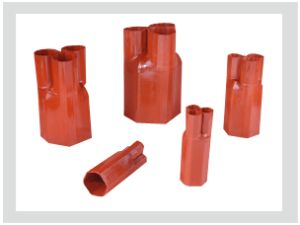

Insulcore - Non Tracking Cable Breakout provide permanent evironmental seal to the crutch of 3 core PVR PILC cable rate upto 36KV. Manufactured from high quality non tracking cross linked polyolefin material that offers exceptional insulation and long term service reliability. The breakouts are intenally coated with water resistant mastic. Excellent weather / UV resistance Good resistance to chemical, solvent, corrosion and fungus.
Low Voltage Breakouts
Get Price Quote
This data sheet covers the requirements for heat shrink low voltage breakouts whose dimension will shrink to a predetermined size upon the application of heat above 125 deg. C. Color of the LV breakouts is black. The LV breakouts are electrically insulating, UV resistant and weather proof. LV Breakouts are with two, three, four or five fingers and are spiral coated on machine with poly-amide based hot melt adhesive or (against special orders) rubber mastic and covered with release paper). Typical Applications The LV breakouts provide insulation and sealing over the crutch of multi-core cables. The hot melt adhesive or the mastic sealant provides a water tight environmental seal to the cable. The LV breakouts are normally used as an integral part of cable terminations up to 1kV. The following application tables give the LV-2F, LV-3F, LV-4F, LV-5F and LV-6F breakout dimensions.
Best Deals from Cable Breakouts
Cable Breakouts
Get Price Quote
Cable Breakouts
