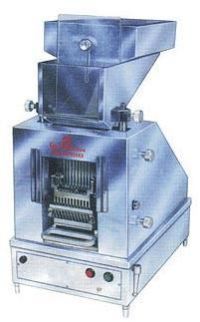

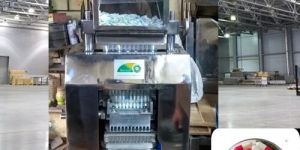

Capsule Loader Machine Dealers in Mumbai

• Condition: New
• Automatic Grade: Automatic
• Type: Automatic Capsule Filling Machine
• Country of Origin: India
• Output: 300 Capsule in 30 seconds
• Motor Power: 1/4 hp
• Phase: 3 Phase
• Speed: 1400 RPM
• Material: Stainless Steel

• Certification: CE
• Weight: 1000-2000kg
• Voltage: 440V
• Automatic Grade: Automatic
• Power: 9-12kw
• Warranty: 1year
• Driven: Electric

If you are looking for the best Capsule Loader Machine Suppliers in India, then go nowhere else than Om Chamunda Enterprises. This machine is designed by incorporating the latest technology, which makes it easy to use even by a semi-skilled worker. The Automatic Capsule Loader Machine, as the name suggest, is mostly used by medium scale and large scale pharmaceuticals.Made from the high-grade material and components, our machines give best performance with longer working life. This Capsule Loading Machine requires low investment, unlike other machines, and thus has become a favorite product of the clients. Other than this, our clients can avail the machine in varied specifications to meet their special capsule loading requirements.Features : The equipment is simple to operate. It saves time and labour.Low investment high output, Simple to operate, Can be handled by semi skilled labour. Specifications :All the outside body and hopper is fabricated in S.S. 304 quality. Simple to operate, can be handled by semi skilled labour.   Output : 300 capsule in 30 seconds Drive : 1/4 Hp. 3 phase motor, 1400 R.P.M.Interchangeable parts can be supplied for std. Size of capsule : 00/0/1/2/3/4/5Machine available with with 1/4 H.P. Motor with any one size Aluminum magazine plate, brass section, 'V block, pusher and aluminum guide plate with single phase motorNet weight of machine aprox. 75 kg.

Get in touch with us, if you are looking for top performance Semi Automatic Capsule Tray Loading Machine at economical rates. It is extensively used to load empty capsules on trays in order to fill the capsules manually. This Capsule Tray Loading Machine is highly demanded among small-scale production unit in order to increase the productivity. Buyers are free to place bulk orders and we ensure its timely execution. Features : Semi-Automatic capsule loading machine is used for loading empty capsule in trays for filling capsule manually. This machine is used to increase productivity in small-scale capsule manufacturing unit. As the maximum time consumed in manual capsule filling is to load empty capsules in tray.

• Drive: 0.25 HP 3–Phase 50 Cycles
• Dimension: L 630 mm x W 490 mm x H 985 mm
• Weight: 100 Kg.

This equipment has been rated as ideal for small / medium scale Pharmaceuticals Units. The design is unique and extremely functional. The equipment is Simple to Operate, is time and labour-saving. The Automatic Capsule Loader is compact, occupies minimal space, is easily movable and is simple to operate. It gives higher production at a lower cost and with much better standards of accuracy than the earlier semi-automatic machines, which are being phased out gradually in most units.  AUTOMATIC CAPSULE LOADER can make a significant difference in your Production Department. Output :  Fills 300-hole plate in 28 seconds. The vertical loader can fill 2 or 3 manual capsule filling machine tray depending on the quality of the capsule and the sill of the operator.

• Weight: 75.0 Kgs.
• Output: 90 trays/hr. approx.
• Length: 630 mm
• Width: 430 mm
• Height: 780 mm
• Electricals: 2 HP, 3ph
• Motor: 1400rpm

The machine is sturdy, compact in design and simple in operation. Drive is 14 Hp 3 phase 1400 RPM electric motor. The machine is supplied with attachment for any one specific size of capsules. The machine is provided with an S.S.Hopper to fill the empty capsules.

A prominent supplier of huge range of Capsule Loader.

• MOC of Loading Ring: Magnesium alloy (light weight)
• Number of holes/Ring: Size 00: 480 Size 0: 600 Size 1,2,3,4,5: 720
• OUTPUT(approx): 50,000/hr
• Product Contact Parts: S.S. 316
• Loader Drive: 0.5 HP, 380/440 Volts, 3 Ph, 50 Hz
• Auger Drive: 1.5 HP, 380/440 Volts, 3Ph, 50 Hz
• Filling Table Drive: 0.5 HP, 380/440 Volts, 3 Ph, 50 Hz
• Vacuum Pump / Vacuum: 3 HP, oil Type 500mm (20") of Hg. At 1000 Ltrs./min. (30 cfm).
• Compressed Air: 200 Ltrs./min. (8 cfm) at 100 PSI.
• Dimension (Lx W x H): 1650mm X 1350mm X 1600mm
• Approx weight: 1200 kgs.

• Weight: 120 Kg
• Output: 120 Fills 300-hole plate per hour
• Drive: 0.25 HP 3-Phase 50 Cycles
• Dimensions: 585mm (L) X 525mm (W) X 1015mm (H)
• Capacity: 300 Hole

Operation : Fill Hopper With Empty Capsules. Place Hand-Filler Loading Tray With Guide On The Sliding Base Plate & Switch On The Machine. The Capsules Automatically Get Nested In The Tray, Cap Up And Body Down. Time Taken For Loading 300 Capsules In 300-Hole Tray Is 28 Seconds.   Interchangeability : Interchangeable Parts Can Be Supplied For All Capsule Sizes: 00, 0, 1, 2, 3, 4 & 5 Capsules.   Unique Features : Low Investment. High Output. Very Simple To Operate. Easily Removable Parts. Sturdy Fabrication - Assured Durability. Designed To Fill All Standard-Size Capsules. Also Available Gmp Model, Completely Covered With S.S.304

• Capacity: 300 Capsules in 30 Seconds
• Country of Origin: Made in India
• Phase: 220 V
• Automation Grade: Automatic
• Material : Stainless Steel
• Usage/Application: Pharmaceuticals

Get in touch with us, if you are looking for top performance semi automatic capsule tray loading machine at economical rates. It is extensively used to load empty capsules on trays in order to fill the capsules manually.

Semi Automatic Capsule Loading Machine
