Cast Gate Valve Dealers in Mumbai

• Material: Cast steel, stainless steel
• Country of Origin: India
• Size: 2 to 24 inch
• Brand Name: L&T

L&T Valves is a leader in flow-control solutions. The company is a subsidiary of Larsen & Toubro, a technology and engineering conglomerate. L&T Valves leverages its heritage of excellence that spans 6 decades to manufacture valves for key sectors of the economy such as oil & gas, power, petrochemicals, chemicals, water as well as defence and aerospace.

• Type: Audco Valves
• Material: Cast Steel, Stainless Steel
• Application: Industrial
• Condition: Good
• Pressure: High Pressure, Low Pressure, Medium Pressure

we are offering audco cast steel gate globe check valves. gate valves are of flexible wedge, outside screw-and-yoke and bolted-bonnet construction. The valves conform to api 600iso 10434.globe valves feature a ball-type disc, outside screw-and-yoke and bolted-bonnet construction. They conform to bs 1873 and also meet the general requirements of api 600, including shell wall thickness and stuffing box dimensions.check valves are of swing-type and bolted-cover construction. They conform to bs 1868 and also meet the general requirements of api 600, including shell wall thickness.

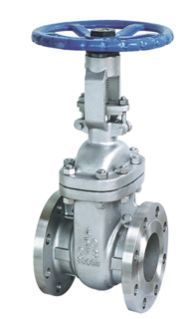

Falcon engineers is the leading manufacturing and exporter of cast steel gate valves. Our premium quality cast steel gate valves are being consistently demanded by clients spread across the globe. Manufactured using high grade materials, the cast steel gate valve offered by us is appreciated for its quality across india and the world. features bs - 1414 / api-600 / api-6d / ansi b 16.34face to face as per ansi b 16.10ends flanged & drilled as per: ansi b 16.5 r.f.tested as per bs : 6755 / api 598 available in class 900 & 1500 accessories provided actuator operatorextension stem hydrostatic air pressure 150 32 kg / cm26kg / cm222 kg / cm2600 158 kg / cm26 kg / cm2116 kg / cm2300 79 kg / cm26 kg / cm258 kg / cm2 applications households systemssugar millsfluid systemscement plantfertilizeroil & gaschemicalpharmaceutical etcpower plant

Wide range of traditional type cast steel valve that we offer is available in various specifications for several pipe fitting works. these are manufactured using superior grade of raw material. we offer these machines as per the requirement of our clients. salient features are as follows: Full bore design provides an uninterrupted flow path. Variants include solid and flexible oblique patterns and needle designs Large variety of internal seat construction wedge gates, double disc gates, through conduit valves, parallel slide valves and knife gate valves Designed for flow control or on/off isolation of fluids Manufactured in straight patterns, angle patterns Consist of o. S. & y type, rising spindle and bolted bonnets. Comprises of a solid rotating plug type disc which is fine lapped Back seat facilities provide easy replacement of gland packing under pressure. Extra deep stuffing box ensures fluid tightness, long packing life and low emissions. Suitable for thermal fluid temperature up to 425º c Check valves for two-port valves (entry and exit of fluid).

To deliver the products in a safe manner at customer's end, we have exceptional warehouse management system. We have a voluminous warehouse, installed with all required facilities essential for safe storage of the orders. With exceptional transportation facilities, our diligent team delivers the product basket in the committed time span.   Our Features : Basic Design  -  API 600, ANSI B16. 34, BS 1414 Test - API 598, BS 6755 Size - 2" ~ 52" Rating - ANSI 150lb ~ 2500lb Body materials - Carbon Steel, Stainless SteelAlloy Steel, Duplex Steel Trim - Per API 600 Operation - Handwheel, Gear, Motor, Pneumatic operator

Solid, Flexible or Split Wedge DesignBack-seating, Renewable Seat RingFull Port Or Reduced BoreOptional Upset forged T-head Stem Design. Size: 2 - 48″NB Material: WCB,LCB,CF8,CF8M,CF3,CF3M,WC6,WC9, C5,C12 or Equivalent, Available also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials; Various trim materials available to suit service conditions.

• Country of Origin: India
• Size: #150/ #300/ #600rnrn
• Material: Cast Iron
• Certification: ISI Certified
• Application: Industrial
• Color: Grey
• Pressure: High
• End Connection: Flanged, Screwed
• Brand Name: HAMA

Valves Code API 600 / BS 1414 End to end Dimension ANSI B 16.10 / 2080   End Flanged Flat / Raised Face, drilled to ANSO B 16.5 / BS 1560   Bonner Bolted   Stem Rising   Wedge Solid / Flexible   Seat seal Welded / Renewable - Screwed   Stem Packing Renewable with Valve open on stream   Testing Code MSS SP 61 / API 598 / BS 6755   Handwheel non rising   Others Outside screw and yoke Gear Operation ( for DIA>14" ) Size : - 2''-48'' Rating 150#                                             2''-36'' Rating  300#                                            2''-24' Rating 600#

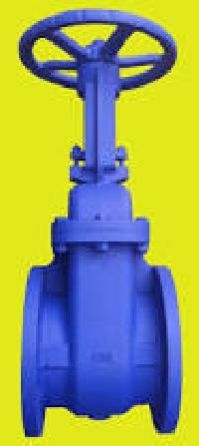

Owing to the vast experience in this field, we have been able to offer premium quality Cast Iron Gate Valve to our valuable customers

• Brand: ksb
• Automation Grade: Manual
• Is It ISO Certified: ISO Certified
• I deal in: New Only
• Rust Resistant: Yes
• Features: Rugged construction, Hassle-free installation

• Size: DN mm
• 50 to 300: Pressure
• P bar: up to 104
• Temperature: tº C
• Up to 593: Material
• WCB,LCB,CF8,CF8M,CF3,CF3M, & More.: Class
• 150 #, 300 #, 600 #: End

  APPLICATION & FUNCTION Gate valves are primarily used for stop valves fully opened or fully closed. They are not normally considered for throttling purposes, but more for slurries, viscous fluids, etc. Gate valves are characterized by a traveling wedge, which is moved with the operation of the stem nut. The wedge travels perpendicular to the direction of the flow. Gate valves usually have a minimum pressure drop when fully open, provide tight shut-off when fully closed, and remain relatively free of contamination buildup.   BODY & BONNET The design of the body and bonnet is calculated to achieve the most regular distribution of stress in all directions, as well as the minimum turbulence and resistance to flow. Valve bonnets are equipped with a backseat bushing. The yoke is integrally cast on Pressure Classes 150 and 300 up to 12” and up to 10” on Class 600 and higher ratings.   BODY-BONNET JOINTStandard body-bonnet joints of gate valves are machinedas follows:PRESSURE CLASS JOINT DESIGN150 Flat Faced300, 600 Male-and-Female900* & over Ring Type Joint*Pressure Class 600 also available in Ring Type Joint.EMFLO  can supply any style of gasket required by customer.   GATE All gates are fully guided to the seats. As standard our valves are supplied with a solid flexible gate that has a tapered H cross-section. The flexible wedge is cast or machined with a circumferential groove to allow the seating surfaces to move independently and adjust to movement of the body seats. This design is beneficial where line loads or thermal expansion of the system is likely to distort the seat face in the valve. This design of gate is ideally suited for steam or other high temperature services and is especially useful to prevent sticking where valves are closed when hot and opened when cold.   SEAT RING Seat rings are designed to greatly reduce and/or prevent any turbulence and avoid damages due to the corrosion. The seat rings are forged or rolled in one piece, and then seal welded and overlaid, if required. After welding and all required heat treating, the seat ring faces are machined, thoroughly cleaned and inspected before leaving for assembly.   STEM The stem connection to the gate is a T-head design which is integral (without welding) with the stem. The accuracy in the dimensions and finishes assure a long life with a perfect tightness in the packing area, resulting in lower fugitive emissions. The stem-to-gate connection is designed to prevent the turning or the disengagement of stem from the wedge while the valve is in service. Through calculations and extreme testing, the strength of the stem-to-gate connection has proven to exceed the strength of the stem at the root of its operating thread.   STEM PACKING The stem packing is designed and arranged to ensure a maximum seal along the stem during operation or while at position, thus allowing for a greater reduction in fugitive emissions. Our packings are NON-ASBESTOS types. EMFLO can supply any style of packing required by our customer.   STUFFING BOX The depth of the stuffing box allows for a sufficient amount of packing, which makes the stem seal. Our standard packing arrangement and stuffing box design meets

These valves are widely used as for Naptha and Naptha derivatives in oil refineries. With a flanged end connection, these valves are designed with API 600 standards. Its rigid and sturdy design along with low pressure across the valve make it a very formidable model in the entire product line. Features:  Double Flanged / butt weld end, outside crew rising stem, yoke type bonnet Back seating bush arrangement to enable re - packing under pressure Rigid & sturdy design Low pressure loss across the valve Long service life and leak tightness   Application: Naptha and naptha derivatives in oil refineries Water, steam, air, gas and liquids having corrosive properties Suitable for wide range of working conditions of pressure and temperature ratings   Specification: Manufacturing Standard API 600 Size Range and Pressure Ratings 50 to 750 mm : Class 150 50 to 600 mm : Class 300 50 to 350 mm : Class 600

“VALTECH” robust design, Cast Steel Gate Valves are designed and manufactured with reference to standard API 600 for Pipelines 50NB and above. They are available in Flanged and Buttweld ends. Hard Faced Trim material ensures perfect Sealing and longer life. Lapped Back Seat is provided to ensure re-packing/replacing of Gland Packing in stream, when the Valve is in full open condition which ensures maximum safety, convenience and economy. If required, Valves can be offered under any THIRD PARTY INSPECTION . “VALTECH” Gate Valves are available in various materials like Cast Carbon Steel conforming to ASTM-A-216 Gr. WCB, Cast Alloy Steel like ASTM-A-217 Gr. WC-6 / WC-9; and Cast Stainless Steel like ASTM-A-351 Gr. CF-8, CF-3, CF-8M & CF-3M. Size range starts from 50 NB through 900NB and pressure rating from 150# to 600#.

• Size: 40mm To 300mm
• Pressure: LOW TO HIGH
• Automation Grade: Manual
• Condition: New
• Temperature Of Media: Normal Temperature, High Temperature, Low Temperature, Medium Temperature
• Application: POWER, AGRO, REFINERIES, CHEMICAL, WATER
• Material: Stainless Steel, Aluminium
• Valve Size: 15MM - 600MM
• End Connection Type: Flanged
• Brand: Y K Enterprises
• Rust Resistant: Yes

Cast Gate Valve of Superior Quality is Available with Us. the Cast Gate Valves are Fabricated with the Best Quality Cast Steel with Smooth Flowing Contours, Uniform Metal Sections and Generous Radius Fillets to Prevent Stress Concentrations. Designed for Structural Stability, Mechanical Strength and Safe Weld Ability, the Cast Gate Valve is Highly Demanded in the Industry. the Magnetic Particles in the Cast Gate Valves are Inspected for Special Applications.

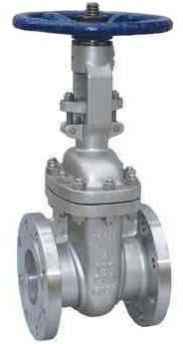

We are a renowned name in manufacturing and supplying Cast Steel Gate Valve which is made of high quality material. The Cast Steel Gate Valve is in high demand for its great strength and durability. Cast Steel Gate Valves are ideal for assorted industrial applications. We make available Cast Steel Gate Valve of exceptional quality at reasonable market prices. FeaturesEasy to installExcellent finishCorrosion resistantEnduring performance Dimensional accuracyDesign DescriptionAPI 603 DESIGN FOR 150 LBS & 300 LBSFLEXIBLE WEDGE, FULLY GUIDEDAPI 600 DESIGNAVAILABLE WITH ACTUATORRISING STEM AND NON-RISING HANDWHEELOUTSIDE SCREW AND YOKERENEWABLE SEAT RINGSBOLTED BONNET (PRESSURE SEAL BONNET FOR 1500 LBS)AVAILABLE WITH BY-PASS VALVEAVAILABLE WITH GEAR OPERATORMaterial A216-WCB A217-WC6 A352-LCB A351-CF8 351-CF8M A351-CF3M OTHER MATERIALS UPON CUSTOMER'S REQUESTEnds FLANGED ENDS BUTTWELDING ENDSRatingsANSI150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBSJIS 1OK, 20K, 30K and 40KPN 16 and 40Size : 2 - 24
