Chain Making Machine Dealers in Goregaon, Mumbai

Automatic Chain Compacting Machine that we offer is known for its high production capacity. We are named among the renowned Manufacturers, Exporters and Suppliers of Automatic Chain Compacting Machine. We manufacture the machine using quality approved components and the latest techniques under the strict vigilance of experts. We also conduct stringent quality tests on Automatic Chain Compacting Machine so as to ensure that only the defect-free product reaches the customers’ end.Details : Automatic Chain Compacting Machine Max Speed 700 – 1000 str / min Automatic Lubricating system Variable Speed Controller

• Country of Origin: India
• Type: Model Toys

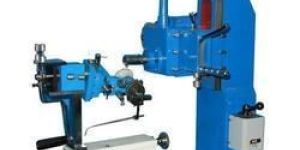

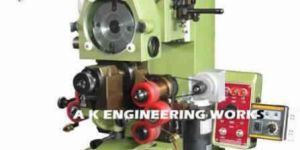

Featuring remarkably high precision spindles, our 4 Axis Automatic Fancy Chain Cutting Machine Model AK-NC4 have one horizontal and one vertical head. Our company is bracketed among the preeminent Manufacturers and Suppliers of Diamond Cutting Machines from Mumbai, Maharashtra. The Diamond Cutting Machines offered by us are suitable for mirror finish lapping (plain cut), lines, stars, bevels, chamfers and step cut on flat chains. Low maintenance, longer functional life and sturdy construction are some of the attributes of our Machines.    Other Details : Fully Automatic, Multi Axis Akew Model AK-NC4 Chain Cutting Machine / Chain Faceting Machine for flat chains and strips with single or different designs simultaneously. Model AK-NC4 is suitable for Stars, Long Cuts, Sine Waves / Sinusoidal Waves, Dots (Bindi) etc. The machine has 4 Controlled Axis. Work can be performed with either Horizontal Head or Vertical Head at a time. Switching between the two heads is manual and is extremely rapid. Extremely easy to use custom software provided for making designs.(No Cnc Coding Required) Work cycle is performed in a closed environment, to allow recovery of residue. No Air Supply Required. The machine is complete with Base, Electric And Electronic Plant, LCD Screen And Keyboard, Protection Cover, Electric Panel Board, Service Spanners & Spare Belts.

This machine is with cam based filling mechanism, single track with 8 filling heads & 8 hoppers. The slat conveyor on which the pucks have to placed manually which is ideally used for holding the containers firmly.

We are offering chain diamond cutting machine/ faceting machine. designed with utmost precision, model sh-h is equipped with a single horizontal head, suitable for v-cuts, flat cuts, lines, stars on flat chains. Manual feed lever with an adjustable depth screw for depth of cut on job for step cut. Micromatic screw for depth adjustment for lapping and chamfers. Chain is pulled forward continuously by pmdc motor and controller at speeds ranging from 0-110 rpm or manually in steps by 120 teeth divider gear mechanism.(step cutting) the machine is complete with a sturdy base, indexing unit, � 110 mm revolving clamping discs, vacuum attachment for gold chips recovery, chain winder with bobbin (optional), magnifying glass attached to machine, depth indicator dial, electric panel board, service spanners & spare belts. Specifications: spindle speed: 8000-10000 rpm tool holder diameter: � 120 mm. Puller speed: 0-110rpm machine weight: 160 kg. Power supply: 1 phase. 230v. 50hz. Max. Machine dimensions: l x w x h 24 x 21 x 32 (inches) packaging dimensions: 30 x 30 x 36h (inches)

• Type: Gold Chain Machine
• Material: Gold
• Weight: 100-500kg
• Color: Black, Brown, Grey, Light White
• Voltage: 220V, 380V
• Condition: New, Used
• Automatic Grade: Automatic, Fully Automatic, Semi Automatic
• Application: Jwellery
• Frequency: 0-60 HZ

chain making machines
