Champion Filters Mfg. Co Santacruz, Mumbai, Maharastra

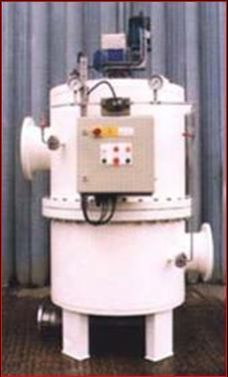

Champion Suction Water Filters are designed for continuous removal of suspended particles from all types of liquids. Major Applications are in industrial plants using river, lake, well or sea water for cooling, descaling, bearing lubrication, spraying, quenching, and similar purposes. Installation is made on the suction side of a pump or in any piping system operating under a positive pressure. The strainer is compact with small face-to-face, width, and height dimensions. Installation can be made in a horizontal or vertical pipeline.

Champion Suction Water Filters are designed for continuous removal of suspended particles from all types of liquids. Major Applications are in industrial plants using river, lake, well or sea water for cooling, descaling, bearing lubrication, spraying, quenching, and similar purposes.

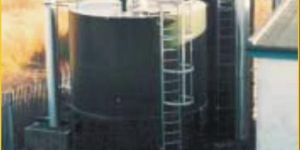

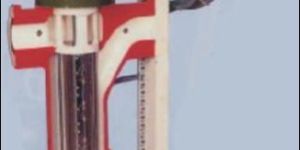

a premier provider of filtering products, we are continually seeking ways to bring new advances in filtration to our customers. Through technology, many manual filters now have automatic counterparts. Reduced maintenance and 24-hour, unattended operation are just two of the many benefits of self-cleaning filters. Ask us how automatic filters can reduce labor, boost productivity, reduce downtime and offer continual protection for your valuable equipment. Self-cleaning filters may be the perfect choice for your organization.

Champion as a premier provider of filtering products, we are continually seeking ways to bring new advances in filtration to our customers. Through technology, many manual filters now have automatic counterparts. Reduced maintenance and 24-hour, unattended operation are just two of the many benefits of self-cleaning filters. Solids removed regardless of specific gravity, Perforated, mesh or wedge wire screen elements, High temperature designs

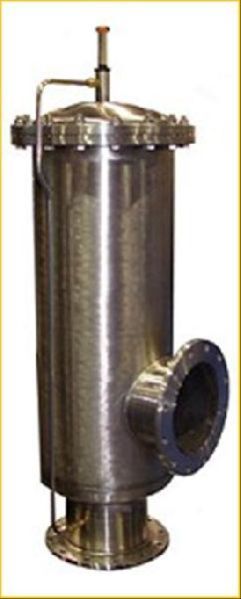

Champion Return Line Filters are extensively used in Mining, Petrochemicals, Chemical Processing, Cement Plants, Steel Plants, Sponge Iron Plants for various applications to control contamination.Opticalelectricalelectronic contamination control, Optional Al-filter head with threaded port, Equipped with metal-free waste disposable free micron elements.

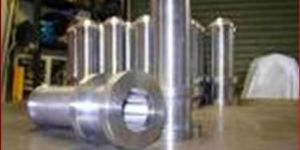

Champion Filters specialize in made of Notch wire wound filter elements. These filter elements are made by wrapping specially treated thin notch wire coil on filter core. For most of the applications like lubricating oil filtration, gas filtration, urea, sulfate filtration we use specially developed stainless steel wire having nidges nudges notches on coil surface. These products are also known as zero gravity coils.

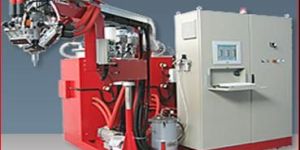

Our knowledge & experience of the basic chemistry of these polymers and the experience in their production fully convinced us that in many cases the possibility to produce complex technical articles and the quality of the moulded polymer is connected in a direct and complex way to a series of parameters that must be accurately controlled and steadily governed.Champion urethane casting facility is built with a complete range of different regulations able to satisfy the technological and engineering needs requested by the urethane polymers working processes.

CHAMPION Static Sieve Bends are the result of thirty years of field experience in working with plant circuits and systems. We listened to what process engineers and plant operators asked for, then we designed and built CHAMPION's complete line of profile screen surfaces, feed boxes, screen holders and turnarounds. Champion's Sieve Bends can be used in high capacity, wet screening circuits, as an economical means for classifying and dewatering for all industries.

Champion makes Polyurethane screens well known for their excellent abrasion resistance, that gives more lifespan in working-process compared with wire cloth and perforated metal, Their particular suitability to sieve those aggregates easy to clog the holes, thanks to the material’s elasticity and the conical holes.CHAMPION screens allow a reduction of costs compared with wire screen and perforated metal, even if these are much cheaper, thanks to their longer lifespan in working-process and to the reduction of dead times for the replacement.

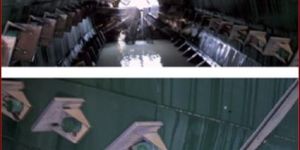

CHAMPION polyurethane can be delivered in sheets of whatever thickness and with dimensions up to 2950 x 1250 mm. It can be supplied in cut to size sheets to be applied on hoppers, chutes, channels.The exceptional characteristics of wear resistance are increased in application with constant water presence, such as the lining of washing trommels.

Champion MICRON CARTRIDGE FILTERS offer superior clarity of filtration and add that extra sparkle to water after filtration.These Micron Filters are generally applied to remove very fine suspended impurities, colloidal matter, chlorine traces sand particles.Micron Cartridge Filters are in line units capable of working at a maximum line pressure of up to 25 kg.sq. cm.

Champion supplies all types of idlers for trouble free conveyor operations. The idlers are provided with sufficient quantity of servo grade grease and sealed for life. Special type bearing housing are made out of deep drawn quality steel sheets, idler rollers are made with ERW black tubes conforming to IS:9295. The out of roundness of the rollers will be within +- 0.5mm. Tubes are cut into required lengths and both ends are bored to required accuracy and to achieve concentricity.

Champion Filters experience in hydraulic filtration has enabled the company to adapt its standard hydraulic filter models to handle water-based fluids commonly used in long wall and conventional underground applications. By treating or coating filter components and incorporating stainless steel media cleanable elements, our proven filters work equally well at removing contaminants from 955 and other emulsions.

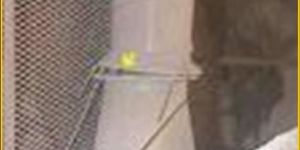

Champion Fish Tails provide relatively high velocity of extraction over a small part of area.Champion Fish Tails are more applied for extraction of welding fumes and removal of oil mist for certain types of unguarded machine tools. They can be mounted so that they may be moved either on a swinging arm or by a magnetic clamp and should no way affect the operation undertaken.

Champion Depth Filter Cartridges allow for capture of particles through out the depth of the filter media.These cartridges have a structure that gradually increases in density towards the centre of the element.Champion Pleated Media Filter Elements for extended filter area and for higher flow rates. These Filters are basically surface filters. Most of the particle capture takes place at or near the surface.For applications where cleanable filter elements are suggested, Champion offers filter elements made from SS Mesh & other Metal Meshes where filtration is done at high temperatures.

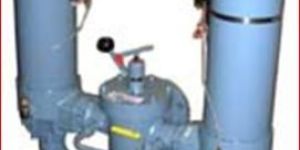

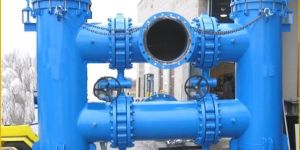

Champion Duplex Strainers Filters are excellent for applications where pipelines cannot be shut down for cleaning the filter basket. A Duplex Filter can operate continuously and never has to be shut down for cleaning. Duplex Filter has two Simplex Filters connected by way of a common flow diverter. When one filter gets clogged, the flow can be diverted through another filter.Single & Multi basket designs, Pressure Equalization Assembly, Quick Fit Closures & Cover lift Davit.

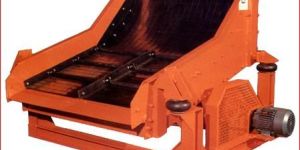

The Champion Dewatering screen combines vibrating action with a variable sloping deck that removes substantially more water than static sieves. Yet, it is compact enough to replace static sieves with minimum change.Champion Dewatering screen is capable of reducing moisture content of fine coal slurry of -28 mesh from the 44.5% achieved with static sieves to 36%. Similar results are also achieved in dewatering other sizes of coal, crushed stone, sand and grave, potash, phosphate, iron ore, copper and other applications currently using static sieves.

The debris laden dirty fluid enters the strainer’s large bottom chamber where the line velocity gets reduced. Flow continues upward passing in a radial manner through the “sealed” screen element.Unwanted materials are trapped on the inside of the filter element screen. The fluid keeps getting filtered and comes out clean through the outlet nozzle. As the filter screen gets loaded with dirt, the differential pressure keep raising.There is hollow full flow backwash arm extending the full length of the filter element. This can rotate and is piped to atmosphere through a backwash valve.

Sand, granular media or multimedia bed filtration are generally applied for removal of suspended solids in the 5 to 50mgl range where an effluent of less than 1 JTU is required. Champion sand filters have been used in municipal and industrial water plants where the clarifier contains 5 to 20 mgl of suspended solids. Champion granular media filters are also used to filter cooling water side streams to reduce suspended solids buildup where effluent clarity is not critical. Granular media can handle suspended solids up to 1000mgl and provide about 95% removal efficiency.

Sand, granular media or multimedia bed filtration are generally applied for removal of suspended solids in the 5 to 50mgl range where an effluent of less than 1 JTU is required. Champion sand filters have been used in municipal and industrial water plants where the clarifier contains 5 to 20 mgl of suspended solids. Champion granular media filters are also used to filter cooling water side streams to reduce suspended solids buildup where effluent clarity is not critical. Granular media can handle suspended solids up to 1000mgl and provide about 95% removal efficiency.

Champion Automatic Backflush Filters are designed for continuous removal of suspended particles from all types of liquids.Major Applications are in industrial plants using river, lake, well or sea water for cooling, descaling, bearing lubrication, spraying, quenching, and similar purposes.

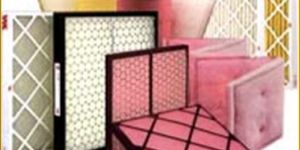

CHAMPION Filters offer economical, high-quality Air Filters especially for Gas Turbines & Blowers to best suit the needs of the industry. Inlet air treatment is crucial for a consistent, high-performance gas turbine operation. CHAMPION Filter's response to the expanding requirements on air inlet filter performance has led to developments that have become the standards in the industry. CHAMPION Filter has dedicated to provide the highest quality and most advanced products available
