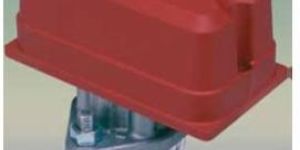

Waterflow Detector:- WFD-20 to WFD-80Vane-type waterflow detectors shall be installed on system piping as designated on the drawing and/or as specified herein. Detectors shall mount on any clear pipe span of the appropriate nominal size, either a vertical upflow or horizontal run, at least 6˝ from any fittings that may change water direction, flow rate, or pipe diameter or no closer than 24˝ from a valve or drain. Detectors shall have a sensitivity in the range of 4 to 10 gallons per minute and a static pressure rating of 450 psi* for 2˝ – 8˝ pipes.Features• Two-inch mounting hole provided in new WFD30-2 models• Sealed retard mechanism immune to dust and other contaminants• Visual switch activation• Field-replaceable retard mechanism and SPDT switches• Rugged, dual SPDT switches enclosed in a durable terminal block• Designed for both indoor and outdoor use• 100 percent synchronization activates both alarm panel and local bell

Horizontal, Recessed Horizontal Sidewall & Vertical Sidewall Sprinklers• Light hazard/Ordinary hazard • 3 mm bulb • Designed for use in applications where aesthetics must be considered or where building construction makes the installation of standard pendent or upright sprinklers impractical • Vertical sidewall sprinkler can be installed in either the pendent or upright position along a wall or the side of a beam and just below a smooth ceiling.

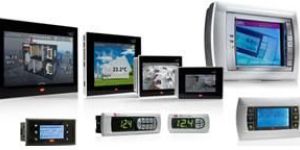

The structure and modularity of the pGD family displays mean the right solution is always available for all different performance, cost and aesthetic needs.The pGDTouch series has been designed to meet the demands of high level applications requiring touchscreen technology and an elegant design.The pGD1/E series is dedicated to applications that require the best compromise between performance, competitiveness and aesthetics.The pLDPRO series is ideal for applications where the user interface needs to keep down costs and reduce installation space.

The GRINNELL Threaded Mechanical Tee provides an additional threaded outlet in existing piping. For new construction, the Figure 730 Mechanical Tee provides a way to bypass the use of a reducing tee. This Mechanical Tee can easily be converted to a cross.

Storage Sprinklers E S F R - 2 5 ™Pendent • Early Suppression, Fast Response (ESFR) • Solder type • Suppression-mode sprinklers that are especially advantageous as a means of eliminating the use of in-rack sprinklers when protecting high-piled storage • The TYCO Model ESFR-25 Pendent Sprinklers are listed by UL for Specific Applications with a ceiling height greater than 45 ft. (13,7 m) up to and including 48 ft. (14,6 m), and a storage arrangement up to and including 43 ft. (13,1 m) • Direct attack on burning fuel by improved heavy sprinkler discharge • Patented frame design substantially reduces the frame shadow effects that often produce non-uniformity in spray pattern • Novel orifice seal and unique fast response link design are the very latest in sprinkler technology K Facto r K=25.2 (362,9) Thread Size 1" NPT or ISO 7-R1 Approva ls UL, C-UL, FM, NYC, LPCB, VdS Temperatu re 165°F/74°C, 214°F/101°C Sprinkler Finish Natural Brass

Standard Coverage & Standard Response SprinklersStandard Coverage & Standard Response Sprinklers are intended for use in fire sprinkler systems designed in accordance with the installation rules recognized by the applicable Listing or Approval agency. There are two types or response elements: bulb and solderUpright, Pendent & Recessed Pendent • Light hazard/Ordinary hazard light hazard K=2.8 (40,3) • 3 mm bulb • Hemispherical water spray pattern in the area beneath the sprinkler • Small frame and narrow profile bulb enhance appearance • Designed for use in commercial occupancies such as banks, hotels, and shopping malls.

Smoke Detector: - FSP-851 Notifier FSP-851 Series intelligent plug-in smoke detectors with integral communication provide features that surpass conventional detectors. Detector sensitivity can be programmed in the control panel software. Sensitivity is continuously monitored and reported to the panel.Features• Sleek, low-profile design.• Addressable-analog communication.• Stable communication technique with noise immunity.• Low standby current.• Compatible with FlashScan® and CLIP protocol systems.• Rotary, decimal addressing (1-99 on CLIP systems, 1-159 on FlashScan systems).• Dual LED design provides 360° viewing angle.• Visible bi-color LEDs blink green every time the detector is addressed, and illuminate steady red on alarm (FlashScan systems only).• Remote test feature from the panel.• Walk test with address display (an address on 121 will blinkthe detector LED: 12-[pause]-1(FlashScan systems only).• Built-in functional test switch activated by external magnet.

SELF BALANCING GRILLE (BAP'SI TWIN 90 D125 BLC/WHI9003)Bapsi Grille with Constant Airflow Regulator of 90cmh capacity with 125mm as Shaft diameter.Bapsi Grille maintains airflow constant regardless of pressure difference in the range of 50 to 160pa.The active element of the BAPSI Grille is a flexible Silicone bulb which inflates and deflates in response to the static pressure difference across the control. The CAR is made for use in a temperature range of -25 to 140°F (-32 to 60°C).• Exhaust Grille.• Innovative Design without Grille.• Airflow between 15 and 150 Cmh.• Composed of three Parts : A Technical Fitting Plate, a Regulator and a removable Front Panel

The GRINNELL Rigid Coupling's universal tongue and groove design of the coupling housings ensure trouble free installation. The Figure 772 Coupling provides rigid joint by firmly gripping along the circumference of the pipe grooves. The Figure 772 Coupling is UL Listed for grounding and bonding. This coupling is suitable for bonding systems with a maximum service entrance capacity of 200 amps.

Refrigeration Controls ( IR33+ Series)• . Flat: The surface of the controllers is perfectly flat and thin, allowing easy cleaning and ensuring the highest level of hygiene, in complete compliance with HACCP standards. Carel can customise the controllers for manufacturers of refrigerated showcases and cabinets based on their own applications. The new appearance and new types of assembly mean the controllers can be better integrated into the refrigeration unit, giving a decidedly more attractive and elegant end result.• Intuitive: ir33+ features a new interface. The ON/OFF function and an alarm icon have been added, and the buzzer can be muted directly. The main functions are highlighted, such as set point display and auxiliary output activation, while other less frequent functions for the end user, such as installation parameter settings, are in the background. The new display, 27% larger than the ir33 and powercompact, is also used on the wide models: ir33+ wide and ir33+ small wide.• Touch: The keypad is touch sensitive. This new technology allows the possibility to create custom user interfaces based on different application rather than aesthetic requirements. This feature, as well as guaranteeing better hygiene, also improves the appearance of the controllers, bringing it in line with the latest electronic instruments.

Photoelectric Smoke Detector:- 2351EThe 2351E photoelectric smoke detector forms part of the Series 300 range of conventional detectors. This range of detectors has been produced using the latest in manufacturing and design techniques, pushing out the boundaries of existing conventional detector technology. With its multitude of innovative features, the Series 300 is a detector which 'acts conventionally, thinks intelligently'.Features• Backward compatible with Series 100 detector range of bases• Wide operating voltage 8 to 30VDC• Bi-colour LED detector status indicator• Programmable sensitivity• Addressable feature• Advanced maintenance features via remote hand-held test unit

Light hazard/Ordinary hazard • 5 mm bulb (standard) 3 mm bulb (quick) • Concealed in an enclosed escutcheon plate with flat cover for use in those applications where aesthetics is a primary consideration • Separable, two-piece design of the mounting cup and cover plate allows installation of the sprinklers and pressure testing of the fire protection system prior to installation of a suspended ceiling or application of the finish coating to a fixed ceiling • Internally threaded closure with 1 ⁄2" (12,7 mm) of adjustment • Available with optional dust and air seal K Facto r K=5.6 (80,6) Thread Size 1 ⁄2" NPT

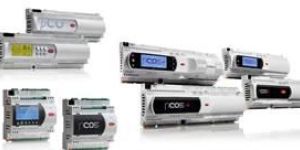

• Interface - The pCO sistema terminals are available in panel or wall-mounted versions, with LED, alphanumeric and graphic LCD displays, allowing the messages to be shown in Chinese, Cyrillic, Arabic, Japanese.• Communication – The terminals can interface to the more widely used communication standards, either directly or via gateways (Modbus®, BACnet™, Johnson Metasys®, DLL for Windows®, TCP/IP, SNMP, LonWorks®, Konnex®). They can also interface to intranets or the internet using a gateway that converts the CAREL protocol to TCP/IP Ethernet™ 10 MB/s. In addition, pCO sistema controllers are able to receive and send SMS messages using a simple GSM modem. All the pCO sistema components can be connected without requiring additional cards to pLAN networks for exchanging data and information.• High technology - A 32-bit microprocessor guarantees high program running speed including control of faster transients. The parameters can be protected by various password levels.Thanks to the high capacity of the flash memory and the clock with battery the first value even forextended periods• Programmability - CAREL 1tool system development system allows customisation of the software. The software can be transferred directly from a personal computer or alternatively using an electronic "plug & play" key, or USB key (on models where featured).• Applications - The programmability of the pCO series means that applications are possible for chillers, air-conditioners, shelters, roof top units, heat pumps, compressor racks, AHU..

 hydraulic part and control sold separately for freedom of installation in confined spaces• AFS system (Anti Foaming System): detects and manages the foam to prevent the emission of droplets with the steam;• cylinders with galvanized electrodes and anti-limescale filter at the bottom; cylinders that can be opened are also available;

Multi-Sensor Detector: - FAPT-851   The Notifier FAPT-851(A) Acclimate® Plus™ detector is anintelligent, addressable, multi-sensing, low-profile detectordesigned for use with Notifier Notifier Onyx and CLIP seriesFire Alarm Control Panels (FACPs).Features• Automatically adjusts sensitivity levels without operator intervention or programming. Sensitivity increases with heat.• Microprocessor-based, combination photo and thermal technology.• Compatible with all Notifier Onyx and CLIP series Fire Alarm Control Panels (FACPs).• Addressable-analog communication.• Rotary, decimal addressing (1-99 on CLIP systems, 1-159 on FlashScan systems).• Dual bi-color LED design provides 360° viewing angle.• LEDs lock red when in alarm. In FlashScan, LEDs flash green in standby for normal condition.• Several base options, including relay, isolator, and sounder.• Built-in functional test switch activated by external magnet.• Capable of heat-only alarm mode, enabled by a special command from the panel. Smoke alarms are ignored.• Low-temperature signal at 45°F +/– 10°F (7.22°C +/– 5.54°C).

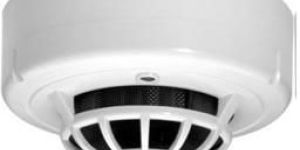

Multi Criteria Photoelectric Smoke/Thermal Detector:- 2351TEMThe 2351TEM photoelectric smoke/thermal detector forms part of the Series 300 range of conventional detectors. This range of detectors has been produced using the latest in manufacturing and design techniques, pushing out the boundaries of existing conventional detector technology. With its multitude of innovative features, the Series 300 is a detector which 'acts conventionally, thinks intelligently'.Features• Backward compatible with Series 100 detector range of bases• Wide operating voltage 8 to 30V• Bi-colour LED detector status indicator• Programmable sensitivity• Addressable feature• Advanced maintenance features via remote hand-held test unit

Complete and reliable solution for management, monitoring and optimisation of refrigeration (superstores, supermarkets, convenience stores) and air-conditioning systems (buildings, museums, shopping centres).Range(from smallest to largest):• PlantWatchPRO: Compact and efficient solution for small refrigeration and air-conditioning systems, up to 50 units. •• PlantVisorPRO: Robust and reliable embedded solution for large refrigeration and air-conditioning systems, up to 300 units.PlantVisorPRO and PlantWatchPRO are compliant, as required by EC regulation 37/2005 of 12 January 2005, with standard EN 12380 on temperature recorders for the transport, storage and distribution of chilled, frozen, deep-frozen/quick-frozen food and ice cream.

DH-CA-D180C: -720TVL HDIS Mini Dome Camera > 1/3" HDIS > High resolution  of 720TVL(Color) > Day/Night(ICR), ATW, AGC, BLC > 6mm fixed lens (2.8 mm, 3.6mm, 8mm optional) > Max. IR LEDs length 20m, Smart IR > IP66, DC12V Image Sensor -- 1/3" HDIS Effective Pixels -- 960(H)×480(V) Horizontal Resolution -- Color: 720TVL Electronic Shutter -- 1/50s~1/100,000s Synchronization -- Internal Min. Illumination -- 0.02Lux@F1.2(0Lux IR LED on) S/N Ratio -- >65dB(AGC Off) Video Output --- 1Vp-p Composite Output (75Ω/BNC) Max. IR LEDs Length -- 20m, Smart IR Day/Night -- Auto(ICR)/Color/B/W Backlight Compensation -- BLC White Balance -- Auto Gain Control -- Auto Focal length -- 6mm (2.8 mm, 3.6mm, 8mm optional) Mount Type ---M12

Manual Call Points:- NFX/MCP/GLASSThe NOTIFIER range of addressable manual call points are designed to provide a manual alarm interface to NOTIFIER's fire alarm control panel. Installation effi ciency, fl exibility and compliance with EN54.11 are at the heart of the call point range.Features• Two wire connection for easy installation• Enhanced aesthetics and compact design.• Resettable element available• Simple rotary decade setting• Integral LED controlled from panel• Backward compatible with CLIP panels

The GRINNELL Figure 577 G-FIRE Rigid Coupling provides a rigid joint by firmly gripping along the circumference of the pipe grooves. The Figure 577 Light Weight Rigid Coupling is a proven dependable method of joining pipe and is an economical alternative to welding, threading or using flanges. It is capable of pressures up to 2,068 kPa (300 psi) depending on pipe size and wall thickness. The Figure 577 Coupling is UL & ULC Listed, FM, VdS and LPCB Approved.

Laser Smoke Detector: - FSL-751The Notifier FSL-751 VIEW® Laser Detector is a revolutionaryadvance in early warning smoke detection technology. The unique design of this laser detector allows smoke detection sensitivity that is up to 50 times higher than present photoelectric technology, when combined with enhanced intelligent sensing algorithms in the Notifier AFP-300, AFP-400, NFS-640, NFS2-640, NFS-320, NFS-3030 or NFS2-3030 control panels. Because of this high sensitivity, the FSL-751 can provide very early warning of slow smoldering fires. Its performance is comparable to present aspiration technology, at a substantially lower installed cost.Features• Very Intelligent Early Warning (VIEW®) smoke detection.• Advanced laser light source and patented optical design.• Rotary, decimal addressing (1-99 on CLIP systems, 1-159 on FlashScan systems).• Dual bi-color (red/green) LEDs flash green when Normal and are steady red in Alarm.• Dual LED design provides 360° viewing angle.• Built-in magnetic test switch, or automatic test commanded from panel.• Optional relay, isolator, or sounder bases.

• FS system (Anti Foaming System): detects foam to prevent the release of droplets together with the steam;• works on mains water with a conductivity between 75 and 1250 µs/cm, and its control software automatically adjusts operation according to the characteristics of the water, so as to optimise operating life without maintenance.• large cylinders galvanised electrodes and anti-scale filter at bottom for extended maintenance-free operation; openable cylinders also available;• steam production with continuous modulation from 20% to maximum capacity (10% for models with two cylinders);• built-in conductivity sensor and control software to optimise energy efficiency and maintenance costs, with constant performance throughout cylinder life;• automatic water drain after 3 days of inactivity• choice between three controllers: "Y" (proportional or ON/OFF from external controller and icon display), "X" (modulating with built-in controller based on pCO technology and alphanumeric and graphic display with extended text messages), "W" (similar to "X" but dedicated to steam baths);• model "X" manages a limit probe, used to limit the maximum relative humidity at the outlet, avoiding condensate formation in the duct.

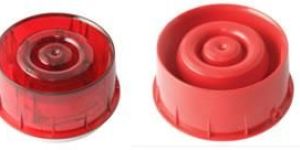

Intelligent AV Devices:- WSS-PR-N05, WSO-PR-N05Morley-IAS's new modular range of Intelligent AV warning devices provides easier systemconfi guration and fl exibility. A common base across AV and detectors is available, allowing for easier installation and ordering.Features• Automatic synchronisation of sounder• Adjustable volume control (on device or from panel)• Intense strobe output• Address tag for clear indication• In-built isolation options• Simple familiar rotary wheel address controls• UV stable materials• Common base with detectors (B501AP)• Device protocol is backward compatible through inclusion SS CLIP Advanced Protocols• 32 tone selection to cover many markets (on device or from panel)• Advanced protocol enabled controllable sound output, tone selection.
