Cira Energies Borivali West, Mumbai, Maharashtra

Cira energies provide complete solution in solar based water heating system be it in flat plate collector (fpc) type or evacuated tube collector (etc) type, heat pipe (hp). The system’s provide 24 hrs hot water at desired temperature. cira energies provide all type system be it thermosyphon, forced circulation or pressurized force circulation, open loop and close loop type systems.

Brand Name : Cira Energies

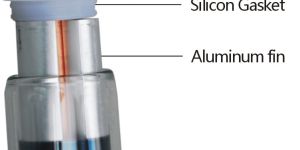

We are offering heat pipe vacuum tube. heat pipe vacuum tube: 1)perfect combination of vacuum tube and heat pipe 2)copper heat pipe, al fin 3)ce heat pipe vacuum tube: 1) higher heat efficiency: advanced heat transferring style of the heat pipe, excellent selective absorbent coating and perfect combination with vacuum heat preservation. 2) wide applicable range: as the heat pipe has less heat capacity, it can be started quickly even on cloudy days and collect heat effectively. It can work normally even at 30-degree. As there is no water in the vacuum tube, it can effectively prevent lowing of heat efficiency due to frost cracking or scaling. 3) each individual tube can work independently, and the whole machine can still work if individual tube is damaged. The service life of the heat pipe can be longer than 15 years. 4) the unique connection between the heat pipe and the vacuum tube can ensure both sealing and replacement glass vacuum tube.

We are offering evacuated glass tubes (non pressurized). All-glass three target vacuum tube 1) high temperature resistance 2) anti-cold 3) efficient absorption and long lifetime all-glass three target vacuum tube technical data: structure all-glass concentric dual tube geomer glass material high borosilicate 3.3 glass outer tube diameter and thickness φ=47±0.7mm & =1.6±0.15mm φ=58±0.7mm & =1.6±0.15mm φ=70±0.7mm & =1.6±0.15mm inter tube diameter and thickness φ=37±0.7mm & =1.6±0.15mm φ=47±0.7mm & =1.6±0.15mm φ=58±0.7mm & =1.6±0.15mm tube length 800mm,1200mm,1500mm,1600mm, 1800mm,1900mm,2000mm,2100mm,etc absorbing coating properties coating material: cuss-aln(h)ss-aln(l)aln sediment method: three target magnetron sputtering plation absorptance: = 0.92-0.96(am1.5) emittance: =0.04-0.06(80°c±5°c) vacuum: p ≤ 5.0 × 10-3 (pa) stagnation temperature(temperature inside of empty evacuated tubes): 260-300°c average heat loss: ult0.4-0.6w(m2.°c) lifetime: 15years hail resistance: 25mm pressure-endure: 1mpa

Brand Name : Krtrimaratna
