Colloid Mill Dealers in Mumbai

• Type: Colloid Mill
• Certification: CE Certified,ISO 9001-2015 Certified
• Color: SILVER
• Condition: New
• Warranty: 1year
• Country of Origin: India
• Brand Name: AET
• After-Sales Service Provided: If Need Be
• Automatic Grade: Automatic
• Processing: Colloid Mill is suitable for homogenizing, emulsifying, dispersing, mixing, comminuting of liquids t

Colloid mill reduces the particle size of a solid present in different liquid forms or solid forms. It is mainly reduces the solids which are present in the suspensions or emulsions or the reduction in the suspensions droplet size. It is almost used for the all types of materials for the reduction. DESCRIPTION The colloidal mill is used in the reduction of the particles or solid materials which are present in the suspensions or emulsion. The shearing is the mechanism in the colloidal mill. By the stator and the rotor present in the cylindrical vessel of the colloidal mill the shearing take place and the reduction of the particles takes place. PHARMACEUTICAL APPLICATIONS The main use of a colloid mill is the dispersion of solid particles within a liquid. It is used to reduce the particle size in suspension in a liquid or to reduce the droplet size of a liquid suspended in another liquid. By applying high levels of hydraulic shear to the process liquid the reduction is done. It is frequently used to increase the stability of suspensions and emulsions. It is used for the formation of the efficient emulsification, homogenization, dispersion and mixing during the course of cutting, milling and shocking with high frequency. Colloidal mill is utilized in a number of industries including, food and beverage, pharmaceuticals and chemicals. Colloidal mill is ideal for small, medium and large scale tablet batching systems. The colloid mill is the most efficient system for dispersion and homogenization of raw material.1-6 It is mainly used in pharmaceutical purpose for the preparations colloidal dispersions, suspensions, emulsions and ointments. Particles size of as small as 3 microns can be obtained by the colloidal mill. Fibrous materials can be milled using rough surfaced rotor and stator. Colloidal mill can be sterilized. So it can be mainly used in the production of the sterile products.

• Model: RDCM3
• Output: 120 to 12000 kgs/shift
• Particle size reduction: 5 to 10 Micron
• Hopper Capacity: 15 ltrs.
• Reduction upto: 5 to 10 microns (Particle Size)
• Electricals: 3 HP/ 2800 RPM / 3 PHASE

Operation Product is fed to the operating area of rotor, having a speed of 3000 rpm by specially designed feed device. The product is processed by high shear, pressures & friction between the stator & rotor, & is also subjected to intensive vibration which exerts their force on it by means of pressing & releasing actions. due to the slightly deviating tapering of the milling surfaces of stator & rotor, the angular gap becomes narrower towards the discharge section. This processed product continuously leaves the mill through the drain pipe, if required, it can be recirculated.   Salient Features All contact parts are made out of SS. 304 (SS.316 on demand at extra charges). No casting are used for avoiding contamination problems. Coupling provided between motor shaft & rotor shaft for ease in maintenance. Three oil seals between the Motor & the processing chamber to prevent liquid going in the motor winding, Resulting in the burning of the motor. Modified design of semi concave teeth in rotor & stator reduces the motor HP & gives better performance in size reduction without damaging the product. Extended bearing housing specially designed to facilitate fine adjustment of bearing clearances or back lash to avoid metal to metal contact of rotor & stator. This unique design provides smooth & consistence all round performance & ong life of rotor & stator. Leak proof neoprene sealing device. Three way cock system for draining & recirculation of liquids provided as standard. Extra discharge spout provided as standard for viscous products. DOL Starter with over load relay for protection against single phasing & low voltage. Contact parts can be easily dismantled for cleaning. Special design facilitates adjustments of the grinding gap by an exterior screw by means of handle even during operation. Flame proof motor &Flame proof rotary switch can be provided on request at extra cost.  Output Depending upon material characteristics viscosity, density & micron size.

Colloid Mill is an ideal & perfect homogenizer cum emulsifier   Feed Hopper, recirculating pipe & mouth hopper are supplied as standard with colloid mill.   Fine particles size at high speed   Lower Maintenance   Models available in AISI SS 316 / AISI SS 304 MOC   Available in Jacketed / Non-Jacketed type.   Drive mechanism is an electric motor with couple shaft   Special 3 way valve is provided for recirculation & discharge of the product.   Finish products available as low as 5 micron.   It is suitable for small, medium as well as large batches of production   cGMP Construction With High Pharmaceutical Finish With Documentation .

• Material: Stainless Steel
• Brand Name: ACE
• Voltage: 240 Volt
• Phase: Single Phase
• Capacity: 12 to 100 Kg/Hour
• Speed: 2850 rpm
• Height: 1100 mm
• Motor Power: 3 HP
• Power Source: Electric
• Features: Longer functional life, Sturdy construction, Low maintenance

Versatile compact cGMP colloid mill suitable for Homogenizing, dispersing, mixing, communicating more rapidly and emulsifying to give best results with an extremely high quality. The unit consists of stainless steel conical hopper, three way valve for drainage and recirculation, outlet nozzle and sprout rotor and stator assembly with 5H.P./ 3 HP motor, DOL starter with overload relay and optional jacket for cooling or heating.Details : Grinding accuracy of 5 -10 micron due to the perfectly matched & specially designed Conical shaped stator & RotorAssembly. All Contact Parts are made out of SS-316 Material. (SS 304 optionally) Circular Ring Shaped, internally Conical Stator having two different tooth stages, for higher accuracy Toothed Conical Rotor is Coupled with Belt in Vertical Deluxe Model Stator & RotorAssly. Is balanced and housed in the Stainless Steel Housing. Water Jacketed Hopper are as standard feature. Higher Capacity Hopper & FLP Model also Available (Optionally) S.S. Trolley with Castor wheels can be provided (Optionally)

We are offering Colloid Mill in the market. Our Colloid Mill is known for collectively performing dispersing, fine grinding, and homogenizing in a single operation. Colloid Mill, offered by us, has its components made up of stainless steel 304 which ensures its sturdy construction. Colloid Mill can be availed from us in various capacities. Construction Colloid Mill suitable for fine grinding, dispersing and homogenizing in a single operation. The mill consists of a SS 304 single piece casted body inside which is fitted the SS 304 Rotor and Stator grinding element. The material is fed through a SS Hopper and is forced between the Rotor and Stator where the material is sheared, dispersed, mixed and homogenized. The rate and degree of the above process can be finely controlled during operation by adjusting the gap between the Rotor & Stator by means of a hand lever provided. The mill is mounted on a sturdy base frame and can be installed without foundation bolts if desired. All rotating parts are balanced and well lubricated for trouble free operation. The shaft is installed in a leak proof housing complete with bearings. ~O~ rings and Oil seals. The motor provided is of 3 Ph TEFC, 415 V 2800 RPM. The mill is provided with one set of S.S. 304 grinding elements or one set of corundum stone grinding wheels as may be required. Cooling Arrangement A SS 304 jacket complete with inlet and outlet connections is provided to cool the grinding chamber which subsequently cools the product. Optional Recirculating System - A pipeline system in SS 304 can be provided to recalculate the material. Optional Available Recirculating Arrangement.Force Feed Screw Arrangement.Flame Proof Motor.

• Material: Stainless Steel
• Condition: New
• Power: 3 HP
• Country of Origin: India
• Automatic Grade: Semi Automatic
• Design: Standard

We make sure that there will be no damage to the products that we deliver to the customers. For this, we use high quality packaging material and hi-tech machines ensuring the same. We offer a variety of payment methods to our customers so that they can pay as per their convenience while focusing on the core trade. Details : Model 1 HP, 3 HP & 5 HP. Output 120 to 12,000 kg/shift (Depends on the product). Colloid Mill is suitable for Homogenising, Emulsifying, Dispering mixing. Available STD / GMP Model.

• MOC: SS 304, SS 316 & SS 316L
• Size: Capacity 120 kg to 12000 kg per shift

* 15 kg hopper size * Mounted on SS trolley with castor wheels * Griding accuracy upto 5-10 micron * Plain or Water jacket provosion can be provided for heat sensitive product.

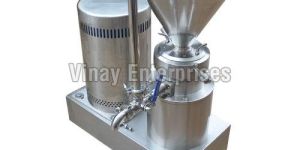

Technical Specifications Model Vertical Model Horizontal Model Output 120 12000 Kgs per shift 120 12000 Kgs per shift Particle size reduction 5 - 10 microns [depending on material] 5 - 10 microns [depending on material] Hopper capacity 15 litres 15 litres Motor 3 HP, 2850 rpm, 440 V, 50 Hz, 3 Phase 3 HP, 2850 rpm, 440 V, 50 Hz, 3 Phase Height 1200 MM 1170 MM Floor space 410 X 680 MM 390 X 990 MM Case dimensions (mm) 550(w) x 830 (d) x 1300 (h) 530 (w) 1130 x (d) x 1270 (h)

Used for micronization while making suspension, emulsions etc. The homoginizing head consists of stator & rotor arrangement made out of S.S. The stator is supported on the motor & encased with the motor in a pumptype housing

• Motor: 3 HP, 2800 RPM
• Hopper Capacity: 15 Ltrs
• Final Particle Size: 10-15 Microns

It works on the rotor stator principle. The complete assembly is provided with serrations for better mixing. Better mixing can also be obtained by adjusting the gap between the rotor and the stator by the handle provided. The product is subjected to a high shear action in the rotor stator assembly due to which the particle reduction takes place. The material is then pushed out through the outlet for further process or for recirculation. The mill is optionally provided with a cooling water jacket and a mechanical seal for leak proof operation. Granulation Line:- Colloid Mills is suitable for homogenizing, mixing, emulsification, dispersion of liquids, ointment, creams, and other similar difficult to mix products. mill is optionally provided with a cooling water jacket and a mechanical seal for leak proof operation.

Am-colloid mill is driven by a special vertical type highspeed motor, which along with a 5S-housing provides working area of the mill. Circular shaped stator assembly having two different tooth stages, the conical rotor that is directly coupled, and shape of the rotor and stator permits to axially adjust the grinding gap to an accuracy of 0.10 mm. The opening or dosing of this gap is calibrated on a scale. One rotation of the adjusting ring corresponds to a grinding gap of 0.5 mm.   Operation : In Am-colloid mill the product is subjected to high shearing cuffing, and rubbing forces between two toothed surfaces. The product, while passing down the hopper, inibally gets seized in the preliminary braking drum where it is broken and thrown into the first stator tooth stage. Due to conical arrangement and the centrifugal effect of the rotor rotating at a speed of 2800 RPM, the material is forced into second tooth stage. The tooth design of the grinding set causes powerful vibrations that subject the particle with high degree of forces. In turn particle reaches the lowest grinding stage. The ground material continuously leaves the mill through the outlet pipe, if required, it can be recirculated.

SPECIAL FEATURES * All contact parts are made out of SS304 SS316 SS316 L quality material. * Coupling provided between motor shaft and rotor for the ease in maintenance. * 3 way valve system for draining and re-circulation of liquids or discharge spout for viscous products can be provided. * Contact parts can be easily dismantled for cleaning. * Flame proof construction provided if customer requires. * Jacketed model with jacket to the hopper.

Product is fed into hopper and specially designed feeding device push the material to stator and rotor for high shearing, cutting and rubbing forces. Due to conical arrangement, the slightly deviating tapeiring of the milling surface of the stator and rotor, the angular gap becomes narrower towards the discharge section and the centrifugal effect of the rotor rotates at a high speed, the material is then forced into next tooth stage. The tooth breaks the particles with high degree of forces. Intence whirling multiples the grinding and mixing effect. The processed material continuously leave the mill through the drain pipedischarge spout, if required it can be recirculated.

• Power: 5 hp to 3 hp
• Material: Casting
• Application: Pharmaceutical industry. Food, flour, dairy, sweetmeats and confectionery industry.Chemical industry.Paint industry. Textile industry. Cosmetic and detergent industry. Cubber industry.
• Capacity: 40 kg to 500 kg
