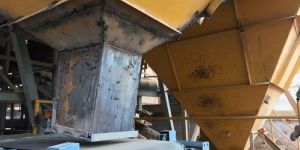

Weigh Feeder
Principle of OperationA weigh belt feeder enables a continuous, controlled product flow. The bulk material is transported over a weighing section, placed in the feeder frame. The federate is calculated and the speed of the belt adjusted to maintain a constant feed rate.If the purpose of the belt feeder is to register the throughput only, the speed of the belt remains constant and the mass flow and cumulative weight is registered.ApplicationsWeigh Feeders are widely used in Coal feeding Steel plant Cement plant Chemicals & fertilizers Open mines Tobacco industry
Brand Name : Concept Electronics
Country of Origin : Made in India
...more
SF6 Medium Outdoor Vacuum Circuit Breaker
200,000 Per Piece
1 Piece(s) (MOQ)
Other DetailsThese circuit breakers are of live tank design. The vacuum interrupters are housed in hollow porcelain insulators filled with SF6/Nitrogen gas at 0.5 bar above atmospheric pressure to safeguard against condensation. The operating mechanism is housed in a weather proof cabinet and is available in two versions: Magnetic Actuator Drive Spring Operated Mechanism Why ABB? Porcelain clad construction suitable for outdoor applications Operating mechanism available in two options - spring drive or magnetic actuator drive Suitable for auto closure duty cycle of "O-0.3sec-CO-3min-CO" and "CO-15sec-CO" Simple installation - structure mounted with option of extension.
Poles Number : 3 Pole
Voltage : 11kV,22kV,33kV
Phase : 3
Country of Origin : Made in India
...more
RVT Power Factor Controller
70,000 Per Piece
1 Piece(s) (MOQ)
Other DetailsPower factor correction for both balanced and unbalanced loads:In nowadays installation, unbalanced loads are becoming ubiquitous, especially in residential or commercial buildings. RVT addresses your power factor issues from both single phase loads (L-L or L-N) and three phase balanced/ unbalanced loads. RVT is capable of compensation to each phase individually or compensation to three phases globally. Another distinct feature of RVT is individual phase measurements and energy counting.Complete three phase measurements Active power (kW) - 3ph/1ph Apparent power (kVA) -3ph/1ph Reactive power (kvA) -3ph/1ph Reactive power (kvA) to reach the target cos -3ph/1ph Voltage (V) -3ph/1ph Current (A) -3ph/1ph Cos -3ph/1ph Total Harmonic Distortion on Voltage/Current : THD V/I (%) Voltage/Current Harmonics : H2 up to H49 (%-spectrum) Touch Screen Ethernet connection USB connection Up to 8 Temperature alarm outputs Real time clock Hardware and software lock
...more
RVC Power Factor Controller
7,000 Per Piece
1 Piece(s) (MOQ)
Other Details RVC has become synonymous with automatic capacitor bank controller in many markets worldwide thanks to its distinct design, ease of use, reliability and versatile functions. Thanks to the user interface upgrade with graphical icons, it is possible to commission the RVC without a manual. A slimmer casing requires less space in the capacitor bank panel. The RVC is an easy-to-install, easy to use, smarter power factor con- troller and an ideal companion of your automatic capacitor banks. Powerful Features Common range for a broad network voltages from 100V to 440V. Measurement and display of key parameters like voltage, current, power factor, THDV and THDI. Fully programmable switching sequence. 1A or 5A current input. Easy commissioning. Complete auto set-up (starting current-C/k, type of switching sequence, phase shift, special connections). Easy to use thanks to a user-friendly touchscreen interface and ease of access to parameters for manual setting. Highly efficient switching strategy combining integral, direct and circular switching thereby allowing: To control the cos in presence of rapidly varying loads, To reduce the number of switching, To avoid unnecessary intermediary switchings, To increase the lifetime of the capacitors and contractors. Suitable for hot environments due to maximum ambient temperature rating of 70°C. Not affected by harmonics. Overvoltage / undervoltage protection and protections against harmonic distortion (THDV). Alarm : an alarm contact is opened when any of these conditions are reached: The target cos Φ is not reached within 6 minutes after all outputs have been switched on, The internal temperature of the RVC rises above 85°C, Overvoltage / undervoltage limits are reached, The power supply is out of range, The THDV exceeds the limits.
...more
Ring Main Unit
300,000 Per Piece
1 Piece(s) (MOQ)
Other DetailsABB offers a complete solution for 12/24 kV distribution networks. This consists of Safe Ring, a Ring Main Unit (RMU) that can be supplied in various configurations and Safe Plus, a compact switch gear with unique flexibility. Safe Plus offers extendible and fully / semi modular configuration possibilities. Both the units have identical user interfaces. Safe Ring / Safe Plus are delivered as a completely sealed system with a stainless steel tank containing all the live parts and the switching equipment. Constant atmospheric conditions in the sealed tank ensures a high level of reliability, safety and a virtually maintenance-free system. As an option in Safe Plus, an external busbar can be provided to enable a completely modular configuration. Safe Ring and Safe Plus can also be fitted with a remote control and monitoring unit and are suitable for both indoor and outdoor applications.Applications Industry Pulp and Paper Cement Textiles Chemicals Food Automotive Petrochemical Quarrying Oil and gas pipelines Rolling mills Mines Utilities and Power Plants Power generation stations Transformer stations and metering Main and auxiliary switchgear Airports Ports Railways Underground transport Infrastructure Supermarkets Shopping ls Hospitals Large infrastructure and civil works
Voltage : 12kV,22kV,33kV
Rated Current : 630A
No. of Poles : 3
Application : Secondry Distribution
Brand Name : ABB
Material : SS 304
Warranty : 1 Year
Country of Origin : Made in India
Power : 12kV,24kV,36kV
...more
Retrofits Medium Outdoor Vacuum Circuit Breaker
Other DetailsRETROFIT means the implementation of modern components (primary switching devices and digital protection/control technology) in the existing MV installation with following benefits. Cheaper than a complete replacement Short implementation time for replacement Minimum shutdown of the switchboard Remaining service life extension Improved operator protection Minimization of further maintenance costs Warranty on the conversion work Spare parts availability for long time
Voltage : 630A,800A,1250A,2000A,2500A
Poles Number : 3 Pole
Country of Origin : Made in India
...more

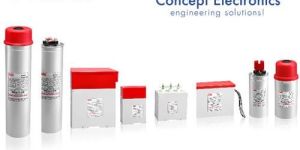

Q Cap Power Factor Correction Capacitor
Application : Power Factor Correction
Capacitor Type : Dry Filled
Terminals : Three
Material : MPP
Phase : Three Phase
Brand Name : ABB
...more
Q Cap Capacitors
Type : Capacitor
Material : Aluminium, MPP
Certification : CE Certified
Usage : Industrial, Power Factor Correction
Weight : 0-50Kgm
Color : Silver
Phase : Three Phase
Terminals : Three
Capacitor Type : Dry Filled
Voltage : 415V to 525V
Brand Name : ABB
...more

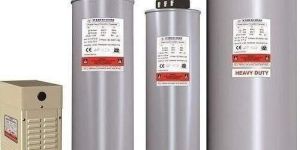

Industrial power capacitor
Application : Industrial
Weight : 0-50gm, 100-150g, 150-200gm, 200-250gm
Feature : Auto Controller, Dipped In Epoxy Resin, Durable, High Performance, Stable Performance
Voltage : 110V, 220V, 380V, 440V
Condition : New
Operating Temperature : -25 +85deg C, -40 +70deg C, -45 +55deg C
Frequency : 50Hz/60Hz
Power : 0-5Kw, 10-15Kw, 15-20Kw, 20-25Kw
Warranty : 2Years
Humidity : 70%
Country of Origin : India
...more

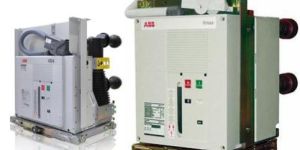

Indoor Vacuum Circuit Breaker
200,000 Per Piece
1 Piece(s) (MOQ)
Other DetailsAcross every market ABB's breakers occupy a leading position thanks to their proven reputation for reliability, performance and long life. CBs from ABB are available for original equipment manufacturers (OEM) to incorporate in their own installations or for use in repair, retrofit and upgrade projects.Why ABB Full engineering and technical support Products tailored to meet the needs of your local market Short lead times Fast response
Voltage : 11kV,22kV,33kV
Country of Origin : Made in India
...more
Dry Type Transformer
Why ABB? More than 40 years in the market Perfected and developed technologies including all applications Continuous innovation, research and development with focus on the customer More than 40,000 dry-type transformers operating all around the globe
Mounting Type : Indoor and Outdoor
Cooling Type : Dry Type/Air Cooled
Power : As per Design
Tapping Range : +5 to -5 or can be customised
Brand Name : ABB India Ltd
Class Of Insulation : H
Coil Structure : Foil Winding
Material : Copper/ Aluminum
Maximum Ambient Air Temperature : Can Be Customised as per Design
Phase : Three Phase
Country of Origin : Made in India
...more
CLMD LV Reliable Power Factor Correction Capacitor
350 Per KVAR
1 KVAR (MOQ)
CLMD construction The CLMD capacitor consists of a number of wound elements made with a dielectric of metallized polypropylene lm. These dry winding are provided with a sequential disconnector ensuring that each element can be reliably and selectively disconnected from the circuit at the end of its life. The capacitor elements receive a treatment under vacuum in order to ensure perfect electrical characteristics. Each winding is placed in a plastic case and encapsulated in thermo-setting resin in order to obtain a perfectly sealed element. The elements are placed inside a sheet steel box and connected in such a way as to supply the single or three-phase power at the required voltage and frequency. The sheet steel box is lled with inorganic, inert and re proof granules in order to absorb the energy produced or to extinguish any ames in case of a possible defect at the end of an element’s life. The CLMD is also provided with thermal equalizers to ensure effective heat dissipation. High performance in-house metallized lm. ABB’s completely integrated manufacturing process has resulted in the development of the special ABB high-performance lm of which all ABB LV capacitors bene t: High breakdown strength Excellent peak current handling capability High capacitance stability Optimal self healing design Long life
Terminals : Three
Frequency : 50 Hz, 60 Hz
Phase : 3 Phase
Brand Name : ABB
...more

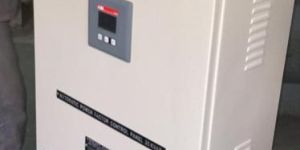

APFC Panel
Voltage : 415V AC
Application : Sugar Plant, Cement Plant, Textile, Chemical Industry, Hospital
Brand Name : ABB,L&T,EPCOS
Phase : Three Phase
Type : Low Voltage
Material : Mild Steel
Features : Automatic competition for lead and lag PF to maintain Unity PF
...more
Indoor VCB Panel
Outdoor VCB Panel
APFC Panel
Apfc Relay
Dry Type Transformers
protection relay
Industrial power capacitor
Abb Switchgears
Weigh Feeder
Belt Weigher
Power Distribution Panel

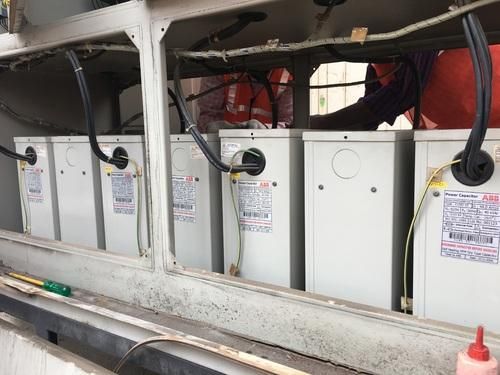

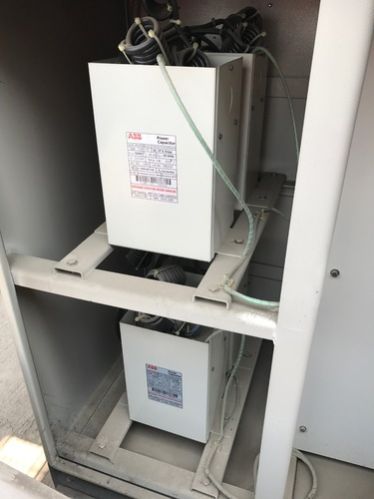

APFC Maintenance Services
Advantages of well maintained APFC system Avoid Power Factor Penalties. Most industrial processing facilities use a large quantity of induction motors to drive their pumps, conveyors, and other machinery in the plant. Reduced Demand Charges. Increased Load Carrying Capabilities in Existing Circuits. Improved Voltage. Reduced Power System Losses
...more
Switchgear Spares
switchgear repair services
ABB VCB spares
Reviews & Ratings
Write a ReviewOpening Hours
Concept Electronics is a promising manufacturer and exporter of electronic equipment in Mumbai (Maharashtra). We are immersed in the production and exporting of electronic products like weigh feeder, ring unit, industrial capacitor, dry type transformer, APFC panel, power factor controllers, power factor correction capacitors more products at feasible charges. All these products are manufactured by acquiring genuine raw material from vendors in the industry. Apart from production & exporting of products, we also offer APFC maintenance services. We make sure that all items are checked accordingly before being exported. Hence, you can rely on the quality of our products. Place your bulk orders today.
Concept Electronics was founded in 2021. The prime aim behind the company’s establishment was to simplify the exporting of electrical equipment. With a team of professional employees, we’ve been able to carve a niche in the industry. Today, we’ve been a noted name in the industry.
Quality Check
Concept Electronics performs a stringent quality check of all equipment. Products like weigh feeder, ring unit, industrial capacitor, dry type transformer, APFC panel, power factor controllers, power factor correction capacitors, and more are appropriately checked with pre-set parameters.
Clientele
Within a shorter duration, we have been successful in carving a niche in the industry. Our clientele exists across Maharashtra and other states of India. That’s a major reason why we’ve been a trusted name among our clients. Besides, we’ve been an internationally recognized brand name as well.
