Continuous Emission Monitoring Systems Dealers in Mumbai

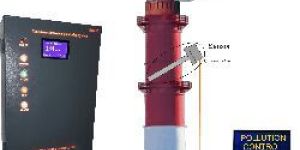

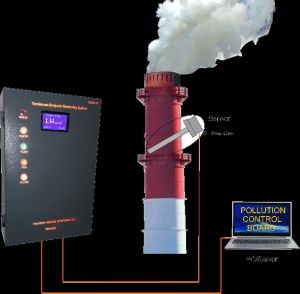

Stack Monitoring for Suspended Particulate Matter (S.P.M.) is greatly simplified and improved by the use of “CONTINUOUS EMISSION MONITORING SYSTEMS (CEMS) / STACK MONITORS/DUST MONITORS”. The Sensor of the CEMS / Stack Monitor/ Dust Monitor is mounted on the stack / duct and the existing S.P.M. level is determined using Thimble / Iso-Kinetic Process. The CEMS / Stack Monitor/ Dust Monitor is then calibrated to continuously display the S.P.M. or Emission level in terms of mg/nm3 in an on-line manner. A 4 to 20 mA DC Analog Output is also provided for recording or control purposes & integration with the Central Control Room. The Continuous Emission Monitoring Systems (CEMS) / Stack Monitors/ Dust Monitors are indigenously manufactured and based on the internationally accepted & widely approved “TRIBOFLOW” principle. These instruments give a CONTINUOUS display in mg/nm3 of the emissions / suspended particulate matter in the stacks / ducts / chimneys which are being monitored. The instrument readings will closely match those you obtain by iso-kinetic / thimble process measurement.

• Country of Origin: India
• Power Supply: 230V AC / 110V AC / 50Hz
• Measuring Gases: O2, VOC, CO, CO2, NOx, NO, SO2, SOx, HF, HCL, CL2
• Sensor Technology: Application Depedant
• Display: Graphic LCD
• Enclosure: Aluminium casing
• Mounting: 19
• Alarm: Two Level
• FEATURES: Complete automatic operation, Sample conditioning system offered
• Analog Output: 4-20mA
• Digital Output: RS 485
• Display Type: Graphic LCD

• Features: Sensing Technology Electrochemical, 32-Bit Contex-M3 ARM Processor, 5.7
• Measures: O2, CO, CO2, SO2, NOX, PM, HF, H2S, HCL, CH4, NH3, etc
• Enclosure: IP55
• Range: Scalable
• Analog Signal output: Isolated 4 to 20mA
• Digital Signal output: RS485
• Alarm: Potential free contacts
• Accuracy: +/- 2%
• Calibration: Auto and semi auto
• Sampling probe: Heated and non heated type
• Sample conditioing: Multi-levels of filters and moisture removal

• Power Supply: 115/230 VAC
• Heating Temperature: 180 Deg.C
• Brand: TECHNOSAVVY
• Country of Origin: India

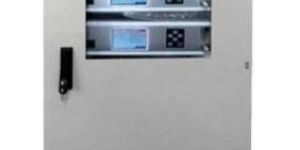

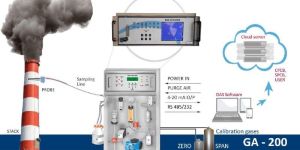

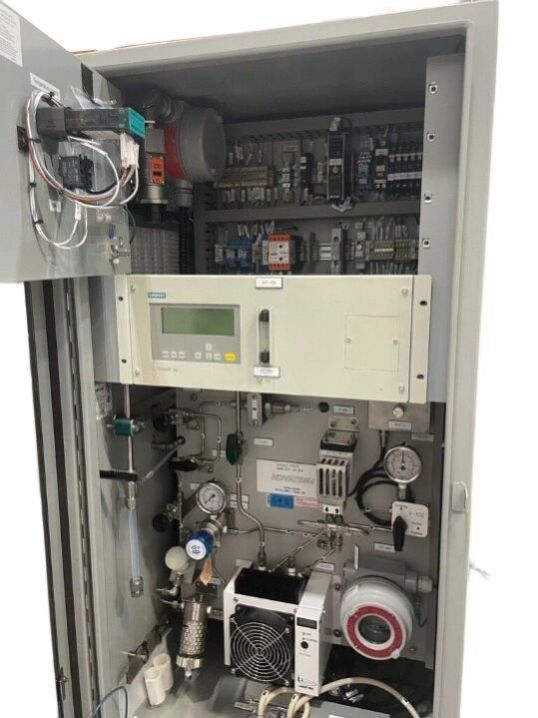

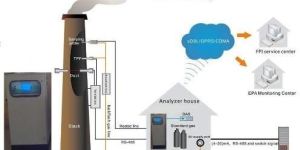

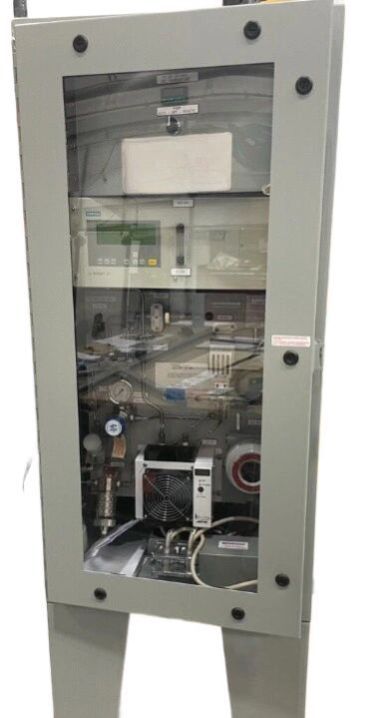

Continuous Emission Monitoring Systems (CEMS) play a vital role, offering real-time analysis of emitted gases to ensure pollutants are kept in check. It's crucial that these systems deliver consistent, accurate results, free from interference by other pollutants. Our system provides continuous measurement of data for long periods of time. Sample collection, transportation, conditioning, calibration, and analysis procedures including QC are totally automated

• Power Supply: 230 VAC
• Country of Origin: Made in India
• Accuracy: +/-2% FS
• Analog Output: 4-20 mA output for each gas
• Digital Output: RS485 MODBUS protocol
• Dimensions: 1500 mm L * 600 mm W * 800 mm D
• Display Type: LCD display
• Humidity: 95%rh
• Measurable Gases: O2, CO, CO2, SO2, NOX, HCL, HF, TOC, CS2, PCl3, HBR, BR etc.
• Response Time: T90<30sec
• Usage/Application: Emission monitoring in stack
• Weight: 600 kg
• Features: 32-Bit Contex-M3 Arm Processor. 5.7 Inches QVGA TFT Touch Screen Display. Tried and tested technology with proven reliability. Wide range of gas selectivity. Highly efficient automatic purge and drain system.

Triumph's Continuous Emission Monitoring System with Advanced Micro Controller Based Design ensures you Industry Leading Features and Specifications with Easy View Display and Early Alarm Warning to keep your Pollution Emission levels under check. Built-In Data Logger and Software will Definitely help you Monitor Production Loss, Online Dust Monitoring, Protecting Vacuum Pumps from Filter Bag Tear, Energy Saving in EPS's, Detection of Broken Bag Filters, Checks Healthiness of Water Scrubber and Multi Cyclone and Analyse your Emission to better standards for compliance with Pollution Control Board and Environment Norms.

Triumph's Continuous Emission Monitoring System with Advanced Micro Controller Based Design ensures you Industry Leading Features and Specifications with Easy View Display and Early Alarm Warning to keep your Pollution Emission levels under check. Built-In Data Logger and Software will Definitely help you Monitor Production Loss, Online Dust Monitoring, Protecting Vacuum Pumps from Filter Bag Tear, Energy Saving in EPS's, Detection of Broken Bag Filters, Checks Healthiness of Water Scrubber and Multi Cyclone and Analyse your Emission to better standards for compliance with Pollution Control Board and Environment Norms   • Continuously Monitoring of Emission in any units of measurement for Better pollution control and monitoring • Ensuring Compliance with pollution control Board and environment norms. • Monitoring the performance of Pollution Controlling equipments like ESPs, Bag Houses, Incinerators, Dust Collectors, Cyclones, Scrubbers etc • Giving Early Alarm & Indication of increase in emissions which helping timely redressed of problem before they become severe, ensure smoother production & prevent damage to downstream equipment & prevent damage to downstream equipment like ID Fans, Vacuum pumps etc. and ensuring optimal and long life of ID Fan/ Vacuum pump / other Downstream Equipment. • Monitoring product loss and ensuring maximum product recovery • Reliable TRIBOELECTRIC Technology accepted world wide • Built in Data Logger (Optional) • 4-20 mA Current drivers (optional) • Siren connectivity • Compact, robust and Light in weight • Remote network Monitoring • Accurate and Reliable Readings, directly in mg/nm3 • Facility to display instantaneous emissions as Well as average emissions.

• Light Brown: 500 kg pack size
• powder form: Direct application

We are offering ammoniacal nitrogen issue handling product 1. Saves energy costs. 2. Generates minimum sludge, hence less handling of sludge. 3. Increases efficiency of plant. 4. Reduces need for other chemical addition. 5. Can handle shock loads very well. 6. Increases stability of etp / cetp. 7. Odour control. 8. Up to 95% reduction in bod & 90% reduction in cod load. 9. Little or no process modifications required. 10. No need of change of design of etp. 11. Easy handling & application 12. No messy cow dung handling. 13. Economical as less manpower needed.

Continuous Emission Monitoring System, Uv Flame Detector

Continuous Emission Monitoring System, Hydrogen Purity Analyzers
