Core Technologies Kurla, Mumbai, Maharashtra

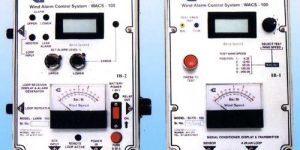

we are engaged in the manufacturing and supplying of wind alarm control system (wacs). the wind alarm control system is manufactured from high-grade working parts and therefore it ascertains longer service life. we provide the weather monitoring wind alarm control system at market leading prices. specifications wacs is packaged in ip66 enclosure and it uses components rated to work up to 85 oc. it can withstand water submergence upto 3 m. and is resistant to corrosion due to atmospheric pollutants. wacs processes wind sped pulses through two independent paths analog and digital giving 100 % redundancy. in addition, it has facility to check and cross refer sensor calibration built in the system. loop powered operation isolates the system from dependence on mains supply, usually the first casualty in a thunderstorm. the instrument operates from 24-volt battery and is isolated from the battery upto 500 v ac. not all other schemes of data transmission like modem, or uhf vhf communication can ensure data reliability in stormy conditions, besides needing power source at the remote site of the sensor. the 4-20ma loop has inherent quality of detecting open or shorted loop conditions. in addition, wacs-100 has in-built protection & filters for lightening and lightning induced spikes as well from accidental 230v ac line leakage. sensor, electronic hardware and the 24 volt battery supply are totally isolated from each other. principle weather monitoring wind alarm control system is based on the proven technology of data transmission over industrial 4-20ma current loop. this also enables installation of the sensor in the remote field and allows data transmission over just one pair of wires upto distances in excess of 10 km, with no loss of accuracy.

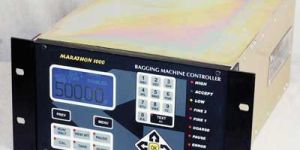

We hold expertise in the manufacturing of Weighing and Bagging Machine Controllers. Our Weighing and Bagging Machine Controllers is manufactured in compliance with set industrial standards. Our Weighing and Bagging Machine Controllers provides high performance and longer working life. Features * One shot key based calibration * Easy to install and use * Multiple dump feature * Programmable auto correction * Auto jog feature Notes * AUTO CORRECTION takes care of feed rate variations and ensures weight within tolerance by trimming at the fine cut * AUTOJOG, initiates Dribble cycle again if the weight filled is below target weight, with pre-programmed * DRY- RUN Feature(in test Mode)helps Installation and Commissioning engineers, to checkout operation of all output devices and tests the status of inputs without the need for material in hopper. Single Step & Single Cycle tells * LEARN Mode of Marathon-5606 computes optimum coarse and Fine cut values in the initial few weighing cycles, resulting in “Best Accuracy-Bagging speed” performance

Country of Origin : India

we are offering PLC compatible vibratory feeder drive. RHY-101 is a thyristor phase angle control drive for vibratory feeders. its control is derived from a 4-20 ma analog input. RHY-101 is designed to respond from 0 to 99% for 4-20 ma input. however the actual vibratory response may start, anywhere from 10 -15 % and may saturate from 85 to 99 %. RHY-101 is housed in a panel or wall mounting enclosure 192mm (h), 48mm (w), 110mm (d). The wiring for the feeder coil, power supply (either 230v or 50v ac) and the low power control input are provided in two groups of pluggable screw termination.

we are offering ffs machine controller. the ffs machine controller is an all inclusive controller system providing not only for bulk, dribble and discharge operations, but also for linear digital control of the vibratory feeders as well as operations of elevator system to ensure material in the hopper. an ultra high precision strain gauge load cell signal conditioning and high performance analog to digital converter ensure superior accuracy and speed through out the temperature range 0oc to 50oc. the controller ffs machine controller features full calibration and setup through front panel keys and helps the user in installation and commissioning through the unique dry and wet run facility. weight calibration is one shot affair. auto correction and jog features ensure “no negative weight”. full modularity of ffs machine controller allows field servicing in minimum time. model : marathon-5606 notes * auto correction takes care of feed rate variations and ensures weight within tolerance by trimming at the fine cut * autojog, initiates dribble cycle again if the weight filled is below target weight, with pre-programmed * dry- run feature(in test mode)helps installation and commissioning engineers, to checkout operation of all output devices and tests the status of inputs without the need for material in hopper. single step & single cycle tells * learn mode of marathon-5606 computes optimum coarse and fine cut values in the initial few weighing cycles, resulting in “best accuracy-bagging speed” performance

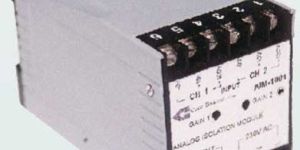

We are instrumental in offering high performing Analog Isolation Modules, which is developed in compliance with industrial standards. The Analog Isolation Modules is highly appreciated for its qualitative features among the buyers. These Analog Isolation Modules can be availed in varied specifications to suit the client’s requirement. Features * Choice of over 100 Input - Output types * Calibrated or Adjustable Models * DIN Rail or Wall Mounting * Dust Ingress Water splash protected * AC or DC 24 Volt Operation * Built-in EMI RFI Protection * 2 KV DC Three Way Isolation Galvanic Isolation Requirements In * Battery Voltage Measurement * DC Signal Isolation For PLC Interfacing * Ground Loop Error Elimination. * DC Drive Isolation * Tacho - Generator Signal Interfacing * Removal of Excessive Common Mode Voltages * Process Data Logging and Recording

we are engaged in offering tamper proof universal data logger, which is installed with latest features. this tamper proof universal data logger is highly acclaimed among the clients for its high performance and accurate results. moreover, we provide universal data logger at most competitive prices. features * selectable scan rates 2 seconds to 8 hours * two level password protected set-up and operation * dual mode of operation, scan log mode * software calibration * alarm outputs * on off line printing of reports * graphic software coster on pc under windows xpvista * 16 32 channel options * flexibility to connect any channel anywhere * steam trap junction box * tabletop, rack or panel version logger set-up template * dry heat sterilizers * autoclaves * tunnels * deep freezer * cold storage * incubators * custom 1 * custom 2

Core Technologies’ Battery Stack Data Logger is a powerful field instrument, which works with Lap top or a desk PC. As a trusted Battery Data Logger Manufacturer, we make the Battery Data Logger by adopting well-tested methods & latest technology. The Battery Data Logger is configured with several advanced features that make it much reliable & demanding in the industry. Battery Data Logger displays the voltage status of each cell in a stack and can log the discharge characteristics over 10 hour schedule. Features * Monitors from 24 to 110 cell battery stack * Cell voltage from 0 to 5.0 Volts * Common mode differential voltage tolerance up to 500Volts DC * Input impedance greater than 500 K Ohm * Accuracy ± 0.01 Volts * Operating Temperature 10 to 40o C RH 90% (non condensing) * Full software support for real time display in tabular and graphic mode on the PC screen * Report Generation through PC software
