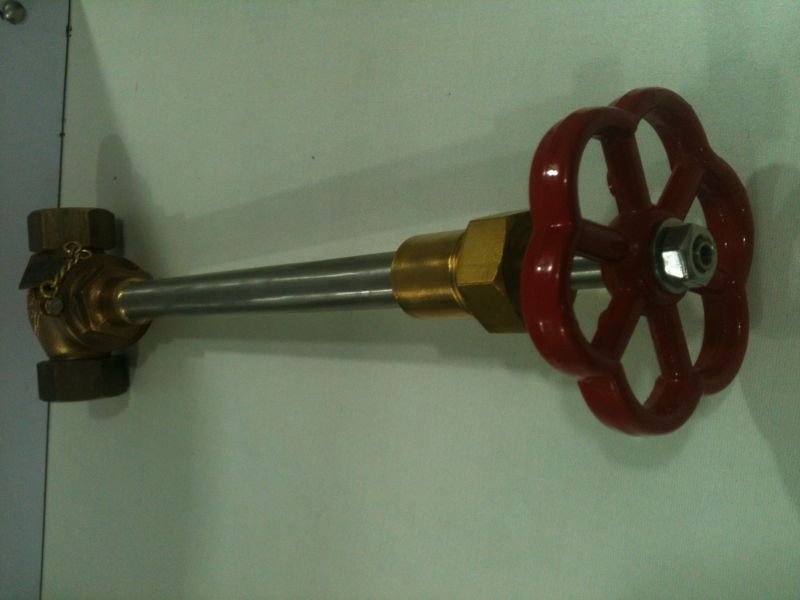

Positioning in the Plant : Oxygen filling manifold is the final stage where cylinder rack is set for final filling. The pressurized oxygen is controlled by pressure gauges & manifold valves. Primary Function : High Pressure Oxygen Pumped by L.O.Pump passes through Heat Exchangers converts into gaseous form. The gaseous oxygen if filled through oxygen filing manifold in the cylinders ready for marketing. Spares Requirement : Some of its important items spares are listed below:-   Cylinder Valves S.S. Spindles Spindle Keys Manifold Valves Safety valves Pressure Gauges Copper Tubes for Pig Tail Connection Brass Bull Nose & Nuts Spares Requirement : Square Nut and Bull Nose – extruded brass material is used. The material constitution enhances the threading of the nut which gets damaged with continuos workability. SS Spindle – SS 304 material improves the life of the valve as the valve is operated for each filling batch. Manifold valve is made from forged body tested with working pressure of 165 kg/cm2 and tested pressure of 200 kg/cm2. Pressure gauge 6” size are supplied brass as well as SS bordoun for 420kg/cm2 presssure. Safety valve are made in carbon steel with SS seat and working part. The safety valve supplied is approved by the explosive department .The working presssure are 165 kg/cm2 – 20 X 25mm size.

Power Source : Electric

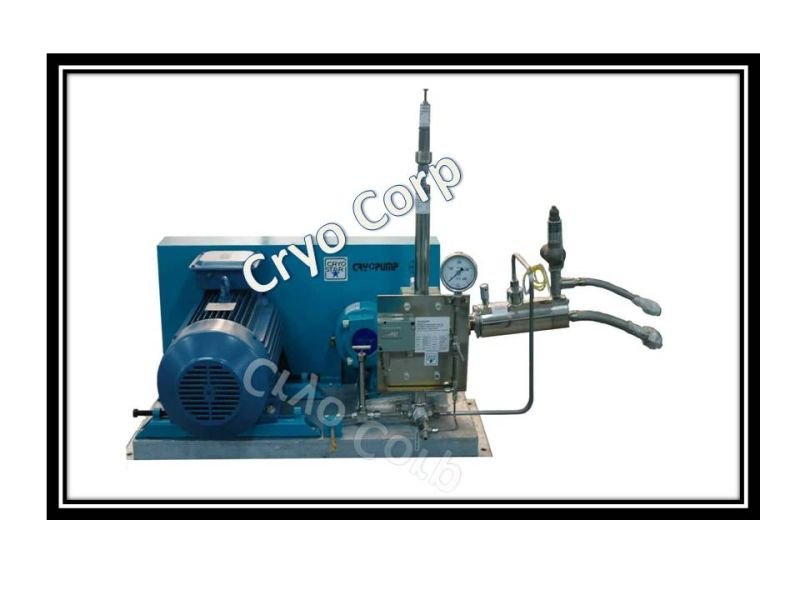

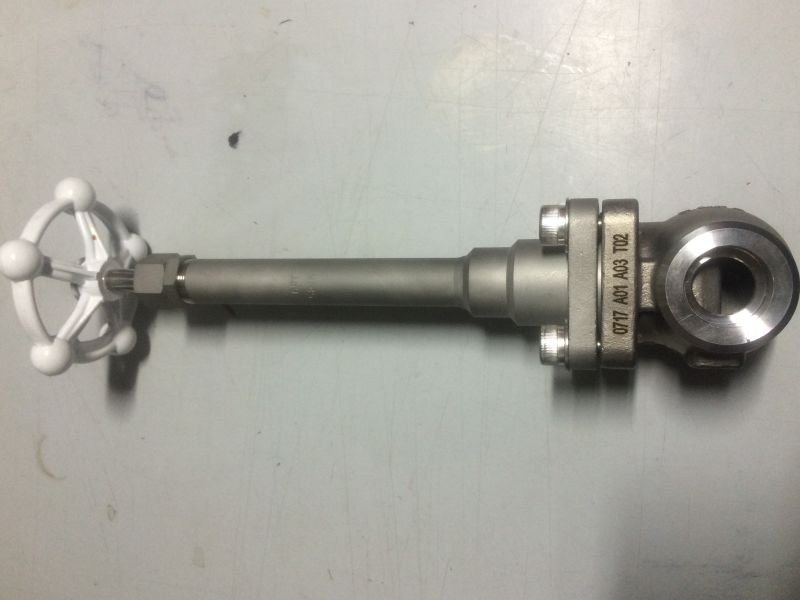

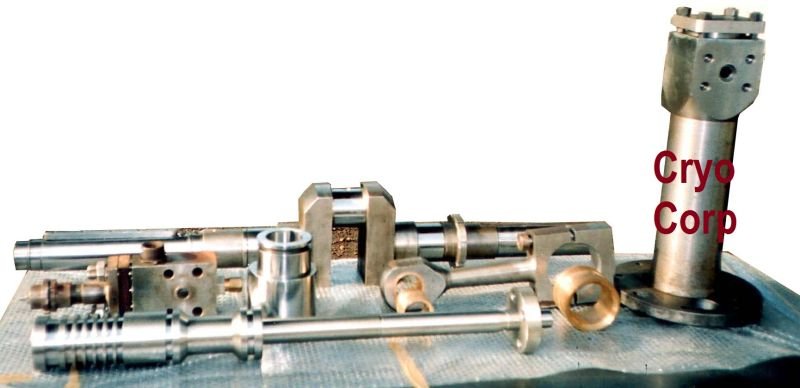

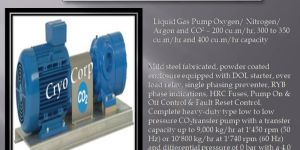

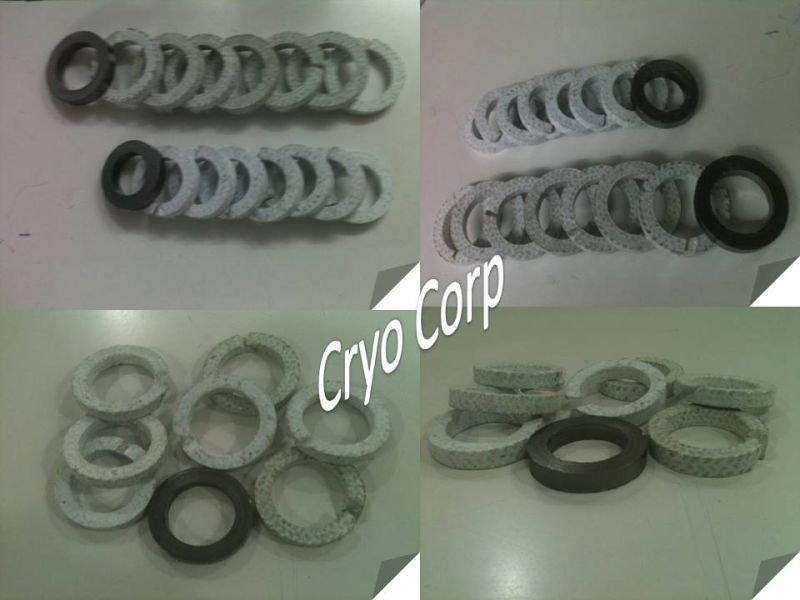

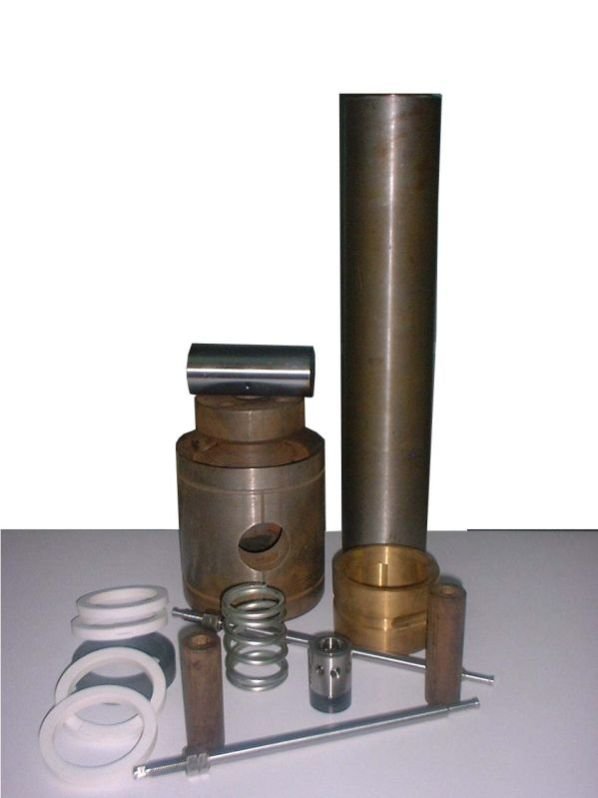

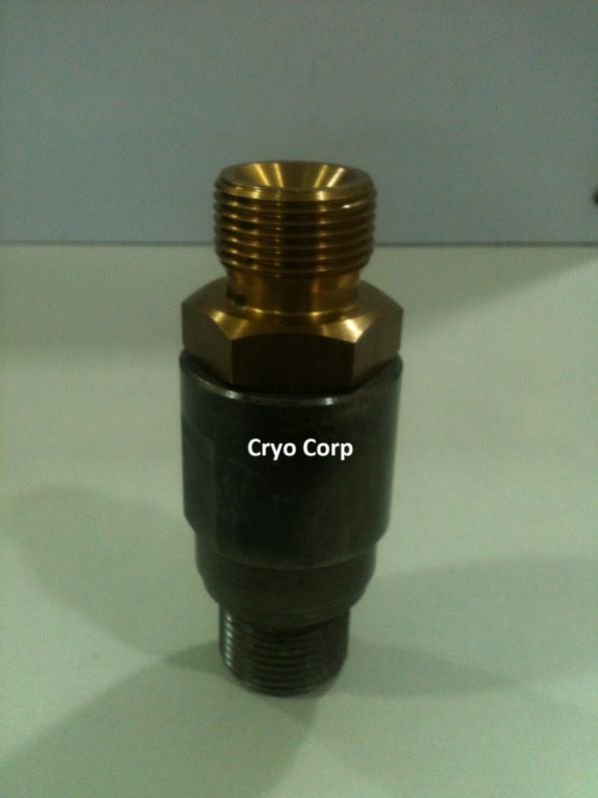

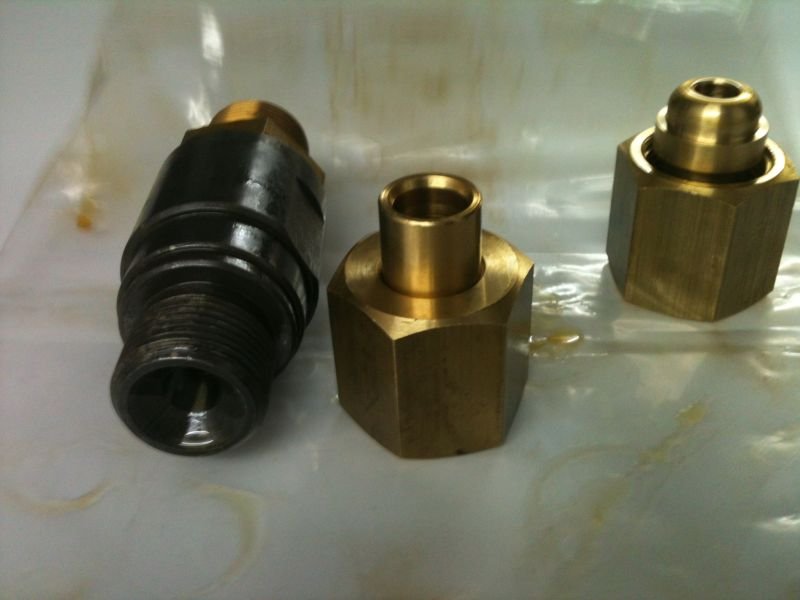

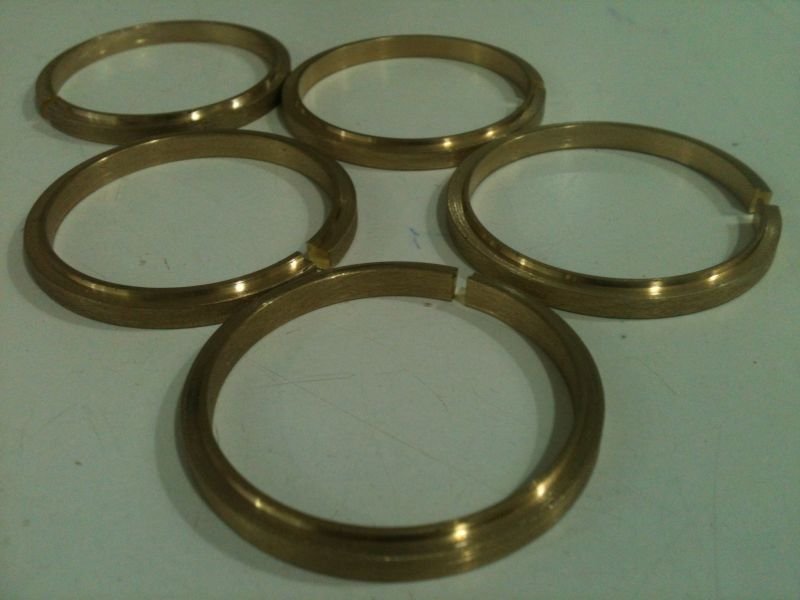

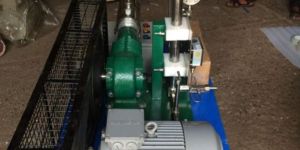

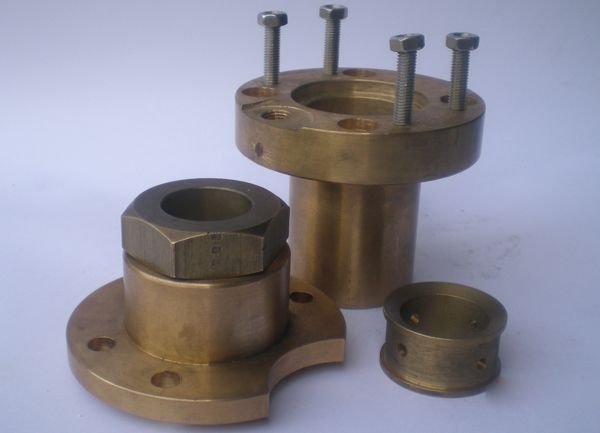

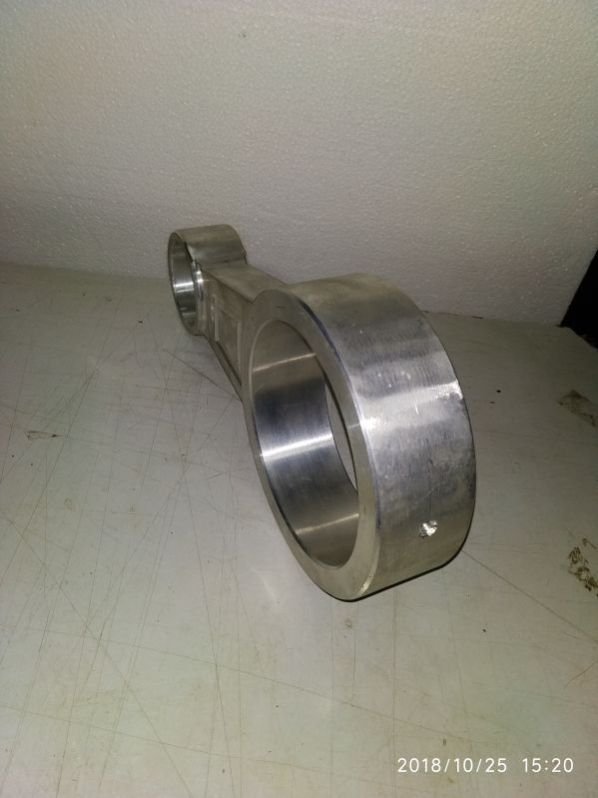

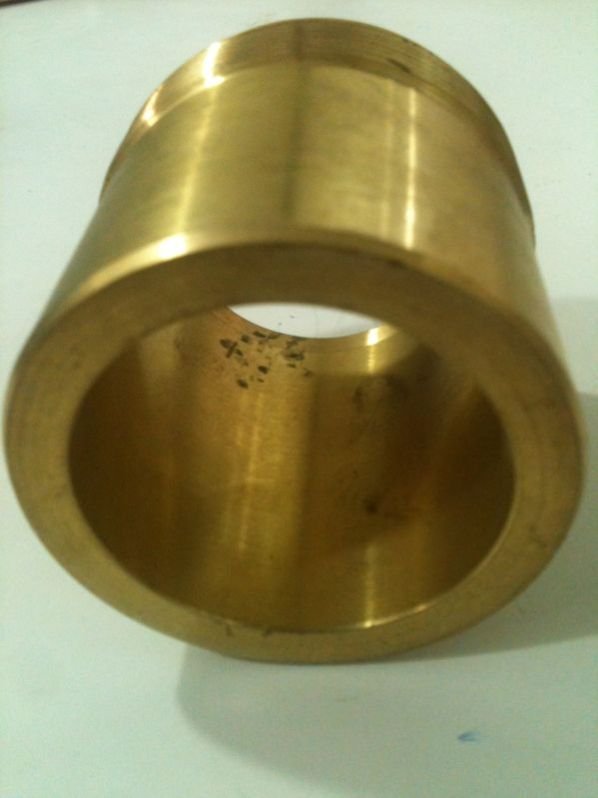

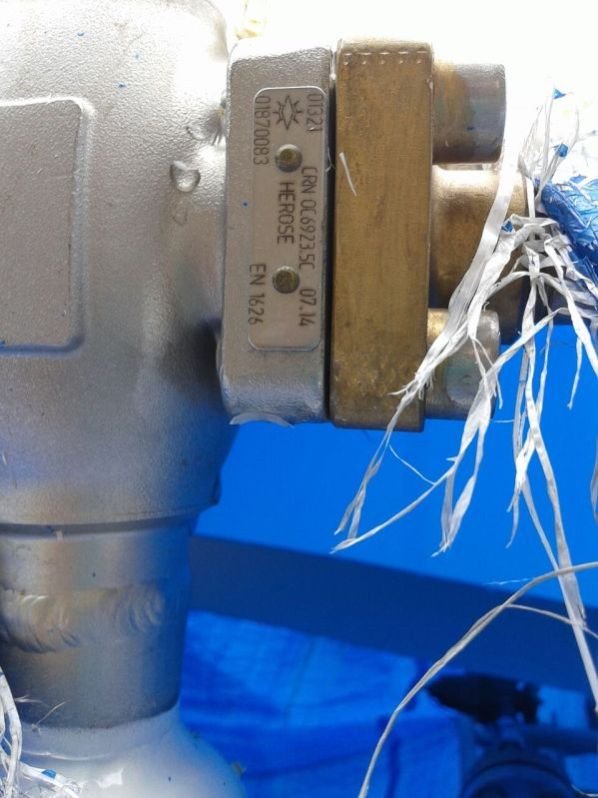

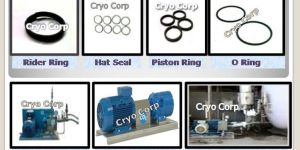

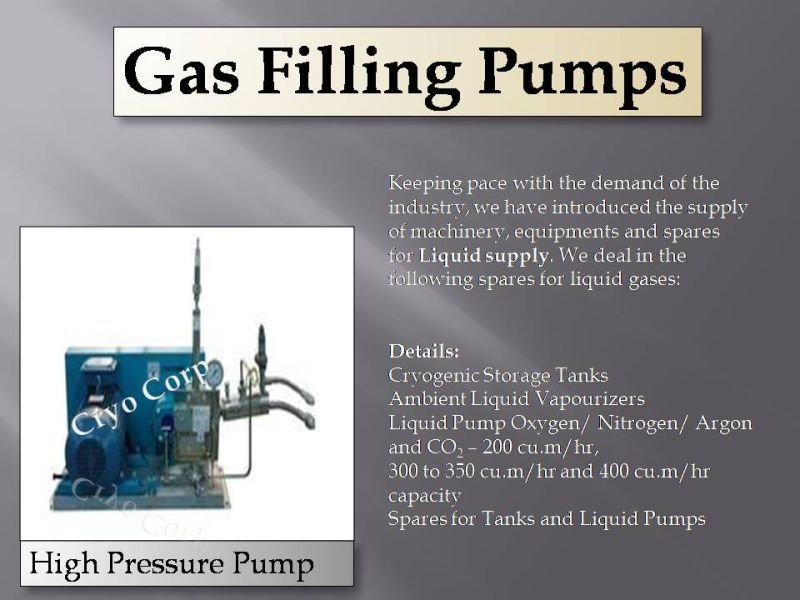

1. Liquid Pump Oxygen/ Nitrogen/ Argon and CO2 – 200 cu.mr/hr, 300 to 350 cu.mr/hr and 400 cu.mr/hr capacity :-   Mild Steel Fabricated, Powder coated enclosure equipped with DOL starter, Over Load Relay, Single Phasing Preventor, RYB phase indications, HRC Fuses, Pump On & Off Control & Fault Reset Control. Complete heavy-duty type low to low pressure CO2 transfer pump with a transfer capacity up to 9‘000 kg/hr at 1‘450 rpm (50Hz) or 10‘800 kg/hr at 1‘740 rpm (60Hz) and differential pressure of 0 barg with a 4.0 kW motor. The pump is designed for 2 ½ inch NPT inlet and outlet ports in sides of pump. Rotation is reversible. 2. SPARES FOR TANKS AND LIQUID PUMPS :- CRYO CORP offers varied range of products for maintenance and easy functioning of the cryogenic equipments for better workability. These are: Piston rings Rider ring Hat seals O rings Veri Seals Liquid level indicator Cryogenic valves socket welded or screwed end for liquid flow – working pressure

Brand Name : CRYO CORP

Condition : New

Power : Electric

Pressure : High

Application : Cryogenic

Type : Liquid Oxygen Pump

Fuel : Electric

Structure : Piston Pump

After-Sales Service Provided : Yes

Country of Origin : India

Driven Type : Electric

Automatic Grade : Automatic

Feature : Good Quality, High Performance

Warranty : 1year

Capacity : 0-12000 Ltrs

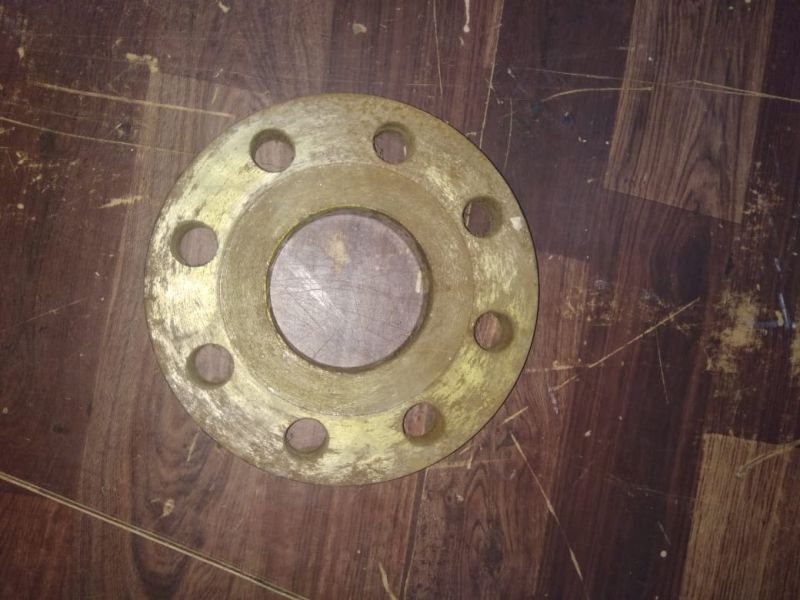

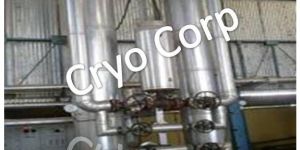

Positioning in the Plant : The chilling Tank along with chilling unit is installed after the cascade cooler.   Primary Function : It is one of the important stages of the process where moisture & CO2 is separated partly from the air before entering the Molecular Sieve Battery. The air from the cascade cooler passes through the chilling tank, which contains chilled water at a temperature of 60C to 100C. This water is chilled by a Chilling unit. In the chilling tank the moisture entrapped in the air further gets condensed and is separated out as moisture. This moisture is collected in the Moisture Separator and is drained out.   Spares Requirement : For the efficient functioning of the Chilling Unit, some of the important spares are listed below : Freon Compressor Copeland make Piston Rings Piston Connecting Rods Big End Bearing Small End Bush Mechanical Seal Expansion Valve Thermostat High & Low Temperature Tripping Device Suction & Discharge Valve Reeds

Voltage : 220V

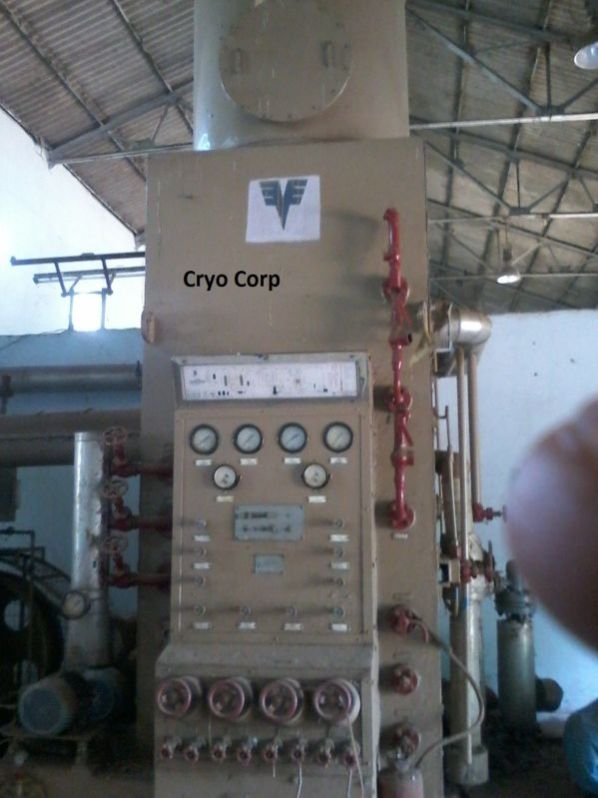

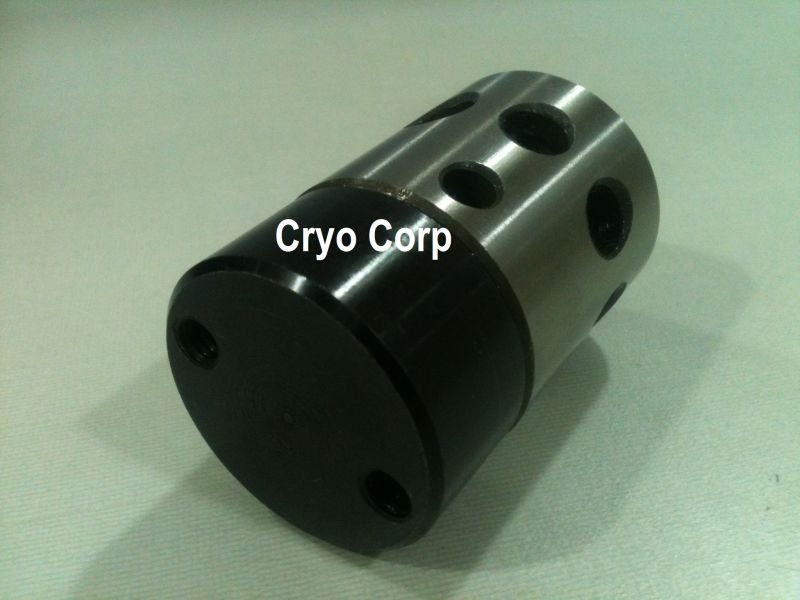

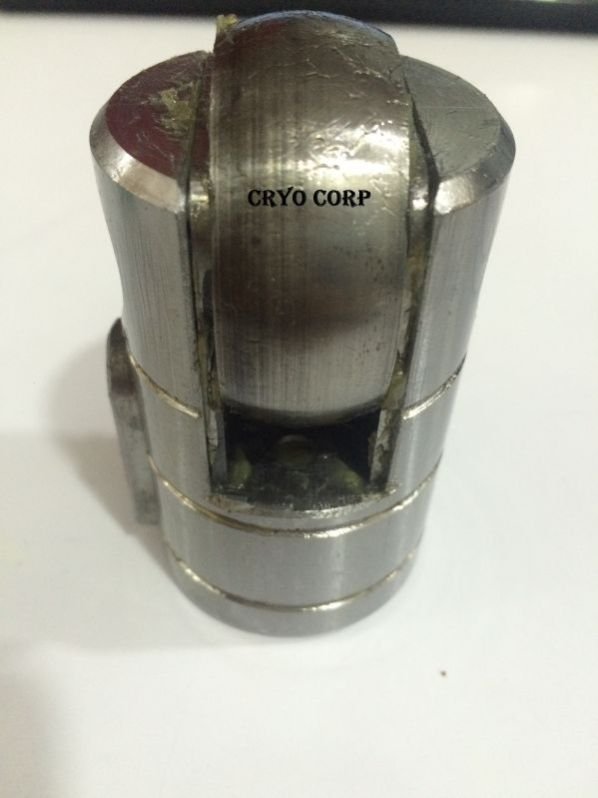

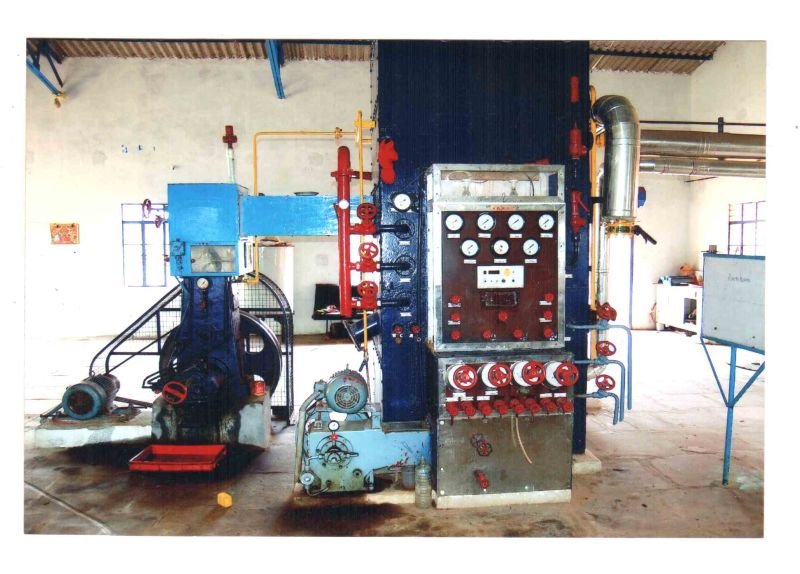

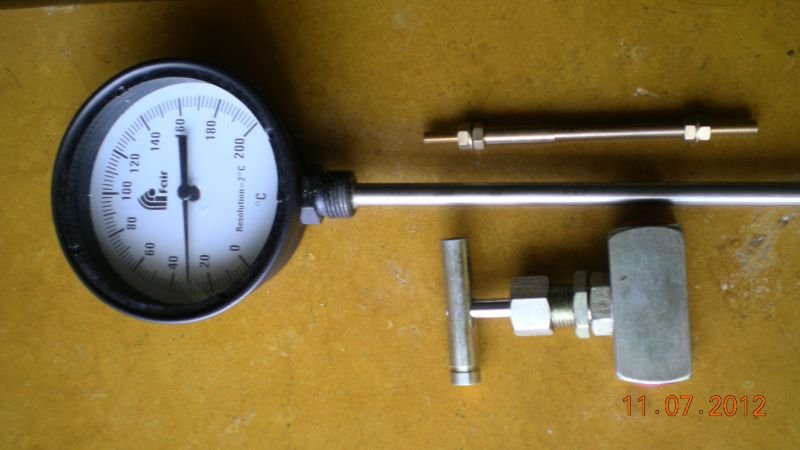

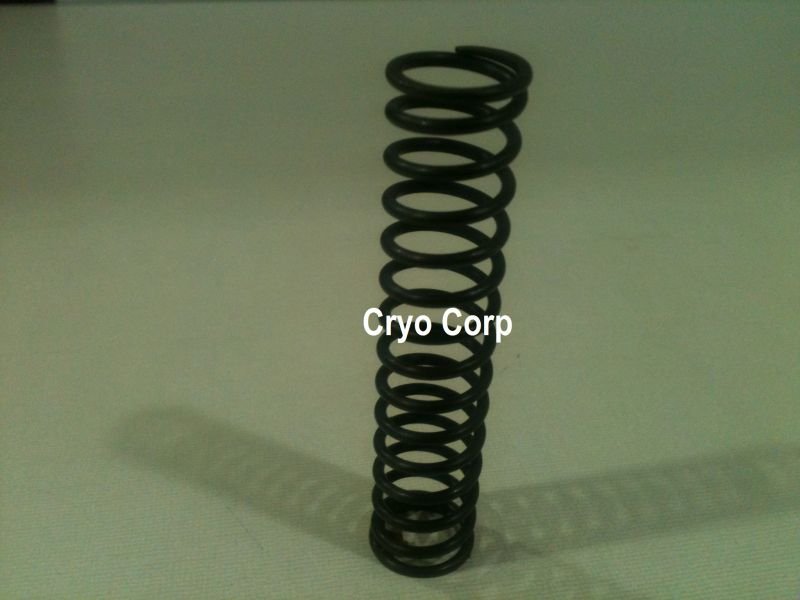

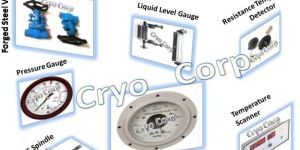

Positioning in the Plant : The expanded air generated from the Expansion Engine & R1 Expansion valve enters Air Separation Unit. The rich liquid containing Oxygen & Nitrogen is separated out in various stages The rich Liquid collects in the lower column of Air Separation Unit after coming from R1 Expansion Valve & Expansion Engine. The final separation of air takes place in the upper columns using expansion valves RL & PL with pressure droping from 4.5 kg/cm2 to 0.5kg/cm2 and the temperature to -1750C. The Nitrogen being more volatile separates out first & the Oxygen separated is stored in the condenser from where it is pumped by the Liquid Oxygen Pump into cylinders.long the lower & upper column. Temperature Scanner Liquid Level Gauge RTD Sensor   Compensating Cables Pressure Gauges Expansion valves Perlite Powder Top Column saftey Valve- 0.68 kg/cm2 , size – 25mm x 40mm, 40mm X 50mm Bottom Column safety valve – 6.8 kg/cm2 , size- 20mm X 40mm, 40mm X 50mm   Special feature of our product line : Expansion valves spindles are made in SS 304 material. Temperature Scanner from 8 points to 16 points as per the capacity of oxygen plant. Liquid level gauge from 800mm wc to 1200 mm wc, 4” dial with aluminum casing. Pressure gauge in 4’’ or 6”dial BCPM in SS as well as Brass bordurn. Safety Valves are made from Carbon steel material and chromed for better workability. The seat is made from SS 304 material as per the requirement. The Stuffing box and Valve Seats are made from extruded brass with the proper pitch as per the capacity of the plant. The required iternal and external pitch is to drilled properly for complete interchangebility.

Automatic Grade : Manual

Power : 1-3kw

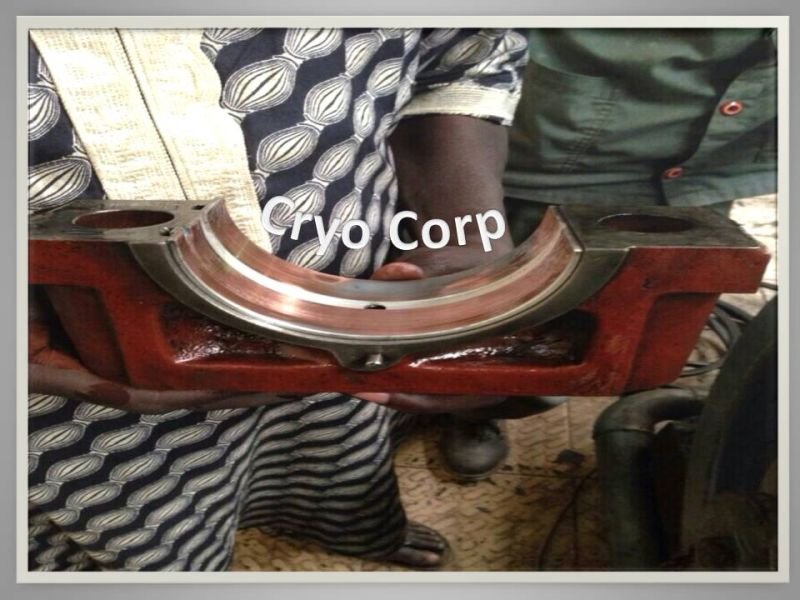

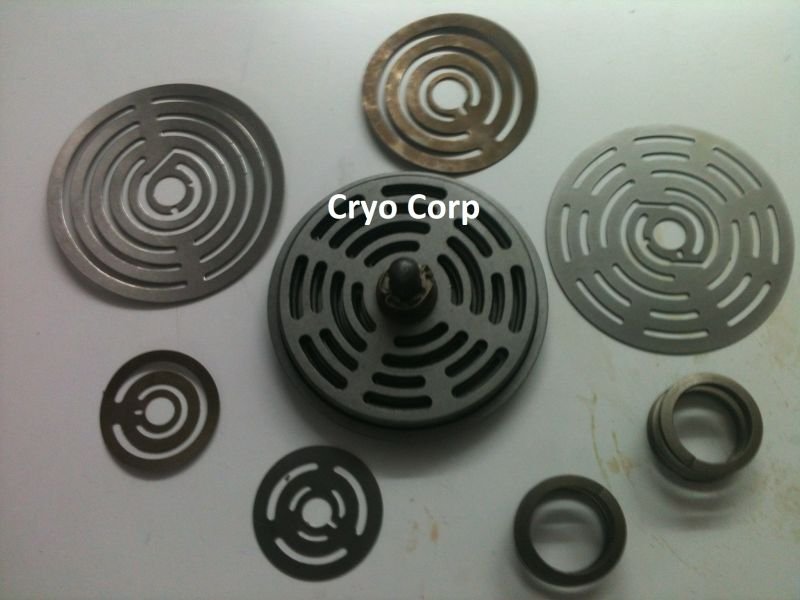

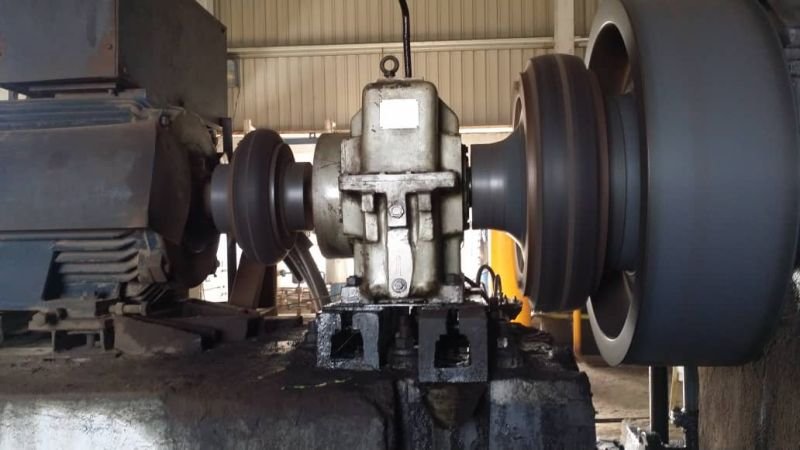

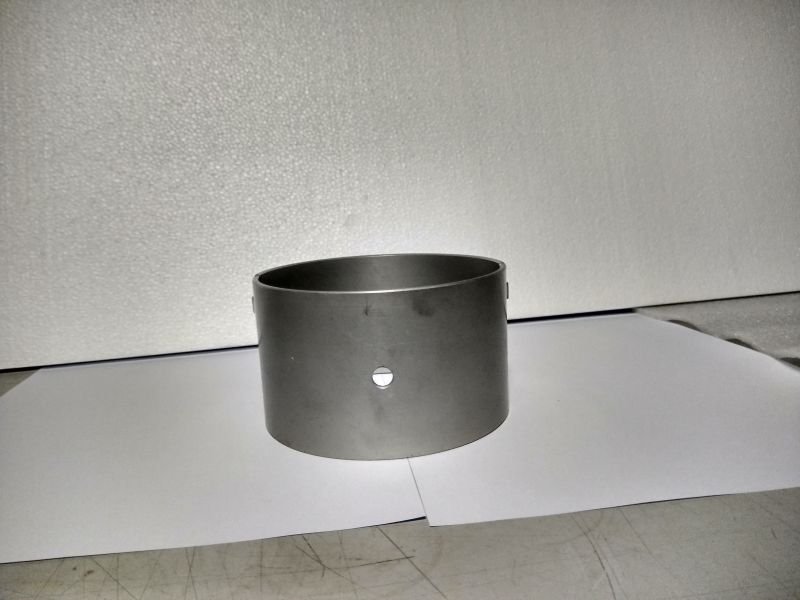

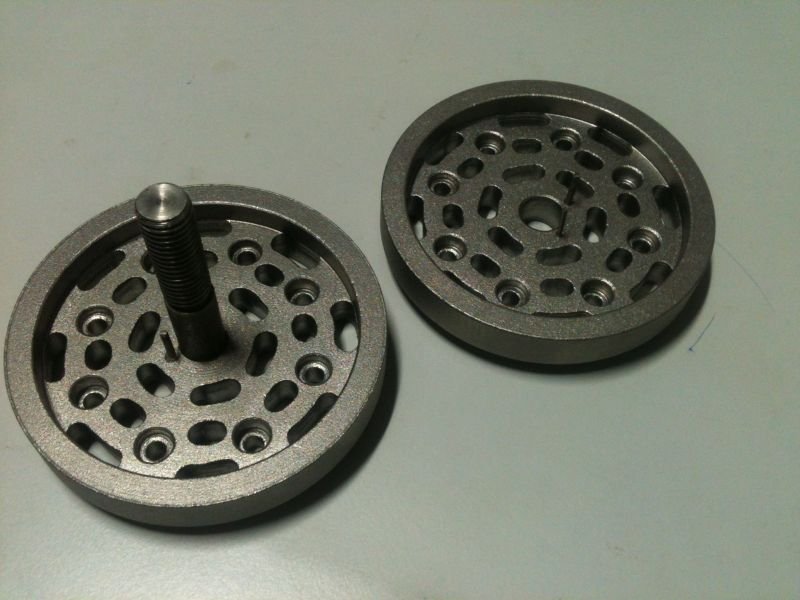

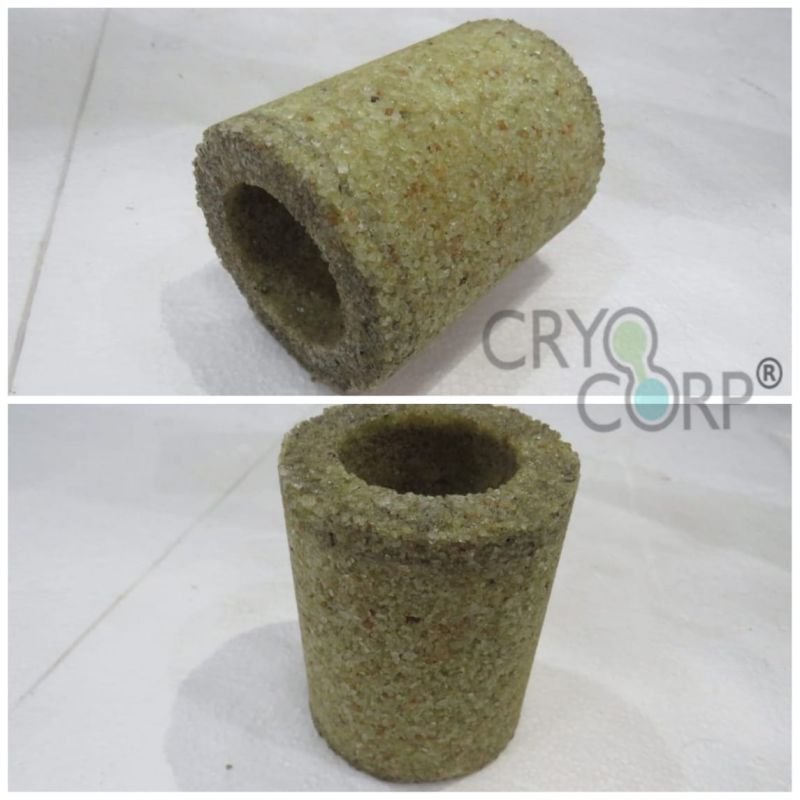

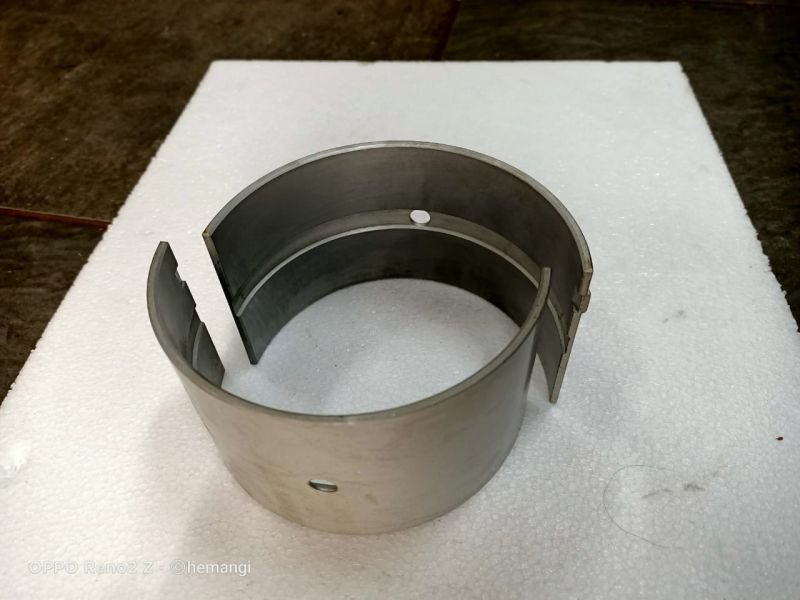

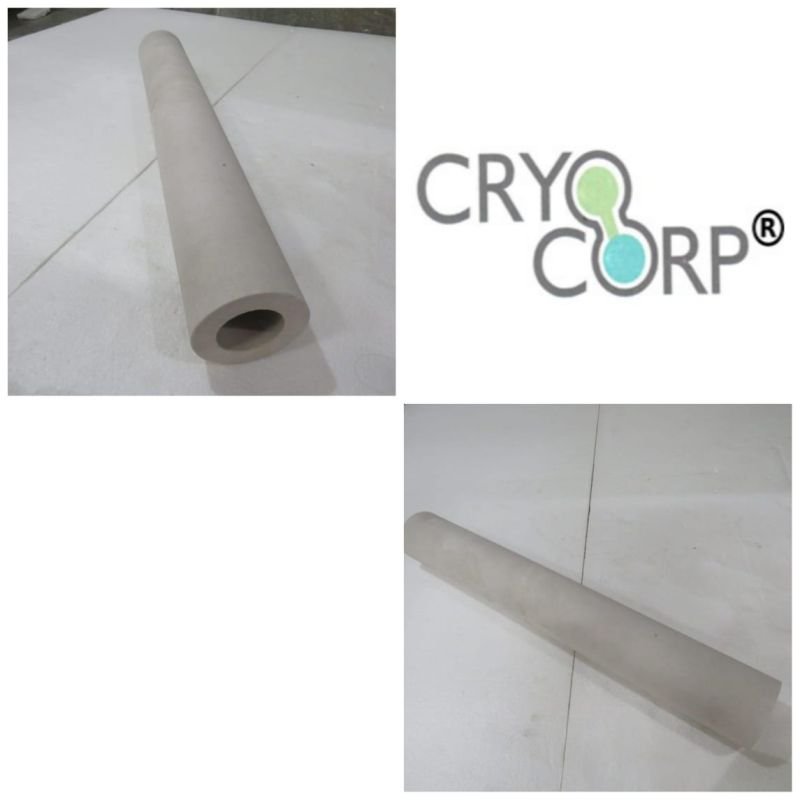

Air Compressor is positioned as the first primary equipment in the Oxygen Plant. The production cycle starts from the air compressor by sucking the atmospheric air.   A multi-stage (minimum 4 stages) air compressor sucks atmospheric air through a suction filter compressed to a working pressure which is nearly 2-3 Kg/cm2 during start up of Plant and to a pressure of 40-50 Kg/cm2 approximate during normal running of the air separation unit. Air compressor has inter-coolers between the stages and after-cooler at the final stage.   Suction Filter Gaskets Drain Valves Piston Rings Gland packings Piston Piston Rod Cylinder block Gland packing assembly Tube Bundles of inter coolers Crank case assembly complete with carnk shaft Connecting rod and bearings as per the requirement & need of the client 1st, 2nd, 3rd and 4th stage suction & discharge valve having integral parts such as channel springs, seat plates etc.

Phase : 3 Phase

CASCADE COOLER :- Positioning in the Plant : The pressurized & compressed hot gas that passes out of the compressor, is fed in the Cascade Cooler. The Cascade cooler is made of two elliptical compartments with pipe coil in each compartment interconnected with each other. The pipe coils are partly submerged in water in the vessel. Primary Function : The Primary function of the Cascade Cooler is to bring down the temperature of the compressed gas, for removing moisture. The dry Nitrogen coming from the Air Separation Unit bubbles through the water & gets moisturized. The latent heat thus produced results in reducing the temperature of water. This in turn helps the pipe caring hot air to cool to about 200C.
