Delta Control Engineering Corporation Goregaon, Mumbai, Maharashtra

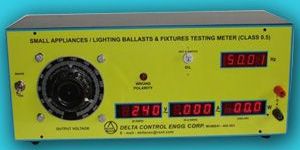

"Delta" have introduced new precision, compact & economic electrical testing. Module for small appliances/ motors, etc. It has built- in 2A variac with Delta"s innovative V- A- W Meter of ratings 250V/ 2.000A/ 200.0W (OR 500 W optional).Mains frequency meter is provided especially for appliances like fans and also testing of magnetic ballasts. Specially designed overload protection MCB is an integral part of the Module. True- RMS version of the Module is also available for testing the input parameters of electronic ballasts.

Specifications Dimensions: 290mmW x 55mmH x 180mmD Panel Cut-Out: 284mmW x 48mmH Enclosure: Black- Painted Mild Steel Box Aux. Supply:200-250VAC @ 8VA Displays: 31/2 DIGITS, 0.5 LEDs (3 SETS) Accuracy Class: 0.5 (for V.A.W), Class:0.1 for PF (due to computation limits of Micro Control this error becomes less than Class:0.5 on the PC Screen) Frequency Response: 10HZ- 1kHz (all displays) PF Range:0.1 (LAG)- 1.0- 0.1 (lead) Connections: 1. Aux. supply by barrier terminals on the rear                      2. Load supply/ load terminal of 4mm 0-15A rating on the front dial (rear connections only against specific request)

MBPF-1 is Delta own development, signifying the ultimate in expertise that has been achieved in electrical parameters measurements. MBPF-1 is one of the most advanced instruments of its kind, employing the latest microprocessor technology. The circuitry is used. An absolute accuracy of 1.0 degree in phase angle measurements assures the computed power factor be accuracy of measurement is independent of line frequency variations.

MFC - 4 is a new generation of digital panel meters, utilizing the latest microcontroller technology. It computers frequency by very precise cycle width time measurements, also it has an elaborate noise discrimination algorithm. The instrument can be connected by an optional RS-485 (MODBUS - RTU) output. Thus it can be used as a component of a data system. MFC- 4 is precision instrument finding applications in Power Houses, Labs, Test Benches etc. The Instrument uses very high professional grade components offering unsurpassed reliability.

"Delta" H.V. Flash Tester are made heavy duty, keeping in mind long term reliability. Rating are 0 - 5 kV @ 100 mA. Trip current settings can be provided as 25 mA - 50 mA - 75 mA - 100 mA OR 10 mA - 25 mA - 50mA- 75 mA. As an option, a timer can be provided to test an object for a preset time. Most of the capacitors used in the lighting industry are hand made, esp. the metallization of electrodes . The qualitiy of these capacitors change from batch to batch." Delta" has developed a test panel with high discharge currents (up to 10 kA pulse) to test the capacitors samples cyclically for a specified duration. If during this test, any capacitor short-circuits; a lamp- inside the panel will light up. After the test capacitors have to be tested for their impedance by passing the current at rated voltage This is a destructive test; all the capacitors tested on this panel have to be destroyed afterwards & not to be used.

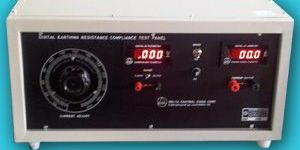

  " Delta" makes Earthing Compliance Test Panel for various appliances. This panel has high output impedance, adjustable current source 0 -30.0 A @ 6 V max. By measuring the mV-drop between earthing terminal of the plug & accessible metal part of the appliance body , earthing resistance has to be measured. Current to be passed depends on the standards specified for that appliance & the resistance has to be less than specified milliohms.

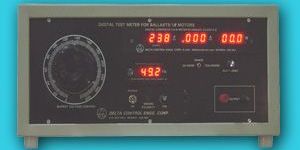

"DELTA" Control Engg.Corp. have introduced Digital Test Panel for checking electrical performance of lighting ballasts/ fixtures, single phase motors, appliances and hand tools etc. The Panel is designed to handle p.f. range from 0.04(lag) to unity. The self-contained Panel obviates the need for one to fabricate his own test panel using umpteen different types of analog / digital instruments. The composite V-A-W Meter is Delta"s own innovation and the wattmeter can handle wide range of voltage, current, and p.f. The Panel can test either ballasts alone for production QC or completed fixtures or any kind of motive / heating loads upto 8 Amp. The equipment is built in simple and rugged fashion; it can withstand momentory motor starting currents (up to 20A) without any damage. SPECIFICATION: AC INPUT: 230 VAC+10%@ 2.5KVAAC OUTPUT: 0-270V @ 8 A maxDIMENSIONS: 24"W x 12"H x 15"DWEIGHT: 15kG (Approx) CONTROLS :a) INCOMING SUPPLY ON/ OFF SWITCHb) OUTPUT VOLTAGE CONTROL 8 A VARIACC) RANGE SELECTION 1) 200 W- 1A2) 2000 W- 10 A INSTRUMENTS: a) COMPOSITE V-A-W METER COMBINATION OF MODEL DT-200/ DT-200 ( 250V / 2A-200OW / 20A-200W)b) LINE FREQUENCY METER WITH ACCURACY AND RESOLUTION OF 0.1 Hz

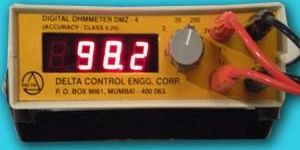

delta digital ohmmeter mode dmz-4 is designed keeping in mind the requirements of electrical equipment manufacturers. High accuracy and repeatability of results is achieved by precision constant current injection into object under test. This ohmmeter is laboratory grade instrument, the performance of which cannot be matched by the most of commercial digital instrument.

DIGI -LI-TEST is an integrated, portable and digital light test panel suitable for measurement of electrical parameters, voltage, frequency of ballast or of complete luminaire with different types of light sources; fluorescent lamp, high pressure sodium vapour lamp up to rating of 2000 W. DIGI-LI-TEST is an universally preferred choice for electrical parameter testing and inspection application where tight quality tolerances are required.· For small scale industries manufacturing ballsts and luminaries· For large marketing organisations to have uniform quality control· For demonstration of luminaires at site in customer"s premises.· For large scale users of lighting equipment to impose incoming quality control.· For inspecting authorities. WHY BUY AN INTEGRATED DIGITAL LIGHT TEST PANEL?· Simple to operate as integrated panel is equipped and prewired with digital voltmeter, ammeter, wattmeter and frequency meter. · More reliability as digital meter is of class 0.5 accuracy.Easy to read digital meters and therefore semiskilled people can use it.· Less error as can be read from any angle unlike removal of parallax in analogue type of meters.· Improved speed with accuracy as meters are of digital type.· True RMS type of meters and therefore better accuracy and reliability.· No cumbersome wire connections unlike pressure coil/ current coil in analogue type of meters.· No need to use separate range of meters for different loads.· Portable and therefore can be taken even to customer's premises. SALIENT FEATURES:· By using selector switch the voltmeter can display Total / Lamp / Ballast voltages.· By using selector switch, the wattmeter can display Total / Lamp / Ballast wattage.· Ammeter displays continuous load current· Frequency meter displays continuously the mains frequency.· Load Supply indication of the load supply by a neon lamp.· Reverse polarity indication of the load supply by a neon lamp.· Circuit breaker- No fuses used.· The voltmeter is protected against ignitor"s high voltage pulses up to 10KV STANDARDS AND CERTIFICATE:DIGI-LI-TEST panel is manufactured in accordance with national standards and shall be provided with traceability test certificate against YEW WT-230 Standard. Technical Specification :

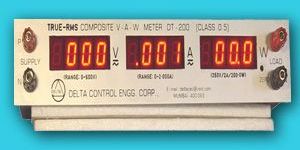

Introduction of composite V-A-W Meters by "Delta" in 1989 has been a runaway success;their large number in the field all over the Country bears testimony to their performance and reliability. "DELTA" have also been the pioneers of the Digital Wattmeters in the Country since 1982. Those electrical engineering industries which comply with BIS standards, they will find Composite V-A-W meters as a necessity. The concept composite not only dose away with interconnecting wiring, it also saves space in the panel and is economical too.Applications are in:· Domestic Appliances Manufacture, such as fans, mixes, hotplates.· Lighting Equipment Manufacture.· F.P.H. Motor Industry· Industrial Heater Manufacture.When used PC/ CT signals, composite V-A-W meters are useful for utilies as well. SPECIFICATIONS: DIMENSIONS: 290mmW x 180mmDAUX. SUPPLT: 200-250 VAC @ 8 VAFREQ. RESPONSE: 10Hz- 10kHz (all displays)CONNECTIONS: 1) Aux. supply by barrier terminals on the rear2) Load supply/ load terminal of 4 mm ø - 15A rating on the front dial (rear connections only against specific request.)a) True-RMS version of DT-200 (SP) is DTRMS-200, having the same specifications except the voltage & the current displays are of true- RMS type. All of the Delta's digital wattmeter are of true - RMS type. DTRMS -200 is very useful for measuring distorted current waveforms especially in electronic ballasts.b) When using DT-2000/ DT-2000 (SP), if frequent heavy starting surge currents are encountered, the use of external CT operated models, for more reliable operations, is suggested.c) For custom-built models send with your specific requirements. PROTECTION: 1) The aux. supply to the instrument is protected by a metal-oxide varistor against high voltage surges. However inductive loads such as a contractor-coil, heavy- duty transformers, etc. should not be connected across the same supply.2) The voltage sensing circuit is protected by a heavy-duty metal-oxide varistor of 500V rating connected across the load terminals. Hence the load supply should not exceed 500 VAC.3) The current sensing circuit is protected by a replaceable glass-cartridge fuse on the rear of the instrument. This glass cartridge fuse should not be replaced by fuse of higher ratings or wire shorts. Otherwise the instrument may get damaged.

Over the last 32 years, Delta have supplied virtually thousands of custom-built-equipment. Various industries spanning from caustic soda plants, aluminum plants to electrical equipment mfrs. like switchgear, motor/pumps appliances etc. For switchgear division of L & T, we have fabricated a range of equipment to suit their testing needs. Tailor made DPM's such are these with isolated 0 -10 VAC interface outputs or with band-pass comparator set-point limits have satisfied many different testing needs. Delta's specialty has been the value addition to their standard range of equipment for creation of specific application equipment.
