Demineralisation Plant Dealers in Dahisar, Mumbai

Ion exchange technology is used to remove salts (cations and anions) from the water Soluble chemical compounds, when dissolved in water, become ionized; that is their molecules dissociate into positively and negatively charged components called ions. Consider common table salt, sodium chloride. In its solid form, this compound consists of one sodium atom (Na) and one chlorine atom (Cl) tightly coupled together (NaCl). When dissolved in water, however, the compound splits into two ions, Na and Cl. Ion Exchange A process in which Contaminant ions are exchanged from water is called ion exchange. This process occurs in ion exchange resin Initially, resin is loaded with hydrogen (H ) ion for cations and hydroxide (OH-) ion for anions. As water passes through the resin, the contaminant ions in the water displace the loaded ions from the sites on the resin. This is because the resin has a greater affinity for the contaminant ions. Affinity for most resins is based loosely on ionic size and charge Regeneration Over a period of time most of the cation resin gets converted into Ca, Mg, Na form and it has no Hydrogen Ions (H ) to replace Ca, Mg, Na ions and the anion resin gets converted into Cl, SO4, SiO2 form and it has no Hydroxyl Ions (OH-) to replace Cl, SO4, SiO2 ions.. This is called the resin exhaustion or end of service cycle. The exhausted resin has to be brought back into Hydrogen (H ) Hydroxyl (OH-) form to continue the process and use it again and again. The procedure of converting exhausted resin into Hydrogen (H ) Hydroxyl (OH-) form is called regeneration Separate Bed DM Systems Ion exchange occurs across at least two different columns. The first is a cation column, which is filled with resin loaded with positive hydrogen ions (H ). As water passes through this column, the positively charged impurities in the water are exchanged for the hydrogen ions A similar exchange takes place in the second column, the anion column. This column is filled with resin loaded with negative hydroxide ions (OH-). As the now cation-free water from the cation column passes through, any negatively charged contaminants are removed from the water and replaced by hydroxide ions from the resin. The water now has a neutral pH. hydroxide [OH-] and hydrogen [H ] ions exchanged in the columns combine, forming water [H2O) Mixed Bed Systems In a Mixed Bed System water is purified by removing all ions in one pass through an ion exchange bed. The bed consists of cation and anion resins in mixed condition, so that ions are actually removed in the same two step ion exchange process. All the traces of Cations and Anions of the dissolved solids and silica in the water are replaced by Hydrogen ion (H) and Hydroxyl Ion (OH-) respectively. We get very high purity demineralized water at the outlet of the MB.

• Material: Stainless steel
• Capacity: 520 lit/hr to 140 m3/hr
• Type: Vertical
• Type Of Machines: RO,UV,Sand Filtration,Softener
• Grade: Automatic

We are the manufacturers, exporters and supplier of this products.

The company has emerged amongst the topmost Manufacturers and Suppliers of Water Demineralization Plant. Water Demineralization Plant uses ion exchange process during the processes for removal of dissolved solids or minerals from the water. We employ the latest engineering techniques with high precision while manufacturing Water Demineralization Plant. Water Demineralization Plant, offered by us, finds its application in oil and gas sector, pharmaceutical industry, chemical industry and many more. Additional Information The ion-exchange process involves two stages of demineralization : Removal of cations from the water by the cation exchange process.Removal of anions from water by the anion exchange process.

Water Demineralization Plant uses the demineralization process by which the mineral slats are removed from water using the ion exchange process. Synthetic, cation resin exchanges hydrogen ions (H+) for positive ions, and anion resin exchanges hydroxide ions (OH-) for negative ions. Water quality from demineralization systems is typically around 1 part per million (ppm). We offer single and separate-bed Water Demineralization Plant for improved water quality. Using the ion exchange process in which calcium and magnesium ions are exchanged with sodium ions, the water softeners eliminate scaling and residues on industrial equipment and boilers. We offer a wide range of Water Demineralization Plant for industrial and commercial use.

• Capacity: 50lph to 25m3/hr
• Place of Origin: India
• Mild steel pressure vessels internally lined with rubber/FRP provided with internal fittings and initial charge of cation and anion exchange resin.: One set of regeneration equipment including hydraulic ejectors, acid & alkali tanks.One set of regeneration equipment including hydraulic ejectors, acid & alkali tanks
• One set of frontal pipework & valves: One mild steel base frame for mounting cation & anion units

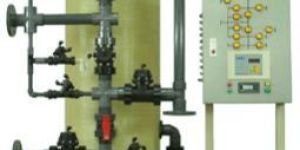

We offer mb dm plant. Mix bed dm plant comprise of one mild steel rubber-linedfrp pressure vessels filled with strong acidic cation exchange resin and strongly basic anion exchange resin in mixed form. They are available in a range of diameters. Mix bed dm plant is usually used as polishing unit at outlet of two bed dm plant ro plant. The modular construction permits flexibility in the selection of cation and anion units to cater to different types of raw water. Treated water of conductivity less than 1 microsiemencm with ph of 6.5 to 7.5 is achieved at mix bed dm plant outlet.

• Brand Name: Muez Hest India Private Limited

MUEZ-HEST' is specialized to provide a LOW OPERATING COST DRY FRACTIONATION PLANT (Single & Double Fractionation Plant) for oil fractionation, which gives high oleinsoft stearin yields at established control. We provide PLC (automation) for efficient working and reliability of the dry fractionation plant. The separation of STEARIN and OLEIN is done on Membrane Filter, its principle is simple, whereas Crystallization process involves a Perfect Technique to develop and grow the particles size for easy & smooth separation of STEARIN and OLEIN.

Dry Fractionation plant
