Diamond Cutting Machine Dealers in Mumbai

• Brand Name: AKEW
• Automation Grade: Automatic
• Weight: 120 kg
• Minimum Order Quantity: 1 unit
• Horizontal Spindle Speed: 5600 rpm
• Tool Holder Diameter: 145 mm
• Machine Dimension: 24 x 24 x 32 inches
• Packaging Dimension: 30 x 30 x 36 inches

Diamond Cutting Machine

tandard Accessories: 2 Nos. 2800 RPM, 18 HP, Single Phase Electric Motors 1 PMDC Variable Speed Geared Motor, Output 110 RPM, 0.12 HP 1 Variable Speed Controller For PMDC Geared Motor 110 mm Diameter Universal Clamping Disc for maximum 6 mm chain width 2 Dial Indicator 3 Nos. 50mm diameter Magnifying Glass 2 Vacuum attachments attached to the machine (Horizontal & Vertical separate) 2 Machine Lamps 5 Machine Belts 1 No. 130XL Timing Belt 1 Alley Key Spanner set (6 pieces)

• Jewelry Tools & Equipments Type: Ring Zig Zag Diamond Cut Faceting Machine
• Packaging Details: Wooden Box
• Place of Origin: Maharashtra, India

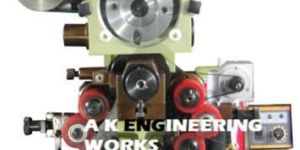

We are offering chain diamond cutting machine/ faceting machine. model sh-h auto is equipped with a single horizontal head. Ideal for step cut (lines, starts, v’s, checks) on flat chains. Surfacing & bevelling can also be done. Automatic cuts can be made at a pre-defined angle, depth and distance at a time. The machine consists of two z-axis. One for cut depth adjustment and the other for automatic up-down movement of the chain. Moving the chain forward and z-axis up-down motion is synchronised via cam system. The machine is complete with a sturdy base, indexing unit, ø 110 mm revolving clamping discs, vacuum attachment for gold chips recovery, chain winder with bobbin (optional), magnifying glass attached to machine, depth indicator dial, electric panel board, service spanners & spare belts. Specifications: spindle speed: 8000-10000 rpm tool holder diameter: ø 120 mm. Puller speed: 0-110rpm machine weight: 175kgs power supply: 1 phase. 230v. 50hz. Max. Machine dimensions: l x w x h 28 x 25 x 32 (inches) packaging dimensions: 30 x 30 x 36h (inches)

• Heads: 1 Horizontal
• Type of Main Centre: Fixed
• Type of Head: 1
• No. of axis 2: (Z - Vertical & Z-1 Vertical for Depth)
• Vertical Z axis: Movement  Screw
• Vertical Z-1 axis  : for depth 5.5 mm
• Horizontal Spindle Motor: 0.17 HP / 2800 RPM
• Horizontal Spindle Speed: 5600 RPM
• Shipping dimensions in inches: L 28 X W 33 X H 34
• Net / Gross Weight (kgs.): 175/200

• Power Output: 50 to 80 watt
• Frame Material: Mild Steel
• Features: This machine is widely appreciated for facilitating sawing, cone shaping and bruiting of diamond
