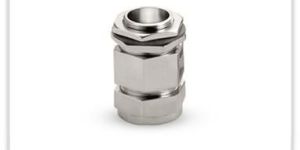

Double Compression Cable Gland Dealers in Mumbai

We are offering double compression gland. A cable gland (in the u.s. More often known as a cable connector or fitting) is a device designed to attach and secure the end of a cable to the equipment. a cable gland provides strain-relief and connects by a means suitable for the type and description of cable for which it is designed—including provision for making electrical connection to the armour or braid and lead or aluminium sheath of the cable, if any. Cable glands may also be used for sealing cables passing through bulkheads or gland plates. Cable glands are mechanical cable entry devices and can be constructed from metallic or non-metallic materials. They are used throughout a number of industries in conjunction with cable and wiring used in electrical instrumentation and automation systems. Cable glands may be used on all types of electrical power, control, instrumentation, data and telecommunications cables. They are used as a sealing and termination device to ensure that the characteristics of the enclosure.

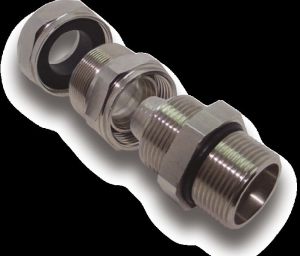

Double Compression Brass Cable Glands of brass rodscastings and are machined accurately to the required sizes. These are nickel plated to avoid corrosion whilst storage and use.

• Temperature Range: -40° C to + 100° C Neoprene Sealing Ring

These Glands are produced in accordance to EN 60079-0:2009EN 60079-1:2007 EN 60079-7:2007EN 60079-31:2009

• Material: Brass
• Feature: Double Compression, Weatherproof
• Brand Name: Tricon Control
• IP Rating: IP54
• Cable Diameter: 14 mm
• Packaging Type: Box
• Weight: 250 g

• Description: Details
• Model: G6 Series
• Gas Group: IIC
• Zone: 1,2,21,22
• Protection Class: Ex-d & Ex-e
• Ingress Protection: IP67
• Material of Construction: Brass Ni Plated / Alumnium /Stainless Steel
• Component Combination: ON+OFF/AMMETER
• Certification: CIMFR/PESO/ATEX

• Material: Brass
• Brand: Dowells
• Finishing: Bright Nickel Plated
• Material Coating: Nickel
• Rubber Seal Material: Nitrile
• Hardness: 55 to 60 Shore-A
• Suitable Cable Diameter: 6 - 12 mm
• Coating Thickness: 3 microns minimum

we offer comet flameproof type double compression cable gland. for use in hazardous atmosphere and most climatic condition. flameproof glands are suitable for gasi, iia, iib, iic, ex-"d", ex-"e" specification gland consist of checknut 1, gland body 2, neoprene inner ring 3, armour clamping cone 4, armour clamping ring 5, amour clamping nut 6,neoprene outer ring 7, skid washer 8, outer seal nut 9. all metal parts are made of brass accurately machined for ease of assembly.
