Draw Bench Machine Dealers in Mumbai

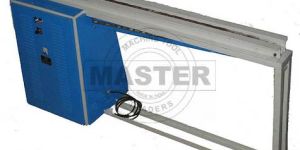

This is a manually Operated Motorised Draw Bench Machine suitable for Gold wire and hollow pipe drawing operations. This is an excellent quality heavy duty five feet length motorized draw bench. This machine is ideal to draw soldered hollow tubes of copper, gold and silver. It is equipped with heavy duty chain and is fitted with single phase AC drive electricals for longer life and maintenance free operation. The machine uses standard diamond and carbide drawing dies. It is fitted with electrical control panel complete with speed controller and light indicators. It also fitted with both voltage and currrent drawing meter to show excess currrent draw in case of excessive load due to hard jobs to prevent damage to the machine. The machine is sturdy in built and easy to use. We also offer gold hollow tube making machine with welding attachment as well as precision strip cutting machine. Kindly ask for details.

  This is an excellent quality heavy duty five feet length motorized draw bench. This machine is ideal to draw soldered hollow tubes of copper, gold and silver. It is equipped with heavy duty chain and is fitted with single phase AC drive electricals for longer life and maintenance free operation.  The machine uses standard diamond and carbide drawing dies.

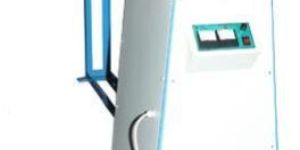

Our exclusive plethora of Draw Bench Machine is very efficient in working. Durable machines are acknowledged for consistent working with heavy load. These bench machines are made by our professionals employing premium grade metal which is recommended by experts. Besides this, we are offering all our draw bench machines to consumers in safe packing to avoid damage.

• Shipping Volume: 8 m3,10 m3
• Dimensions: Two cases of size: 5.0 x 1.0 x 0.7 m each,Two cases of size: 5.0 x 1.1 x 0.8 m each

The Bar Drawing Machines are suitable for drawing round bars, sectional bars, re-bars, ribbed bars, reinforcement bars, tubes, etc. Machine supplied with Single Rod Holding Device, Gearbox, Bull Gear, Pinion Gear and Chain Link.

Draw Benches - New Draw Cell   A new drawing machine with toothed rack drive has been designed and built for the drawing of steel tubes up to 140 mm diameter. The single 1200 kN draw bench is working with drawing speeds of up to 80 meters per minutes, drawing length max 20 meters. The installation is equipped with tube separation, prebench as lifting table, draw bench with toothed rack drive, motoric adjustment of mandrel rod counterbearing, die stand with suction device, tube brake, high-performance sampling saw, scrap trough and trough for finished material.

• Brand Name: MASTER
• Packaging Details: wooden case packing
• Jewelry Tools & Equipments Type: Draw Bench
• Port: Mumbai
• Motorised Draw Bench Machine: Draw Bench
• Place of Origin: Maharashtra, India

Cold drawing is a metalworking process where the metal is stretched by using tensile forces at room temperature. In this process desired size of the tube is achieved by drawing it through a die which is smaller than the tube, elongating the length and reducing the diameter of the tube. Cold drawing process enhances the quality of the tubes with smooth surface finish, precise dimensions and high strength. Machine used for drawing is called a draw bench. Shalco has this machine in various sizes in order to achieve smaller sizes.

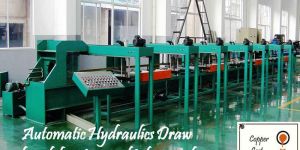

We offer automatic hydrulic draw bench. Conventional chain drawing-up machine has the shortcomings of high labor intensity, high power consumption, large noise and serious environmental pollution and drawn profiles are easy to be deformed and scratched as well as difficult to clear off sweat and oil stains.
