Drives & Drives Mulund, Mumbai, Maharashtra

Material : Alloy Steel

Brand Name : Drives & Drives

Slip torque is present by adjustment of the spring force. The Drives & Drives torque limiter can be used with a sprocket, gear , sheave or flange plate as a centre member that is clamped between two friction liners.

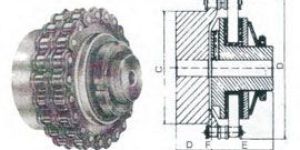

This device consists of a shock Torque Limiter and a roller chain type coupling. The Torque Limiter coupling combines overload slip a protection with the ability to couple driving and driven shafts. It is an assembly consisting of a standard Torque Limiter and a roller chain coupling. A stock ground plate sprocket serves as the centre member of the torque limiter and it is coupled to a sprocket by an I.S double stand roller chain which is easily connected by a standard connecting link. This construction provides a dependable and easy - to � assemble flexible coupling having shaft misalignment compensation.

Material : Stainless Steel

Material : Zinc, Chromium and Nickel plating

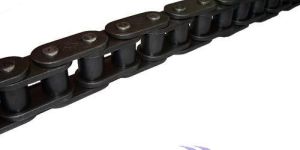

  The straight side plate chains are identical to the corresponding European series standard chains except for the straight side plated. The chains have higher fatigue resistance than the standard chains.   Types Of Straight Side Plate Chains Straight Side Plate Chains – European Series Straighth Side Plate Chains – American Series

Stainless steel ( SS 3040 chains with solid rollers are designed to offer excellent corrosion resistance and are used in atmosphere where chains are exposed to chemical, water and heat. They can operate in a temperature range of -0°c to 400°c.

Heavy duty steel construction. Capacity upto 2 tons. Design and size as per customer requirement. Floor base of Bin wooden, nylon, steel etc. Side walls of steel or wire mesh. Powder coated / painted.

Material : Mild Steel

Brand Name : Drives & Drives

Type : Chain Sling

Material : Mild Steel

We are offering rubber top chains. Chains with rubber tops used to convey plastic pipes, cartons and products that require scratch resistance while conveying.

We are offering roller chains and sprockets. Sprocket wheels are manufactured from quality materials. Teeth are hob cut for correct tooth form, tooth thickness and profile. Assuring maximum life of chain and sprocket wheel.though the tables are given upto 1 pitch, can hob sprockets upto 2½ pitch in british american standard of any no. Of strands. Plate type sprockets can also be supplied in all sizes as per customers requirements. Sprockets can be teeth induction hardened volume hardened as per customers requirement.

DRIVES & DRIVES SPROCKETS AND PINIONS for Precision Roller Chains Simplex Sprocket Wheels are manufactured from quality materials. Teeth are hob – cut for correct tooth form, tooth thickness and Profile. Assuring maximum life of chain and Sprocket Wheel.Though the tables are given upto 1”pitch, can hob sprockets upto 2 ½” pitch in British/ American standard of any no. of strands. Plate type sprockets can also be supplied in all sizes as per customers requirements. Sprockets can be teeth induction hardened / volume hardened as per customers requirement.

Assuring maximum life of chain and Sprocket Wheel.Though the tables are given upto 1a pitch, can hob sprockets upto 2 A½a pitch in British American standard of any no. of strands. Plate type sprockets can also be supplied in all sizes as per customers requirements.

The simple design and construction of these couplings make them extremely easy to install and disconnect, providing additional economy of operation. The sprockets are identical in construction, thus providing a balanced unit in operation and reducing effects of vibration. In addition, the flexibility of roller chain plus clearance between the chain rollers and sprocket teeth allow for slight mis alignment and shaft end float.

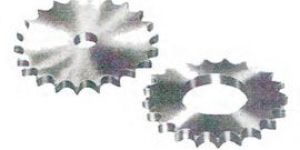

Plate Sprockets   Drives & Drives offers – as a stock item – plate wheels specifically for torque limiter application. Select your plate wheel from our standard sprocket catalogue.For more precise torque setting and for applications where slippages may be frequent, it is recommended that a Drives & Drives plate sprocket be used. For optimum torque limiter performance plate sprocket must be flat, paralleled, square with bore and free from rust, scale and oil. If a plate sprocket is not in accordance with these specifications, torque limiter capacity will be erratic and generally lower.

Material : Mild Steel

Brand Name : Drives & Drives

Weight : 61 - 202 kg

Capacity : 1.5 to 6.7 ton

Material : Stainless Steel

We are offering leaf chains high strength chains used for lifting applications like forklifts, stackers etc.

Heavy duty steel construction for Scissor lift. Customised platform sizes. Lifting height single scissor 2.5 meters. Scissor lift capacity up to 6 ton. Optional hydraulic operated lip. Hydraulic system with over load relief valve, flow control valve, solenoid valve. High quality hydraulic cylinders and hose pipe fittings. Motor or reputed make like Crompton & Greaves, Hindustan and Bharat Bijlee Etc. Trolley based or stationery. Motorized or foot pump operated hydraulic system. Optimal imported high quality compact power pack where space is a constraint. Control panel with all safety features.

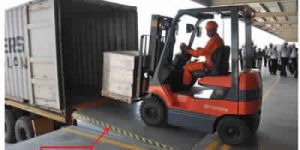

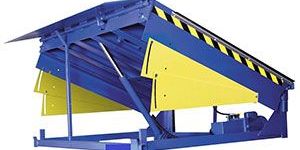

 Hydraulic Dock Levelers, Industrial Lift loading platform by DRIVES & DRIVES, Mumbai. "DD" Hydraulic Dock Leveler is an equipment for quick loading and unloading of palletized goods.* Its height adjustment function can set up a level between truck and storage table, so that forklift and other handling equipments can directly drive inside the truck to do the loading /stacking or unloading pallets / material. * Only one person to work can do loading & unloading quickly. It reduce lots of labour, improves work efficiency and safety. * "DD" Hydraulic Dock Leveler having heavy duty structure (design approved by Civil Structural Chartered Engineer) with long life hydraulic system and Power pack. An Electric control panel will be supplied for up down travel of dock leveler. * "DD" Dock leveler by DRIVES & DRIVES Mumbai is with Leak Proof Hydraulic system, convenient to operate and reliable to run. Skid proof checkered steel plate to keep good skid proof performance. Two sides are equipped with panel to avoid accidental hurt when foot extended into platform. * Also Designed as per the need of the customer.

Heavy duty steel construction. Customised platform size. Compact high quality imported power pack with simultaneously operated dock level and lip motion. High quality hydraulic cylinders and hose pipes and fittings. Motors of reputed make like, Crompton & Greeves, Hindustan Motors, Bharat Bijlee etc. Control panel with all safety features & indicators. Optional Rubber bumpers.

We are offering hollow pin roller chains hollow bore of the pin can be used to insert rods and 2 parallel chains can be made into apron conveyor. The series of hollow pin chains are used in conveyor applications allowing easy insertion of cross rods or attachments at desired frequency

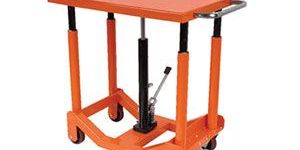

Heavy duty height adjustable and work station for assembling. Manually efficient drive for height adjustment. Brake wheels & stoppers for safe locking while working. High quality Cast Nylon, UHMWPE, PU wheels for smooth & scratch free performance. Powder coated. Table top with mounting holes, slots as per customer requirement.
