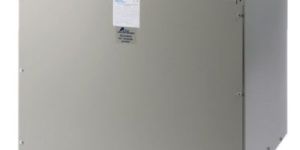

Dry Type Transformers Dealers in Mumbai

• Country of Origin: India
• Brand Name: Allianz
• Winding Material: Copper
• Certification: ISO 9001:2008
• Number of Phase: Three Phase
• Driven Type: Electric
• Warranty: 1 Year
• Mounting Type: Ground Mounted
• Cooling Type: Dry Type, Air Cooled
• Insulation Class: F Class, H Class
• Standard: IS-2026, IEC-60076
• Usage: Industrial, Commercial, Electricity Distribution
• Onsite Support Available: Yes
• AMC Available: Yes
• Winding Turns: Step Up, Step Down
• Speciality: Robust Construction, Easy To Use, High Efficiency, Reliable, Superior Finish
• Frequency: 50hz
• Condition: New
• Current Type: AC Three Phase
• Warrenty: 2years
• Temperature Capacity: Medium Temperature

• Number of Phase Single & Three phase Rated Frequency 50Hz, 60Hz Rated Capacity Under 5000kVA Rated Voltage Under 7.2kV Place Inoor or outoor: Number of Phase
• Single & Three phase: Rated Frequency
• 50Hz, 60Hz: Rated Capacity
• Under 5000kVA: Rated Voltage
• Under 7.2kV: Place
• Inoor or outoor:

Non-flammable, non-explosion Small size and light weight Easy to maintain Reduction of construction cost Outstanding insulation, moisture-proofing and protection against dust

  We offer high efficiency 3 PH Dry Type transformer (Three Phase Dry Transformer) up to 200 KVA manufactured from premium quality lamination and electrolytic grade super enamelled/DFGC copper wire.we also offer customization facility based on the size and design of the transformers. Our range of Dry Type Transformers are also offered with cold rolled oriented grain with various accessories such as, earthing terminal and bidirectional wheels with low noise level. SALIENT FEATURES OF TRANSFORMERS : Designed For Good Performance, Safety And Economy. High Quality Lamination and conductors. Sheet Metal Enclosures as per required ip class of protection on request. Sheet Metal Enclosures as per required ip class of protection on request. Impregnated with international quality resigns and varnishes. Incoming components and material inspected before use. Products warranted against manufacturing defects.

Our company is listed amidst the most reputed High Voltage Isolation Transformer Manufacturers and Suppliers in India. The Dry Type Isolation Transformer is widely demanded in the national as well as international clients as unbeatable performance is exhibited in various Dry and Oil Cooled application. The materials used in the manufacturing of the Dry Type Isolation Transformers are of optimum quality that ensures noteworthy features like high durability, strength and resistivity to rust & abrasion.

  DRY TYPE TR Can be used in Zone 1 and Zone 2 Zone 21 and Zone 22 Class I, Zone 1 and Zone 2 Class I, Zone 1, Group B, C, D Flameproof enclosure (Ex d llB+H2) Enclosure: carbon steel, stainless steel Built-in dry-type transformer can be used for step-up and step-down in distribution system Six type of rated capacity: 5kVA, 15kVA, 3OkVA, 45kVA, 60kVA, 75kVA. Equipped with a specialized hinge structure which can prevent damage to the flameproof joints when opening and closing the box,; greatly prolongs the service life of the box. Special user requirements incorporated on request. ANSFORMER

In cast-resin dry-type transformers, the complete encapsulation of primary and secondary winding in epoxy resin prevents penetration of moisture into windings. The cast resin offers very good protection against adverse ambient conditions. These transformers can work without disruption of service at 100% humidity.Due to the high grade insulation material, coils are non hygroscopes & the transformer can be switched on directly without pre-drying even after a long period of service interruption.Contrary to the conventional dry type transformers the cast coil transformers are better in respect of impulse voltage withstand strength. Higher dynamic short circuit withstands strength as compared to oil immersed and conventional dry type transformers because of fibre glass reinforced epoxy encapsulation. No partial discharges can occur during operation. The insulation material used is glass fibre reinforced with epoxy resin of class 'F' which can withstand wide temperature variation. Due to high quality insulation material the transformer is practically non-inflammable by an electrical arc, special fire protection measures are not required.Due to encapsulation of coils with cast resin the coils dimensions are stable & no coil tightening is required to maintain the short circuit strength. Also no check of oil level and electrical insulation/oil is required. This leads to saving in cost on account of maintenance.As cast resin transformers are solidly cast, problem associated with oil filled transformers like oil leakage and pilferage of oil is completely avoided. These transformers are generally smaller in dimensions and lesser in weights. The construction and installation cost for the sub-station can be reduced by adopting dry type transformers.Without fire or danger of explosion, it is possible to place the transformers near to the load centre. Also, these transformers do not need construction of special fibre brick walls or oil pits, which reduces the overall civil works. Additionally, since LT cables are not required, thers is also saving in cost on account of expensive cable laying works.Since no oil is used in these transformers, there are no chances of contamination of ground water due to oil leakage.

Industrial, Substation & Distribution purpose Manufacturing range Upto 2MVA 22 KV naturally air cooled.A dry type transformer has an iron core, vacuum pressure resin impregnated high voltage windings and low voltage windings . The low voltage winding is constructed with conductors. Dupond nomex insulating material includes an apparatus to secure the windings in place during a vacuum and pressure resin impregnation process. The result is a coil that exhibits high short circuit protection due to the tightly bond conductors comparable to completely resin encased molded transformers at a substantially reduced cost.

• Feature: High Performance, Easy to Operate, Sturdy Design
• Weight: 830 lbs
• Rated primary current: 100-1500A
• Rated load: ≤10VA
• Rated frequency: 50Hz or 60Hz
• Temperature: 65° C

We are the main supplier of this product.

In cast resin dry type transformers, the complete encapsulation of primary and secondary winding in epoxy resin prevents penetration of moisture into windings. The cast resin offers very good protection against adverse ambient conditions. These transformers can work without disruption of service at 100% humidity. Due to the high grade insulation material, coils are non hygroscopic & the transformer can be switched on directly without pre-drying even after a long period of service interruption. Contrary to the conventional dry type transformers the cast coil transformers are better in respect of impulse voltage withstand strength. Higher dynamic short circuit withstands strength as compared to oil immersed and conventional dry type transformers because of fibre glass reinforced epoxy encapsulation. No partial discharges can occur during operation. The insulation material used is glass fibre reinforced with epoxy resin of class 'F' which can withstand wide temperature variation. Due to high quality insulation material the transformer is practically non-inflammable by an electrical arc, special fire protection measures are not required.

SEL manufactures dry type transformer with Nomex paper (Class H) range of 100 kVA to 2000 kVA, 22 kV Class for various application i.e Marine application, Ships, etc Features:  Compact design with outdoor and indoor type with metal enclosures Design with H class insulation which is operated in high temperature zone without effecting    working life
