Drying Ovens Dealers in Goregaon, Mumbai

• Type: Drying Ovens
• Voltage: 220V, 380V
• Driven Type: Electric
• Application: Removing Objects Moisture
• Automatic Grade: Semi Automatic
• Display: Analog, Digital
• MOQ: As per requirement

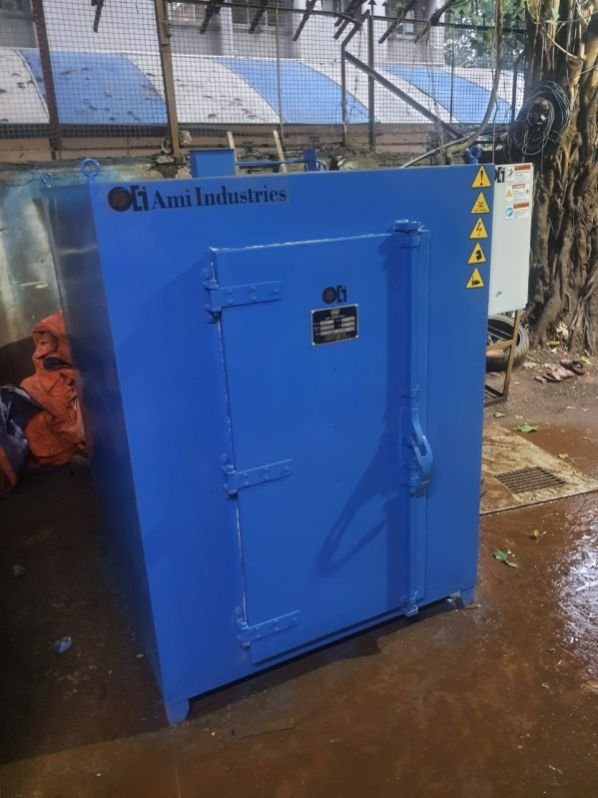

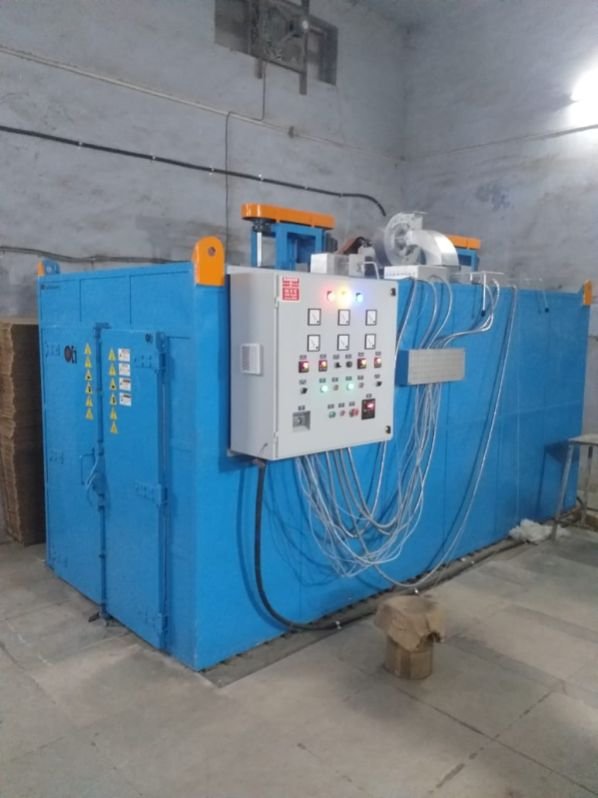

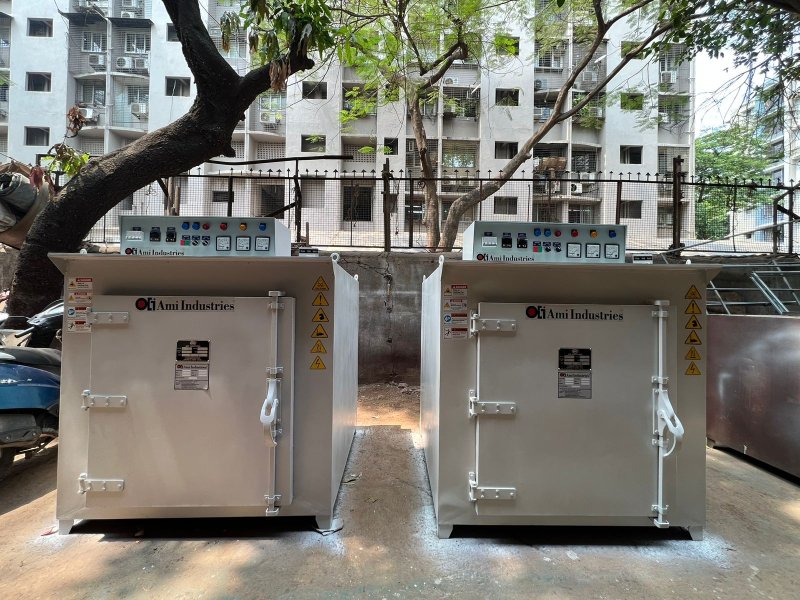

AMI : Industries's Design and Manufactured Tunnel Ovens for all types of process Conveyorised Oven from 50 to 500 Deg.Cent.Standard Features : Mild Steel/ Stainless Steel/ Ceramic interior depending on working temperature Heavy duty variable speed drive with A.C. Motor & A.C. Controller Suitable Guiding Roller for Conveyor Adjustable opening at loading and unloading zone Multiple Heat Zones Extended loading and uploading zone Extended Cooling Zone for Fast Cooling (if required)

• Capacity: 20-100 Kg
• Power Source: Electric
• Voltage: 280-360 V
• Frequency: 50 Hz
• Heating Media: Heater Coils
• Air-Flow Direction: Vertical Down Airflow
• Material: Stainless Steel
• Automation Grade: Semi-Automatic
• Phase: Three Phase
• Features: Corrosion Resistance

Sturdy triple walled units. Inner wall made of Stainless Steel Outer wall made of Mild Steel powder coated Temp. Range of 50 ºC to 250 ºC Air ventilation is provided. Front Door opening with high grade Door gasket Equipment provided with wheel support for easy mobility High grade  insulation support provided to minimize the heat loss Microprocessor based PID digital temperature controller cum Indicator provided for precise control More Details: Long lasting heating elements for rapid heating and uniform temperature. Circulation motor is provided for air circulation & uniformity

We are offering main specification production speed: ≤60pcsmin length: . the oven is used to dry the tubes printed and coated it takes around six minute in the oven to completely dry the tubes

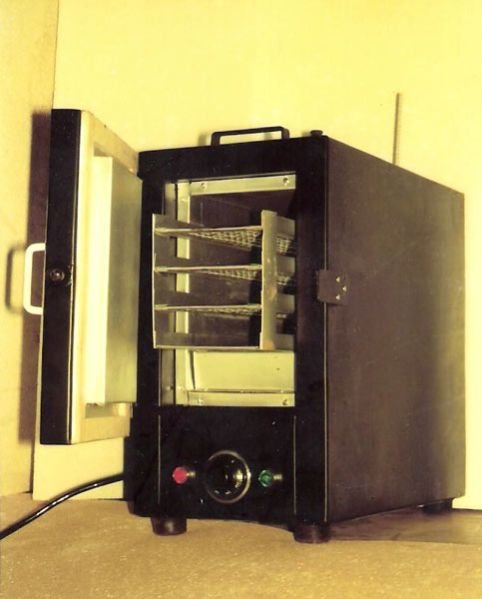

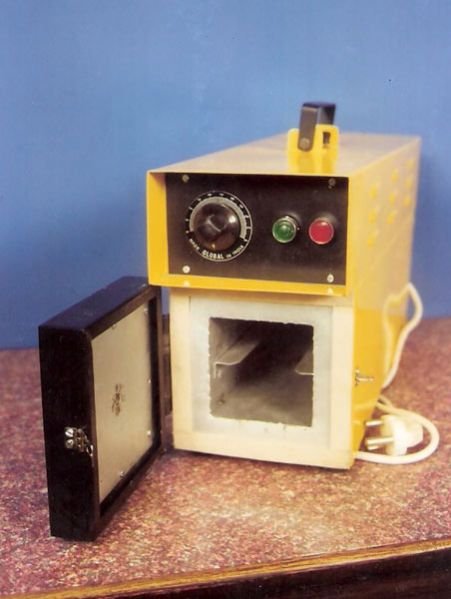

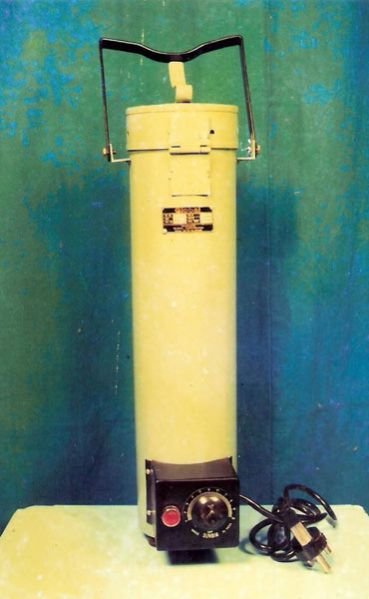

The Electrode Drying Oven GMP-GC-06 is a unique design model which offers complete protection to welding electrodes by preventing deterioration caused by absorption of moisture (due to the electrodes being hygroscopic in nature). This oven with its thermostatic control/energy regulator/digital control could be used as a dual purpose cabinet. If set at a lower temperature it could be used as an electrode storage cabinet, while at a higher temperature it could be used for the recovery of electrodes which might have become wet. The construction is double walled, insulated mild steel cabinet. The oven is duly powder coated and the inner chamber has a heat resistive silver paint with 2� thick high density glass wool insulation in between the walls. Temp.Range : 50oC to 250oC/350oC with an accuracy of ±5oC in thermostatic control and ±1oC for digital control (PID Type). The machine comes in two models; one is cabinet type, while the other is portable type with either square or round model to choose from. Following types are also available For Cabinet Type Inner MS size : 24�x18�x18�(HXWXD) with 14 SWG wire-mesh Crimped Tray(5no), Capacity : 50KgTemperature : 50oC -350oC ,(working temp up to 300oC) Optional : Digital Temp Controller Microprocessor PID Auto tuned with SSR & Heat Sink output for temp control can be supplied for Oven extra Forced Motorized Air Circulation by motor blower for Uniformity of temp inside Oven either from Bottom or Top extra High Temperature Flux /electrode Drying Oven Model : Gmp Gc-06a Temp-range; 50oC-400oC This model is triple-wall in construction, both outer (duly Powder coated) & inner (heat resistive silver paint) in CRCA/ MS body with high insulation of 100mm in between two walls ,but with belt driven motorized MS Blower at its centre for uniform Air-circulation fitted at Top of Oven with asbestos/Teflon bonded square gasket at door with Press-fit lock arrangements & with Blind Temp Controller (ANALOG), Heater : Made up of SS304 Finned type with HOT+COLD zone & terminal taken out of Oven on back-side with safety cover, Rating : 4500W (Inner MS working)Size : 24�X18�X18� (HxWxD) 5no Shelves with 5no Rod Tray. Inner SS304 can be supplied at extra cost.

Lab Care Tray DryerTray Oven is used for the best drying results in conventional process. Designed in compliance with the Standard quality Producer, the dryer has a Trippl walled cabinet both side and Back ,Botoom and Door is Double Walled . High Quality Miner wool Insulation is filled to avoid heat Loss .Working Chamber and Outer body is made by choice of customer , Trays are also available in Mild Steel Alumuminum, and Stainless Steel , Movable Trolley can be also supplied with equipments on demand of customer

Drying Ovens, Baking Ovens, Industrial Oven, Laboratory Incubator
