Dynamic Balancing Machine Dealers in Mumbai

- Soft Bearing Hard Bearing Machines - Analogue Digital Unbalance Readout - Stroboscopic Digital Location Readout - Fully Solid State - True Plane Separation - Axial drive and also Belt Drive for better accuracy - Model: DB-5 suitable for Power Tools, Mixers, Armatures, Textile Bobbins, etc. - Model: DB-15 suitable for Rotors Armatures - Dimensional modifications on request - Balancing speed need not be same as operating speed - Job weight specified includes weight of the mandrel - No confusing Controls - Simple to operate - Simple to Service

• Type: Dynamic
• Certification: CE Certified
• Weight: 100-1000kg
• Voltage: 380V
• Driven Type: Electric
• Warranty: 1 Year
• After-Sales Service Provided: Spare Parts

One of the most sophisticated machines available today, our Dynamic Balancing Machine has made work much simpler in various industries. Designed by experts and manufactured by advanced machinery, these machines are trending in the industrial world today. They are reliable and resistant to all forms of corrosion due to environmental factors. If you require details about further specifications, kindly contact us.

• Color: GREEN
• Application: PUMP INDUSTRIES
• Name: FUEL INSTRUMENTS ENGINEERS

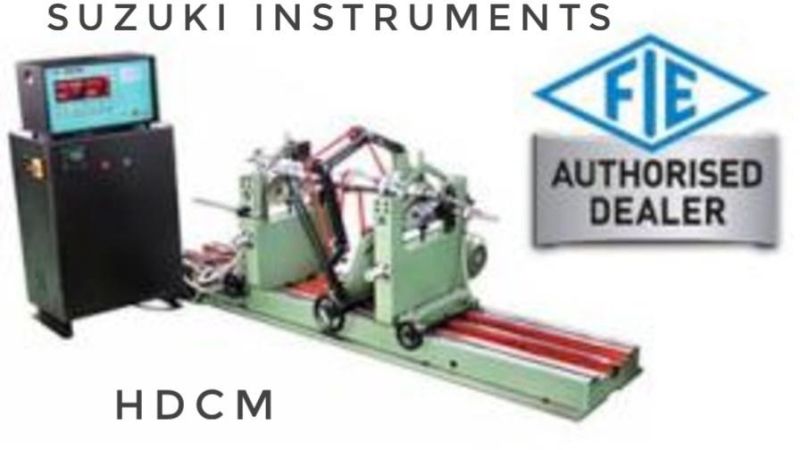

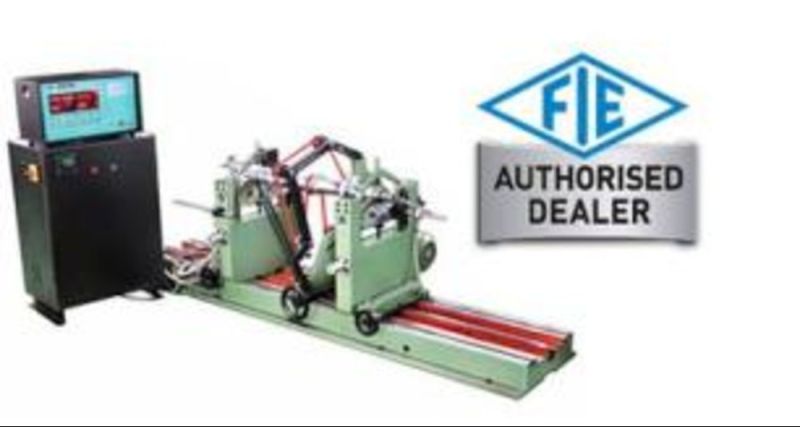

( Hard Bearing Models - HDCM)     Machines model HDCM are belt driven horizontal type photo scanning Universal Hard Bearing Balancing Machine, provided with microprocessor based measuring panel HDCM – 8500 suitable for balancing different shapes of rotors, of electrical machines, Cylinders, fly wheel, rotor of centrifugal pumps and other type of rotating machines.These machines are very simple in design. No drive coupling / adaptor etc. required to connect to the rotor to be balanced. It has following advantages -1) Cost saving on manufacturing of precision adaptor to connect drive coupling to rotor. 2) Any rotor can be balanced without losing time in manufacturing of adaptor. 3) The balancing accuracy of rotor not disturbed due to unbalance in drive coupling / adaptor. 4) Belt drive machine are more accurate (about 5 times) as compared to end drive machine.

• capacity: 10Kg. 40Kg & 300Kg.

SRIL offers super saver horizontal machines in three size :- 10Kg. 40Kg & 300Kg. SRIL has introduced these models very successful in Indian Markets (already 50machine sold) is the most economical solution with reliability & dependability.

• Weight: Mechanical Unit (50),Electronic Unit (6)
• Balancing Speed: 1200 RPM
• Brand Name: ACD
• Features: Fully Solid State,True Plane Separation,No Confusing Controls
• HP of Motor: 0.05 HP
• Sensitivity: 0.2-2 g/kg
• Mains Supply: 230 VAC, 50 Hz, 1 Phase
• Shaft Diameter: 5-15 mm
• Size: Mechanical Unit (400x425x400), Electronic Unit (350x250x200)

The unit consists of a precision ground shaft rotating freely in ball bearing. For static balancing demonstration, an eccentric weight creates unbalance and value of relative weight require to balance the eccentric weight statically is determined. For dynamic balancing apparatus four weight assembly mounted on shaft is provided. Longitudinal and Angular position of weights are calculated from respective relative weight and the weight are mounted at the position. The rotation is vibration free when rotated by small motor. Specifications:   Drive motor frictional horse power.   Four balance weight each containing a different sized “Eccentric” for varying the unbalance.   Additionally the containers, quality of precision made steel loading balls are supplied.   Features: Independent analysis of static and dynamic balancing.   Adjustable balance weights with variable moments.   Balance weight position accurately measured both radially and longitudinally.   Machine can be suspended on chains for dynamic balancing.   Completely portable and suitable for classroom demonstrations. Range Of Experiments:   Using the four weights provided Static balancing of the system using a moment polygon construction. Dynamic balancing of the above system by calculating the position of the weights along the shafts, by resolving and taking moments about one end of the shaft.

1. To minimize vibrations, noise etc. which in turn improves the machine life and reduces operator fatigue. 2. To minimize the dynamic stressing and fatigue, which leads to reduce sizes of machine elements & foundations necessary. 3. To reduce power losses, as vibrating systems absorb energy due to the damping factor present in the system. 4. To avoid inaccuracy & improper functioning of adjacent machinery due to transmission of vibrations. The balancing machines are meant for evaluating the unbalance in a rotor. In a typical dynamic balancing machine, the rotor is supported by two sets of bearings and run by a suitable drive through a flexible coupling element. The unbalanced centrifugal forces on the bearings are measured by sensors and are related to the unbalance in the rotor by a measuring instrument. This unbalance can be corrected on the machine itself by suitable correction units or outside the balancing set up.

Rotating Machinery users are aware that Vibration free Machine means increased reliability and longer life due to reduced wear and tear. High standards set by present day technical advancements require quality dynamic balancing equipment and machines. Dynamic Balancing Equipment manufacturers, suppliers, exporters, dealers and traders in Mumbai India since 1970 to all over the world according client's requirements ACD dynamic balancing equipment and machines are developed through highly specialized experience in the field of Electronic Measurement of Mechanical Vibrations and feed back received through users of our Machines for the last 30 years
