Electromagnetic Brakes Dealers in Mumbai

• Type: Electromagnetic Brake
• Application: Manual
• Weight: 10-20kg
• Color: Grey
• Voltage: 400 To 440 Volts
• Country of Origin: India
• Current Type: AC
• Drum Sizes From: 100 Mm to 380mm Dia

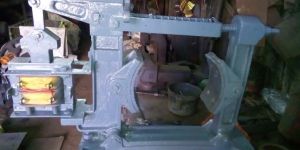

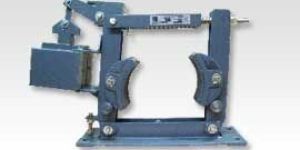

Suni Makes AC Electromagnetic Brakes that are suitable for AC supply up to 400 to 440 volts, and are available for a wide range of Drum sizes from 100 mm to 380mm Dia. We stand in the midst of prominent Electromagnetic Brakes suppliers based in India.   Since these brakes are in normally closed position, the release of the Brake shoes is affected by energizing the Electro Magnetic coil, which overcomes the spring force and the shoes are moved clear off the drum by lever/arm linkage system so that the drum is free to rotate without any friction.   When the power in given to the Electro Magnetic coil the coil gets energized and in turn pulls the plunger down. The plunger in turn operates the arm of the brakes and the brake opens.   The design of the brake is such that as the lining keeps wearing out due to normal operation of the brake, adjusts itself on its own to achieve the rated toque. When specified, brake drum or drum coupling both pin bush type and flexible geared type can be supplied along with the brakes.

• Color: Siemens Grey/ Blue/ Hammerton
• Brand Name: Tranzil TE
• Rating: 0.3 to 100 Kg-m
• Speed: 0 to 800 PM
• Tension Range: 0 to 200 Kg
• Reel Dia. Capacity: 0 to 3000 Kg

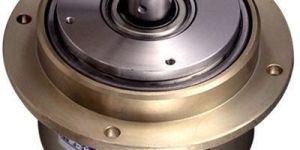

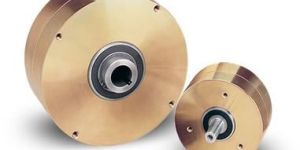

we are offering magnetic powder brake. “tranzil” presents powder brakes for various applications demanding torque & tension control for accurately & precisely controlling tension on various kind of substrates like paper, film (bopppolyesterpvc ldpehmhd etc.) & foil. the range of powder brakes produced by tranzil engineers satisfy all demanding torque control applications and can be used for controlling the tension of all materials including paper, plastic film, foil, cardboard, textiles, non-wovens, rubber and wirecable. “precision torque control” on all types of unwinds, de-coilers, pay-offs, spoolers & re-reelers is essential to ensure consistent product quality and to maximize productivity by saving manpower required on the manual systems. “tranzil” series of powder brakes and clutches are manufactured in wide rating range, form tiny 0.2 kg-m (2 nm) to massive 100 kg-m (1000nm). these are true torque control devices. torque is strictly proportional to excitation current applied to coil. these devices come with matching electronics to meet your most exacting applications such as torque control, tension control, stretch control, torque limit & many more. powder brakes & clutches are torque control devices. torque is controlled by varying the excitation current. torque delivered by powder devices is strictly proportional to excitation. these devices has minimal drag torque, i.e. at zero excitation, torque is minimal and near to zero. this devices are ideal for high torque & low power applications. salient features: available in various cooling versions such as self cooled, forced air cooled, fan cooled & water cooled available in various mounting types such as foot mount, flange mount, hollow etc. braking torque can be adjusted infinitely variable in the range 1:30 deliver rated torque at zero speed high torque independent from the slip speed at low control power fast response due to low inertia & set torque maintained independent of speed

Instant Operation Maximunm No. of Operations 240 Requires Stroke Adjustment Sizes 100 mm to 400 mm Braking Torque - 2 Kgm. to 65 Kgm. Disk Brakes for Hoist, with torque rating upto 35 Kgm Available in single phase 220V, 440V &  3 phase 440V

Being one of the prominent names in the industry, we have come up with Electro Magnetic Brake for our revered customers. These brakes are designed in tandem with the prevailing industry standards and are much appreciated for their precise design. Owing to their excellent functioning and fine finish, these brakes are highly demanded by the customers.   More AboutThree Phase Electromagnetic Brakes that are suitable for AC supply up to 400 to 440 volts, and are available for a wide range of Drum sizes from 150mm to 600 mm Dia. We stand in the midst of prominent Electromagnetic Brakes Suppliers based in India.Since these brakes are in normally closed position, the release of the Brake shoes is affected by energizing the Electro Magnetic coil, which overcomes the spring force and the shoes are moved clear off the drum by lever/arm linkage system so that the drum is free to rotate without any friction.When the power in given to the Electro Magnetic coil the coil gets energized and in turn pulls the plunger down. The plunger in turn operates the arm of the brakes and the brake opens.The design of the brake is such that as the lining keeps wearing out due to normal operation of the brake, adjusts itself on its own to achieve the rated toque. When specified, brake drum or drum coupling both pin bush type and flexible geared type can be supplied along with the brakes.Approx. Rs 20,500 / Piece

• Size: 0-5inch, 10-15inch
• Type: Dc Magnetic Brake
• Material: Aluminum, Cast Iron, Metal, Steel
• Shape: Round
• Application: Machinery
• Color: Golden, Gray, Silver
• Condition: New
• Feature: Corrosion Resistance, Durable, Easy Installation, Heat Resistant, Robust Design

Electromagnetic shoe brakes manufactured by Speed-O-Controls (SOC make) are suitable for mill duty application. Featuring ‘fail-to-safety’ designs, these brakes are actuated by energy that is stored in the compression spring. On energizing the DC magnet coil, the brakes are released when these are still ON. D.C. Electromagnetic brakes are suitable to work on 220 volts D.C. supply for a wide range of drum sizes from 150mm to 600mm dia. Electro-magnetic brakes are used when a load must be stopped rapidly to prevent the load from rotating due to motor and load inertia at pre determined time or selected point of travel or to prevent over traveling.

Ms. Speed-O-Controls Pvt. Ltd offer DC Electromagnetic Brakes, which are used to retard or to stop moving loads or rotating masses, to prevent damage to men and equipments. DC Electromagnetic Brakes are suitable for 220 Volts D.C. supply and are available for a drum Diameters from 100mm to 80mm. Characteristics Robust construction and simple designReliable braking actionEfficient transmission of forcesBrakes shoes replacement without dismountingEase of maintenanceEase of torque adjustment Applications HoistsElevatorsMachines Click Here For More Details

• Torque Capacity: 2 Nm to 200 Nm
• Brake diameter: 130mm to 320mm
• Application: Winches and Conveyors, Lifts and Elevators, Rubber mixing mills, Rolling mills, Brake Motors
• Features: Robust design, Consumes low power, Popularly know as DAT Brakes

Item Code : Clutch-Brake-Combination-Open-Type-CBO Magpower Linksys are manufacturers of Clutches and Brakes which are intended for Start-Stop applications. These brakes and clutches work on the basic principle of Electromagnetism. They come in various types to meet different requirements. Type CBO The Clutch-Brake combination Open Type assembly consists of Magpower Normally Off type Clutch and Brake. The armature arrangement is a duplex disc type on a common splined hub, which moves axially along the splined hub, thus self compensating for wear and resultantly maintains its operating characteristics. These units are less expensive compared to our Type CBE as the combination is provided without the enclosure and can be incorporated where space availability is critical. These combinations are used for Dry Applications only. Features These units are less expensive compared to our Type CBE.The duplex disc type armature arrangement enables the unit to be used for high cyclic operations.The components incorporated in the unit enables a backlash free torque transmission.These units can be incorporated where space availability is critical and permit use in all applications. Ordering Information Type, Size, D.C. Voltage, Clutch Rotor, Bore Diameter, Brake Splined hub Bore Diameter. Example of Order Type : CBO, Size : 08, 24 VDC,Clutch Rotor Bore Diameter � 14 mm,Brake Splined hub Bore Diameter � 11 mm. For selecting the correct size of the clutch-brake combination, the factors to be considered are Max. reqd. Static torque.Freq. Of operations.Max. thermal load. The reqd. Static torque can be calculated using the formula M = (9550 p/n).s (Nm)M = Reqd. Static torque (Nm)p = Power rating of prime mover in KWn = Rev / Mins = Service factor depending on application (1.5 to 4.0) For switching details and complicated calculators, please get in touch with us. Magpower Clutch-Brake Combination Type CBO, require D.C. Supply Product Line Spring Applied Fail Safe Brake � Type FSBElectromagnetic Single Face Brakes (Normally Off) � Type EBElectromagnetic Single Face Clutch � Type ECElectromagnetic Single Face Bearing Mounting Clutch � Type BMCClutch-Brake Combination Encased � Type CBESingle Shaft Double Clutch Unit � Type SSDCSingle Shaft Clutch Brake Unit � Type SSCBHollow Shaft Clutch Brake Unit � Type HSCBE

VERSATILECan be mounted in any position, simple installations.DURABLEHigh torque, durable & temperature stable friction lining. Specially processed Armature plate for wear resistance. Heavier, thick walled construction to ensure long life. Low maintenance.STABLEEpoxy resin bonded vibration proof coil. Zero backlash Armature with finger spring release. Slotted Armature for greater torque stability. Pre-loaded armature spring for residual torque free release.FASTHigh operating frequency, low inertia, fast & uniform response time.

• Voltage: 415 V AC
• Phase: 2 / 3 Phase
• Size: Standard
• Min Brake Diameter: 130 mm
• Max Brake Diameter: 320 mm
• Min Torque Capacity: 0.2 Kgm
• Max Torque Capacity: 20 Kgm
• Frequency: 50 Hz

In an Electromagnetic Multi Disc Brake, the magnet body is mounted on the machine in a stationary manner. The design of the brake ensures that the magnetic field generated by the coil doesn't pass through the plates and a very quick response time is achievable.

• Material: Cast Iron
• Voltage: 220 V
• Frequency: 50 Hz
• Phase: Single Phase
• Diameter: 100- 500 mm
• Power Source: Electric

For infallible operation of machinery, modern methods are necessary, any machines which requires its motion to be controlled, whether it is lifting Crane, Hoist, Wintch or Mining Haulage today employs an Electro Magnetic Brake, enabling the operator not only to control the motion but also to hold the load at any desired point without danger of falling, merely by release of the starting handle. Electro Magnetic Brake is adequate equipment for safer operations of machinery. Electro Magnetic Brakes are used when a load must be stopped rapidly to prevent it from roatating.These brakes are used in Paper Mills, Drives of certain Textile Machines, Sugar Mill Machinery, Rubber Mixing Mills. Assembly and Function : The shoes are of cast iron and other components are of fabricated steel. The lever is hinged on main arm, which is connected to the side arm through a tie rod, and is stress by pre-loaded compression spring. The compression of spring can be adjust to set the braking torque to desired value. The brake liner of selected quality material is reveted to the shoes by aluminium rivets. A.C. solenoid with laminated magnetic sheet steel houses a copper magnetizing coil which is impregnated with class F materials. The plunger which is connected to the lever, is drawn into the coil, when it is energised with A.C. source. This loads the spring and releases the brakes shoes from brake drum. When the supply is cut off, the plunger is pull out of the coil, and spring force clamp the brake shoes on the brake drum and the brake is applied.   A.C. Drum Brakes are suitable for single phase A.C. supply up to 440V and are available for drum  diameters of 100 mm to 380 mm and braking torques up to 69 kg-m.  Features : - Compact design - Fail Safe - Reliable in operation - Clean work environment - Braking Torque can be easily adjusted - Requires less maintenance

Introduction For infallible operation of machinery, modern methods are necessary, any machine which requires its motion to be controlled, whether it is a lifting Crane, Hoist, Winch or Mining Haulage today employs an Electro Magnetic Brake, enabling the operator not only to control the motion but also to hold the load at any desired point without danger of falling, merely by release of the starting handle. Electro magnetic Brake is adequate equipment for safer operations of machinery. Electro magnetic Brakes are used when a load must be stopped rapidly to prevent it from rotating. Electro Magnetic Brakes find its use in Paper Mills, Drives of certain textile machines, Sugar Mill Machinery, Rubber Mixing Mills. .. Assembly and Function  The Shoes are of cast iron and other components are of fabricated steel. The lever is hinged on the main arm, which is connected to the side arm through a tie rod, and is stressed by a pre-loaded compression spring. The compression of the spring can be adjusted to set the braking torque to desired value. The brake liner of selected quality material is riveted to the shoes by aluminum rivets. A.C. solenoid with laminated magnetic sheet steel houses a copper magnetizing coil which is impregnated with Class F materials. The plunger which is connected to the lever, is drawn in to the coil, when it is energized with AC source. This loads the spring and releases the brake shoes from the brake drum. When the supply is cut off, the plunger is pulled out of the coil, and spring force clamps the brake shoes on the brake drum and the brake is applied.

• Country of Origin: Made in India
• Material: Cast Iron
• Packaging Type: Carton
• Torque Range: 200 nm

Notable name in this field, we successfully cater to the demands of our clientele from Dombivili East(India) to every nook and corner. Being a trustworthy Supplier in the market, we cater to the demands of the customers by presenting excellent Electromagnetic Brakes.

• Brand Name: Mod E-Tech Engineering Private Limited

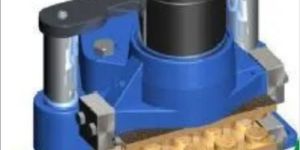

• Application Areas: Steel Industries, Conveyor application, Wind Turbine, Special Purpose Machines, Bulk Material Handling Equipment, Mines, Cement Mills
• Features: Compact design, Easy mounting, Suitable for wet, dusty and corrosion aggressive environments
• Min braking force: 9550 N
• Max clamping force: 12,567 N
• Min clamping force: 11,938 N
• Operating pressure: 50 max
• Air / oil consumption: 20 cc
• Pad width: 60 mm
• Pad area: 10,200 sq mm
• Nominal Co-efficient of friction: 0.4 µ
• Weight: 15.5 kgs
• Max Air gap: 0.5 mm
• Max allowable wear of brake pad: 5 mm
• Pad area: 10,200 sq mm
• Max Braking force: 10054 N

Compact, Optional friction materials :- Steel-steel, Steel-brass, Steel sintered bronze, Wet or intermittent wet operation, Easy adjustment of the required torque, High torques at small dimensions. Application :- Industrial drives, especially conveying machinery, Textile machinery, Gearboxes & Machine tools.
