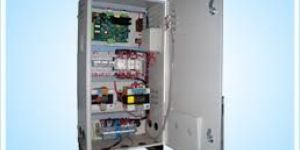

Elevator Automatic Rescue Device Dealers in Mumbai

• Type: Automatic
• Material: Aluminium
• Shape: Rectangular
• Number of Stops: 10-15
• Input Voltage: 280 V
• IP Rating: 66
• Phase: Three Phase

Key Features : For VFD based control panels Motor Capacity: 5HP/3.7KW to 50HP/37KW (Geared/Gearless) Battery DC Voltage: 48VDC Input AC Voltage: 440V AC Output Inverter Voltage: 400V Two Phase 50Hz Pure Sine wave in ARD mode and 400V Three Phase in Normal mode Require Minimum wiring Incase of phase reversal, ARD will work in MAINS mode only. ARD will work only in case of one or more phase failure. Optional protection for phase in neutral condition. Single card system, easy to maintain. MCB protection for switching off ARD for longer time and protection while installation. Easy for troubleshooting. Separate Indication for R,Y and B. Each phase can be set individually for MAINS mode.

• Charging current: 2Amps
• Bypass: Electro mechanical Switch

User friendly front panel Led Indications to monitor system status and rault indication Rocker switch to put OFF Inverter in-case of battery low condition Safest evacuation device as it has no interface with the safety circuit of elevator. No interface with any operating component of elevator motor, brake, door Operator, Rcam, etc. Highly reliable as the entire rescue operation is achieved by just producing 400V, 1 Phase power. Ride quality in rescue mode is same as elevator ride (as the VF Drive runs the Motor during rescue operation).

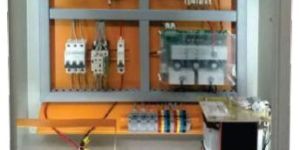

MICO ELEVATORS INDIA PVT. LTD. Automatic Rescue Device (ARD) is an automatic rescue mechanism, for rescuing passengers trapped in an elevator due to malfunctioning or power cut. Manual rescuing of passengers trapped in an elevator takes considerable time, causing anxiety to the passengers. IF the rescue operations were not conducted by the trained personal, it might cause injuries to passengers. ARD will safely land the passengers to the nearest floor within minutes of power failure, thereby avoiding Panic Situation. Hence, ARD is a valuable ADD ON device to the elevator. Salient Features :Unique “optimum direction selection” feature make the elevator safe. Fully automatic with instant operation, need no human intervention Well integrated into elevator system and ensures safety Safe Landing during power failure and elevator control system failure Micro controller based technology with PWM device Sealed (SMF) batteries are used for lesser maintenance cost Compact with batteries inside the system.(del) Fault detection LED's on board ensure caution

Wall Mounted Compact, Robust Design of M.S.18 Gauge.Easy For Installation & Wiring.Microprocessor Based Sinewave 24vdc Control.Use Sealed Maintenance Free (SMF) 2nos. Battery.Same Frame Size Up To 10 Hp.ARD Facility V3f Is Not Required Any Lift V3f Is Ok.Suitable For Any V3f Controller, Gearless Motor & Most of Renowned Controller.Cooling System- Natural Air Cooling.Suitable For Auto Door & Manual Door Lift. Rescue Operation for Power Failure or Single Phasing.

It is mandatory for buildings above 7 Storey. The Speed velocity of the elevator is equal to or greater than 1 ms. we provide automatic rescue device (ARD) if required by the customer. Designer golden finish auto door lift provides a state of art impression to the building.
