Fabtech Pharma Bhandup West, Mumbai, Maharashtra

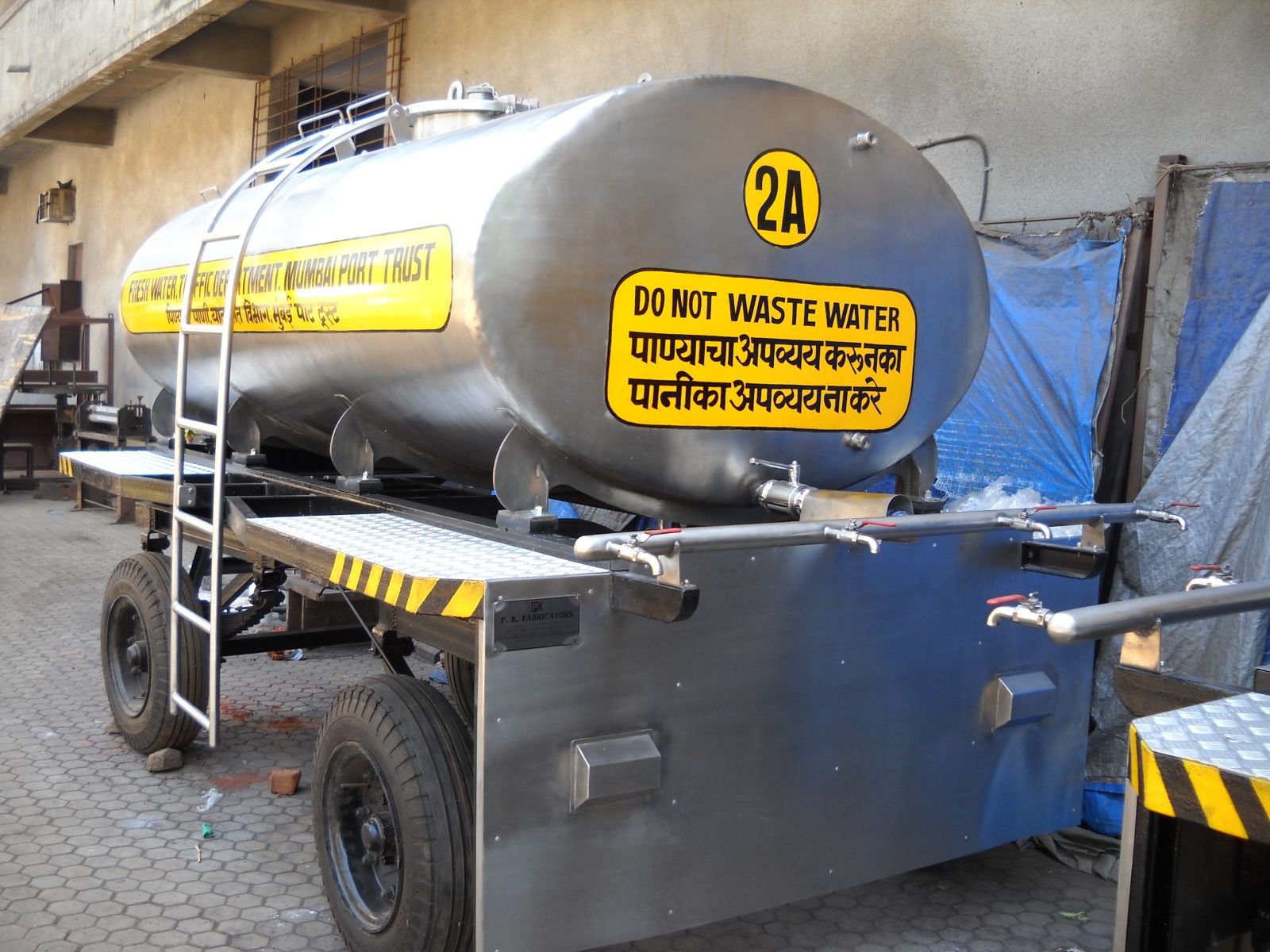

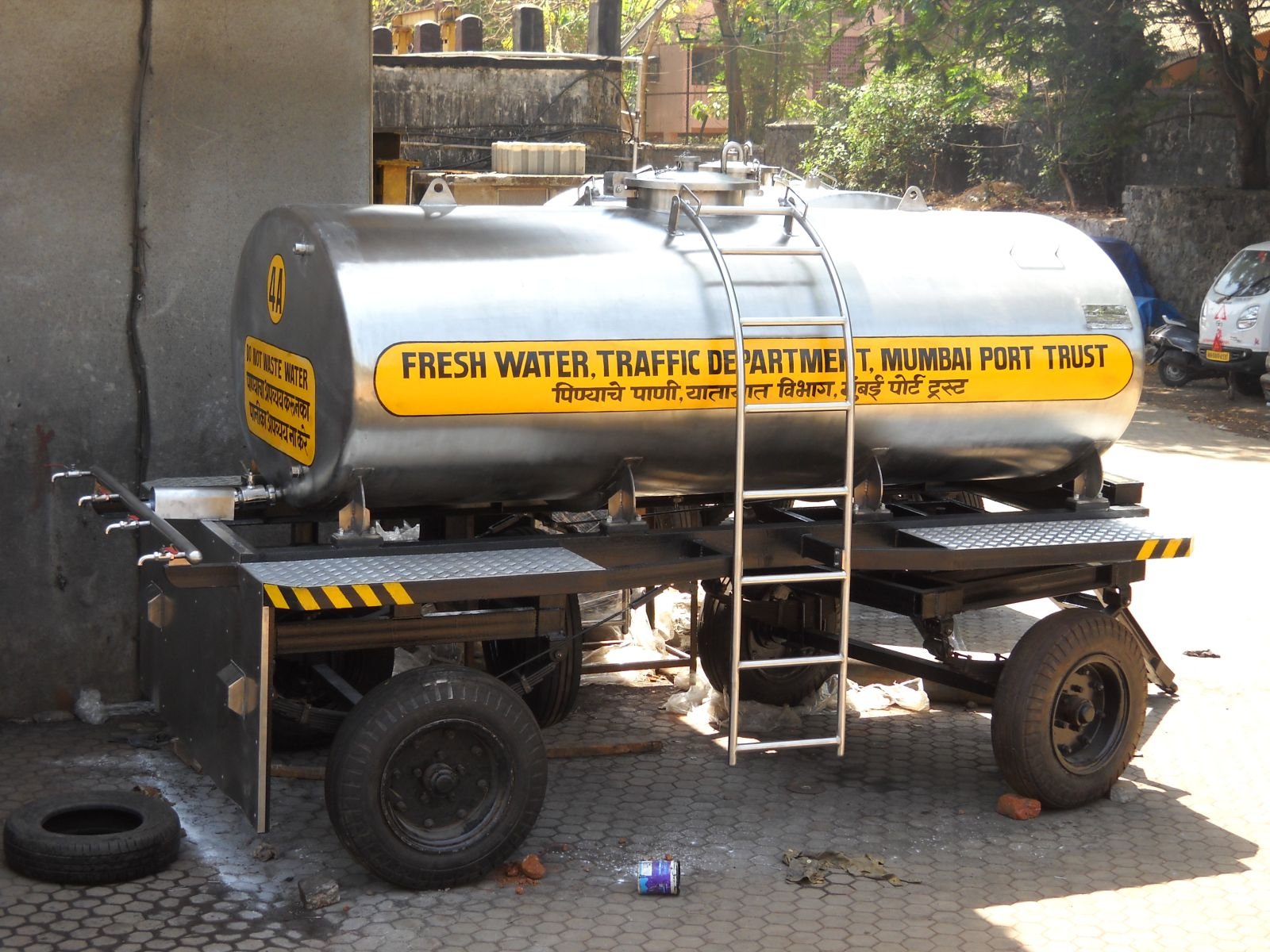

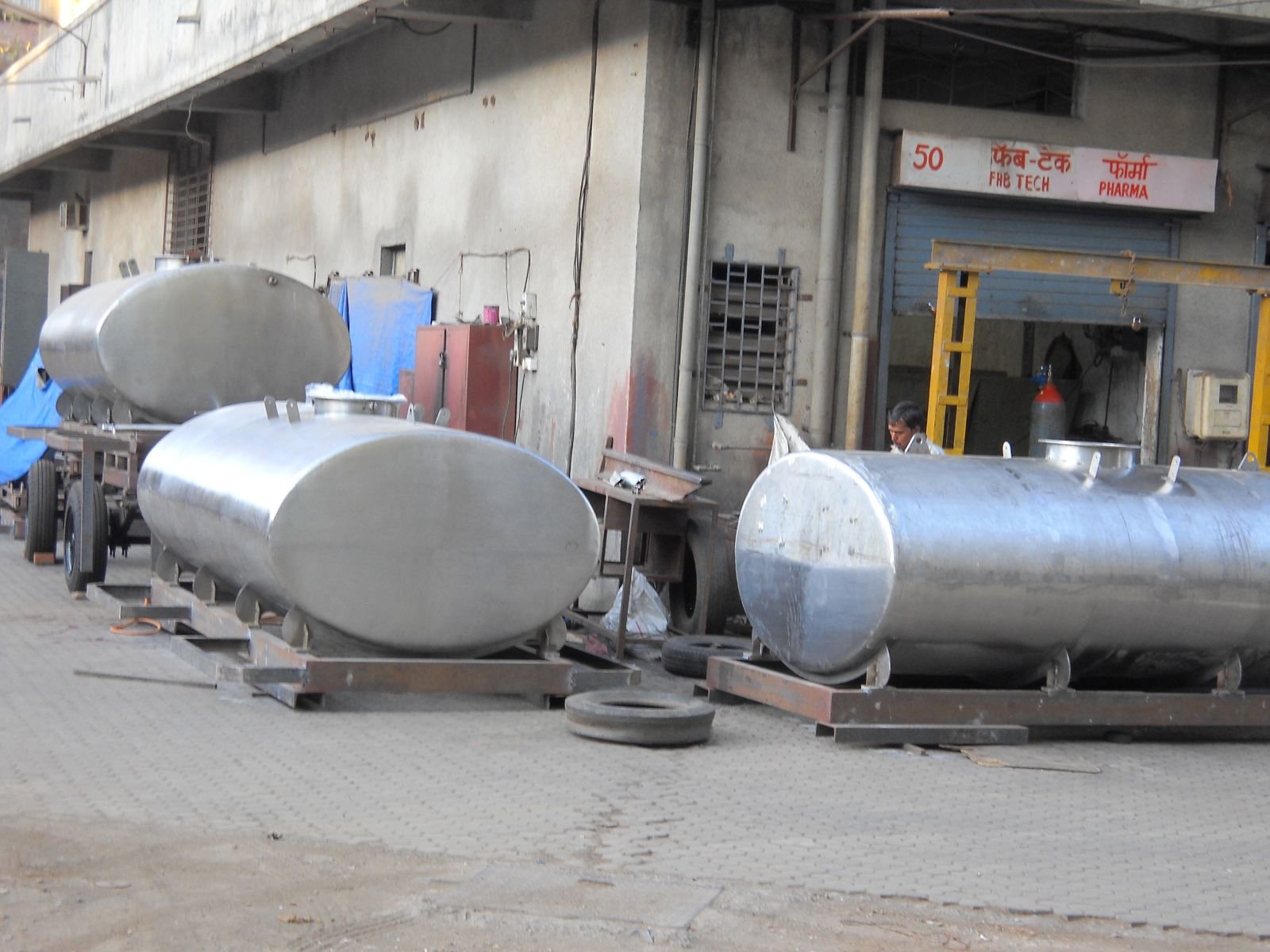

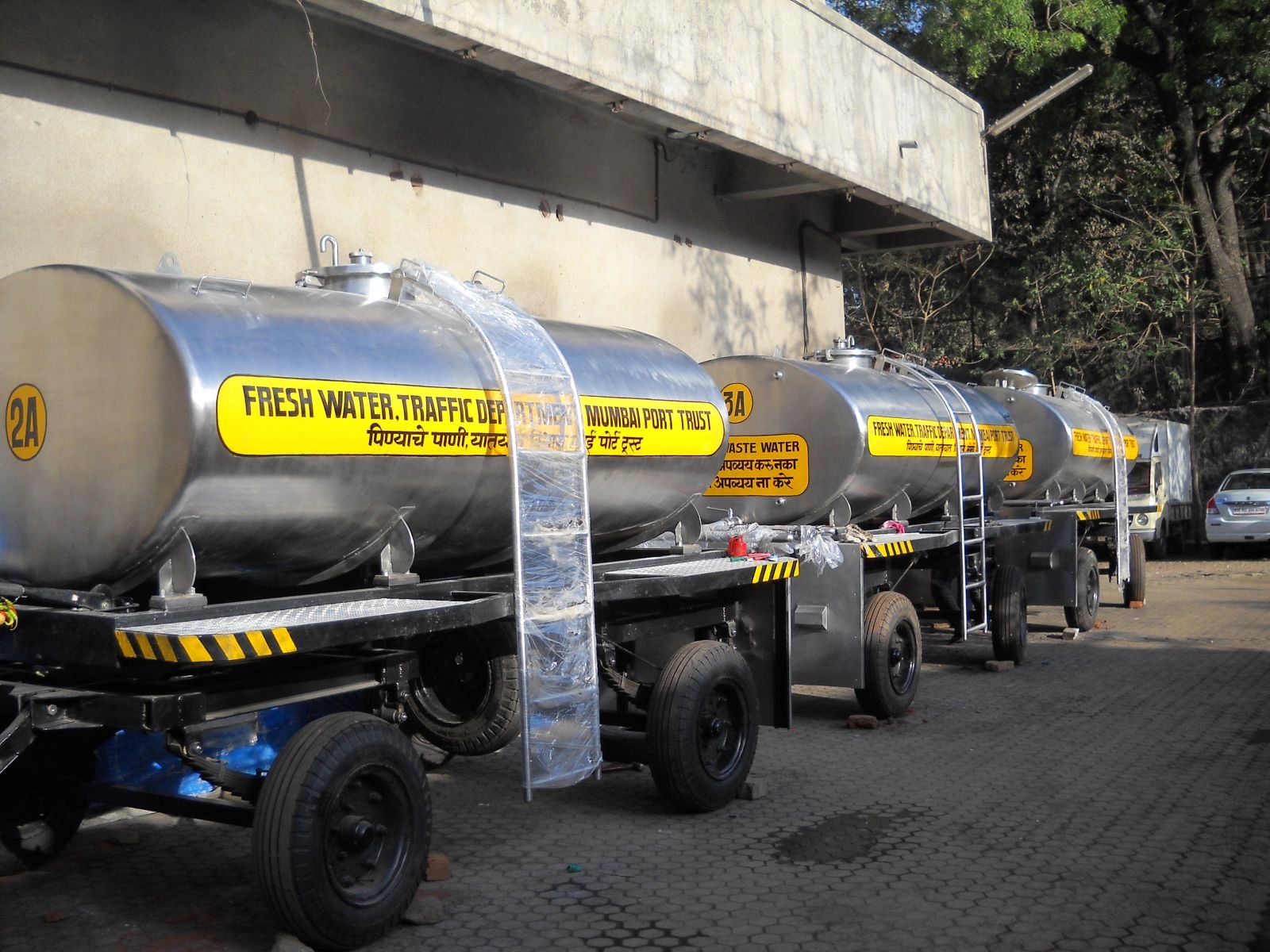

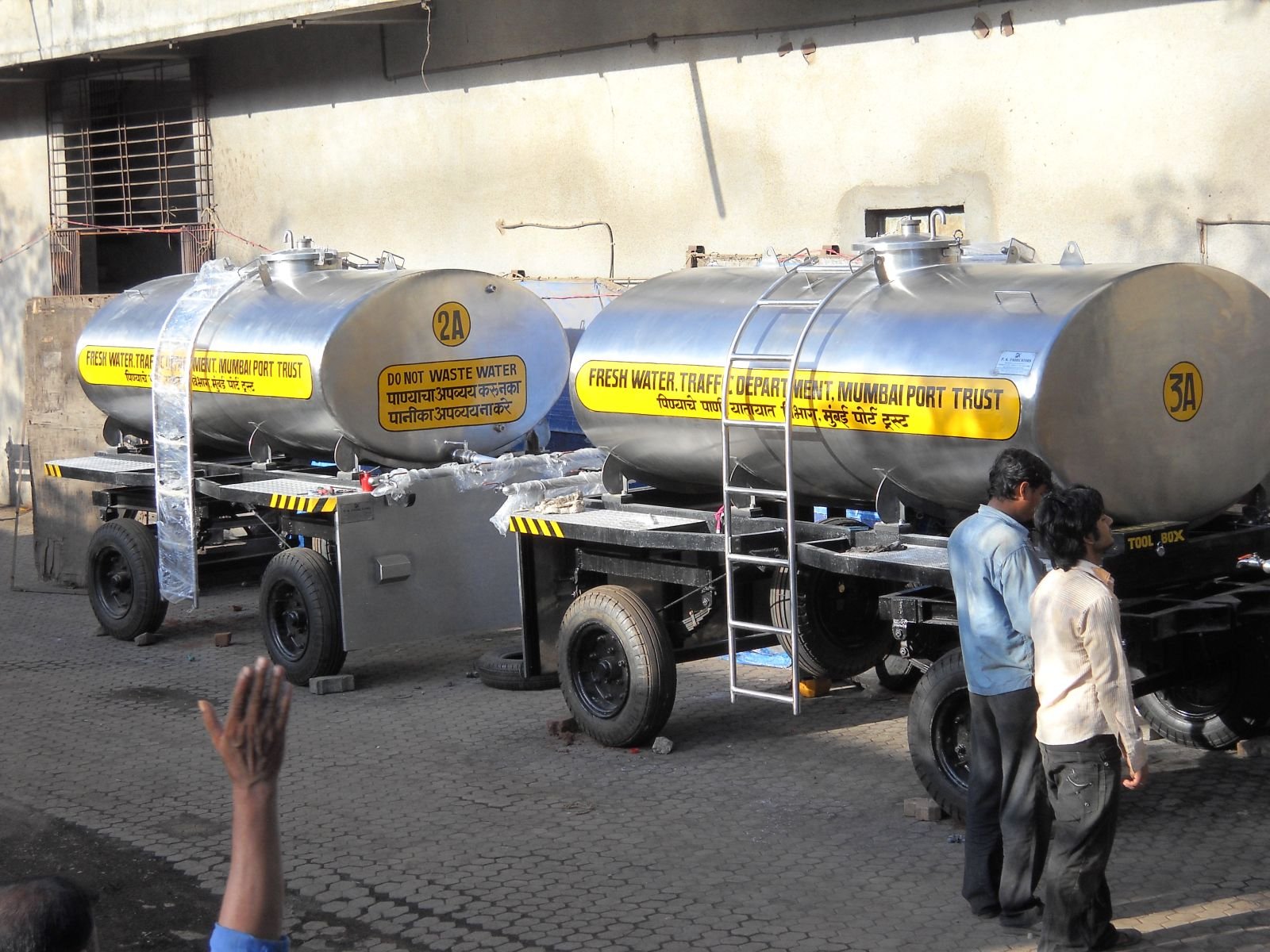

WATER TRAILER TANKER.( Capacity UP to 10,000 Ltrs) Water Trailer Tankers are used for Storing, carrying and supplying of water to desired locations. The Design of the trailer tanker unit shall be easily accessible for handling, operations and maintenance. Trailer Tanker has an Elliptical shape S.S water tank of desired capacity with all necessary mounting & Fitting arrangements. And a chassis shall be suitable load carrying capacity and fabricated from M.S channels and Plates. SALIENT FEATURES S,S Elliptical shape with dished Ends S.S water tank of desired capacity S.S Water disbursing manifold S.S Ladders to climp up on the tank top to operate Open/ Close man hole cover or filling port Spring loaded forged towing hook S.S Man-hole Cover For Inspection Heavy Duty Lubricated Turn Table with Proper Fittings. Manual Breaking System Good quality pneumatic tyres with tubes Heavy Duty leaf springs to dampen, vibrations/shock. Heavy Duty Anti Vibration Pad for Tank Mounting Drain Plug provided at the bottom of tank

Application : Water Supplying

Type : Water Tanker

Country of Origin : India

VIBROSIFTER (AVAILABLE CAP: 12”,20”,30”,34”,36”,48”& 60”) Ideal for gradation and separation of dry powder, granules and semi solids/ liquids. Dust free arrangement, lead free sieves.   SALIENT FEATURES Manufactured as per cGMP norms. Design permits easy washing and cleaning. Flexible discharge height. Reduced binding and clogging of the sieves. Superb aesthetic look Minimum break-down & maintenance cost. Less power consumption & running cost.

Usage : Industrial

Country of Origin : India

Power : 1Kw-4 Kw/ 1Hp- 5 Hp

Operating Type : Manual

Voltage : 440 V/ 3 phase

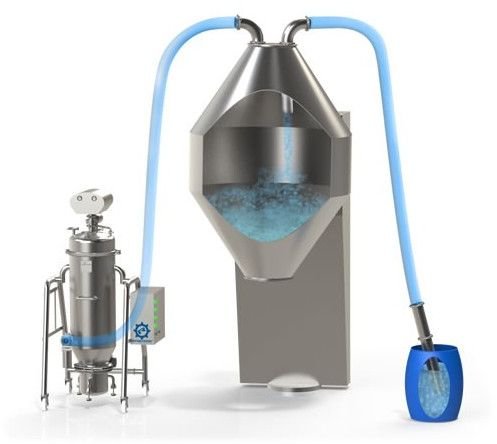

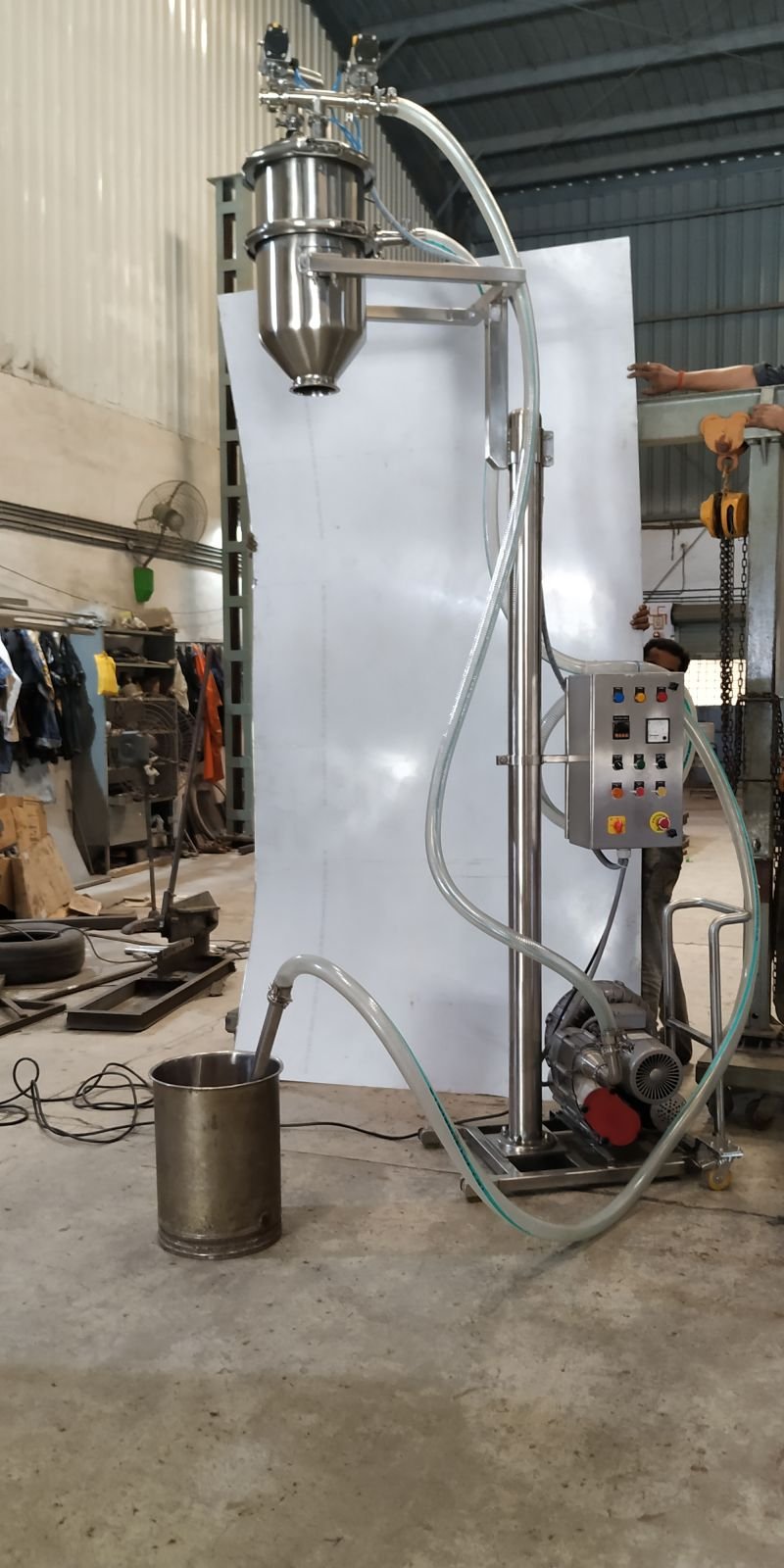

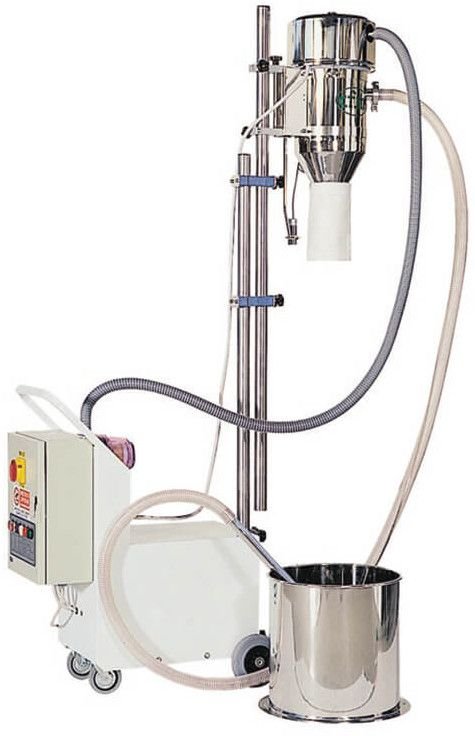

VACUUM POWDER TRANSFER SYSTEM (VTS) - (Capacity: Up to 3000 Kgs/hr) GMP Model VACUUM TRANSFER SYSTEM is unique equipment used for Transferring the powder/product into process equipment. By using this equipment, a dust free charging can be done as compared to conventional type or manually charging. This equipment comprises of two units. One is the Vacuum Blower and Other one is a powder receiver bin with filtration unit. Powder receiver Bin located above the equipment which you intend to transfer powder/ product. These units will be connected through a food grade flexible thunder hose. SALIENT FEATURES Manufactured as cGMP Norms. Vacuum Blower is used. Which eliminates lubrication system and Motor, Pulley V Belt Etc. . Consumes 40% power compared to the other conventional Equipment. All sides on the shell are curved construction. Totally eliminates sharp corners and cleaning difficulty. Finish: Inside : Mirror Polish Out Side Matt polish Capacity : UP to 3000 Kg/Hr.

Country of Origin : India

Power : 1.5 Kw to 15 Kw/ 2 Hp to 20 Hp

Voltage : 440 v/ 3 phase

RAPID MIXER GRANULATOR (Available Cap: 5 Kgs to 800 Kgs) Rapid Mixer Granulator is used in the pharmaceutical industries for mixing as well as granulation of ingredients. It is equipped with impeller fitted to the base of the mixing bowl and the chopper is mounted on the wall of the mixing bowl. Salient Features:
All contact parts are made in S.S 316 and Outer surfaces are made in SS - 304
Drive Controlled Motor for variable speed.
Three Blades Main Impeller used for Proper Mixing.
Minimum clearance between bowl and impeller
4 Blades S.S Impeller For Chopper
Discharge Port is operated by pneumatic cylinder
Proximity Switch is provided For Safety Operation
The machine is supplied with standard manual controls. Optionally, can also be supplied with Programmable Logic Control [PLC] system and MMI for the visual display of the operating parameters.
Components of the machine are having easy accessibility for cleaning.
All electrical & pneumatic parts are pre wired to simplify installation.
Hinged type discharge port is provided for easy cleaning.

Power : 1.5 Kw To 50 Kw/ 2 Hp To 60 Hp

Automation Grade : PLC With HMI / Manual

Voltage : 440 V/ 3 Phase

Country of Origin : India

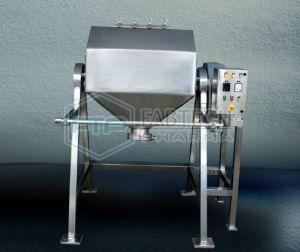

OCTOGONAL BLENDER (Available Cap : 50 Ltrs to 4000Ltrs) : Octagonal Blender Machines are very useful for pharmaceutical industries for gentle blending purpose of dry granules or powder. Based on the body shape an octagonal blender is designed to process a large volume of material. SALIENT FEATURES
All contact parts are made in stainless steel 316 and outer surfaces are made in Stainless Steel 304
Octagonal shaped with rectangular center, conical Shaped discharge frustum and rectangular Shaped top frustum
Baffles provided in the shell for optimum mixing.
Butterfly Valve provided For Charging and discharging
All moving parts are enclosed in guards
Safety barrier with Proximity Switch is provided for safety operation of the blender.
Manual Inching arrangement provided for proper discharging

Automatic Grade : PLC With HMI / Manual

Power : 0.4kw To 15 Kw/ 0.5hp - 20 Hp

Voltage : 440 V / 3 Phase

Country of Origin : India

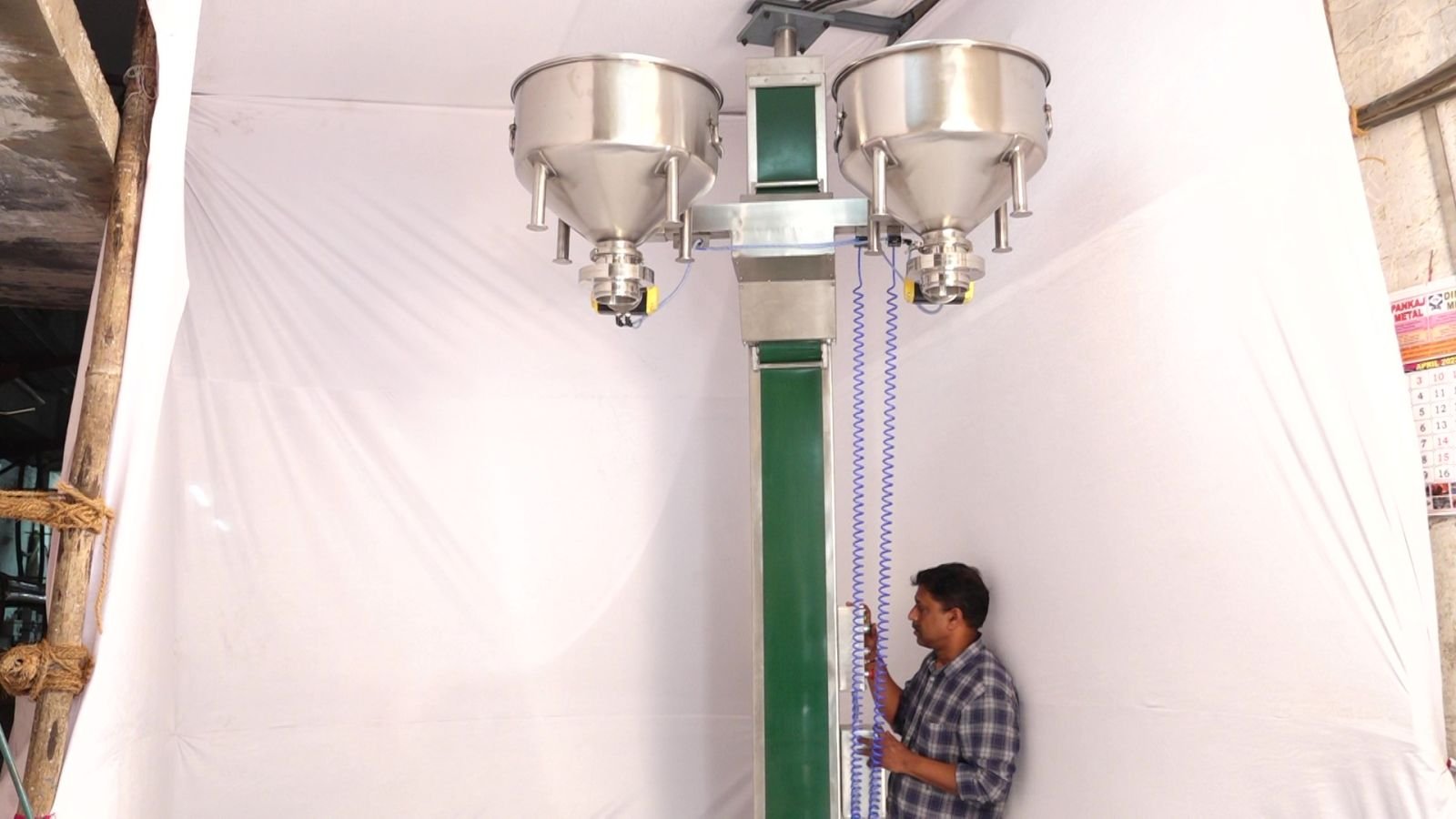

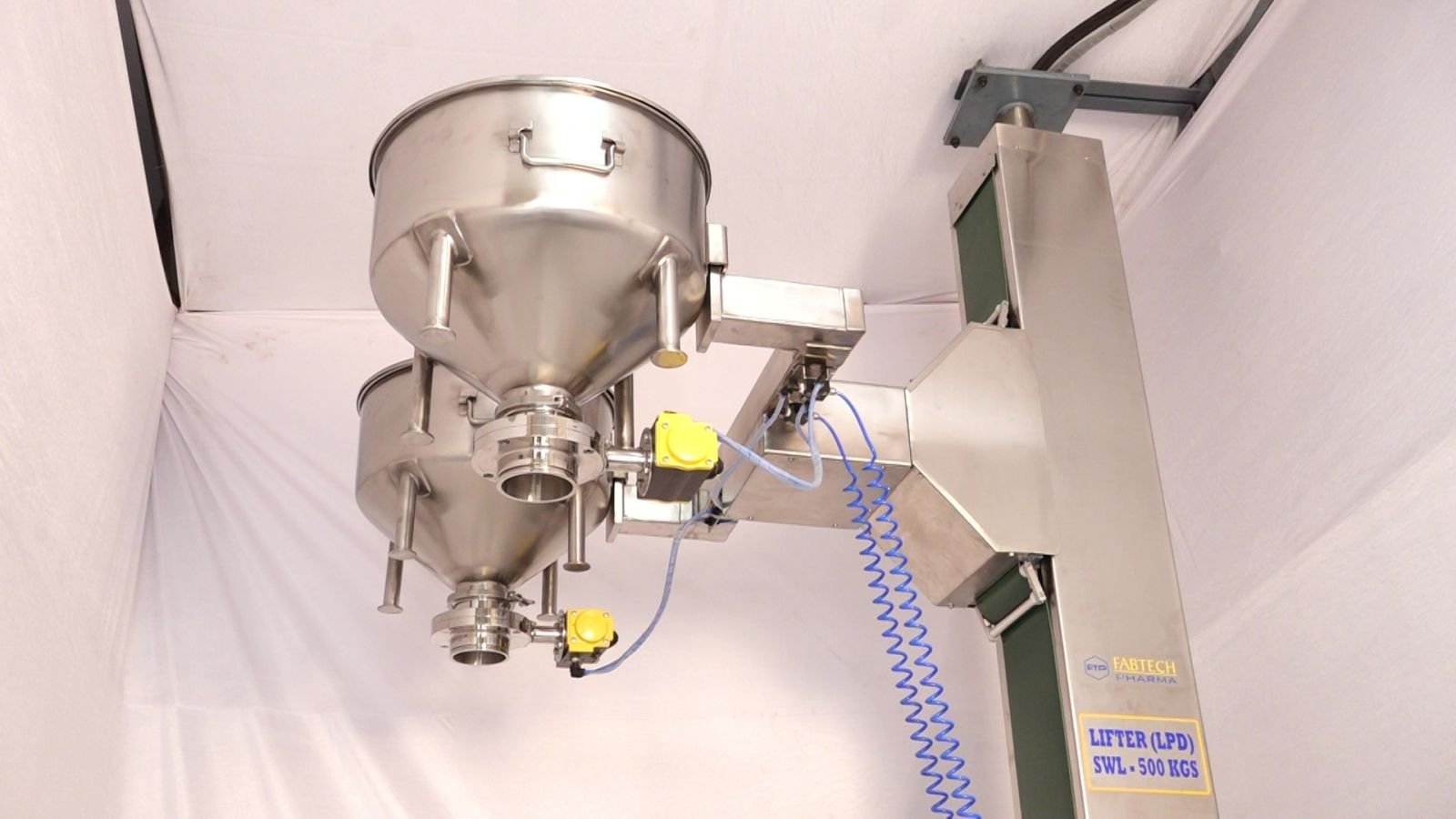

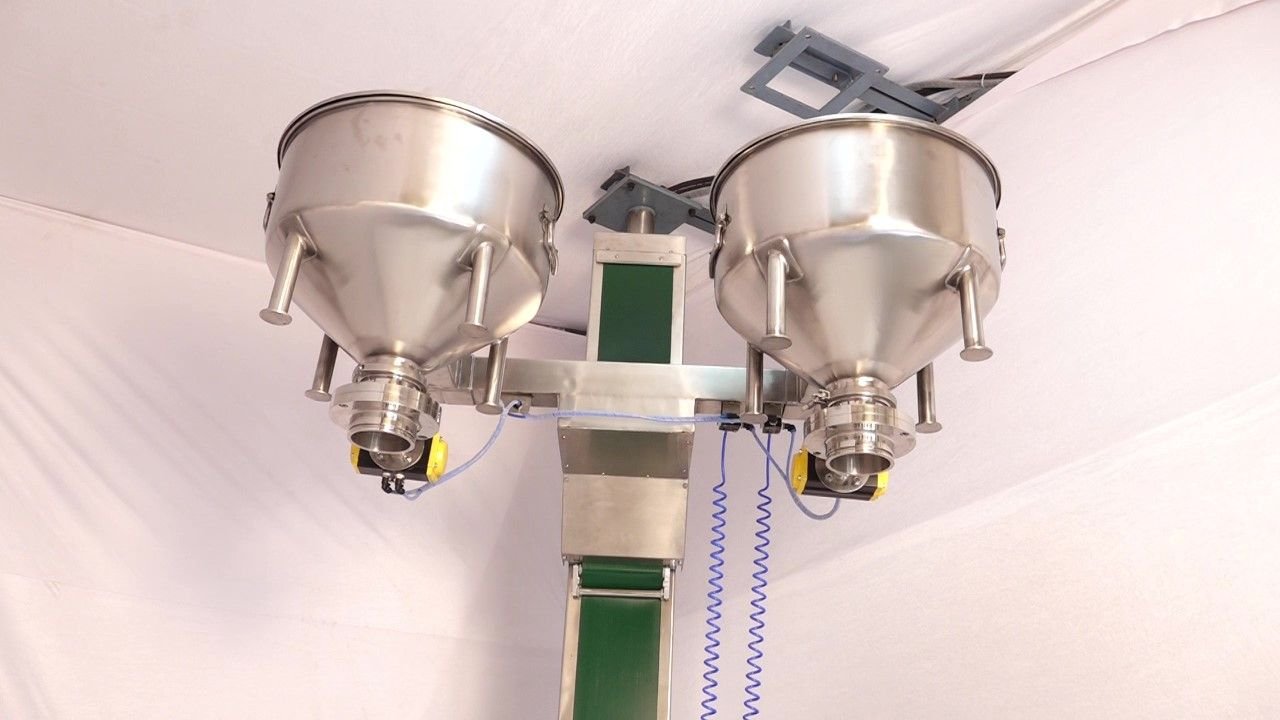

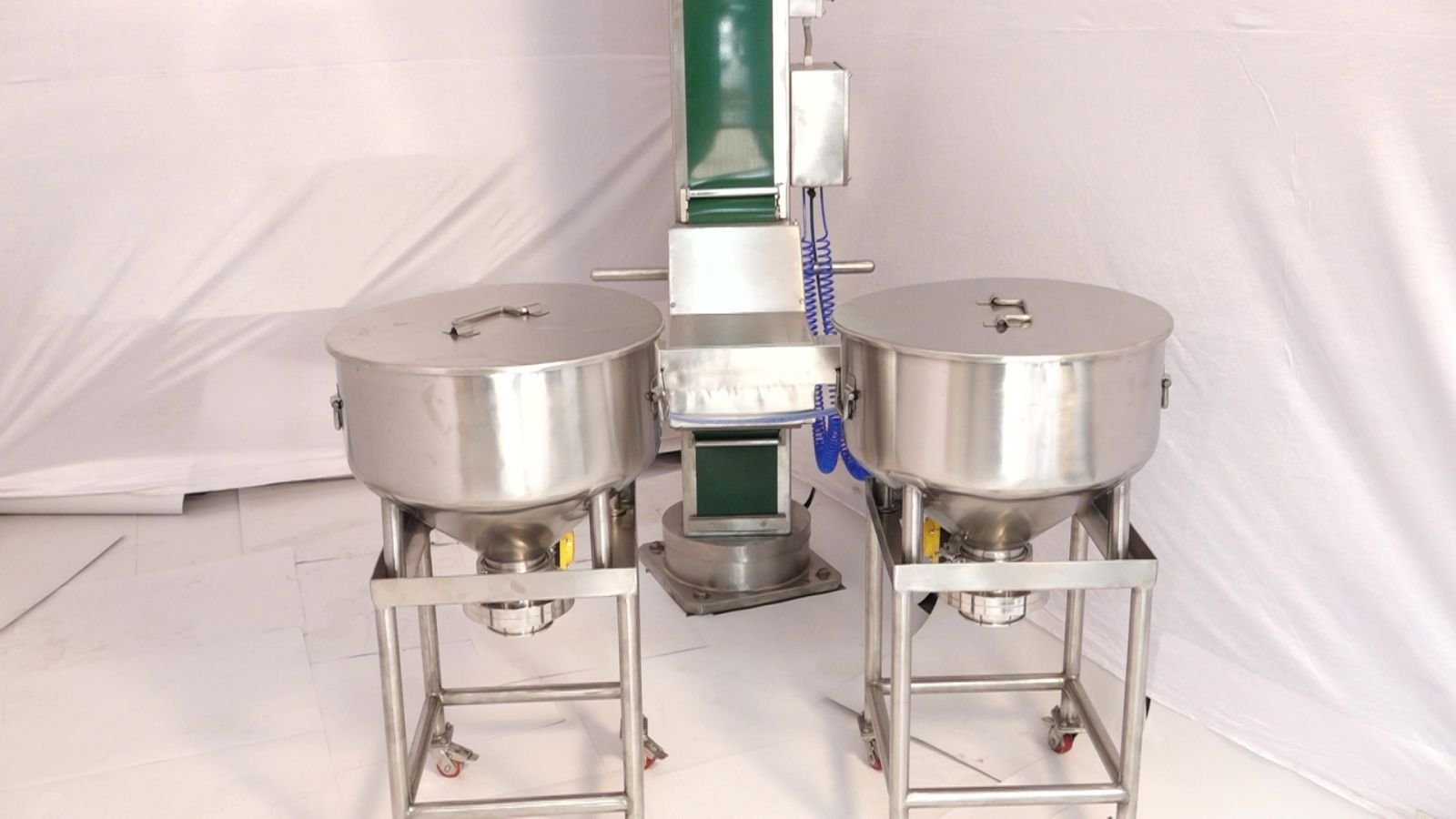

LIFTER (LPD) - GMP MODEL ELECTRO HYDRAULIC LIFTING & POSITIONING DEVICE (Capacity : UP to 1000 Kgs, Lifted HT : UP to 3000 mm) Lifting & Positioning Device Lifting and positioning device is designed to lift container or storage bins (IPC) and positioning it above the charging station of process equipment. This device is mainly used in solid dosage manufacturing and also for liquid compounding operation. This device is designed to achieve dust free transfer of ' In Process' materials enhancing GMP standard and eliminates laborious manual operation. Salient Features Manufactured as cGMP Norms. Zero leakage solenoid operated spool type valves are used. Double acting hydraulic cylinder with honed pipe and proper seals are used. Zero creepage of the lifted load. Very compact valve system. Up - Down operation by Remote Operator panel by inch type push button. Power pack is mounted on the service floor with the controls on mast at operator’s convenient position. Carriage up movement restriction is by limit switch. Carriage lifting by leaf chain – more reliable as compared to wire rope. 24 VDC controls are provided for remote panel for operators safety by avoiding 230 V AC. Non Return Valve at Hydraulic Cylinder Port For Anti Burst Locking. Safe Load carrying capacity : up to 1000Kg. Finish: 180 Grid Matt polish.

Country of Origin : India

FLUID BED DRYER (Available Cap : 5 Kgs to 300 Kgs) Fluid bed dryer is commonly used drying of granules or powder for Chemical, Pharmaceutical and Food Products. It is highly efficient drying of granulated materials and uniform drying at minimum temperature with very short time. SALIENT FEATURES
All contact parts are made in Stainless Steel 316 and outer surfaces are made in Stainless Steel 304.
Low power consumption
Quick and uniform drying at minimum temperature.
Simple & easy operation
Material is dried by intimate

Country of Origin : India

Voltage : 440 V/ 3 phase

DOUBLE CONE BLENDER (Available Cap: 50 Ltrs to 4000Ltrs) The double cone blender consists of two cone shaped sections with 45º slopes. Double Cone Blender is efficient for mixing dry powder and granules homogeneously. All the contact parts are made of stainless steel. It can be used for Pharmaceutical, Food, Chemical and Cosmetic products etc SALIENT FEATURES
All contact parts are made in stainless steel 316 and outer surfaces are made in Stainless Steel 304.
The conical shape at both ends enables uniform mixing and easy discharge
The cone is statically balanced to avoid any excessive load on the gear box and motor.
A wider opening provided for loading material in to the machine, and processed material discharging through a butterfly valve.
Baffles provided on the shaft for better mixing.
Machine is operated by a timer.
Maximum care has been taken to ensure safe operation of the unit.
Safety barrier with Proximity Switch is provided for safety operation.
Flame proof motor can be supplied as optional.

Country of Origin : India

Capacity : 2ltrs- 4000ltrs

Power : 0.4kw to 15 Kw/ 0.5hp - 20 Hp

Voltage : 440 V / 3 Phase

Automatic Grade : PLC with HMI / Manual

Battery Operated Hydraulic Telescopic Stacker (Capacity : UP to 250 Kgs, Lifted HT : UP to 3000 mm) Battery Operated Hydraulic Telescopic Stacker is extensively used for material handling purposes and first of its kind machine as it is Eco-friendly machine which runs on battery. Lifting & Lowering operations are done by DC power Pack and maneuver is done by manually. Advantage of Telescopic stacker is that master height of machine is half of the maximum lifted height. SALIENT FEATURES Manufactured as cGMP Norms. The specialty of this product is the heavy duty Battery with DC Power Pack. Master height of machine is half of the maximum lifted height. The Stacker Carriage is lifted by hydraulic Cylinder, actuated by a gear pump with Motor. The electrical controls are simple design from the view point of maintenance. The Stacker Carriage is made from best quality of steel structure and to carry material and castor wheels used to move very easily in required directions.

Material : Mild Steel

Country of Origin : India

Battery Operated Hydraulic Lifting Trolley (Available Cap : UP to 500 Kgs, Lifted Heights Up to 750 mm) Battery Operated Hydraulic Lifting Trolley is extensively used for material handling purposes and first of its kind machine as it is Eco-friendly machine which runs on battery. Lifting & Lowering operations are done by DC power Pack and maneuver is done by manually. Salient Features Manufactured as cGMP Norms. The specialty of this product is the heavy duty Battery with DC Power pack and High lift. The Platform Carriage is lifted by hydraulic Cylinder, actuated by a gear pump. Push Buttons are provided for UP and DOWN operations. The electrical controls are simple design from the view point of maintenance. Platform Trolley is made from best quality of steel structure to carry different types of material and castor wheels are provided to move very easily in required directions. Load carrying capacity : up to 500Kg. Minimum Lift Height : 90 to 100 mm Maximum Lift Height : UP to 750 mm Finish: 180 Grid Matt polish.

Usage : Industrial

Country of Origin : India

Specialties : Shiny Look, Easy Operate
