Facade Access Machinery Andheri East, Mumbai, Maharashtra

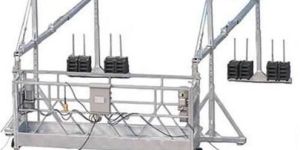

Leveraging on our vast knowledge of this realm, we are betrothed in presenting an optimal quality series of Suspended Cradle With Beta Jib.

Load Capacity : >250 kg

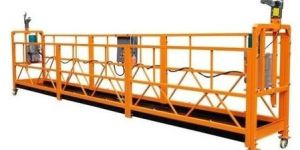

We are offering an extensive series of Suspended Cradle. These products are extremely employed in the market for diverse purposes. Other Details: The temporary suspended platform is available from 1.5 M Length to 09 M Length For Example : it can be made with 3 + 3 + 3 Meters. = 9 Meters or 2 +2 +2 = 6 Meters or 1.5 + 2 + 3 Meters = 6.5 Meters For 100 meters height. Payment 100% Advance

Type : Cradle

Material : Steel

Color : Grey

Feature : Easy To Use

Condition : New

Load Capacity : 200-300Kg, >250 Kg

Folding Style : Foldable

Country of Origin : India

Voltage : 440 volts

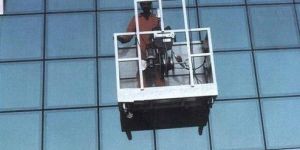

With the proficiency of this field, we are capable to present an extensive range of Single Strip Platform Cradle. Features: Easy to use Superior quality Used top quality material

Dear Sir,  The price of each bracket is Rs. 6500/-  For 70 nos brackets Rs. 455 000/-  Tax: 18% GST EXTRA.

Overall Dimensions : 400x125x10 MM

Height in Inches : 20 Inch

Brand Name : FAM

Material : Steel

Shape : Rectangular

Color : Silver

Packaging Type : Pallet

Surface Finishing : HDG

Warranty : 12 months

Country of Origin : India

Material Grade : ASTM

Mounting Type : Wall Mouting

Number of Holes : 4 Hole

Technics : Hot Dip Galvanized

Corrosion Resistance : Yes

Set Contains : 1 piece

Bracket Folded : No

Thickness : 10 MM

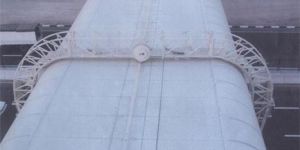

Gantary Ladder: The gantry ladder is made steel hollow section construction covered with aluminum Checkered plate. The width of the ladder is 600mm and required height to cover the glass area. The safe working load on the ladder is 100 kgs. The ladder will have electrical control panel for operation of the system by operator at one ends. Mono Rail Track Mono rail tracks are fitted from the suspended through building steel structure of the building. Tracks are supported with steel brackets, which are anchored to steel structure provided by main contractor. The profile of monorail track is contoured to suit the traversing trolley on which the Gantry Ladder is suspended. The track is positioned 300mm away from the facade to be cleaned. The brackets for Monorail are installed at every 1.5 M with special steel C profile. Guide Rail The guide railing for gantry ladder will be of galvanized steel pipe which will be anchored to the middle steel column of the elevation along the gantry ladder traversing path to guide the gantry ladder in the pre determined routing for access to the required elevations of the building. Stainless Steel Bottom Rail The bottom rail for the gantry ladder will be of stainless pipe which will be anchored to the slab concrete floor along the gantry ladder traversing path to guide the gantry ladder in the pre determined routing for access to the required elevations of the building. The rail is positioned 300mm away from the facade to be cleaned. The stainless steel brackets for bottom rail are installed at every 1.5 M. Traversing Trolley Traversing trolley which are electrically powered will traverse on the mono rail and will be operated by push button control in the gantry ladder. The trolleys will have guide wheels for holding on the mono rail tracks. This will have provision for fixing the gantry ladder. Brackets All the steel brackets are hot dip galvanized and fixed in such a way that it can facilitate leveled layout of monorail track for easy operation. Wheel Unit The Wheel Units are attached to the frame of the ladder wheel box and comprise a pivoted running gear for the ladder with flange fastened. Corrosion Protection All the structure and steel parts are hot dip galvanized. The Gantry Ladder painted in any RAL/NCS colour as required by Consultant/Client. Control System Two electric cabinet for operating the maintenance unit is installed on the ladder. Electric controls for all types of movements are dead man type press buttons. Every control elements is equipped with an emergency stop button and key operated switch. Control panels are installed in the ladder, length of cable is approx. 20mtrs. size 5x2.5mm² for max. movement of 25 mtrs. Safety Components Left end limit switch Right end limit switch Emergency switch Acoustic alarm on the ladder

Best suited for negative elevations and negative curve elevations (From -2mts to -3.5mts.) Features: Double Suspension Articulated Cradle to be suspended from the Roof BMU - (Building Maintenance Unit)

Country of Origin : India

Material : Steel

Feature : Comfortable, Easy To Use

Condition : New

Load Capacity : 200-300Kg

Certificate : ISO Certified

Size : 3500 MM

Brand Name : FAM

Frame Material : Steel

Load Capacity : 200-250 kg

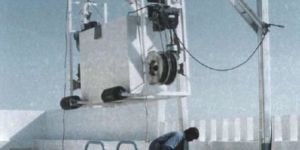

Features: Due to rich industry skill and experience, we have been accomplished to provide our valued customers the best quality range of Davit Syatem with Power Cradle. Top quality material used Quality tested Nominal costs

Building Maintenance Unit is used for the high rise building with maximum horizontal reach of the elivation and height of the parapet wall and building with 100meters high and above. It is running on the contract track as well as twin steel track of the building roof.

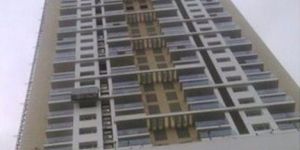

Building Fire Escape Cradle which is also Known as lowring device be used in case of fire in the buildings and to escape from the building fire this emegency Lowring Devcie cradle is used. We are engaged in offering Aerial Work Platform Cradle, which is extremely praised in the market.

Articulated Cradle used for cleaning of the glass in the recess of building facade and grinding polishing of the concrete wall for the power plant cooling tower. The length of the cradle is 4meter long.

Brand Name : FAM

Color : Grey

Condition : New

Voltage : 380V

Type : Power Plant

Country of Origin : India

Feature: Mono Rail is a single track system, the cradle is suspended directly below the track. The system is best where the roof is inaccessible or has a canopy The Mono rail incorporates trolleys that allowing the system to achieve remote control vertical and horizontal movement within the cradle The trolley for horizontal movement can be operated with an electric motor or Manually The track can follow the contours of any Building or Structure
