Finned Tubes Dealers in Mumbai

• Type: Copper Finned Tubes,Grooved Tubes,Outer Grooved Finned Tubes,Spiral Finned Tubes
• Material: Copper, Pure Copper
• Thickness: 0-5mm, 10-15mm, 15-20mm, 20-25mm, 5-10mm
• Certification: ISI Certified
• Length: 1-5Mtr, 10-15Mtr, 15-20Mtr, 5-10Mtr
• Application: Industrial
• Color: Brown
• Feature: Heat Resistance, Purity, High Durability,Tensile Strength And Resistivity To Adverse Conditions
• Condition: New
• Outer Diameter: 10-20mm, 20-30mm, 30-40mm, 40-50mm, 50-60mm, 60-70mm, 70-80mm, 80-90mm, 90-100mm
• Country of Origin: India
• Brand Name: Indigo
• Grade: SB 111 C 12200
• Structure: Pipes
• Place Of Origin: Umbergaon, Gujarat
• Applications: ACR,Heat Exchangers,Naval industry
• Specialty: Suitable to handle different materials,Resistant to abrasion,Hardwearing,Dimensional accuracy

We are one of the largest Wire Wound Fin Tube Manufacturers in India . Wire Wound Fin Tube is our star product becauseof its superior efficiency. It consists of wire loops wound that are Solder bonded to the external surface of a round tube.The variable density of wire loops allows for optimal thermal selection. With our flexible manufacturing process these tubeare now very cost effective for both small and large volume applications.

We are an esteemed manufacturer, exporter and supplier of Supreme quality Copper Alloy Fin Tubes from Mumbai, Maharashtra. We offer Low finned Tubes and Enhanced Surface Finned Tubes with 19 & 26 fins per inch respectively. The products comprises of alloys of Alloys Copper, Copper, Nickel 95/5, 90/10, 70/30 Admiralty Brass Aluminum Brass. Available with Quality Control Chemical analysis as per specifications, these Copper Alloy Fin tubes are used in Heat Exchangers, Condensers & Chillers Condensers and General Heat Exchanging Units. As one of the reputed suppliers of this industry, we undertake bulk orders also.

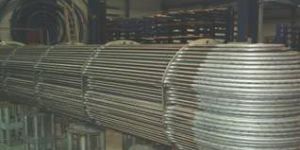

We are a prominent Manufacturers, Suppliers, and Exporters of Integral Finned Tubes. These Integral Finned Tubes come with superior dimension accurateness, sturdy construction, and fine finish. Integral Finned Tubes can improve the thermal performance of a heat exchanger without the changing shell size, flow arrangement or the repositioning of piping. We offer Integral Finned Tubes in different specifications to meet divergent demands of the clients.Integral Finned Tubes are suitable to be used in such applications where extended surface is required, but lack of space or heat exchanger type dictates otherwise. The external surface of the Integral Finned Tubes is enhanced by the formation of ''low fins'' by direct extrusion from the material of the base tube. Highlights : Smooth finish Accurate dimensions Sturdy construction Corrosion resistance surface Availability : Available materials are stainless steel (304L, 316L, 321(H), 304H, 310 etc.), duplex, copper alloys, nickel alloys, hastelloy and titanium Size range / Dimensions : Tube size : 12,7mm, 15,88mm, 19,05mm and 25,4mm Fins per inch : 16, 19, 26, 28, 30, 32, 36, 40 and 43 fins/inch dependant on material Qualities : Non-destructive eddy current examinationAir under water testingHydrostatic testing (with fluorescent dye)Fin profile examination at 50x magnificationDimensional & ring gage checks In specifying finned tubes you should advise : Number of finned tubes requiredOutside diameter of tubeTube thickness or thickness required under root of finLength of finned tubeNumber of fins per inchUnfinned endsSkipped portions and dimensions from one endMaterial of tube In specifying U-tubes you should advise : Tube diameter, thickness and materialStraight leg lengthCentre line radius (or diameter) and number off per rowWhether post bend heat treatment is requiredWhether hydraulic testing is required

• Size: 0-15mm
• Material: Metal
• Thickness: 0-5mm
• Application: Automobiles
• Color: Metallic
• Surface Finishing: Polished
• Feature: Accuracy Durable, Auto Reverse, Corrosion Resistance

Ours is one of the most respected names involved in the manufacturing, exporting and supplying of high quality Integral Finned Tubes. Made using high-grade raw materials, our Integral Finned Tubes are highly accredited for their optimum strength, dimensional accuracy, excellent finish, etc. Our Integral Finned Tubes are helpful in improving the thermal performance of heat exchangers without repositioning the pipes or changing shell size or flow arrangement. We make available these Integral Finned Tubes in different lengths and thicknesses. These are widely used in such applications where extended surface is required.   Highlights Smooth finish Accurate dimensions Sturdy construction Corrosion resistance surface. Availability : Available materials are stainless steel (304l, 316l, 321(h), 304h, 310, ), Duplex, Copper Alloys, Nickel alloys, Hastelloy and Titanium.Size range / Dimensions Tube size : 12,7mm, 15,88mm, 19,05mm and 25,4mm. Per inch : 16, 19, 26, 28, 30, 32, 36, 40 and 43 finsinch dependant on material Qualities Non-destructive eddy current examination. Air under water testing Hydrostatic testing (with fluorescent dye) Fin profile examination at 50x magnification Dimensional & ring gage checks In specifying finned tubes you should advise Number of finned tubes required Outside diameter of tube Tube thickness or thickness required under root of fin Length of finned tube Number of fins per inch Unfinned ends Skipped portions and dimensions from one end Material of tube   Norms - ASME pressure vessel code Sec.8, UG-8 and Div. 1 appendix 23 ASTM B891 : Standard Specification for Seamless and Welded Titanium and Titanium Alloy Condenser and Heat Exchanger Tubes With Integral Fins ASTM A1012 : Standard Specification for Seamless and Welded Ferritic, Austenitic and Duplex Alloy Steel Condenser And Heat Exchanger Tubes with Integral Fins ASTM B924 : Standard Specification for Seamless and Welded Nickel Alloy Condenser and Heat Exchanger Tubes With Integral Fins ASTM A498 : Standard Specification for Seamless and Welded Carbon, Ferritic and Austenitic Alloy Steel Heat Exchanger Tubes with Integral Fins ASTM B359 : Standard Specification for Copper and Copper-Alloy Seamless Condenser and Heat Exchanger Tubes With Integral Fins

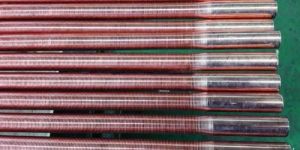

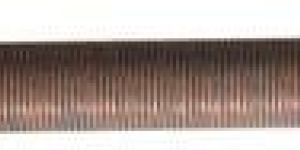

integrally finned tubes by low finning / integral fin tube: type low fin:integral low fin tube for use in situations where extended surface is required, but lack of space or heat exchanger type dictates otherwise.available materials are stainless steel (304l, 316l, 321(h), 304h, 310, …), duplex, copper alloys, nickel alloys, hastelloy and titaniumintegral low fin tube has the advantage that it can improve the thermal performance of a heat exchanger without the necessity for changing shell size, flow arrangement or the repositioning of piping. finned heat exchanger bundle the external surface of the tube is increased by the formation of ''low fins'' by direct extrusion from the material of the base tube.size range / dimensions:- tube size: 12,7mm, 15,88mm, 19,05mm and 25,4mm- fins per inch: 16, 19, 26, 28, 30, 32, 36, 40 and 43 fins/inch dependant on material quality test capabilities :- non-destructive eddy current examination- air under water testing- hydrostatic testing (with fluorescent dye)- fin profile examination at 50x magnification            - dimensional & ring gage checks . .

Copper finned tubes Instead of smooth tubes. The corrugation generates high turbulence in Media, Vastly enhancing Heat Transfer co-efficient for a given Reynolds number. Copper & Cupro Nickel Fin tubes offers more surface area compared to plain tubes& increases heat exchange capacity of the tubes. Fin tubes are manufactured as per the customer’s specific requirements. We have the skill & necessary know-how for the production of integrated fin tubes & can manufacture the same as per your requirements.

• Operating Temperature: up to 320°C (608°F)

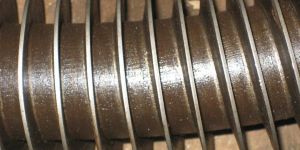

The L type fin is commonly known as L fin. This finned tube is basically identical to the Wrap-On fin and produced with a combination of Wrap-On and Embedded.The fins are manufactured from strip which is preformed into an accurately controlled L shape similar to the L type, rolled into a taper which causes it to curl. It is then continuously helically wound under tension onto the tube. The fin hugs the tube. The base tube is knurled by a rotating tool, then the foot of the fin is knurled into the knurling of the base tube providing a tight bond with increased thermal performance. Providing the correct fin strip is used the foot of one fin butts up against the next fin and there is no gap between the fins. This gives some corrosion protection to the tube. The fins are secured at each end to prevent unwinding in a similar way as L fins.

The method of attaching the fins over tube is of prime importance, since even a slightest air gap between the tube and fins will defeat the whole purpose of fins over the tube.Considering the above facts Heft has indigenously designed and developed a special purpose tube fining machine capable of producing following types of finned tubes.WOUND FINNED HEAT EXCHANGERS tubing used in the maintenance and manufacture of the air cooled heat exchangers, air heaters & other related heat exchangers.

• Features: Easy to fix, Low maintenance, Excellent performance, Long working life, Safe installations

We are offering finned tube.tubes for boiler and economiser, with ms/ss fins attached, ibr approved.

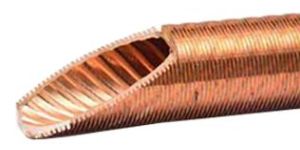

Tube Tech manufactures internally finned tubes / internally enhanced tubes with plain outer diameter and 50 to 70 internal ridges as per the requirement of the Customer for Direct Expansion Shell and Tube Liquid Coolers. These inner grooved tubes are also called Dx Tubes Or Evaporator Tubes. These internally enhanced fin tubes are designed to provide maximum heat transfer with minimum refrigerant side pressure drop. The inside heat transfer coefficient of these tubes is generally 2 to 3 times greater than coefficient for smooth surface tubes. These internally finned tubes are available in tube materials Copper UNS C 12200 & 90/10 Cupro Nickel UNS C 70600.   Internally Finned tubes with wall thickness and internal ridge density other than mentioned above can be produced on request. Internally Finned tubes are produced in straight length up to 6 Meters. Bigger lengths can be accommodated on request.

• Material: Mild Steel
• Country of Origin: Made in India
• Part Type: Exchanger Element
• Frame Type: Steel
• Usage/Application: HVAC industry
• Type: External Finned Tubes
• Exchanger Type: Air Cooled

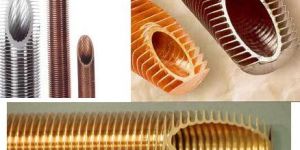

Copper Fin Tubes are produced using high quality copper alloy. These Copper Fin Tubes are offered in different dimensions as per the client’s specifications. We are a premier Manufacturer and Exporter of Copper Fin Tubes from India. Advantages : High flexibilityConsumes less energyEasy to installEasy joining Used in : Air conditioningRefrigerationFluid distributionAir pressure linesPlumbing Technical Specifications: Finned Tubes -Intergroove Integrally Finned TubesNo. of startsTriple startNo. of fins/ inch19 & 26Type of finLow & highPlacement of finsOD or ID or OD + IDDia19.05mm & 15.77mmWall 16SWG, 17SWG, 17.5SWG & 18SWGLength6 MTRSLandsAs per customer needs

We have our fining capacity for manufacture of “L” and “G” fined tubes of upto 40 ft long. Aluminium fins are mechanically bonded to tubes provides more surface area for heat transfer. Aluminium has low cost, less weight & good thermal conductivity compared to other metals hence now a days these tubes are taking place of conventional copper finned tubes. For more details contact us:- Enginemates Heat Transfer Pvt Ltd. Contact:- 91 22 25919293/94/95

• Type: Fin Tube
• Certification: "U"and R"Stamps, TUV Stamp
• Packaging Details: Wooden Packing , Crate Packing
• Supply Ability: Custom Built
• Brand Name: EMHT
