Flow Indicator Totaliser Dealers in Mumbai

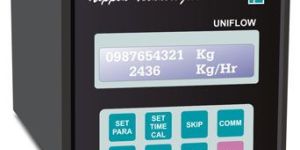

"NIPPO FLOW" series is designed with help of State-of-art micro controllers. The instruments can measure Flow accurately, it accepts signals, from FLOW TRANSMITTERS and calculates flow rate and also integrates the same. The 4 digit indicator displays the instantaneous flow rate and 10 digit counter displays TOTAL FLOW.   Linear or Square Root Operation Possible. 5/4 Digits Flow Rate. 10/8 Digits Flow Totaliser. Precise Measurement. 10 Years Memory. RS 232/RS 485 Interface with MODBUS. At Affordable Prices.

• User Selectable DC Linear Inputs : mA/mV/V • 5 Digits Bright Red LED Display for Flow Rate Indication & 2X16 Character LCD Display for Totalize • Programmable Time Base, Range & Resolution • 2 Programable Alarms for Flow Rate & Totalizer Each • Optional Retransmission Output (0/4-20 mA) • 2 Excitation Voltage for Transmitters • Optional Relay Output for Flow Batch Control • Optional RS485 MODBUS/RTU Serial Communication Port • DIN Standard Dimensions (mm) : 96(H) X 96(W) X 100(D)

• Display: 4 digit, 0.5” Red LED for Flow Rate & 8 digit, 0.3”
• Model: FJ
• Accuracy:  Better than + 0.25% of F. S.
• Retransmission:  NIL
• Range: : Programmable (0 to 9999)

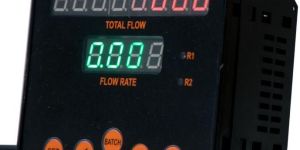

Series FJ/A is micro-controller based flow indicator totaliser designed for various industrial applications. These can be used for indication & totalisation of flow. The input can be processed linearly or square rooted. The built-in battery back-up is provided for the memory to avoid loss of data in case of power failure. The micro-controller based design provides full flexibility for flow metering applications. Features : Indication through LED Input selectable as linear / square root. Normal / Batch mode for operation. Averaging of inputs for turbulent flow. Programmable low flow cut-off.
