Flow Meter Dealers in Mumbai

Orifice Plate with holding flanges nut bolts and gaskets are called orifice assembly. Flanges generally are of M.S. C.S.304 S.S. 316 S.S., nut bolts M.S. Galvanized, Gasket C.A.F. Other construction is possible & will be made against order. Flanges generally are of 4 types a) Weld Neck b) Slip-on c) Carrier Ring d) D & D2 tappings or pipe run assembly.

• Size: 20 to 150 NB
• Body: Polypropylene
• Glass: Toughened borosil glass
• Seat: PTFE
• Ends: Flanged end

We are offered by PP Flow Indicator valves flange ends are made using high quality PP, PVDF material and neoprene rubber. Known for their stress tolerance and surface hardness, these are designed in compliance with ANSI, BS and DIN standards.

Ajinkya Electronic Systems are manufacturer, exporter, supplier of Flow Indicators used for measurement of physical quantities like flow of liquid as well as gas. The unit has 6 digit display with provision of programmable multiplying constant to provide totalized output throughout the process. The Entire flow process can be monitored and information can be logged to the PC through Optional RS232 RS485 Ethernet Modbus Interface for further use. Retransmission output 4-20mA or 0-10 V is optional.

• Material: As required
• Display: Digital
• Packaging Type: Relevent
• Accuracy: High
• Electronics Enclosure: Yes
• Frequency: 50HZ
• Voltage: 230vac
• Color: Grey
• Storage Temperature: 100 degree
• Usage/Application: Flow mesurement
• Brand: Fuji
• Flow Media Type: Liquid
• Flow Range: As per requirement
• Power Supply: 24VAC/230VAC or battery
• Size: mm
• Ingress Protection: IP67
• Standards: CE
• Response Time: High
• Consumption: AC or dc power
• Keypad: Yes
• Memory: Yes

The ashe mx-465 is a micro-controller based digital flow rate subtractor with indication and totalizer functions offered in a highly compact, rugged and reliable execution. This instrument is primarily used in applications where fluid consumption by a machine over a specific time period needs to be measured.

DMF Series Accurate and Reliable Mass Flow Measurement Measuring Principle Coriolis Mass Flowmeter is designed according to the principle of Coriolis force. It has two parallel vibrating tubes. During the operation, a driver stimulates the tubes to vibrate at a resonant frequency of the system. As the flow passes through the tubes, the fluid momentum coupled with the oscillatory motion created by the vibration induces a Coriolis force along the length of the tubes. This force causes the tubes to twist in opposition to each other and translates into a phase shift (or time delay) along the length of the tube. Phase Shift is directly proportional to the Mass Flow Rate, while Density can be measured based on the frequency.   Product Features: Dual Symmetric Differential Structure High Sensitive High Range Ration Non Linear Vibration Suppression Technology Smooth Flow Designed for Anti0interference Classic U-Shape Tube designed for High Sensitivity All touch screen operation. The inner technical parameter can be modified by the touch screen. The Large V shape Design, with high stability, and the pressure loss is low. Balance Matching Technology of the dynamic vibration improve the system stability Accurate Controlling, Specialized for the loading and unloading batch controlling occasions.   Technical Specification: Nominal Diameter (mm) 15 – 300 Temperature Measurement Integral: -50°C to +125°C Remote: -50°C to +200°C High Temp. Remote: -50°C to +300°C Accuracy Standard: 0.5% Optional: 0.2% / 0.1% Process Connection Flanges according to DIN / ANSI / JIS Nominal Pressure (bar) 16 25 40 63 (250 bar is available upon request) Protection Class (Enclosure) IP67 Power Supply 18 - 36 VDC / 85 - 265 VAC Signal Output Standard: 4-20mA, Pulse Output, RS485 (Modbus) Optional: HART Protocol Power Consumption <15W

• Fluid:: Liquids
• Sp. Gravity: Up to 2.95
• Viscosity: Up to 3000 cp
• Design Pressure: Up to 15 Kg/cm2
• Measuring Range: 0.1 to 350M3/hr
• Velocity Range: 0.5m/s to 10m/s

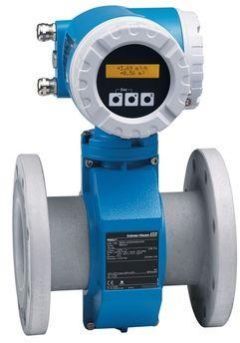

Process Control Devices offers a series of digital flow meters. Design to measures the flow rate of a liquid flowing through the close pipe. The electromagnetic flow meter is volumetric flow meter having no obstruction as there are no moving parts. Hence pressure drop is negligible. The performance is independent of density, viscosity, temperature, and pressure of the flowing liquid. The magnetic flow meter is calibrate using water and can measure the flow of other conductive fluids, with no further correction. This is a special feature that other type of flow meters doesn’t have. PCD is one of the leading Electromagnetic flow meter manufacturers in Mumbai India.   Working Principle of Electromagnetic Flow Meter   Electromagnetic flow meters work on the principle of “Faraday’s Law of electromagnetic induction”. According to the law, “when a conductive liquid cut the magnetic field, voltage Induce”. Further, that voltage signal is sensed by the electrode which is mounted on the wall of the flow tube. That induce voltage signal is process by the electronic transmitter to determine the flow. The generation of voltage is directly proportional to the velocity of the fluid.     Construction of Electromagnetic Flow Meter Electronic Part consists of head type Flow Indicator which contains Microprocessor Controller chip mounted on the electronic circuit. It has the LCD display, Which shows the Current flow rate & Total commutative flow. Also, has a transmission feature of 4-20 mA output & RS 485 Communication with High & Low Flow Alarm. To operate it requires an external power supply of 24 VDC or 230 VAC.   The mechanical part consists of Flow Tube, Lining such as of PTFE Or Neoprene, Electrode, Magnetic Coil, Flange connection. Flow Tube Material is non-wetted part and should be of the nonmagnetic material such as SS 304 Or SS 316. Selection of Lining Material must be according to temperature, corrosive property & compatibility of the measured fluid. Neoprene can resist general weak acid, alkaline corrosion and can withstand temperature unto 80ËšC, but it has wear resistance. As PTFE (Teflon) has low wear resistance and have good compatibility to almost all strong acid, chemical, alkaline corrosion, ETP Water, Waste Slurry. And can withstand temperature up to 180ËšC. Selection of Electrode Material must be according to corrosiveness of measured fluid.   Mechanical Specification Line Size: 15 NB to 300 NB Lining Material: PTFE, EPDM, NEOPRENE Electrode Material: SS316,  Hastelloy C, Titanium, Monel Design Temperature: Up to 150 DegC Connection: Flanged to ASA, BS, DIN   Electronics Specifications Programming: By Membrane Key Power Supply: 24 VDC Isolated, 230 VAC, 110VAC Out Puts: 4-20mA, 4wire, Pulse, Communication : RS 485 MODBUS Accuracy: ± 1% of FSD & ± 0.5% on request Linearity: +/- 0.5 % Repeatability: 0.5%   Silent Features Total / accumulated total / flow rate Auto empty-full pipe check Ultrafast response time 4-20mA and pulse output high and low alarm (2-relay output) Modbus (RS485) Can handle slurries and heavy particulates Good accuracy (0.5 to 1%) Can respond well to fast changing flows Insensitivity to viscosity, specific gravity, temperature and pressure (within certain limitations) Will work with laminar, turbulent, and transitional flows Virtually no pressure drop No moving parts Lining protectors available for harsh, chemically corrosive, and abrasive fluids Can respond well to fast changing flows

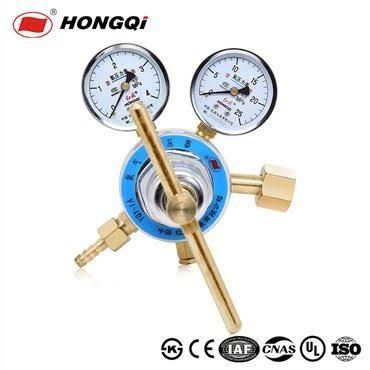

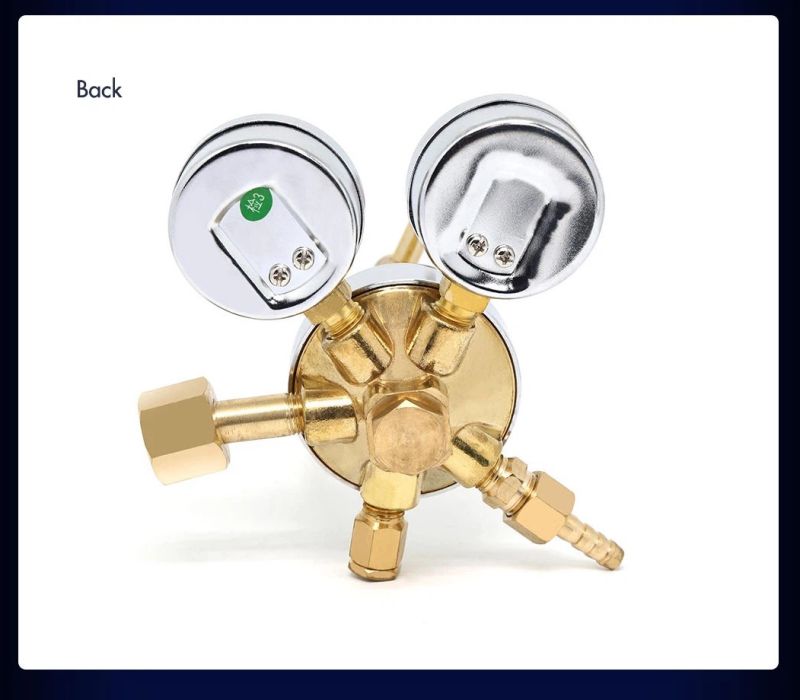

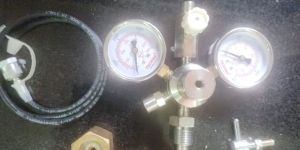

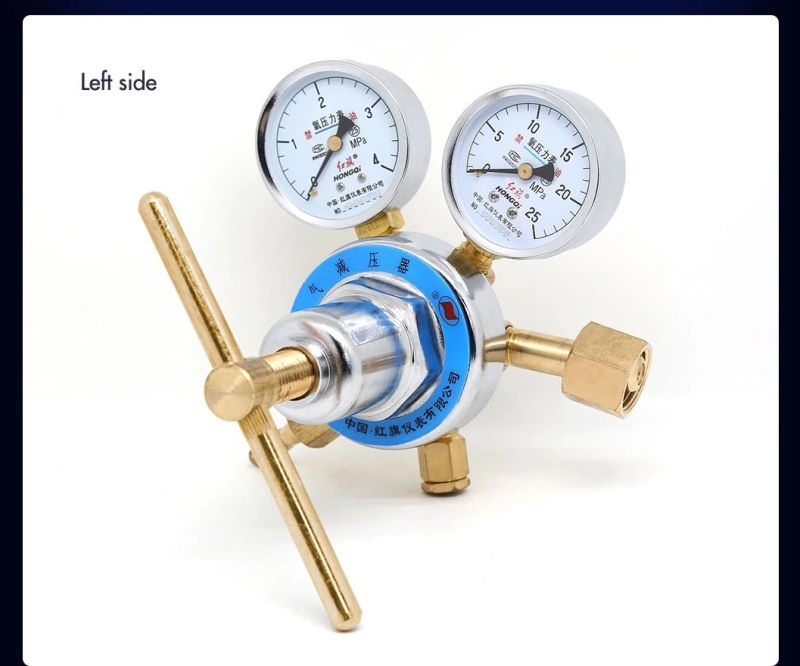

Applicable gas                      :Oxygen Max.Inlet pressure (kg/cm2)  :150 Max.Outlet pressure (kg/cm2) : 12.5 Rate of flow (m3/h)                : 40 Inlet connection                     : G5/8″ Outlet connection                   : G3/8″

• Feature: Constant gas flow , Accurate pressure setting,No gas leakage, Safe & secure, Safety relief valve provide .
• Material:  Die forged brass body
• MODEL NO:  NSS-GPR-2217
• Product Category: Industrial Regulators
• Suitable :  for all industrial purposes i.e. welding, cutting, heating, brazing

The Emitter Flow Rate Variation Tester is designed to determine the mechanical and functional requirments of irrigation emitters, and the data to be supplied by the manufacturer to permit correct installation and operation in the field. The appartus confirms toIS-13487 : 1992 standard.It applies to emitters, with or without pressure regulation, intended for irrigation; It does not apply to emitters which form an integral part of the pipe during manufactur as well as microtubes.

• Brand Name: All Make
• Model Number: ALL
• Packaging Details: WOODEN & STANDARD
• FLOWMETER: 0.4-6lack
