Flow Tester Dealers in Mumbai

The melt flow tester, built according to International standards, is an instrument for measuring with great accuracy the "Melt Flow Rate" and useful for quality control test on flow ability, grading of thermoplastic material according to flow In general, useful for predicting adequacy of thermal stability case of processing and quality of molding

• Certification: ISO 9001:2008 Certified
• Condition: New
• Frequency: Flow Reading
• Automatic Grade: Automatic
• Feature: Easy To Use
• Feature: Strong Construction, Minimal Maintenance, Optimum Functionality
• Use: Used for Evaluating the Flow Properties of Molten Plastics
• Quality: Optimum Quality

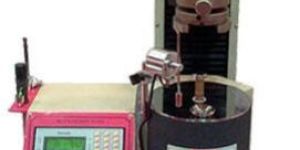

We offer a wide range of Melt Flow Index Tester widely used to determine the melt flow index of plastic material. This system is structured with a heated extruder tube, an interchangeable jet and a piston with dead weights. This piston is used to apply the required pressure on the material inside the carbon steel extruder tube. A Bend Heater is affixed around outer circumference of the extruder tube and is used as an effective heating material. This heater is covered with a mineral wool insulation. The extruder tube is installed with a PID controller to indicate & control the temperature. Manufactured in accordance to the ASTM D 1238 & equivalent standards, this range of testers is available in various models with different parameters.Construction of the metal flow index tester: The assembly is fixed on a rigid stand. The bottom of the tube is lagged with an insulation of PTFE to prevent sticking of the extrudate The jet through which the extruder is pushed out is made from hardened and ground die steel The piston made from silver steel relieved at the upper end is provided to push the extrudate out of the jet. The piston moves inside the cavity of tube. A sleeve to provide to guide the relieved portion of the piston The plate-form is thermally insulated from the load. The extruder tube assembly is mounted on a metal box. A sheet metal control panel is mounted on the side of the equipment & houses the PID Controller, digital preset timer & other electronic components. Cleaning tools for tube cavity, jets, stoppers and cutters for the extrudate are also available with the equipment. The top of the piston carries a plate-form for keeping the load on.

• Features: Provides simple, repeatable flowability index of powders and granules, Easy calculation of angle of repose .
• Outflow Openings: 10 mm, 15 mm and 25 mm as per Ph. Eur.
• Customized openings: 5 mm, 10 mm, 15 mm etc. are also available

Quick and easy powder flow analysis is now possible with the Powder Flow Tester provided by us. Whether you need to predict powder flow in R & D for new formulations, or perform a QC check on incoming materials and final products, the Powder Flow Tester offered is best in terms of both quality and pricing. We have established a track record for supplying top quality Powder Flow Testers.

• Country of Origin: India
• Type: Flow Tester
• Material: 50hz
• Certification: NABL CERTIFIED
• Color: Green, Kangaroo Green And White
• Feature: Easy To Use, Electrical Porcelain, Four Times Stronger, Proper Working, Superior Finish
• Condition: New
• Frequency: 50 Hz
• Automatic Grade: Semi Automatic
• Power Source: Electric
• Operating Current: Single Phase
• Warrenty: 1year
• Temperature Capacity: High Temperature
• Brand Name: IDEAL LAB
• Power: 2-4 Hp
• Application: Polymer Testing
• Display Type: Digital
• Grade: Automatic
• Model: AUTO
• Size: Standard
• Resolution: 0.1 degree C
• Voltage: 220 V
• Phase: Phase

Description :- Flow Testers are used to conduct accelerated stress tests of multiple components or systems of automobiles during simultaneous exposure to thermal cycling and vibration. The equipment is mainly used to perform flow tests on engine and chassis components if an automobile. The engine coolant pressure of automobiles is also measured using flow tester. Salient Features: The test method involves pressure cycle and flow testing of a chilled or heated engine coolant mixture. This is accomplished by passing the coolant mixture through radiators, hoses, heater cores and overflow recovery tanks. The equipment also requires environmental chambers and vibration controllers as an interface for synchronization to other machines. Pump cavity of coolant mixture at high temperature is accomplished by pump selection; pump and plumbing; and suction pressure and relative mounting locations of reservoir.

• Temperature Range: 0 to 400°C

The 6MPCA is the most advanced model offered within the Ray-Ran Range of Melt Flow indexers. The operating procedure is very simple to undertake using its on board advanced microprocessor technology. the large liquid crystal display (LCD) provides simple on screen instructions reducing user error and the test parameters are easily entered via the alpha numeric membrane keypad. The apparatus can accurately determine results for MFR, MVR and Density at test temperature.

• Feature: Easy calculation of angle of repose, Outflow Openings - 10 mm, 15 mm and 25 mm, Customized openings – 5 mm, 10 mm, 15 mm, Provides simple, repeatable flowability index of powders and granules

We offer a wide range of Melt Flow Index Tester widely used to determine the melt flow index of plastic material. This system is structured with a heated extruder tube, an interchangeable jet and a piston with dead weights. This piston is used to apply the required pressure on the material inside the carbon steel extruder tube.

Specification: Microcontroller with alpha numeric key pad having built-in temperature controller with temperature range up to 400 degree centigrade, resolution of 0.1 degree Centigrade and accuracy of +/- 0.1 degree Centigrade similarly built-in timer with range 999.9 seconds. Piston Travel: Up to 25 mm & resolution of 0.02 mm. Specimen cutting: Motorized. Specimen Weighing: Automatic up to 60 gm and resolution of 1 mg. Weight: 0.325 kg, 1.2 kg, 2.16 kg, 3.8 kg, 5 kg & 21.6 kg hard chrome plated weights. Digital Display: Individual MFI, MVR, Melt Density results & average results. PC output: Through serial port with Window 7 compatible software. Accessories: Standard accessories*. Paint: Powder Coated. Power Supply: 230 Volts, 50 Hz, Single Phase.

• Power: 230 Volts, 50 Hz, single phase.
• Timer: Digital presettable with a range up to 999 seconds and having buzzer output.
• Sample cutting: Manual.
• Weights: 2.16 kg & 5 kg.
• Accessories: Standard accessories*.
• Paint: Powder coated.

Computerized Melt flow index tester As per ASTM D 1238 & ISO 1133 – (Test Method A & B) to check the melt flow rate (MFR) & melt volume rate (MVR) of thermoplastics and compounds with automatic result.

Flow Testers are used to conduct accelerated stress tests of multiple components or systems of automobiles during simultaneous exposure to thermal cycling and vibration. The equipment is mainly used to perform flow tests on engine and chassis components if an automobile. The engine coolant pressure of automobiles is also measured using flow tester. Salient Features: The test method involves pressure cycle and flow testing of a chilled or heated engine coolant mixture. This is accomplished by passing the coolant mixture through radiators, hoses, heater cores and overflow recovery tanks. The equipment also requires environmental chambers and vibration controllers as an interface for synchronization to other machines. Pump cavity of coolant mixture at high temperature is accomplished by pump selection; pump and plumbing; and suction pressure and relative mounting locations of reservoir.

As per ASTM D 1238 & ISO 1133 – (Test Method A & B) to check the melt flow rate (MFR) & melt volume rate (MVR) of thermoplastics and compounds with automatic result. Specification: Microcontroller with alpha numeric key pad having built-in temperature controller with temperature range up to 400 degree centigrade, resolution of 0.1 degree Centigrade and accuracy of +/- 0.1 degree Centigrade similarly built-in timer with range 999.9 seconds. Piston Travel: Up to 25 mm & resolution of 0.02 mm. Specimen cutting: Motorized. Specimen Weighing: Automatic up to 60 gm and resolution of 1 mg. Weight: 0.325 kg, 1.2 kg, 2.16 kg, 3.8 kg, 5 kg & 21.6 kg hard chrome plated weights. Digital Display: Individual MFI, MVR, Melt Density results & average results. PC output: Through serial port with Window 7 compatible software. Accessories: Standard accessories*. Paint: Powder Coated. Power Supply: 230 Volts, 50 Hz, Single Phase.
