Flue Gas Analyzer Dealers in Mumbai

• Features: 5.7" QVGA TFT Touch Screen Display Unit measurement in ppm and mg/m3 18 user selectable fuels & 2 programmable fuels Long life electrochemical sensors

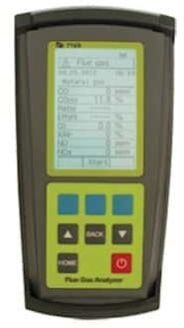

The The BI 2013 Series Bhoomi 210PV Flue Gas Analyzer measures oxygen, carbon monoxide, flue gas and ambient temperature in addition to pressure and velocity. The temperature sensor is integrated into flue gas sample probe. Diaphragm pump with high suction capacity is used for extraction of flue gas. Long life electrochemical sensors with low zero and span drift are used for stable readings.

• Type: Portable Gas Analyzer
• Application: Combustion Gas Anlysis, Flue Gas Analysis, COMBUSTION GAS ANLYZERS
• Weight: 0-5kg
• Color: Creamy
• Feature: Accuracy, Easy To Carry, Highly Competitive, Light Weight, Low Battery Consumption
• Condition: New
• Driven Type: Battery
• Detected gas: CO, DERIVED CO2, NOx, O2, SO2
• Automation Grade: Seni Automatic
• Voltge: 9-12VDC
• Country of Origin: India
• Brand Name: BHOOMI
• Model Number: PFGA BHOOMI 120
• Place of Origin: MUMBAI
• Power: BATTERY OPERATED

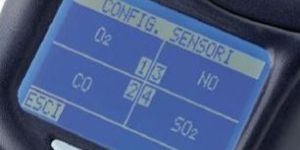

The company is one of the leading Manufacturers and Suppliers of Flue Gas Analyzer (Chemist) in Mumbai. The Flue Gas Analyzer (Chemist), offered by the company, is studded with numerous attractive features that not only enhances its performance but also makes it a widely popular product among the clients. Up To 4 Gas Sensors For Measurement Of O2CO (H2 compensated)NONO2SO2 Flue Gas Analyzer (Chemist) Also Measures Flue gas TemperatureOutdoor air temperatureRoom temperatureDifferential temperatureDraft and differential pressureAmbient CO and NO Values Calculated By Flue Gas Analyzer (Chemist) CO2NOXBoiler efficiencyExcess airHeat stack loss Features Of Flue Gas Analyzer (Chemist) Compliant with EN 50379-1Up to 4 measurement cells : O2, COH2, NO, NO2 and SO2CO measurement cell with 1 PPM resolution and built in NOXSOX filterPre-calibrated gas sensors, field replaceableFlue gas and outdoor air temperature measurementDraft and differential pressure measurementBoiler efficiency calculationAutomatic detection of condensing boiler with efficiency calculationCO2, heat stack loss, excess air calculationAmbient CO and NO measurementGas pipe tightness testHigh accuracy (± 0.5 Pa) and resolution (0.1 Pa) draft measurement with external accessory3 consecutive analyses with average calculation and result printoutBuilt in impact printer on plain paper (non thermal)Internal memory for 300 analysesBig blue (42 × 60 mm) graphic LCD backlit with zoom featureRechargeable Lithium Ion batteriesExternal ChargerPower Supply with AC plugRecharging time : 2 hours up to 90%Up to 15 hours autonomy of continuous operation (no printouts)Up to 40 analysis autonomy (with printouts)Additional dilution pump for CO cell auto range, measurement up to 50,000 PPMAutomatic auto-zero with sampling probe in the stackPC software on USB pen drive and USB cable for unlimited data storage on PCOptional Bluetooth communicationSelf diagnostic function with alarms on gas sensors end-of-life180, 300, 750 mm flue gas sensor probes220 mm flexible flue gas sensors sampling probeExternal condensation trap and dust filterUnbreakable stainless steel probe and hose connections7 preprogrammed fuels, including pellets and wood9 additional programmable fuels7 different languages preprogrammedNeoprene magnetic holsterUser manual and calibration certificateDimensions : 307 × 105 × 96 mmWeight : 1.1 Kg. Additional Features Of Flue Gas Analyzer (Chemist) Gas piping tightness testHigh accuracy draft measurementFirmware updates available for free Range Available CHEMIST 400N (O2, COH2, NO, NO2) with built in impact printer, rechargeable Li-Ion batteries and dilution pumpCHEMIST 400S (O2, COH2, NO, SO2) with built in impact printer, rechargeable Li-Ion batteries and dilution pumpBoth Kits feature also: hard ABS case, power supply with plug, 300 mm flue gas sampling probe with 3 meters hose, water trap with dust filter, Pt 100 outdoor air temperature sensor, differential pressure kit, neoprene holster with magnets, printer paper roll, USB pen drive with software, USB PC connection cable, user manual and calibration certificate Warranty Chemist Analyzers offer 2 years warranty, including gas measurement cells which can be easily replaced by the userWith initial extra price it is possible to lengthen warranty term of 1 or 2 years, up to maximum of 4 years Calibration Certificate Chemist Analyzers are supplied with calibration certificate, 1 year validityCustomer may buy calibration certificates in each following year

• Country of Origin: India
• Certification: CE Certified, ISO 9001:2008
• Application: Combustion Gas Anlysis, Flue Gas Analysis
• Weight: 20-40kg
• Feature: Accuracy, Digital Display, Highly Competitive, Easy Installation & Maintenance
• Detected gas: CO, DERIVED CO2, NOx, O2, SO2
• Automation Grade: Automatic
• Ambient Temp: 0-50°C
• Output: 4-20mA + RS485 + Common Relay
• Alarms: Two Level (selectable range)
• Power Supply: 230VAC

• Driven Type: Battery
• Automation Grade: Manual

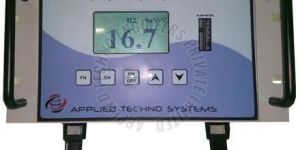

We are offering portable flue gas analyzer. sturdy stainless steel sampling probe with extension tubing for ease of measurement. Thermocouple in the tip of probe measures temperature at point of sampling to minimize error. Time tested high suction inbuilt sampling pump acts against draft. Supervisory circuit continuously monitors it against failure. Inline filter to inbuilt moisture & dust, disposable easy to replace filter element. Supervisory diagnostic circuit continuously checks it against choking. Retains the readings till the next sampling. Compact aluminum housing rechargeable ni-cad battery pack with charger. Maintenance & spare parts : designed for free maintenance operation. Long life sensor. Combustion efficiency is determined by oxygen content and temperature of fuel gases. An excess air (oxygen) condition reduces the efficiency as it carries away the heat while a deficient air (oxygen) produces an incomplete I combustion with consequent higher costs and increased polluting emissions.

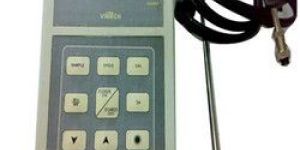

The Versatile Model 1207A Handheld Flue Gas Combustion Analyzer makes adjusting boilers for optimum efficiency quicker and easier. With the large LCD display, users can monitor four parameters simultaneously and change the parameters shown using the rotary dial selection switch. For extra protection, the analyzer comes standard with a protective boot and magnetic back. In order to track the measurements, the 1207A can store up to 255 time stamped test sets in memory and can output measurements to a serial printer. The 1207A comes preprogrammed for Natural Gas, Light Oil, Propane, Butane, LPG, and Wood Pellets. Along with analyzing combustion measurements, the analyzer can be used as a COCO2 indicator, pressure manometer, or thermocouple thermometer.

• Application: Industrial Use
• Brand Name: VINTECH

• Features: Pump driven for fast response times, Data logging with time stamp, Built-in differential thermometer, Gas inlet ports allow manometer measurements.

• Type: Gas Analyzers
• Certification: CE Certified, ISO 9001:2008
• Application: Combustion Gas Anlysis, Flue Gas Analysis
• Weight: 0-5kg
• Feature: Accuracy, Battery Indicator, Digital Display, Highly Competitive, Light Weight
• Condition: New
• Driven Type: Battery
• Detected gas: CO, DERIVED CO2, O2, SO2
• Automation Grade: Automatic
• Voltge: 6-9VDC
• Material: Electronics
