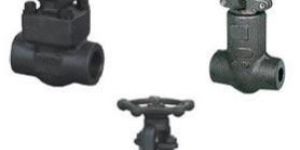

Forged Steel Gate Valve
Get Price Quote
Avail from us the forged steel gate valve ideal to be used in high pressure or high temperature pipe lines. We make available the forged steel gate valve in different sizes, class, valve seat and testing standards. Specific design, easy installation and precise dimension best define the forged steel gate valves we offer.
construction is as followsbolted bonnet with spiral wound gasket, threaded and seal welded bonnet or threaded and pressure seal bonnetintegral backseatfull port or conventional portoutside screw and yode (os&y)two piece self-aligning packing glandsocket weld ends to ansi b16.11screwed ends(npt) to ansi/asme b1.20.1forged steel gate valves:size : 1/4"-2" (8-50mm)type : threaded, socket weld & flangedstandard : asme class 800, 1500, 2500flanged asme classes : 150, 300, 600, 1500
